Can You 3D Print Jewelry: A Guide So, can you 3D print jewelry? The short answer is yes. But "3D-printed jewelry" can mean very different things. It might refer to a finished piece made directly from plastic or resin, a detailed prototype for a client to try on, or a castable pattern used to create the final piece in gold, silver, or platinum.

The quality of your final product depends on a series of critical choices: the digital design file, the printer technology, the material, and the post-processing workflow. For precious-metal jewelry, the casting process is just as important as the print itself.

This guide provides decision-focused advice for jewelers and designers. We'll walk through how to 3D print jewelry, which methods fit different goals, what equipment is required, and how to avoid common, costly failures.

Key Takeaways

  • 3D printing can produce finished fashion jewelry, design prototypes, or castable patterns for metals like gold, silver, and platinum.
  • High-resolution resin systems (SLA, DLP, MJP) are better suited for detailed jewelry patterns than standard FDM (filament) printers.
  • Standard modeling resin is not suitable for investment casting; you must use a material specifically documented for clean burnout.
  • Directly printing in metal is possible but requires specialized industrial equipment and tightly controlled processes.
  • Beginners can design and prototype independently while outsourcing printing, casting, and finishing to professional services.

How to 3D Print Jewelry

Professional-quality 3D printed jewelry follows four stages: design, material and printer selection, print setup, and finishing. An early mistake in geometry or material choice usually shows up in the final piece.

Step 1: Create and Validate the Digital Jewelry Design

Start in jewelry-focused CAD and build for how the piece will be made.

  • Set ring size, wall thickness, prong geometry, and stone-setting clearances before you export
  • Use different geometry for direct-wear resin pieces than for patterns meant for investment casting
  • Inspect for non-manifold edges, paper-thin walls, unsupported sections, and details below your printer’s minimum feature size
  • Export STL or 3MF for the slicer, and keep an editable master file for prototype revisions

Step 2: Select the Printer Technology and Material

Match the machine and material to the end use—prototype, fashion piece, or cast metal.

  • Choose SLA, DLP, or MJP for fine detail and casting patterns; reserve FDM for larger, less delicate fashion prototypes
  • Treat direct metal printing as its own industrial path, separate from resin pattern workflows
  • Use standard modeling resin or filament for prototypes; switch to castable wax or castable resin for lost-wax metal jewelry
  • Prefer materials built for foundry fit and clean burnout (for example, 100% wax such as VisiJet M2 ICast or castable resin such as Figure 4 JCAST-GRN 10)
  • Confirm dimensional accuracy, minimum feature size, cure needs, and burnout specs—0.0–0.1% ash content is a different class of material than standard modeling resin
  • Follow ventilation, PPE, and waste rules for resins, liquids, and powders

Suppliers such as CAD BLU stock jewelry-oriented printers and castable materials and can help align resin choice with your casting schedule.

Step 3: Prepare the File and Print

In the slicer, turn the CAD file into printer-ready toolpaths.

  • Orient the part to shield show surfaces from support marks, aid resin drainage, and protect fine detail
  • Place supports only where needed, on less visible areas, and clear of stone seats; MicroPoint-style tips (as on systems like the Figure 4 Jewelry) speed removal and cut polish time
  • Set layer height, exposure, and related parameters per the printer and material docs—25–30 microns is typical for fine jewelry
  • Print a small test piece before any new design, material, or orientation goes to a full batch

Step 4: Post-Process, Inspect, and Finish

Printing is only half the job. Finish steps differ for castable patterns and direct-wear resin.

  1. Clean and cure: Remove the part, wash per the material instructions (often isopropyl alcohol), dry, then take off supports. UV post-cure most resins; skip post-cure for 100% wax patterns.
  2. Inspect: Check for warping, cracks, support scars, and uncured spots, and compare key dimensions to the CAD model before you continue.
  3. Sprue and invest (casting only): Attach wax sprues, mount patterns on a tree, set the tree in a flask, and pour jewelry-grade investment.
  4. Burn out and cast: Kiln burnout (often several hours) hardens the investment and removes the pattern, leaving a cavity for molten metal.
  5. Finish metal: Break away investment, cut the piece from the tree, then grind, polish, and set stones.

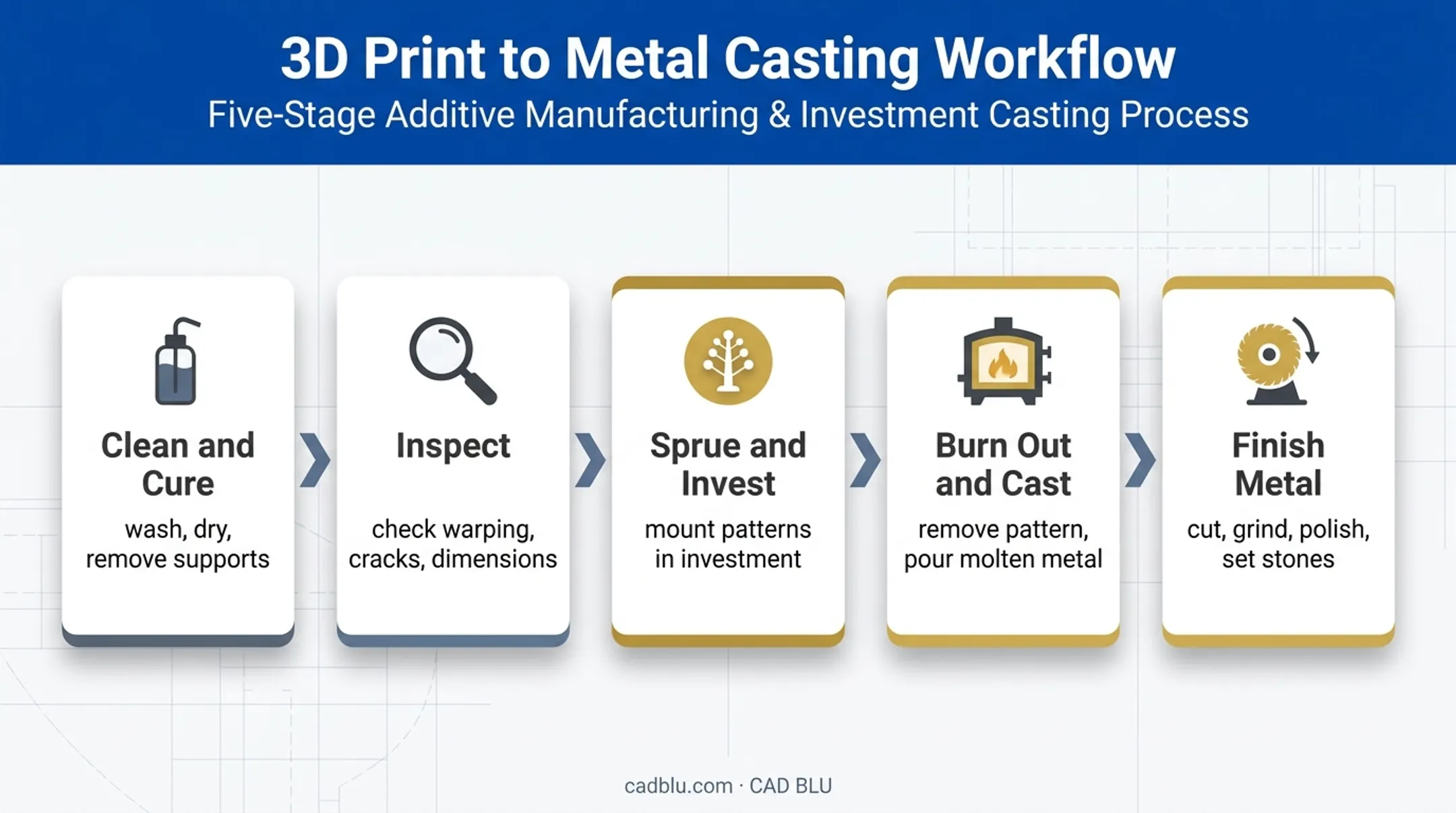

Five-stage 3D printed jewelry post-processing and casting workflow

For direct-wear resin jewelry, seal, paint, or plate as needed, and confirm the material can handle real wear conditions.

When Should You 3D Print Jewelry?

3D printing isn't always the best method, but it excels for custom designs, rapid client revisions, small-batch collections, and complex geometries that are difficult or impossible to make by hand.

Use direct resin or filament printing for:

  • Costume or fashion jewelry where plastic is the final material
  • Visual prototypes to show clients
  • Sizing tests to confirm fit before casting
  • Design validation to check proportions and aesthetics

Use a print-to-cast workflow for:

  • Final pieces in precious metals like gold, silver, or platinum
  • Repeatable, intricate patterns built from digital designs
  • Lower barrier to entry than direct metal printing (for example, patterns printed on a ProJet MJP 2500W, then cast with traditional methods)

Consider other methods when:

  • The design is a simple shape easily made with traditional fabrication or CNC milling
  • You need high volumes that justify a traditional mold
  • The design depends on specialized hand-finishing techniques

Match the method to your material, detail level, quantity, equipment, and budget.

What You Need Before 3D Printing Jewelry

Setting up a professional jewelry printing workflow requires more than just a printer. Here’s a breakdown of the necessary components.

Equipment and System Requirements

The hardware you need depends entirely on your goals.

  • Desktop Prototyping: A desktop SLA or FDM printer works for visual models and fit checks. Plan on a wash/cure station for resin, good ventilation, and basic inspection tools.
  • Professional Casting Patterns: High-resolution castable work needs a pro system such as the Figure 4 Jewelry or ProJet MJP 300W Plus (16–30 microns).
  • Casting Post-Processing: Pair the printer with gear like the MJP EasyClean System for wax supports or a validated UV curing unit for castable resins.
  • Full Production Environment: Beyond the printer, budget for a programmable burnout kiln, vacuum or centrifugal casting equipment, investment mixing tools, and finishing gear (polishing motors, files, and similar tools).

Inputs, Materials, and Design Requirements

The quality of your inputs directly impacts the final result.

  • Validated CAD: Start with a clean, watertight 3D model built for your chosen process—garbage in, garbage out.
  • Castable Materials Only: Do not assume any resin is castable. Standard modeling resins can expand in burnout, crack the mold, or leave ash that causes porosity.
  • Proven Jewelry Materials: Use materials documented for jewelry casting, such as VisiJet M2 CAST (100% wax) or Figure 4 JCAST-GRN 10 (castable photopolymer).

Skill, Safety, and Support Readiness

Safely handling uncured resins, solvents, hot molds, and molten metal takes training and proper PPE. A professional jewelry workflow also depends on real skill in three areas:

  • CAD design for manufacturing
  • Print preparation and support strategy
  • Investment casting process control

For businesses moving into digital jewelry manufacturing, a solutions partner like CAD BLU helps with printer selection, material validation, workflow setup, and OEM-certified support—so you avoid costly trial-and-error and reach production faster.

If you lack in-house equipment, you can outsource printing or casting to a service bureau and still keep full control of your designs.

Key Parameters, Common Mistakes, and Troubleshooting

Most failures in 3D-printed jewelry come from a mismatch between the design, material, settings, and final manufacturing process. Here’s how to troubleshoot common issues.

Design Dimensions and Structural Strength

Tiny details are often the first to fail.

  • The Problem: Broken prongs, collapsed filigree, warped shanks, or missing details.
  • The Cause: Walls or features are too thin to print or cast. Industry guidance calls for walls at least 0.5 mm thick, with prongs of similar size.
  • The Fix: Check CAD geometry, thicken weak areas, place adequate supports in the slicer, and match feature size to your print and cast process.

Resolution, Exposure, and Surface Quality

Print settings have a direct impact on detail and accuracy.

  • The Problem: Details look soft, small holes close up, or the printed part is weak and brittle.
  • The Cause: Incorrect exposure or layer settings. Over-curing bleeds details together; under-curing leaves parts weak. Layer height, pixel resolution, and resin temperature also affect quality.
  • The Fix: Start with the manufacturer's recommended print profiles for your specific material. Run calibration prints to dial in exposure settings. Ensure your resin is fresh and your printer's optical system is clean.

Materials and Post-Processing

A perfect print can be ruined by a bad burnout.

  • The Problem: Failed castings with ash residue, cracked investment, surface porosity, or incomplete metal fill.
  • The Cause: Process control gaps—modeling resin instead of castable, incomplete wash/cure, or the wrong burnout schedule. A Stuller burnout guide notes that ramping kiln temperature too quickly can fracture molds and cause fins or flashing.
  • The Fix: Follow the material documentation to the letter. Use the specified investment, wash/cure procedures, and burnout schedule. Problems like gas porosity often point to carbon residue left by an incomplete burnout.

Production Route Alternatives

Match the workflow to the metal, volume, and equipment you actually have.

  • Direct Printing (Resin/Plastic): Fastest and lowest cost for non-metal pieces. Ideal for prototypes and fashion jewelry.
  • Print-to-Cast (Resin/Wax): The most common professional workflow for precious metal. Offers high detail and material flexibility.
  • Direct Metal Printing (DMLS/SLM): Produces the final metal part directly from powder. Systems from companies like EOS enable high design freedom, but need specialized industrial equipment.
  • Outsourcing: A smart choice if you have limited production volume or lack access to a kiln and casting setup. You can focus on design and let a service provider handle the manufacturing.

Conclusion

3D printing is now a practical part of modern jewelry making. Whether you need a wearable polymer piece, a high-fidelity prototype, or a clean castable pattern, it delivers speed and design freedom that hand methods rarely match.

Successful results depend on a controlled process end to end. It starts with a sound CAD model and continues through compatible materials, validated print settings, and careful post-processing. For precious metal pieces, casting expertise is non-negotiable.

If you're ready to move beyond basic experimentation, start with a small test run to validate your process. When you're ready to scale, CAD BLU can help with equipment selection, workflow setup, and production support so your investment pays off.

Frequently Asked Questions

What is the best resin for jewelry casting?

The best choice is a jewelry-specific castable resin or wax validated for your printer and investment process. Always follow the manufacturer's technical documentation for curing and burnout schedules instead of using a standard modeling resin.

Can you 3D print gold or silver jewelry directly?

Direct metal printing of gold and silver is possible with industrial DMLS, but it usually stays with specialized service bureaus. Most jewelers print a castable pattern, then finish the piece with traditional lost-wax casting.

Can you use regular resin to cast jewelry?

No. Standard modeling resins are not designed for clean burnout and will likely expand, crack the investment mold, or leave behind ash residue. This causes casting defects, so you must use a material specifically formulated and tested for investment casting.

What type of 3D printer is best for making jewelry?

For the fine details required in jewelry, high-resolution resin printers (SLA, DLP, or MJP) are the industry standard. FDM printers suit larger, less detailed prototypes only. Industrial metal printers handle direct metal production.

Do you need a 3D printer to make 3D-printed jewelry?

No. Designers can create their CAD files and then use a professional service bureau or manufacturing partner to handle the printing, casting, polishing, and even gemstone setting. That route gives you the technology without buying equipment upfront.

Is 3D-printed jewelry durable?

It depends on the material. A fashion piece printed in resin will not match a cast metal ring; for cast jewelry, durability comes from the final metal (such as 14k gold or platinum), the design geometry, and how the piece is worn.
