What Is 3D Printer Resolution?

Introduction

Look closely at a 3D printed part and you'll see it: visible layer lines, slightly rounded edges where the CAD file called for sharp corners, or a surface that feels rougher than the screen preview suggested. That gap between digital design and physical output comes down to resolution.

Many buyers assume resolution is one number on a spec sheet. It isn't. XY resolution, Z resolution (layer height), minimum feature size, accuracy, and repeatability all measure different things. Confusing them leads to printers that look great on paper but underperform on the shop floor.

This article breaks down what resolution actually represents, the real-world factors that limit it, and how it differs across FDM, resin, and powder-based systems. You'll also learn how to measure and validate it before committing to a production workflow.

Key Takeaways

Resolution describes detail across three axes: X, Y (horizontal) and Z (vertical/layer height).
XY governs edge sharpness and feature definition; Z is usually the layer thickness setting.
A smaller advertised number doesn't guarantee better accuracy or surface finish.
Nozzle size, optics, motion systems, material behavior, and calibration all shape real-world results.
Match resolution to function, tolerances, material, and post-processing—not the spec sheet alone.

What 3D Printer Resolution Represents

3D printer resolution is the smallest positional or layer increment a system is built to reproduce, typically expressed in microns (µm) or millimeters. It applies differently across the build:

X and Y describe detail within a single printed layer, meaning edges, wall thickness, holes, embossed text, and fine geometry.
Z describes the vertical build direction, commonly represented as layer height or layer thickness.

Resolution vs. Accuracy vs. Repeatability

These terms get used interchangeably, but they measure different things:

Machine resolution — the smallest movement the motion system can command.
Accuracy — how closely the finished part matches the intended dimensions.
Repeatability — how consistently the printer produces the same result across multiple runs.
Minimum feature size — the smallest feature that prints reliably, which is often larger than the machine's theoretical movement increment.

Stratasys notes that manufacturer specs for resolution and accuracy can measure different things entirely, which is exactly why a fine XY number doesn't automatically translate into a tight tolerance on your finished part.

Those distinctions show up clearly on a machine like CAD BLU's ProJet MJP 3600W, which offers three build modes—each pairing a different resolution with a different layer height:

HD — 375 × 450 × 790 DPI, 32-micron layers
UHD — 750 × 750 × 1300 DPI, 20-micron layers
XHD — 750 × 750 × 1600 DPI, 16-micron layers

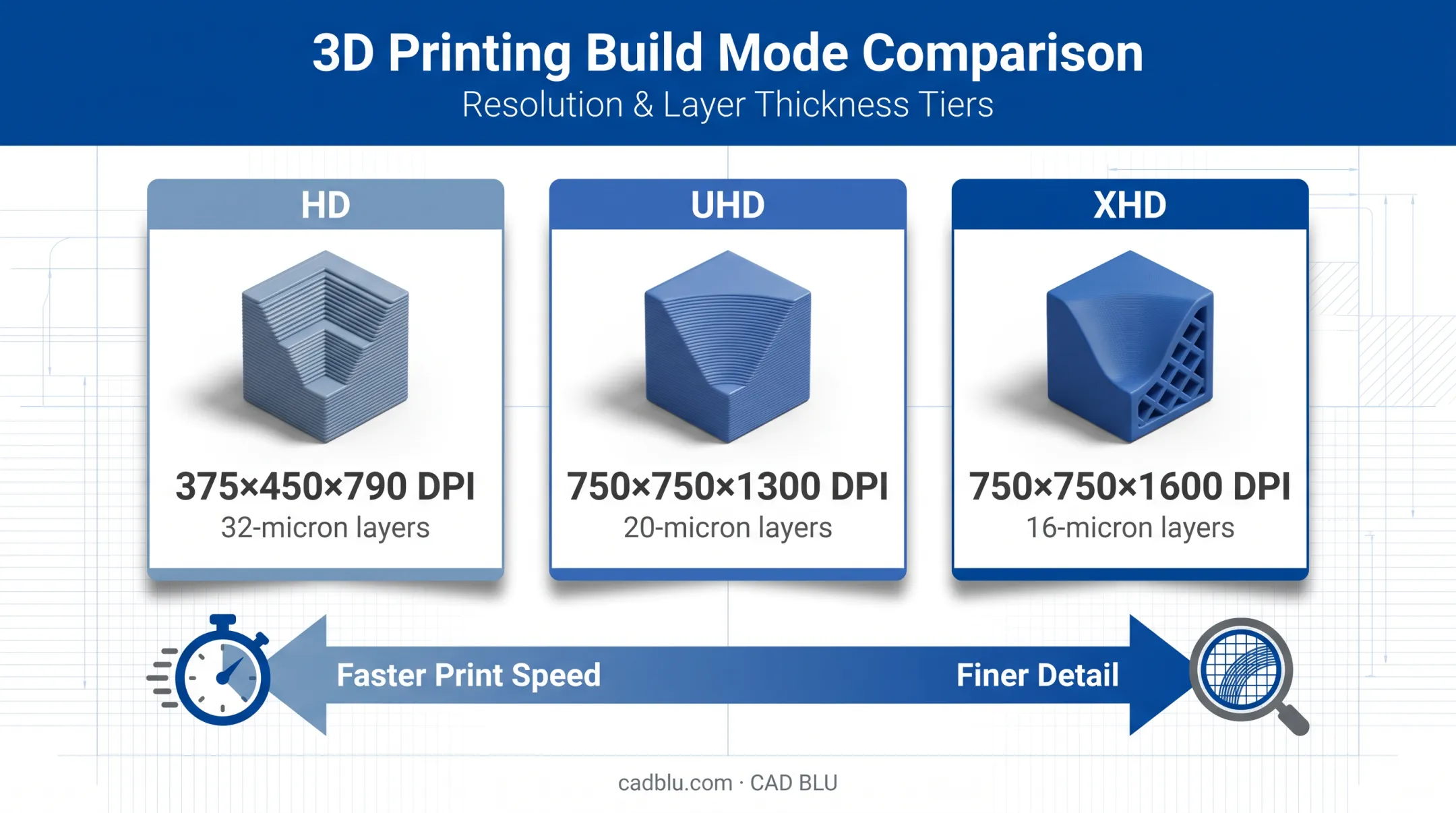

HD UHD XHD 3D printer build mode resolution comparison chart

Finer modes buy more detail; coarser modes print faster.

A smaller number generally points to finer detail capability, but it is not a complete prediction of print quality. Resolution affects surface roughness, edge sharpness, dimensional fit, small-text legibility, and how cleanly curves render.

Material behavior, calibration, and part orientation still decide the final result.

The right target depends on the job. A display model may prioritize fine surface detail—the MJP 2500 prints down to 300 microns for visual prototypes—while a functional fixture often needs dimensional consistency and strength more than surface texture. Both are valid resolution choices; each is optimized for a different goal.

Factors That Influence Resolution in Real-World Printing

There's a gap between a printer's theoretical capability and what it reliably produces on your bench. Several variables sit in that gap.

Layer Height and Z Resolution

Thinner layers reduce visible stair-stepping on curves, slopes, and organic forms. They also increase print time and add more opportunities for defects across a longer build. The right layer height depends on nozzle diameter, material flow behavior, printer stability, part geometry, and required finish, not simply picking the thinnest setting available.

UltiMaker's nozzle-driven range illustrates the trade-off well:

Nozzle Size	Layer Resolution Range
0.25 mm	150–60 microns
0.4 mm	200–20 microns
0.6 mm	300–20 microns
0.8 mm	600–20 microns

(UltiMaker S3/S5 specifications, FDM, layer-height range only — accuracy figures reported separately.)

XY Motion, Nozzle, and Feature Size

Several hardware factors cap horizontal detail, depending on the technology:

Motion-system stiffness, belt or rail condition, and backlash
Vibration and extrusion control
Nozzle diameter, laser spot size, and optical performance

A fine stepper-motor increment can't create a feature smaller than the deposited bead, cured area, or reliably controlled material flow.

UltiMaker's Factor 4, for instance, lists XYZ resolution of just 6.25, 7.8, and 2.5 microns. Its usable layer resolution still spans 60 to 400 microns because bead width and flow control govern the practical minimum.

Material and Thermal Behavior

Viscosity, curing behavior, melting temperature, shrinkage, cooling, warping, and layer adhesion can distort small details or shift final dimensions. Materials formulated to resist these effects hold detail better.

ABS Kevlar filament, for example, is engineered to reduce shrinkage and warping while keeping a smooth surface—a direct response to the thermal drift that erodes resolution in standard filaments.

Process Settings and Geometry

Process choices also shape what you can hold on the part:

Print speed, acceleration, temperature, and cooling
Support structures, bed adhesion, and orientation
Overhangs and slicer settings

Critical surfaces may need a different orientation, slower perimeter settings, or planned support removal to hit spec.

Trade-Offs and Operating Boundaries

Higher resolution isn't free. It costs print time, and for large or low-detail parts, it's often counterproductive:

Coarse settings — best for structural fixtures, jigs, and large low-detail housings.
Balanced settings — appropriate for most functional prototypes and tooling.
Fine settings — reserved for jewelry masters, dental models, and display-grade parts with intricate surfaces.

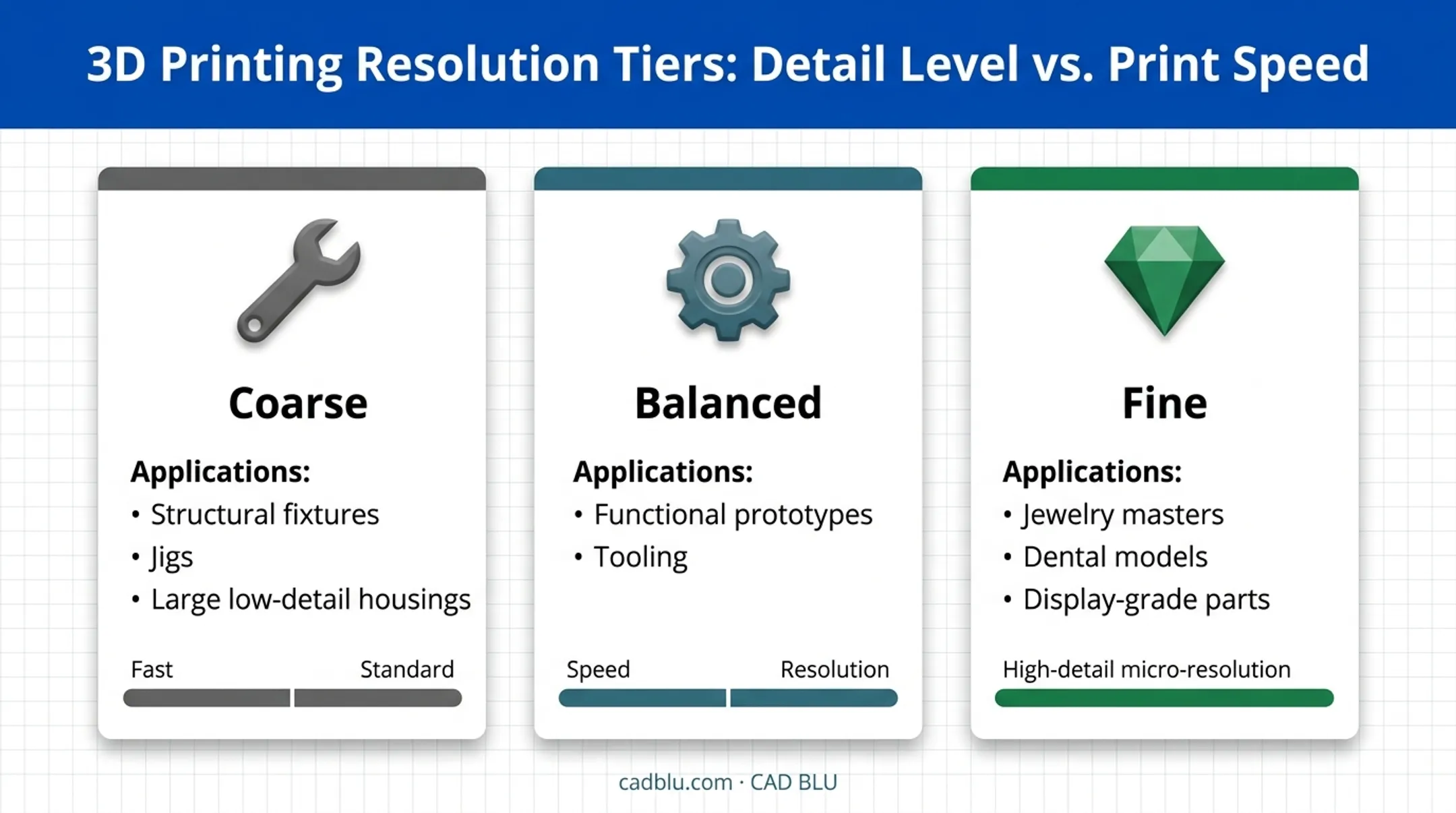

coarse balanced and fine 3D print resolution settings compared by application

Resolution Across Technologies and Applications

"Good resolution" depends on the process, material, part size, geometry, tolerance requirements, and intended use. A number that's excellent for a dental model may be irrelevant for an aerospace jig.

FDM or FFF

Nozzle diameter, extrusion width, layer height, motion precision, temperature, and filament behavior shape FDM resolution together. Desktop and educational FDM systems typically prioritize visual detail and cost. Professional and industrial systems—such as the Ultimaker S8 or Roboze One PRO (15 µm XY accuracy, 25 µm Z accuracy)—prioritize repeatable functional output over the finest surface finish.

SLA, DLP, and LCD Resin Printing

SLA uses a focused laser and galvanometers; DLP and LCD systems cure entire layers using projected or pixel-based light patterns. That distinction matters: optics, spot size, pixel size, resin behavior, and layer height all shape the result differently.

Photocentric's LC Dental system uses an 80-micron pixel pitch and prints at a 50-micron layer setting.
3D Systems SLA printers reach up to 4000 DPI, with fine-feature scanning down to roughly 75 µm.
Resin systems are a common fit for jewelry patterns, dental models, and detailed prototypes.

Printed results still depend on calibration, exposure time, orientation, and post-curing.

SLS and Other Powder- or Metal-Based Processes

Laser or energy-source characteristics, powder particle behavior, layer thickness, thermal control, and post-processing all affect detail and dimensional results in SLS and metal systems. CAD BLU's ProX SLS platforms typically run layer thicknesses between 0.08 and 0.15 mm. Weigh resolution alongside density, strength, surface texture, build volume, and material compatibility—not as a standalone metric.

Match Resolution to the Application

Application	Priority	Example
Visual prototypes	Surface finish	MJP 2500 (300 µm detail)
Functional prototypes	Dimensional consistency	ProJet 7000 HD (50 µm feature repeatability)
Dental/medical models	Fit accuracy	LC Dental (50 µm layer, ≤50 µm arch deviation)
Jewelry/casting patterns	Fine surface detail	Precision Model resin
Tooling, jigs, fixtures	Strength and reliability	Factor 4, industrial FDM

Professional-grade production printers often run $55,700–$69,000, so choosing on the wrong metric is a costly mistake. CAD BLU helps customers compare printers, materials, software, and workflow needs together—rather than selecting equipment from a single resolution figure.

How Resolution Is Specified, Measured, and Validated

Resolution shows up on datasheets under several labels. These terms are not interchangeable, and a published number without context can mislead:

Layer height
XY resolution
Pixel size or laser spot size
Nozzle diameter
Minimum feature size
Dimensional accuracy or tolerance

Specification and Documentation

Before comparing printers, check whether a published value is theoretical, recommended, tested, material-specific, or tied to one print mode. Compare full specifications, including accuracy, repeatability, build volume, supported materials, and documented application results rather than one headline figure.

Measurement and Verification Methods

A practical validation workflow uses a calibrated test model with thin walls, holes, engraved text, small gaps, overhangs, and dimensional reference features. Inspect prints visually, then measure with calipers, microscopes, or optical comparison software depending on required precision.

ISO/ASTM 52902:2023 formalizes this approach using standardized test artifacts to assess geometric performance and calibration, rather than relying on a single manufacturer-reported number. Test with your intended material, orientation, layer height, and post-processing workflow. Results often shift substantially between lab conditions and production runs.

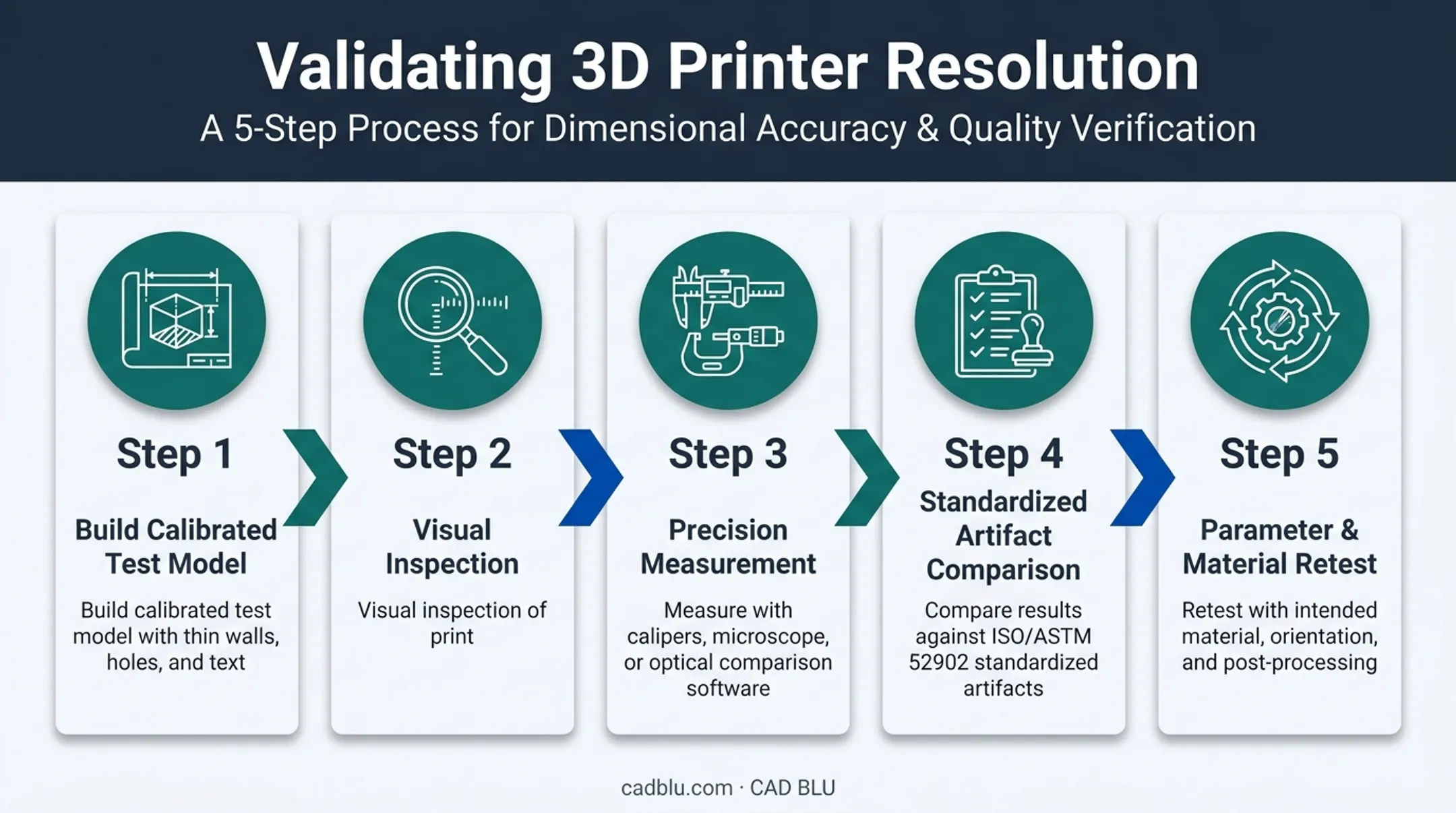

3D printer resolution validation and measurement workflow steps

Operating Outside the Recommended Range

Push a printer beyond its supported range and you'll see blurred features, incomplete walls, ringing, warping, layer misalignment, poor adhesion, or dimensional drift. For regulated parts, that drift can affect fit, function, safety compliance, and warranty terms.

NIST research on metal powder bed fusion found deviations exceeding 100 microns between nominally identical builds, while repeat measurements of the same finished part varied by only about 4 microns. That gap shows measurement repeatability and printer repeatability are two separate things.

Common Misinterpretations

Don't treat the smallest advertised motion increment as the minimum printable feature.
Don't assume thinner layers automatically mean better accuracy, since thermal and material effects can offset the gain.
Don't apply lab values directly to every material, geometry, or build location without testing.

Balance published specs with representative test prints. When results still fall short, CAD BLU's OEM-trained technicians can help with printer selection, installation, workflow optimization, and repair so resolution holds up in production—not just on the datasheet.

Conclusion

3D printer resolution is a multi-dimensional performance characteristic. It combines XY detail, Z layer height, and the interaction of hardware, software, materials, geometry, and process settings. Treat it as a governing parameter that shapes what's possible, not a guarantee of accuracy or finish on its own. Choose and validate resolution against the part's actual purpose: required tolerances, production timeline, material, reliability needs, and post-processing plan. That choice turns a spec sheet number into a part that works.
