Introduction
Production teams still struggle with conventional jigs: weeks on a machinist's schedule and a bill that makes managers wince. That tooling is expensive to modify, slow to turn around, and often heavier than the job requires.
3D printing changes that equation. It lets teams produce customized jigs, fixtures, and other shop-floor aids directly from a CAD file, often in hours instead of weeks. Not every printed tool holds up on the line. The right printer, material, design approach, and validation process separate a reliable production aid from one that fails in use.
This guide covers what printed jigs and fixtures are, why manufacturers use them, and where they fit best. It also walks through materials, technology choices, and how to design and validate a tool before it touches a real part.
Key Takeaways
- Jigs guide operations like drilling or assembly; fixtures hold and position the workpiece itself.
- Printed tooling delivers faster iteration, lower cost per tool, on-demand replacement, and lighter ergonomic designs.
- Material selection and validation must account for load, heat, chemical exposure, wear, and operator safety.
- 3D printing complements machined metal tooling rather than replacing it in every scenario.
What 3D Printed Jigs and Fixtures Are
A jig guides a tool or process. It directs a drill bit, router, or welding torch along a fixed path. A fixture holds, locates, or supports the workpiece while an operation happens to it. The distinction matters because it shapes design priorities: jigs need precise guide features, while fixtures need reliable clamping and location.
Beyond these two core categories, "manufacturing aids" cover a wider family of tools:
- Soft jaw inserts and clamp pads
- Drill guides and bushings
- Go/no-go gauges and dimensional check fixtures
- Assembly and disassembly aids
- Bonding fixtures and masking templates
- Alignment tools and surrogate parts used for fit or sequence testing
From CAD to the Shop Floor

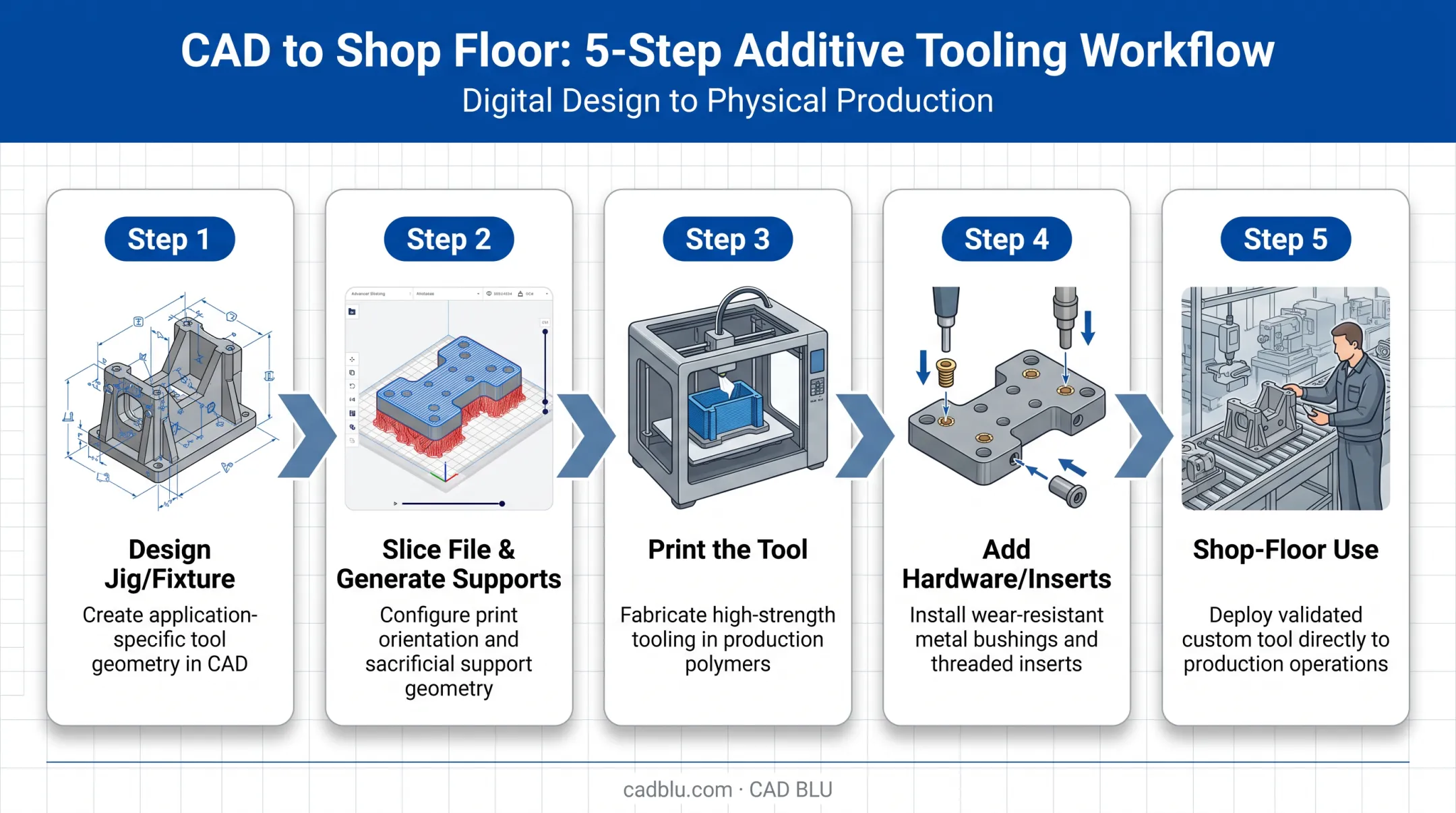

The typical workflow starts with the part's own CAD model:
- Design the jig or fixture around that geometry
- Slice the file and generate supports
- Print the tool
- Add hardware such as bushings or inserts
- Put it into shop-floor use
Software like 3D Systems' 3D Sprint or similar slicing tools handles CAD import, support generation, and print preparation before the file reaches the printer.
Not All Printed Tools Are Equal
Printed tooling falls into four practical categories:
- Prototype aids – short-lived tools used to test a concept or fixture layout
- Low-volume production tooling – tools expected to survive dozens or hundreds of cycles
- Inspection aids – gauges and check fixtures requiring dimensional stability and scheduled calibration
- Long-life production tooling – tools intended for extended, high-cycle use, where material choice and reinforcement matter most
Treating a quick prototype jig the same way you'd treat a long-life production fixture is where most printed-tooling failures start.
Why 3D Print Jigs and Fixtures
The biggest argument for printed tooling is speed. When Stratasys Direct worked with automotive supplier MAHLE to redesign an HVAC fixture, the printed version was delivered in under a week, versus 4–5 weeks for conventional manufacturing, and cost thousands less than CNC machining.

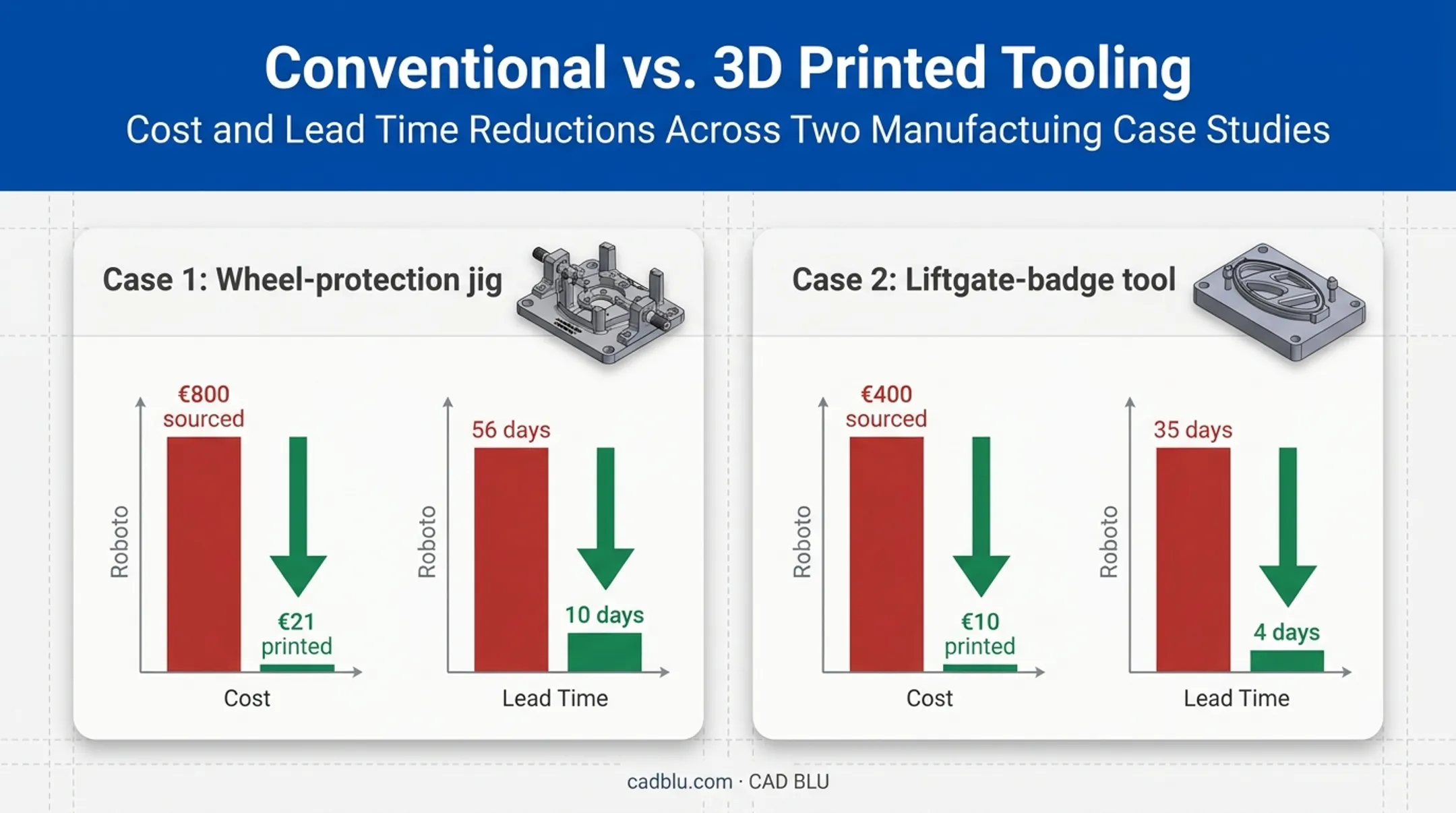

That pattern shows up across the industry. At Volkswagen Autoeuropa, a wheel-protection jig that cost €800 (about $870) sourced externally dropped to €21 (about $23) printed in-house, cutting development time from 56 days to 10. A separate liftgate-badge tool fell from 35 days and €400 (about $435) to just 4 days and €10 (about $11) per part.
Where the Savings Really Come From
Material cost is only part of the story. Printed tooling also reduces:
- Machining setup and programming time
- Outsourcing and shipping delays
- Inventory carrying costs for spare tooling
- Minimum-order constraints from outside vendors
- Redesign costs when a tool needs a quick revision
Design Freedom and Operator Benefits
Because printed tools come straight from CAD, teams can:
- Build conformal workholding around complex contours
- Add lightweight lattice structures to cut tool weight
- Shape ergonomic handles without extra milling cost
MAHLE’s redesigned fixture used ASA plastic that was lighter than the steel original, more comfortable for the operator, and durable enough for its intended duty cycle.
The Trade-Offs
Printed plastics generally can't match metal on heat resistance, wear resistance, stiffness, or long-term dimensional stability. Layer orientation also affects strength, meaning a tool that's strong in one direction can be weaker in another.
A quick “good candidate” test — print in plastic when the tool is:
- Customized for a specific job or part geometry
- Used at low-to-moderate volume
- Within the material’s verified load and heat limits
- Likely to need fast iteration or easy replacement
If a tool fails any of those points, pause before committing to plastic. Matching material and process to duty cycle is where application support earns its keep—shops evaluating printers, polymers, or composites for fixture work can validate those limits before the first build.
Common Applications for 3D Printed Jigs and Fixtures
Shops print jigs and fixtures when they need a custom tool fast—without ordering a metal part that may only see a handful of uses.
Workholding
Soft jaw inserts, contoured nests, and clamp pads can be printed to match a specific part's geometry. Replaceable contact surfaces protect painted, polished, or plastic finishes that a bare metal clamp would scratch.
Guidance and Alignment
Drill guides, routing templates, and assembly alignment aids keep tools on a fixed path. For repeated high-precision drilling, a separate metal bushing pressed into the printed body outlasts a printed guide hole that would wear out of tolerance.
Inspection and Quality
Go/no-go gauges and dimensional check fixtures are fast to print and cheap to replace. Because plastic wears, these need a defined replacement schedule and periodic calibration against a known reference.
Assembly, Bonding, and Masking
Printed jigs hold parts steady during bonding or welding, lock orientation during assembly, and mask areas during finishing—so operators repeat the same setup without drift or surface damage.
Surrogate Parts and Process Validation
Teams also print stand-ins for expensive or production-critical parts to test fit, access, and operator sequencing before committing real components. Google's ATAP team used printed surrogate parts and reported an 85% shorter turnaround along with more than $100,000 in savings on the resulting validation work.
Industries where this applies broadly:
- Automotive and industrial manufacturing (fixtures, gauges, assembly aids)
- Aerospace (drill guides, ground support tooling)
- Dental and medical (models, surgical guides, patient-specific aids)
- Jewelry and investment casting (patterns, alignment tools)
- Electronics assembly (masking, alignment, test fixtures)
CAD BLU supplies the printers, materials, and support these teams use to design and build jigs and fixtures in-house instead of waiting on outside shops.
Materials and Technology Choices
Material selection drives almost everything about a printed jig's performance. There's no universal "best" material, only the best fit for the job's temperature, load, chemical exposure, and precision requirements.
FDM/FFF Materials
- PLA – low-cost, low-temperature prototypes and light-duty gauges
- PETG or ABS – general-purpose tooling with better heat resistance than PLA
- Nylon – tougher, more wear-resistant tooling for repeated use
- Fiber-reinforced polymers (like Onyx) – stiffer load-bearing jigs; Onyx HDT is about 145°C, well above standard nylon
Always check current technical data sheets before committing to a material for a specific load or temperature range. Manufacturer values vary by print orientation, so a fixture strong in one axis may be considerably weaker in another.
Flexible Materials
TPU and similar flexible filaments work well for non-marring pads, compliant grips, and seals. Ultimaker's TPU 95A data sheet lists elongation above 560%, which suits parts that flex repeatedly.
Rather than printing an entire fixture in flexible material, many teams print a rigid body and bond or bolt on a soft, replaceable contact pad. That keeps overall stiffness while still protecting delicate parts.
Resin (SLA/DLP) Options
Resin printing suits smaller, detailed gauges and fixtures that need tight tolerances and a smooth surface finish. Formlabs notes SLA generally delivers tighter tolerances than FDM. Resin parts can be more brittle, though, and usually need washing and UV curing.
| Factor | FDM/FFF | Resin (SLA/DLP) |
|---|---|---|
| Typical build size | Larger, up to industrial formats | Often smaller build volumes |
| Accuracy | Good, orientation-dependent | Tighter tolerances, smoother finish |
| Impact resistance | Generally tougher | Can be more brittle |
| Post-processing | Support removal | Washing, UV curing |
| Material cost | Lower, standard filament | Higher, application-specific resin |
High-Demand Applications
Chemically exposed, high-heat, or heavily loaded jobs may need engineering-grade polymers, reinforced composites, metal hardware inserts, or conventional machined tooling. Validate against actual supplier data, not generic claims.
Quick selection checklist:
- Expected clamping force and load direction
- Operating temperature and humidity
- Chemical or solvent contact
- Expected wear cycles before replacement
- Required dimensional tolerance
- Whether the tool contacts a finished surface
Design and Validation Best Practices
Good printed tooling starts with the actual part model, not a rough sketch. Pull the workpiece's CAD data and define datums, locating surfaces, clamping points, and clearances for tool access before designing the jig itself.
Design for Strength and Print Behavior
- Add ribs and fillets in high-stress areas instead of thick, solid sections
- Choose print orientation based on the direction of applied load
- Account for warping and support removal during the design phase, not after printing
Design for the Operator
- Reduce unnecessary weight and add comfortable handles
- Build in visual cues that prevent incorrect part loading
- Leave clearance for hands, fasteners, and inspection tools so operators avoid awkward workarounds on the floor
Build in Serviceability
- Design replaceable wear pads and press-fit bushings
- Use modular components that swap out without a full reprint
- Add sacrificial contact surfaces on high-wear areas
- Define a clear revision process for the next print run

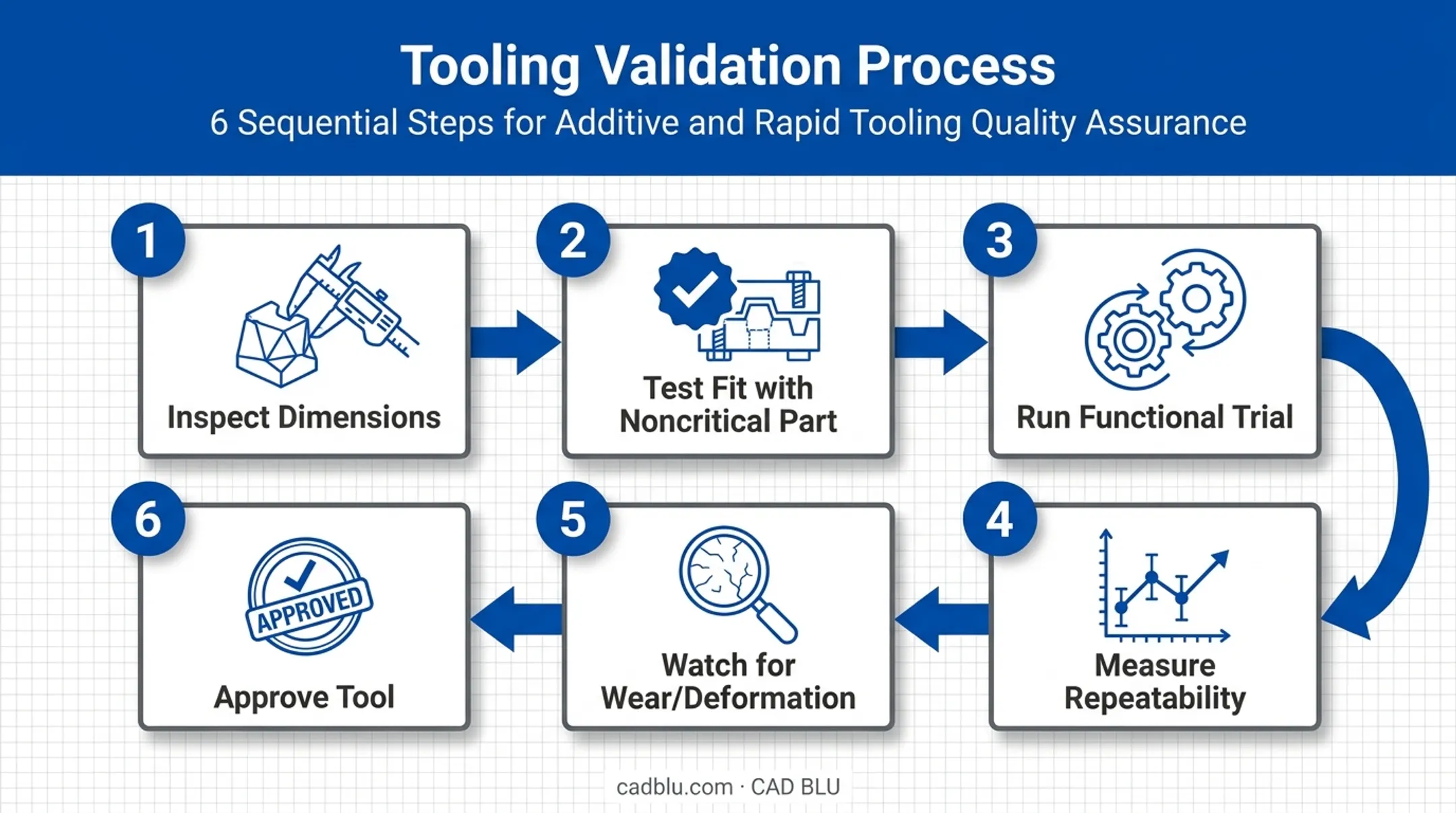

Validation Sequence
- Inspect printed dimensions against the CAD model using calipers or a comparable measurement tool
- Test fit with a noncritical part before touching production stock
- Run a controlled functional trial under normal operating conditions
- Measure repeatability across multiple cycles
- Watch for wear or deformation and set a replacement interval
- Approve the tool only for the conditions it was tested under
Once a tool is approved, document material, print settings, and load limits for every unit put into service. Inspect at defined intervals, and pull damaged tools from the line immediately. For applications where failure creates serious risk, stick with machined or certified tooling instead.
Moving from occasional prototypes to a repeatable tooling workflow usually means more than owning a printer. CAD BLU works with manufacturers on printer and material selection, workflow setup, installation, and OEM-certified repair support. That support helps teams scale printed tooling from a one-off experiment into a dependable part of production.
Frequently Asked Questions
Can you 3D print jigs?
Yes. Jigs for drilling, alignment, assembly, inspection, and masking are commonly 3D printed. Suitability depends on the material chosen, print orientation, expected load, and whether the tool has been properly validated.
How long do 3D printed jigs and fixtures last?
Service life depends on material, load cycles, and operating conditions. Many production tools last hundreds to thousands of cycles when designed for the job; high-wear contact points may need inserts or periodic reprinting.
What is the best material for 3D printed jigs and fixtures?
There's no single best material. It depends on force, heat, chemical exposure, wear, and required precision. General-purpose plastics, reinforced nylon, flexible materials, and resins each fit different situations.
Are 3D printed fixtures strong enough for manufacturing?
Yes, for many assembly, alignment, inspection, and low-to-moderate load applications, when properly designed and validated. High-load, high-heat, or safety-critical uses often need reinforced materials, metal hardware, or machined tooling instead.
When should you use a 3D printed jig instead of a machined one?
Choose printed tooling for customized, low-volume, or frequently changing jobs where speed matters. Choose machined tooling for severe loads, tight long-term tolerances, high heat, or regulated requirements.
