Dental 3D-printing resin is a light-curable photopolymer engineered for specific digital workflows. It's not the same material as the composite resin your dentist uses to fill a cavity chairside. The FDA even defines conventional dental-composite devices separately, as products intended to fill and restore carious lesions directly in the mouth.
The real challenge labs face isn't finding "a" dental resin. It's finding the right one. Models, surgical guides, dentures, temporary crowns, and splints each demand different combinations of accuracy, strength, flexibility, and biocompatibility. Get the match wrong, and you're looking at failed fits, cracked provisionals, or worse.
Key Takeaways
- Resin selection depends on application, printer compatibility, mechanical properties, and documented regulatory clearance.
- "Marketed for dental use" doesn't mean "safe for intraoral use" — always verify the manufacturer's intended indication.
- Match the material to the job first, then compare brands, prices, and printer ecosystems.
- Validate every new resin through test prints and fit checks before patient-specific production.
What Is Dental Resin for 3D Printing?
Dental 3D-printing resin is a liquid photopolymer that solidifies layer by layer under a specific light source. A 2023 peer-reviewed dental materials review identifies this light-cured resin approach as the standard printable material across SLA and DLP systems. Photoinitiators trigger the polymerization reaction.
Three vat-polymerization technologies dominate dental labs:
- SLA: a laser and galvanometer trace each layer point by point
- DLP: a digital projector flashes an entire layer at once
- LCD/MSLA: a masked LCD screen exposes the full layer through a photomask
Each resin formula combines a photoinitiator, a resin matrix, and (depending on the product) fillers or pigments. CAD BLU's Dental Model resin, for example, runs at 250 cPs viscosity at 25°C and is formulated for the LC Dental printer platform. Viscosity and printer compatibility are locked together at the formulation stage.
Not the Same as Chairside Composite
Chairside composite resin is placed directly into a tooth and cured in the mouth. Dental 3D-printing resin is a completely different category:
- Dispensed into a printer vat, not a cavity
- Cured under a calibrated light source, not a handheld curing gun
- Tested based on whether the finished part ever touches oral tissue
A model printed for a lab bench has different requirements than an appliance worn in a patient's mouth for six months. That distinction (extraoral versus intraoral contact) drives almost every decision later in this guide.

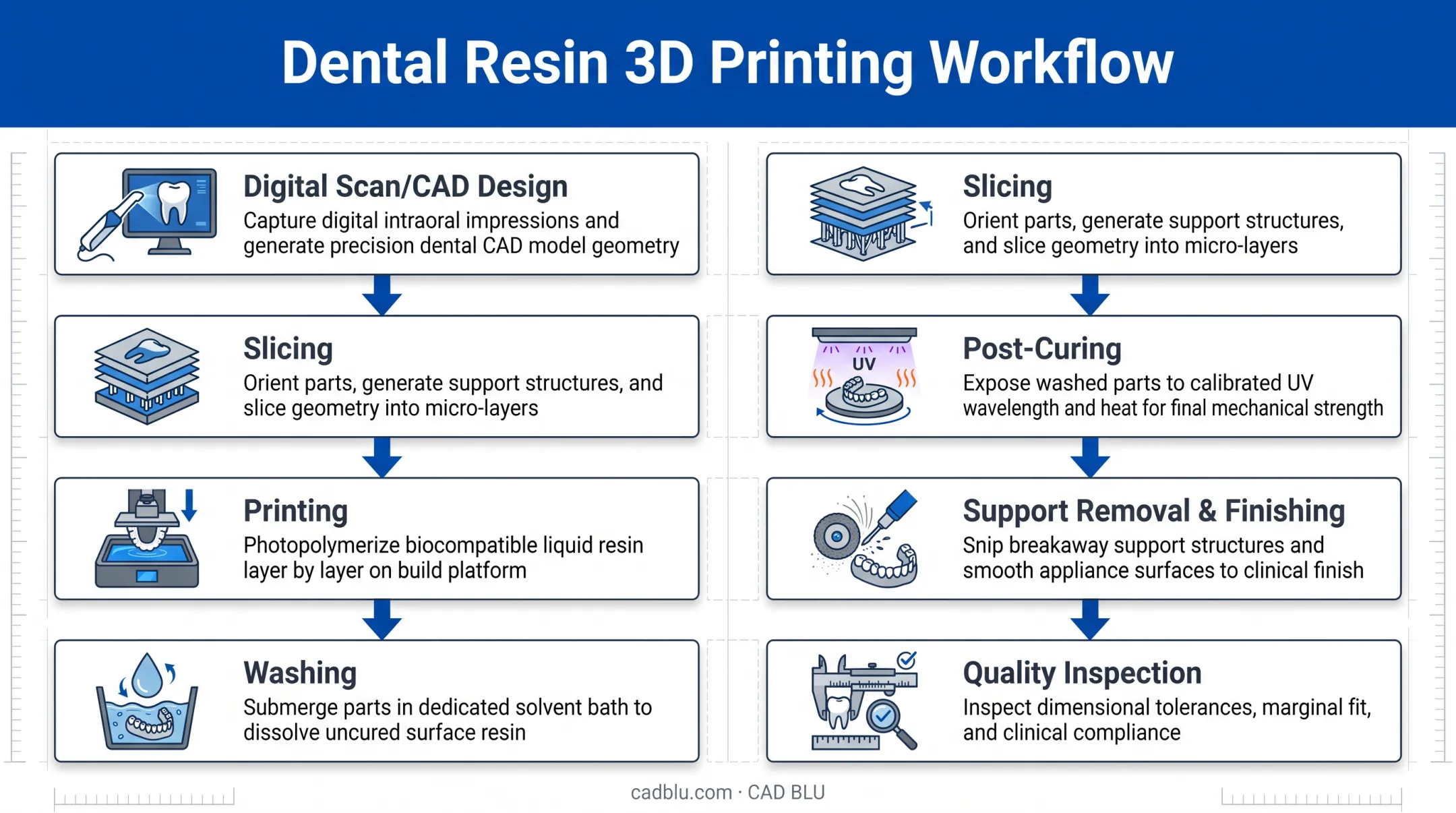

How Dental Resin Becomes a Finished Part
The path from digital file to finished appliance follows a consistent sequence, regardless of which resin category you're using:
- Digital scan or CAD design — intraoral scan or lab scan converted into a printable file
- Slicing — the file is sliced into layers matched to the resin's validated exposure profile
- Printing — the vat-polymerization printer builds the part layer by layer
- Washing — uncured resin is removed from the surface and any internal cavities
- Post-curing — controlled light and heat complete polymerization
- Support removal and finishing — supports are cut away and surfaces are polished
- Quality inspection — fit, dimensional accuracy, and surface defects are checked
Every step in that chain can shift the final result. Variables that commonly change outcomes include:
- Resin temperature — changes viscosity and flow into thin features
- Layer exposure time — drives strength and dimensional accuracy
- Washing method — controls how much uncured resin stays trapped in fine details
Skip or shortcut any one of these steps, and you risk parts that fit poorly or feel tacky right out of the cure chamber.
Why Material Documentation Matters
Before buying any dental resin, pull three documents: the technical data sheet, the safety data sheet, and the instructions for use. Together, they show exactly what the resin was tested for and how it can be used.
What to check specifically:
- Intended contact duration (single-use, short-term, or long-term intraoral)
- Supported printer settings and validated exposure profiles
- US regulatory status — is it FDA 510(k) cleared, and for what indication?
The FDA's 510(k) framework requires a device to demonstrate the same intended use and same technological characteristics as a legally marketed predicate. That clearance is tied to a specific named product and application, not to the general category of "dental resin."
A clear example: Formlabs' Premium Teeth Resin received FDA clearance in August 2024 for temporary crowns, inlays, onlays, veneers, and bridges up to seven units. That clearance does not cover a different resin, or a different use of the same resin.
NextDent's 5100 portfolio follows the same documentation standard. Its 30 materials are listed as CE certified, FDA listed, and compliant with Medical Device Directive 93/42/EEC, with batch traceability for regulatory review.
Types of Dental Resin for 3D Printing
Not all dental resins do the same job. Here's how the major categories break down.
Model Resin
Model resins are built for study models, diagnostic casts, and orthodontic aligner models. Dimensional accuracy comes first—a model off by even 50 microns can throw off an entire treatment plan.
CAD BLU's Dental Model photopolymer resin, for instance, is specified with:
- Maximum 50 µm deviation across a full arch
- 90 Shore D hardness
- 70 MPa tensile strength with 4.0% elongation at break
These parts never touch a patient's mouth, so extraoral handling properties (rigidity, surface detail, fast turnaround) matter more than biocompatibility.
Surgical Guide Resin
Surgical guides need rigidity, accurate fit, and sterilization resistance since they're used chairside during implant placement. NextDent SG is a biocompatible Class I material built for this use. Typical performance targets include:
- Drill sleeves insert directly after printing
- No dimensional shift after standard autoclave sterilization
- Stable after common disinfectant exposure
Temporary Crown, Bridge, and Provisional Resin
Provisional resins balance appearance against short-term durability. Formlabs' Premium Teeth Resin, for example, is specified with:
- 155 MPa flexural strength
- 90D Shore hardness
- Resistance to wear, staining, and abrasion through the provisional period
Permanent Restoration Resin
This category carries the highest documentation bar. CROWNTEC, cleared by the FDA in January 2022 under 21 CFR 872.3770, is a composite resin for permanent crowns, inlays, onlays, and veneers. Devices are reported to be 30% stronger than those made with conventional methods, and the material is offered in five tooth shades.
Materials in this category require strict adherence to the manufacturer's validated workflow. Deviating from post-curing or bonding steps can undermine the clearance basis entirely.

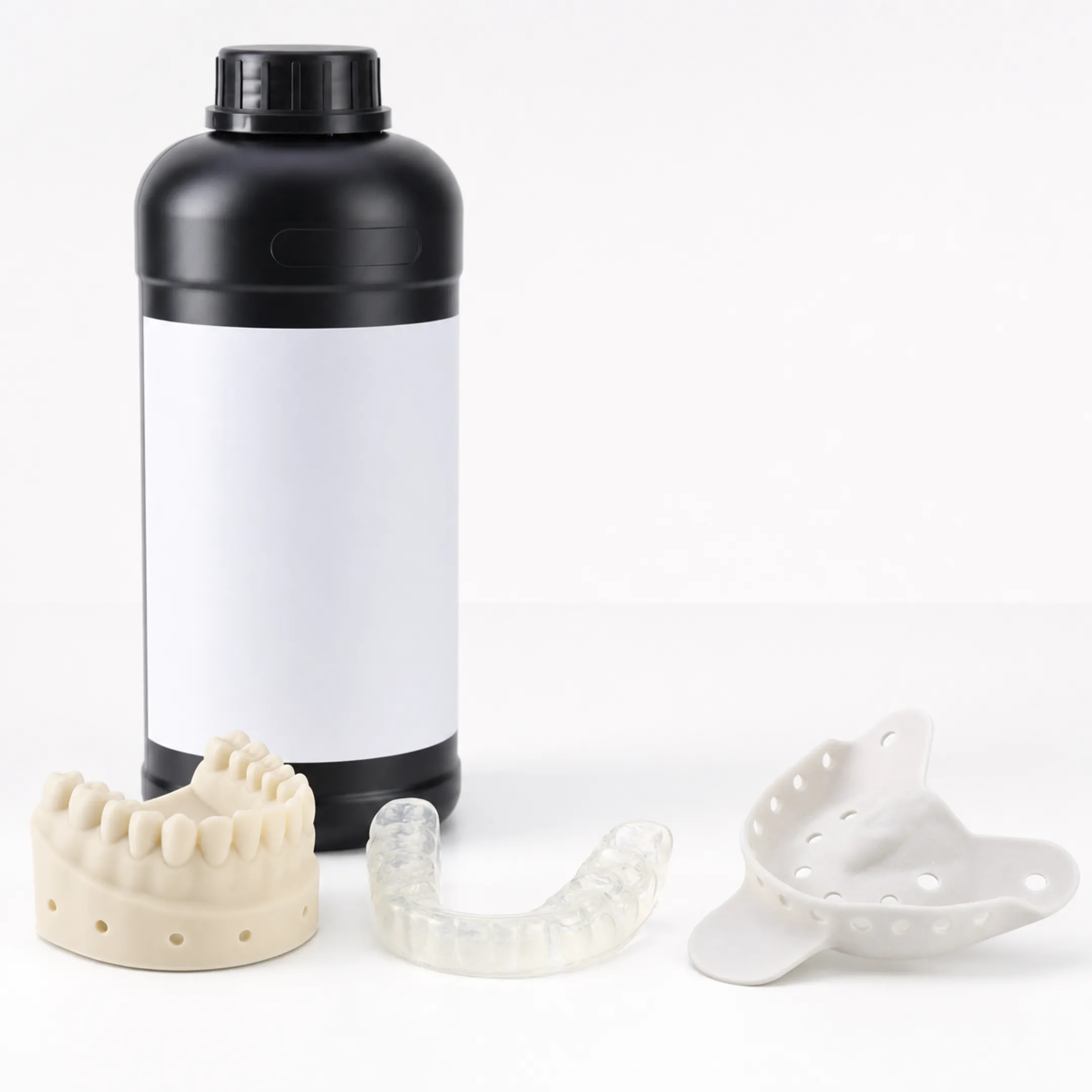

Denture, Flexible Appliance, and Custom Tray Resins
These share an "appliance" label, but they are not interchangeable:
- Denture base resin (e.g., NextDent DENTURE 3D+, Class IIa): impact resistance and lower shrinkage than traditional PMMA
- Flexible splint/night guard resin (e.g., Formlabs Dental LT Comfort): comfort and controlled flex (21 MPa flexural strength, 33% elongation)
- Custom tray resin (e.g., NextDent Tray): speed and rigidity for a short-lived, single-use impression tool
Castable and Specialty Resin
Castable resin works differently from the categories above: it's designed to disappear. During investment casting, the printed pattern burns out cleanly inside the mold, leaving a cavity for molten metal.
What matters for castable resin:
- Clean, even burnout with minimal ash or residue
- Predictable thermal expansion during the burnout cycle
- Compatibility with your specific casting investment material
According to CAD BLU's internal materials data, products like Precision Cast are formulated to burn evenly with virtually no ash, expansion, or residue, producing a smooth, accurate cast surface.
Formlabs' Castable Wax Resin is an exception among most resins covered here: it needs no post-curing and only has to be fully dry before casting.
One important warning: "castable," "model," "engineering," and "biocompatible" describe different performance categories. A resin labeled biocompatible for skin contact isn't automatically safe for long-term intraoral use, and a model resin isn't automatically suitable for casting. Read the intended-use statement, not just the category name.
Dental Resin Applications and the Properties That Matter
Matching resin to application means aligning material priorities with real-world demands.
| Application | Primary priority | Secondary priority |
|---|---|---|
| Diagnostic models | Dimensional accuracy | Surface detail |
| Surgical guides | Fit and rigidity | Sterilization compatibility |
| Provisionals | Fracture resistance | Aesthetics |
| Splints/night guards | Controlled flexibility | Comfort |
| Casting patterns | Predictable burnout | Surface finish |
Accuracy, Shrinkage, and Fit

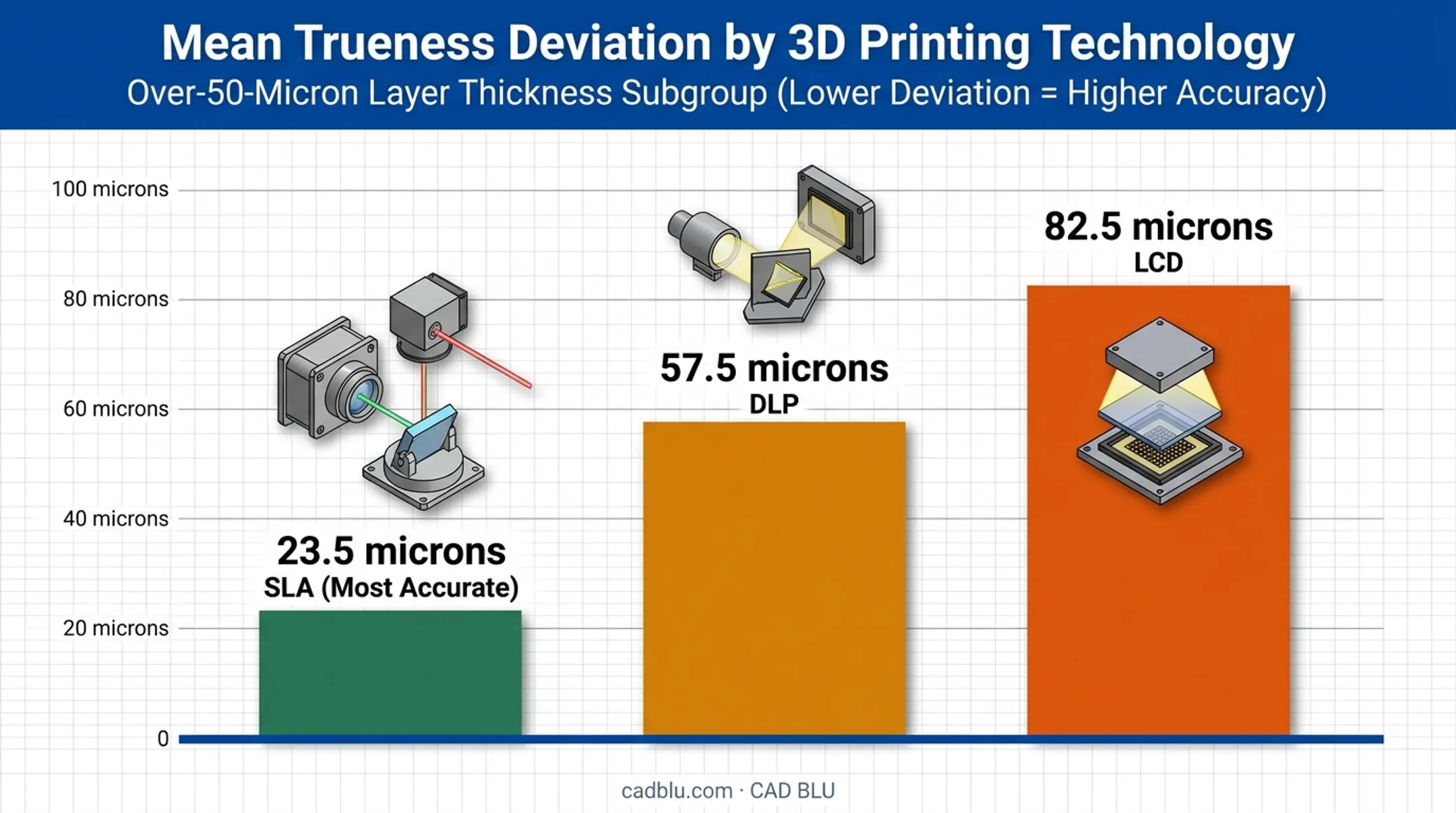

These are three separate variables, not one. A network meta-analysis published in the Journal of Dentistry reported mean trueness differences of 23.5 microns for SLA, 57.5 microns for DLP, and 82.5 microns for LCD in the over-50-micron layer thickness subgroup.
SLA and DLP ranked among the most accurate technologies for full-arch models.
Inaccurate prints show up as poor margins on crowns, tight or loose contacts, bite discrepancies, guides that won't seat properly, or appliances that pinch.
Mechanical Properties Worth Reviewing
Before committing to a resin, check its technical data sheet for:
- Flexural strength and flexural modulus (bending resistance and stiffness)
- Tensile or impact resistance (breaking force)
- Hardness and elongation at break (surface durability vs. flexibility)
- Wear behavior over repeated use
Aesthetic and Safety Considerations
Shade, translucency, and polishability matter for anything visible in the smile line.
Extraoral safety and intraoral biocompatibility are not the same thing, and that distinction gets missed often. A model resin might be perfectly safe to handle on a lab bench but completely unsuitable for a splint worn eight hours a night.
Contact duration, residual monomer levels, and required sterilization method all factor into that difference.
Performance Trade-Offs to Make Explicit
No resin optimizes for everything at once. Keep these trade-offs in view when you choose:
- A resin tuned for fast printing may sacrifice some dimensional accuracy compared to a slower, higher-resolution profile.
- A rigid material built for surgical guides will feel wrong — and may crack — if used for a flexible night guard.
- A highly aesthetic provisional resin may not carry the same wear resistance as a permanent restoration material.
Any claim about longevity, strength, or clinical performance should trace back to the manufacturer's technical data sheet or a peer-reviewed source.
How to Choose the Right Dental Resin
Start With the Final Use
Before comparing brands or prices, name the actual output: model, guide, temporary, permanent restoration, denture component, flexible appliance, tray, or casting pattern.
Confirm Printer Compatibility
Check these factors against your hardware before you buy:
- Printer technology and light wavelength
- Build platform and vat requirements
- Resin viscosity and validated exposure profiles
NextDent 5100, for example, supports layer thicknesses of 25, 50, 100, and 200 microns and validates its own 30-material portfolio for that hardware. Using an unvalidated resin on a printer it wasn't tested for is a common source of failed prints.
Match Properties to the Load and Environment
Ask what forces and conditions the part will actually face:
- Chewing forces and wear (provisionals, permanent restorations)
- Moisture exposure and sterilization cycles (surgical guides)
- Contact duration in the mouth (splints, dentures, provisionals)
Evaluate Documentation and Quality Controls
Look for instructions for use, technical and safety data sheets, batch traceability, and, where relevant, biocompatibility documentation. NextDent's material quality guarantee and regulatory traceability is one example of what this should look like in practice.
Calculate True Cost Per Successful Part
Resin price per liter is only one line item. Factor in:
- Support material and failed prints
- Wash and cure consumables
- Finishing labor and equipment time
- Reprints and quality-control rework
A cheaper resin that fails 1 in 5 prints often costs more than a pricier one that fails 1 in 50.

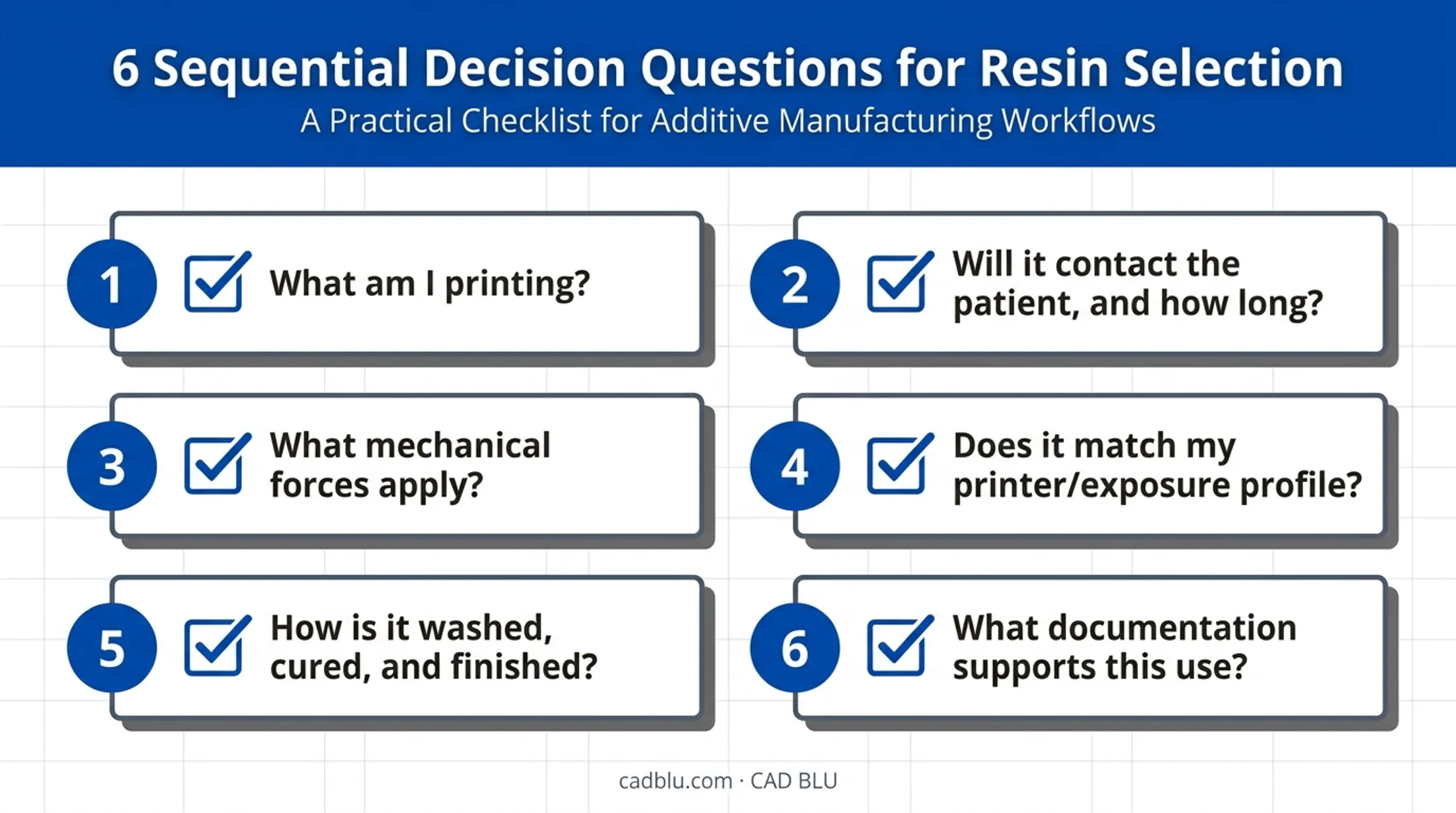

A Practical Resin-Selection Checklist
Run through these questions before ordering:
- What am I printing, exactly?
- Will it contact the patient — and for how long?
- What mechanical forces will it experience?
- Does it work with my specific printer and exposure profile?
- How is it washed, cured, sterilized, and finished?
- What documentation supports this specific intended use?
Always validate a new resin with test prints and fit checks before rolling it into patient-specific production. A resin that performs well on paper can still behave differently in your specific printer, room temperature, and post-cure setup.
Where CAD BLU Can Support the Decision
Choosing among 30-plus materials across multiple printer platforms takes real time if your lab is not printing dental parts every day. CAD BLU works with dental labs and practices to match 3D printers, resins, and software to the workflow you actually run, whether that is occasional models or full production.
The company offers turnkey and partial digital manufacturing setups, so labs can scale in stages. Pair that support with manufacturer documentation and in-house test prints before any patient-specific run.
Printing and Post-Processing Dental Resin
File Preparation and Printing
Clean up the scan or CAD file before anything else. Then set up the build with the manufacturer's validated exposure profile—not improvised settings.
Key prep steps:
- Orient the part to minimize supports on critical surfaces
- Place supports away from margins and guide interfaces
- Select the validated resin exposure profile in the printer software
On CAD BLU's LC Dental system, for example, users pick a specific resin profile like Durable UV80 directly in the software instead of adjusting exposure manually.
Washing and Support Removal
Uncured resin must come off using the approved method for that specific material — some resins wash with an ultrasonic cleaner, others need a manual solvent wash. Supports should generally stay on the part through post-curing, not before, since removing them too early is a common cause of warping.
Post-Curing and Inspection

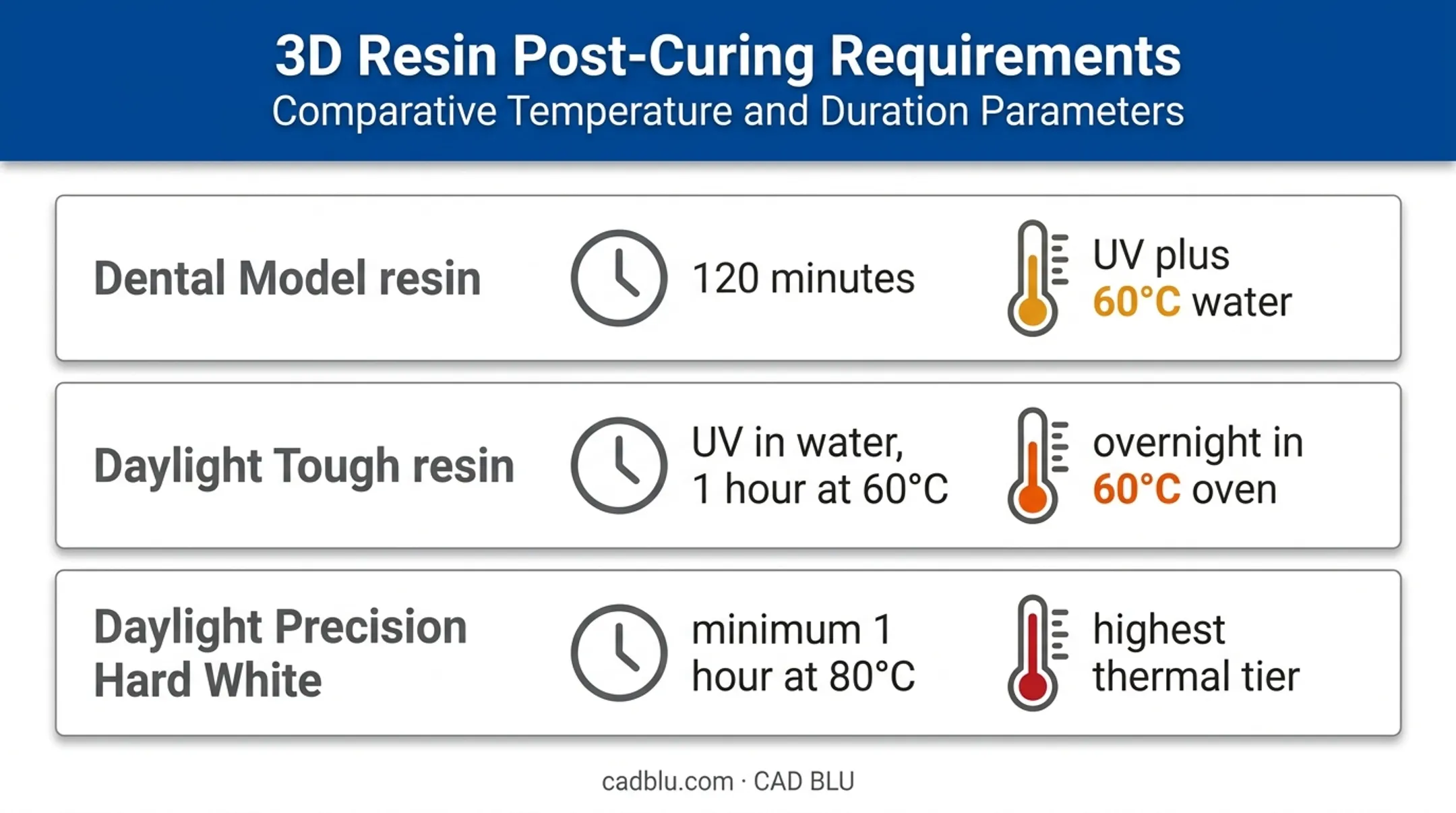

Post-curing conditions are specific to each resin, and skipping steps here shows up later as weak or tacky parts. A few real examples from manufacturer processing instructions:
- Dental Model resins typically post-cure for 120 minutes under UV with heat in 60°C water
- Daylight Tough resin requires UV curing in water followed by 1 hour at 60°C, then overnight storage in a 60°C oven
- Daylight Precision Hard White needs a minimum 1 hour at 80°C to reach maximum tensile properties
After curing, check for tackiness, visible distortion, cracks, and dimensional accuracy against the design file before the part goes anywhere near a patient.
Common Workflow Problems
Sticky or weak prints usually trace back to one of these:
- Incomplete washing (uncured resin left on the surface)
- Incorrect exposure time during printing
- Insufficient post-curing time or temperature
- Contaminated or expired resin
Warping, shrinkage, or inaccurate fit often point to:
- Orientation problems
- Undersupported thin features
- Printer calibration drift
- Removing supports before post-curing is complete
Formlabs' troubleshooting guidance notes that undersupported parts can sag and warp during printing itself, before curing even begins.
Always follow the manufacturer's documented process before changing variables one at a time.
Conclusion
There's no single "best" dental resin. The right material depends on several factors:
- What you're printing
- Whether it contacts a patient
- What forces it must withstand
- Whether your printer supports it
- Whether documentation backs that specific use
Compare technical data sheets and workflow requirements before you compare price tags. Before adopting any new resin for patient-specific production, have a qualified dental materials or additive manufacturing specialist review it first.
Frequently Asked Questions
What is dental resin?
Dental resin for 3D printing is a light-curable photopolymer that solidifies layer by layer inside an SLA, DLP, or LCD printer. It's distinct from conventional composite resin, which dentists apply directly into a tooth for fillings.
How long does dental resin last?
Longevity depends on the resin category, its intended use, curing quality, and wear conditions. There's no universal lifespan: a diagnostic model and a night guard have completely different expected service lives.
Is dental resin safe for teeth?
Only resin specifically documented and FDA-cleared for the relevant intraoral use should touch a patient's mouth. Correct washing, post-curing, and finishing under professional oversight are essential for patient safety.
Is dental resin worth it?
Digital resin workflows offer accuracy, repeatability, and speed compared to traditional lab methods. Weigh those benefits against material cost, printer investment, post-processing needs, and staff training before switching over.
Can you use regular 3D printer resin for dental work?
General-purpose resin shouldn't go anywhere near intraoral appliances or restorations unless it's specifically FDA-cleared for that use. Model-only, extraoral applications carry different, generally lighter requirements.
What resin is best for dental 3D printing?
It depends entirely on the application. A model, surgical guide, provisional, denture, splint, or casting pattern each needs a different material. Match the resin to your printer and check the manufacturer's documentation before committing.
