Many shops struggle with the same question: which material actually fits their process? The answer changes surface detail, dimensional accuracy, post-processing time, burnout behavior, part durability, and overall production cost. Get it wrong, and you're looking at cracked investments, ash residue, or a pattern that warps before it ever reaches the flask.
This guide breaks down what resin and wax actually are, where each one wins, and how to match material choice to your printer, casting process, and production volume.
Key Takeaways
- Photopolymer resin cures layer by layer in SLA/DLP printers; castable resin is built for casting patterns.
- Specialized casting waxes melt or burn out with minimal residue when processed correctly—a foundry standard.
- Choose resin for functional prototypes, detailed models, and dental parts that need specific mechanical properties.
- Wax or validated castable materials deliver the cleanest, most predictable investment-casting patterns.
- Confirm compatibility with technical data sheets, printer settings, and your foundry’s burnout procedure.
What Is Resin in 3D Printing and Casting?
Resin, in 3D printing and casting, is a liquid or semi-liquid photopolymer that solidifies through chemical curing. Most systems use light to trigger that reaction, a process the National Institute of Standards and Technology describes as vat photopolymerization, where a model is suspended in a vat of liquid resin and cured into a solid structure.
Resin Categories You'll Actually Encounter
Not all resin is built for the same job. CAD BLU's materials catalog organizes options by application, and the differences matter:
- General-purpose resin: balanced properties for models and visual prototypes
- Engineering resin: higher tensile strength and stiffness for functional testing
- Elastomeric resin: flexible, rubber-like behavior for gaskets or wearable models
- Dental and biocompatible resin: formulated for models, guides, or intraoral use
- Castable resin: engineered as a sacrificial pattern for investment casting
Castable resin is designed to burn out, but it does not behave like wax. Formlabs notes that its Castable Resin transitions to gas rather than melting, and its burnout schedule is deliberately gradual so the investment does not crack under rapid expansion. Validate the investment, burnout schedule, and casting process for the specific resin you are running, not only the one you used last time.
Why Shops Choose Resin
Resin printing delivers fine detail, smooth surfaces, and geometries that would be difficult or impossible to mold. CAD BLU's Daylight Precision Cast, for example, is built for high-definition castable parts and produces a smooth surface with good finish straight off the printer. There's no tooling investment required, and you can go from CAD file to physical pattern without cutting a single mold.
Where Resin Falls Short
Resin isn't without tradeoffs:
- Some formulations turn brittle after curing
- Incomplete curing weakens parts and skews dimensions
- Support marks require cleanup before casting or finishing
- Washing and post-curing can introduce slight dimensional shifts
- Uncured resin requires careful, controlled handling
The Resin Workflow, Start to Finish
- Prepare the file: orient the part and place supports strategically
- Print layer by layer under UV or laser light
- Wash to remove uncured resin, often with isopropyl alcohol
- Post-cure under UV light and heat to finish the chemical reaction
- Remove supports and inspect for defects before moving forward
- Cast when applicable: invest and burn out on the validated schedule
Curing discipline decides casting yield. Under-curing leaves trapped resin that can outgas unpredictably during burnout. Over-curing makes patterns brittle and prone to cracking in handling.
Wall thickness matters just as much. Patterns that are too thin warp; overly thick sections trap resin and complicate burnout. None of these are cosmetic issues. They show up directly in scrap rate and finished-part quality.
What Is Wax and Why Is It Used for Casting?
Not all wax is created equal. Printable and casting-grade wax is a distinct category from sculpting wax, candle wax, or machining wax — it's formulated to print cleanly and burn out predictably in a foundry setting.
3D Systems draws a clear line between 100% wax patterns and castable plastic patterns for investment casting, and that distinction matters for foundries chasing consistent results. CAD BLU's VisiJet M2 ICast, for instance, is a 100% wax material designed to emulate the melt and burn-out characteristics of standard casting wax, so it drops into existing foundry processes without a new burnout schedule.
Why Foundries Trust Wax
Wax earned its place in jewelry and industrial casting for practical reasons:
- Captures fine detail and complex geometry reliably
- Melts or evacuates cleanly with familiar, well-understood behavior
- Allows pattern rework before the investment stage
- Produces repeatable results across batches
Solidscape's Midas wax claims true-to-CAD masters with no warping, stretching, or distortion, and states it works with existing investment-casting burnout schedules.
CAD BLU's VisiJet M2 Wax Jewel Ruby patterns are built to withstand handling throughout lost-wax casting while staying stable at high ambient temperatures, which matters in a busy production shop where patterns sit on benches between steps.

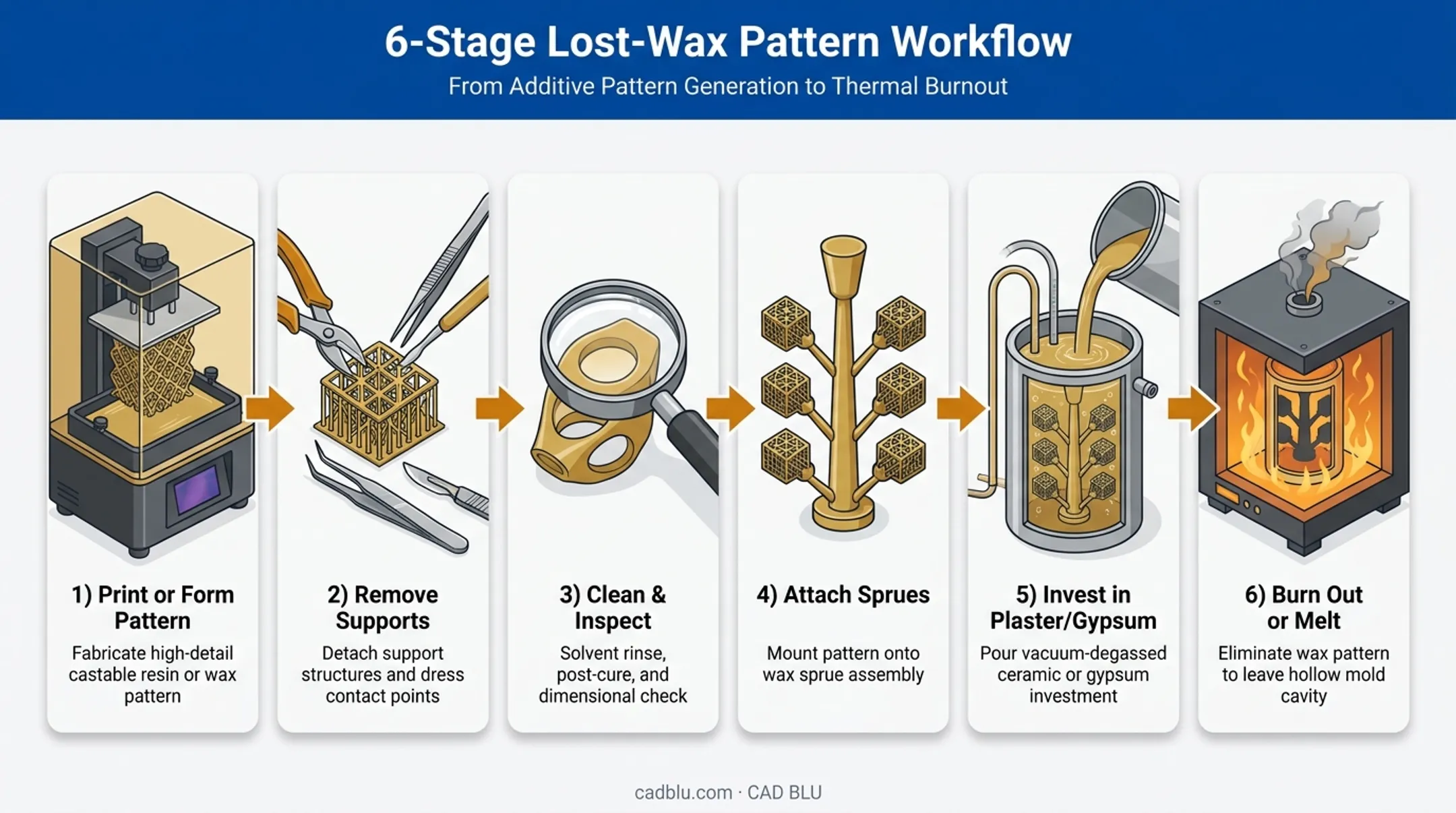

The Wax Pattern Workflow
Those handling and burnout traits only pay off if the pattern moves cleanly through a standard lost-wax sequence:
- Print or form the pattern
- Remove supports, if the printer requires them
- Clean and inspect for surface defects
- Attach sprues for the investment stage
- Invest the pattern in plaster or gypsum
- Burn out or melt to leave the cavity
Where Wax Struggles
Wax's biggest advantage — its low melting behavior — is also its biggest limitation before investment. Patterns can deform in storage, warp under handling, or shrink slightly depending on formulation and ambient temperature. Sprue attachment requires care, since wax bonds differently than resin and won't forgive a sloppy joint.
Manufacturer technical documentation should always guide burnout temperature ramps, expected shrinkage, and printer compatibility. Generalized numbers rarely translate across different wax formulations, investments, and furnace setups.
Resin vs. Wax: Key Differences
The core distinction is purpose. Wax and castable resin exist to disappear during casting. General-purpose resin exists to remain a finished part. Confusing the two categories is where most casting failures start.
| Attribute | Castable Resin | Casting Wax |
|---|---|---|
| Solidification | Light-cured photopolymer | Melts and solidifies thermally |
| Burnout behavior | Gradual gas transition, resin-specific schedule | Melts out, follows standard wax burnout steps |
| Rework before casting | Difficult once cured | Easy — reheat, reshape, patch |
| Detail capability | High, resolution-dependent | High, especially with printers built for jewelry patterns |
| Handling durability | Can be brittle | Vulnerable to heat and physical deformation |
| Ash/residue | Formulated for minimal ash with correct schedule | Formulated for clean, ash-free burnout |
Direct-Use Parts vs. Sacrificial Patterns
Standard model resin is often unsuitable for casting, even when the printed surface looks excellent. It is not formulated to decompose cleanly. A burnout cycle can leave ash, crack the investment, or leave residue in the cavity. Purpose-built castable resin or wax is the reliable path to a clean pour.
Pattern Removal: Melt vs. Burnout
This is the single biggest process difference. Wax melts and evacuates using processes foundries have run for decades. The Investment Casting Institute notes that printed wax patterns follow the same process steps as shells made from injection-molded wax patterns. Castable resin generally needs a specific, gradual burnout schedule to decompose fully. Skip that validation step and you risk cracked investments or trapped ash.
Surface Finish and Detail
Detail retention depends on more than the material alone: printer resolution, layer height, exposure settings, support strategy, and operator technique all matter. CAD BLU's MJP 300W Plus shows how wide that range can be on one machine, with a QHD mode at 2400 x 1800 x 1800 dpi and a ZHD mode using 8-micron layers.
Durability, Economics, and Scale
Resin generally offers stronger, more varied mechanical properties after cure, which is why it dominates functional prototyping. Wax patterns are easier to modify by hand, but they are more vulnerable to heat and physical stress. True cost goes beyond material sticker price. Factor in:
- Printer cost
- Material cost
- Post-processing labor

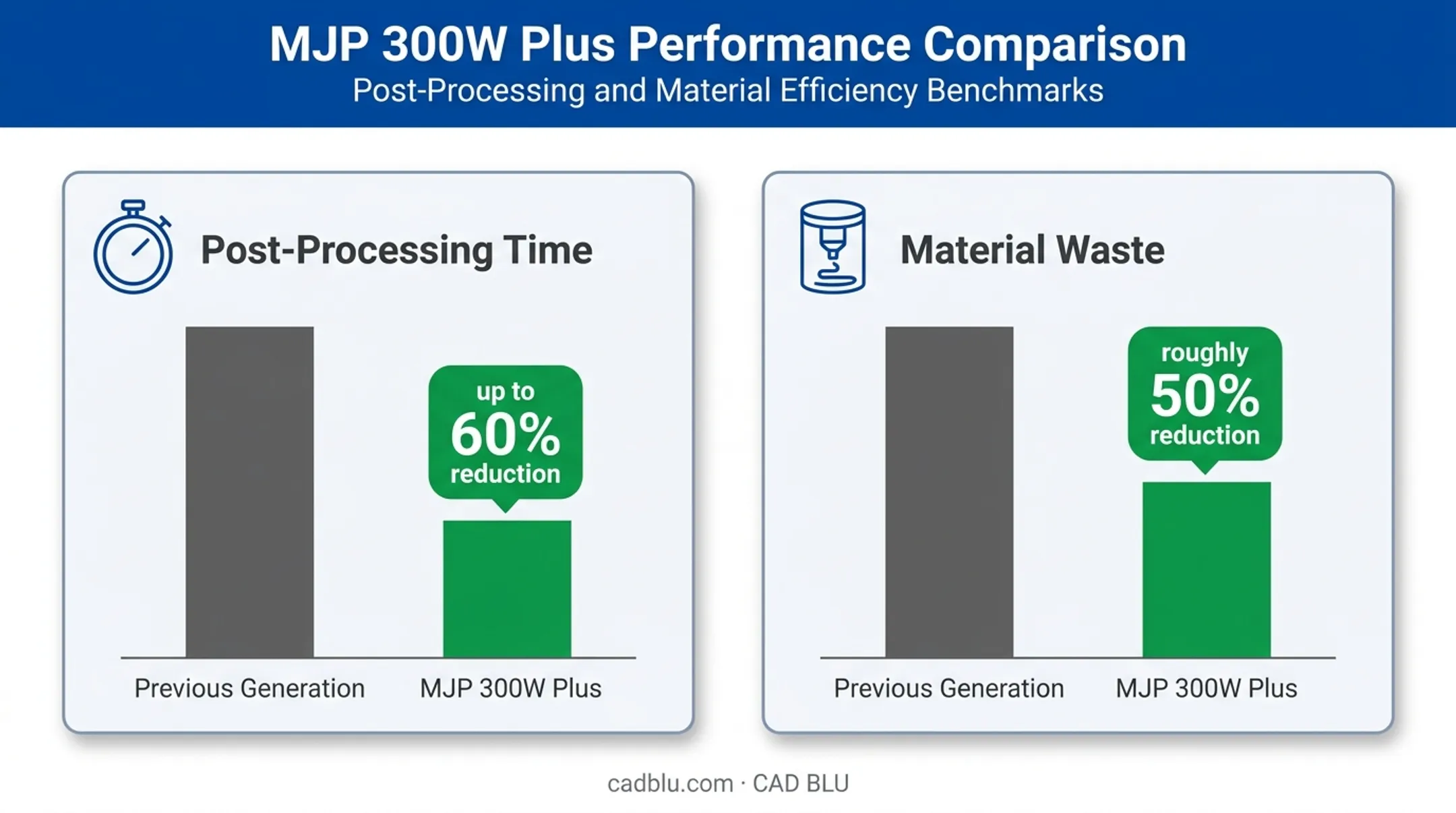

- Casting yield On workflows built around the MJP 300W Plus, shops can cut post-processing time by up to 60% and material waste by roughly 50% versus the prior generation — a meaningful shift for high-volume jewelry casters. Choose resin for functional or highly varied printed parts. Choose wax or validated castable materials when the goal is a clean, casting-first pattern.
How to Choose the Right Material for Your Workflow
Start with the end use, not the printer. Ask what the part actually needs to do.
Match the material to your requirements:
- Functional prototype or production part → engineering or specialty resin
- Display model → general-purpose resin
- Dental or medical model → dental-grade or biocompatible resin
- Jewelry pattern → 100% wax or wax-filled castable material
- Investment-casting pattern → validated castable resin or casting wax
- Mold master → high-detail resin with dimensional stability
Evaluate the Whole Casting Chain
The printer is only one link in the chain. Confirm compatibility across the full process:
- Material paired with the investment powder
- Burnout kiln or furnace schedule
- Alloy being poured
- Foundry process and flask setup
CAD BLU's Figure 4 JCAST-GRN 10, for example, is built for jewelry master patterns used in conventional flask casting with gypsum investments — but results still shift with investment type, furnace, and pattern geometry.
Production Volume Changes the Calculation
One-off prototypes reward design freedom. Repeated batches reward consistency. A printer like the MJP 300W Plus, which supports several short-run batches per day plus overnight larger builds, fits shops that need both quick one-offs and repeatable daily output.
CAD BLU helps match commercial printers, materials, software, and workflow support to what you need to produce—whether that's a jewelry caster running daily batches or a dental lab printing surgical guides.
Before you lock in a production material, review:
- Manufacturer technical data sheet
- Safety data sheet
- Validated print profile
- Casting guidance for your investment and alloy
Those four documents catch most avoidable print and burnout failures before the first flask goes in.
Printing, Post-Processing, Casting, and Safety Considerations
Good results start with discipline in the basics. Resin printing best practices:
- Use the manufacturer's validated material profile, not a generic setting
- Orient parts to manage support placement and minimize scarring
- Maintain the printer and vat, including draining if ambient temperature drops below roughly 73°F
- Wash parts thoroughly before post-curing
- Complete the full recommended cure cycle ; don't shortcut it
Handling Uncured Resin Safely
Uncured resin can irritate skin, eyes, and the respiratory system. Formlabs' safety data sheet for Castable Resin classifies it for skin irritation, eye irritation, skin sensitization, and respiratory-tract irritation. Required precautions include:
- Gloves and eye protection
- Adequate ventilation
- Compliant spill and disposal procedures "Fully cured" doesn't automatically mean safe for skin contact, food contact, or medical use. Those claims require specific certification and manufacturer documentation, not assumption.
Wax and Foundry Safety
Wax handling introduces different risks, centered on heat rather than chemical exposure. NIOSH's foundry safety guidance recommends radiant-heat shields, exhaust hoods, and fresh-air supply to manage furnace hazards, and identifies hot surfaces as a persistent worker risk. Store wax away from heat sources, use heat-resistant tools, and follow your foundry's established procedures. Don't improvise a burnout schedule on the fly.
Quality-Control Checklist
Before any pattern goes to the investment stage:
- Inspect dimensions against the original CAD file
- Check for trapped uncured material or incomplete cure
- Look for cracks, support scars, or surface defects
- Verify sprue attachment and integrity
- Confirm the pattern is clean and free of residue
After casting:
- Inspect the final casting for completeness and surface quality
Frequently Asked Questions
Is resin better than wax?
Neither is universally better. Resin tends to be more versatile for printed models and functional parts, while wax or validated castable materials are often preferable specifically for investment-casting patterns.
What are the two types of resin?
Common pairings are standard versus engineering resin, or general-purpose versus castable resin. Classification varies by printer and manufacturer, so check the product's technical documentation.
Is cured resin harmful to health?
Uncured resin can irritate skin and eyes. Safety of a fully post-cured part depends on formulation, exposure route, and intended use. Always check the manufacturer's safety documentation.
Which material is best for investment casting?
It depends on your alloy, investment type, burnout equipment, and pattern geometry. Traditional casting wax and purpose-built castable resin both work well when matched to a validated foundry process.
Can you cast directly from a resin 3D print?
Some castable resins are engineered specifically for investment casting. Ordinary model resin, however, can leave ash, residue, or expansion defects. Always use a validated castable material and its specified burnout schedule.
