Most businesses evaluating this route get stuck on one question. Should you print the mold itself, print a master pattern for a silicone or investment mold, or print a sacrificial pattern that disappears during casting? Each path suits different materials, volumes, and finish requirements.
Formlabs documents a complex impeller pattern that replaced a $60,000 conventional tool with printed parts costing $78 apiece, cutting 14 weeks off the timeline in the investment-casting case study using Clear Cast resin. That's the kind of gap this article unpacks.
Below, we'll walk through where printed molds actually fit into casting workflows, which materials hold up to which processes, the design rules that keep a mold from failing mid-pour, and when it's time to move to metal tooling.
Key Takeaways
- Printed molds, master patterns, and sacrificial patterns fill three different roles—choose the one your process needs before you print.
- Casting temperature, cure chemistry, pressure, and shrinkage decide whether a printed mold survives the pour.
- Resin printing captures finer cavity detail; FDM handles larger, lower-temperature, less finish-critical molds.
- Printed molds pay off for prototypes, custom parts, and short runs, not high-volume production.
What Is a 3D-Printed Mold and How Does It Work?
A 3D-printed casting mold is a printed cavity, often split into two or more sections, that receives a liquid, molten, or mixed casting material and releases the solidified part once it sets. Simple enough on paper. In practice, "3D-printed mold" covers three distinct jobs, and mixing them up is where most first attempts go wrong.
Three Roles a Printed Mold Can Play
- Direct mold: the printed cavity itself gets filled with silicone, urethane, resin, wax, or plaster.
- Master model: the print isn't the mold at all. It's used to create a flexible silicone or other secondary mold.
- Sacrificial pattern: the print gets buried in investment material, then burned out or melted away before metal is poured.
A print built for one role rarely works for another. Formlabs' Castable Wax resin, for instance, is designed to disappear during burnout, not to survive as a reusable direct mold.

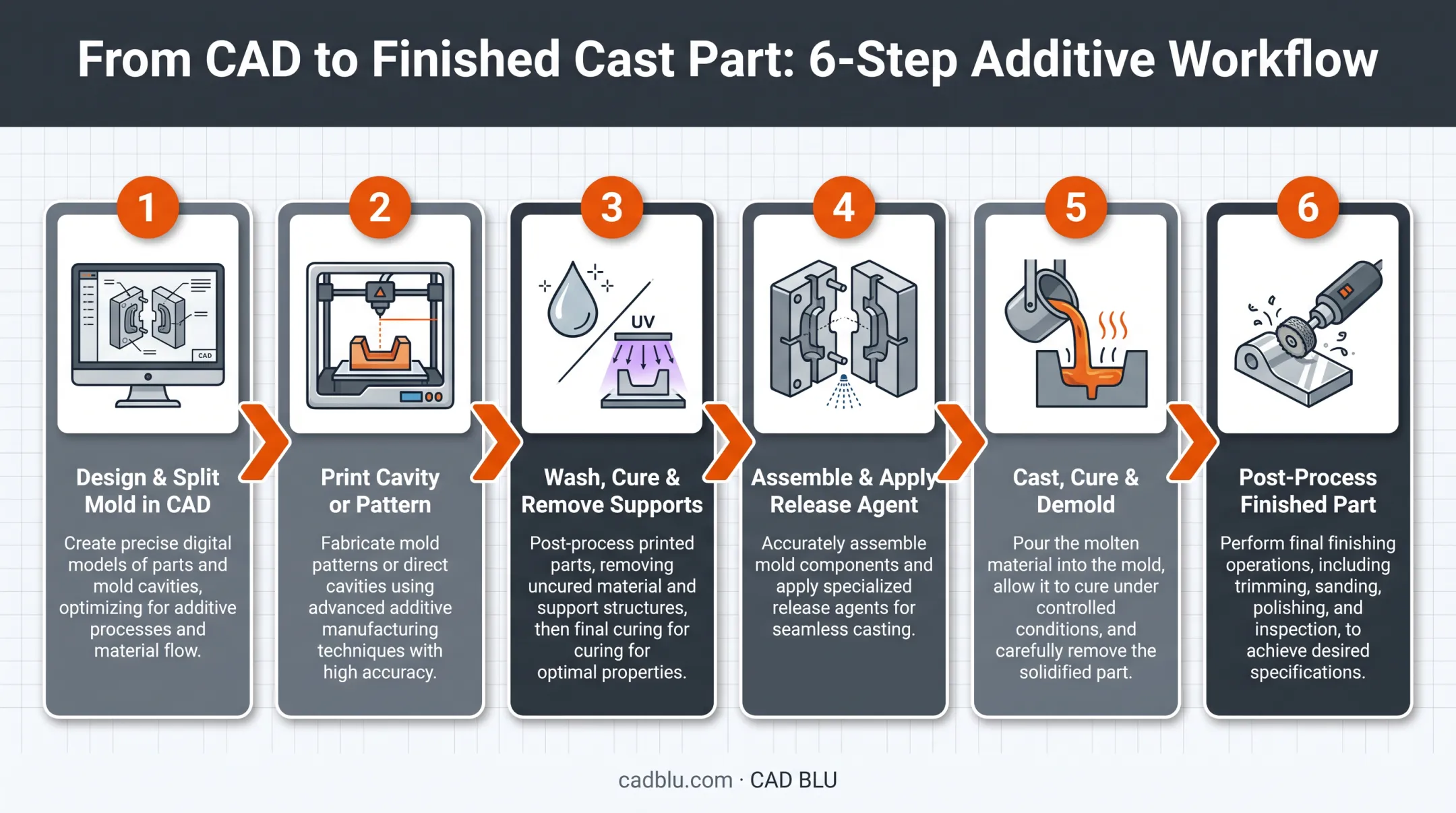

From CAD to Cast Part
The typical workflow runs:
- Design and split the mold in CAD, defining parting lines, gates, and vents
- Print the cavity or pattern
- Wash, cure, and remove supports
- Assemble mold halves and apply a release agent
- Cast, cure, and demold
- Post-process the finished part
Why Printing a Mold Doesn't Make It Metal-Ready
A mold that prints cleanly is not automatically suitable for molten metal. The mold and foundry workflow still have to handle:
- Heat and thermal expansion
- Pouring pressure
- Chemical exposure from the casting material
- Validation for that specific alloy or compound
Traditional machined tooling still outperforms printed molds on repeatability and service life. Printed tooling wins on lead time and the freedom to revise a design without cutting new steel.
Applications of 3D-Printed Molds in Casting
Printed molds and patterns support a wide range of casting work. The strongest documented use cases fall into a few clear clusters.
Prototypes and Short-Run Production
This is the strongest use case. Custom housings, replacement parts, and design iterations benefit most when conventional tooling is still premature.
CAD BLU's ProJet MJP 2500 IC can produce hundreds of small- to medium-size patterns at a fraction of the cost and time of traditional injection tooling—especially useful while a design is still changing.
Silicone, Urethane, and Jewelry Casting
Printed molds work well as direct tooling for silicone parts. Formlabs demonstrates printed molds cast with Dragon Skin 20 platinum-cure silicone, with compression, injection-filled, and overmold molds lasting for dozens of casts.
Jewelry and investment casting rely heavily on sacrificial patterns. 3D Systems reports a turbine-blisk wax-injection tool that took at least five weeks and $20,000 to build, versus a printed pattern ready overnight for under $2,000.
CAD BLU's investment-casting solutions use directly printed SLA and MultiJet patterns instead of injection-molded wax. The ProJet MJP 2500W can print up to 25 ring patterns in under three hours.
Sand, Plaster, and Pewter Casting

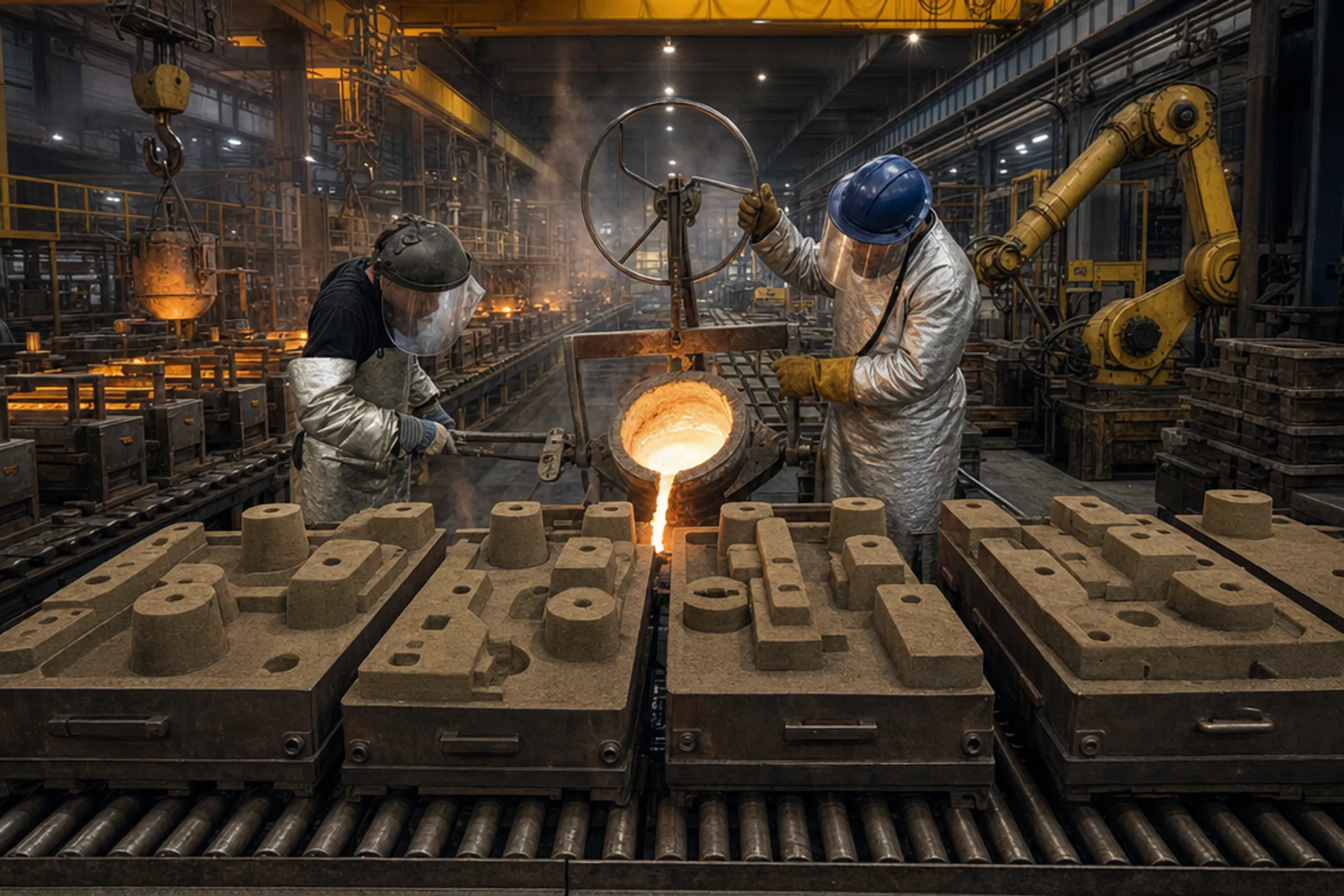

Sand casting scales up dramatically with printed molds and cores. ExOne's validated foundry testing on its VX9000 platform covered 20 benchmark molds, jobs up to 7.5 meters, and a 7,200 kg casting with no detected defects.
On the smaller end, pewter work is process-specific. Formlabs shows a High Temp Resin sacrificial mold pouring R98 pewter at roughly 260°C, then breaking the mold apart after cooling. That is not a general "any resin can pour any metal" result—always verify temperature limits before assuming a material will hold.
Medical, Dental, Aerospace, and Automotive
Here the evidence points to prototypes, patterns, and tooling aids—not regulated production parts:
- Dental: A 2020 study cast removable-partial-denture frameworks from a printed resin pattern
- Aerospace: Voxeljet's work with TITAL used printed PMMA patterns for titanium and aluminum castings
- Automotive: Printed sand molds support rapid design iteration on housings and structural components
Unless a material and process combination has been validated for your regulated application, treat these as development workflows, not finished-part production.
Materials for 3D-Printed Casting Molds
Material choice depends entirely on what you're casting into the mold—there is no universal pick, only trade-offs.
| Print Technology | Strengths | Best Fit |
|---|---|---|
| FDM (PLA, PETG, ABS) | Accessible, larger builds, low cost | Room-temperature molds, less finish-critical parts |
| SLA/Resin | Fine detail, smooth surfaces | Small intricate cavities, jewelry patterns |
| Engineering-grade/high-temp | Higher heat deflection | Demanding tooling, subject to manufacturer testing |
FDM thermoplastics are the entry point. PLA, PETG, and ABS are affordable and print on almost any machine, but layer lines transfer to the cast surface unless sealed, and heat resistance is limited. Ultimaker's published heat-deflection temperatures run from roughly 59°C for PLA to about 87°C for ABS—fine for many room-temperature workflows, not for high-heat metal contact.
Resin printing wins on detail. SLA molds capture fine features and smoother surfaces than FDM can manage, which is why jewelry and precision investment patterns almost always use resin. CAD BLU's Accura Sapphire, for instance, is built to withstand silicone injection at high temperature and pressure while staying intentionally brittle, so it breaks away cleanly after the cast sets.
High-temperature and composite materials push further. Accura's high-temperature and composite line spans heat-deflection temperatures from roughly 65°C to over 215°C, and Formlabs' High Temp Resin reaches a post-cured HDT of 142°C (238°C with thermal post-cure). Treat those numbers as screening data for direct-mold thermal exposure—not as molten-metal ratings.
Most printed molds also need surface prep before the first cast. A rough interior print translates directly to a rough part surface:
- Seal porous walls to block resin or metal bleed-through
- Sand layer lines on critical faces
- Coat with a release-compatible finish when the process demands it
Matching mold material to the casting process gets harder once cure exotherm, chemical resistance, and release-agent compatibility enter the picture. CAD BLU helps teams pair commercial printers and materials with the intended casting workflow so that choice is tested against the process, not left to guesswork.

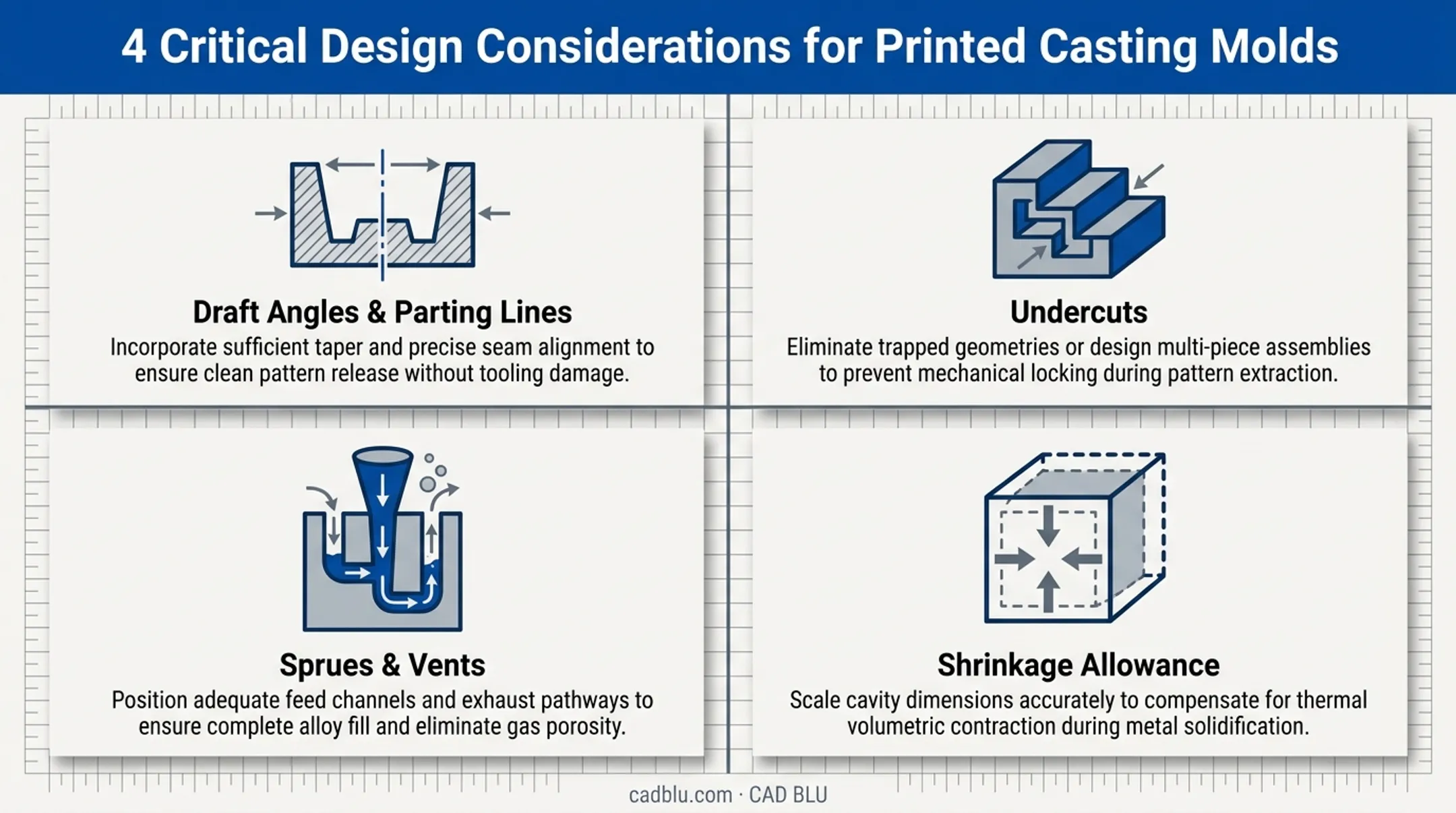

Key Design and Process Considerations
Getting the geometry right matters more than picking the "best" material. A perfectly printed mold with the wrong draft angle still won't release the part.
Geometry That Actually Releases
- Draft angles and parting lines decide if a rigid mold releases cleanly—or if you need a flexible or multi-part design
- Undercuts typically force a multi-piece mold, a sacrificial approach, or a flexible silicone insert
- Registration keys and fasteners keep mold halves aligned and prevent leakage at the seam
Sprues, Vents, and Flow
Air trapped in the cavity ruins casts. Sprues, pouring channels, and air vents let material fill the mold while trapped air escapes.
Stratasys recommends roughly 3 mm gate holes for investment patterns as a starting point. Confirm final sizing with your material supplier rather than a generic rule.
Shrinkage Is Not Optional to Plan For
Both the casting material and the printing process introduce shrinkage. VisiJet wax materials, for example, show linear shrinkage between 0.70% and 0.75% cooling from 40°C to room temperature. Don't guess. Use supplier data and run a test cast before committing to a production batch.
Print Setup and Safety
- Orient prints to minimize support marks on cavity surfaces
- Keep wall thickness consistent (Stratasys' Somos guide recommends a 0.4 mm minimum for investment patterns)
- Inspect the cavity for tack, residue, or defects before casting
Safety can't be an afterthought. Uncured resin, solvents, and heated casting materials all carry hazards. OSHA's Hazard Communication standard requires accessible safety data sheets and worker training on chemical hazards, and its PPE standard calls for a documented hazard assessment plus properly fitted protective gear.
Treat this as general educational guidance, not a substitute for your facility's own foundry or workplace safety program.
Advantages, Limitations, and Mold Life
Printed molds solve real problems, but they're not a drop-in replacement for machined tooling.
What printed molds do well:
- Rapid tooling with no wait for machining
- Lower entry cost for small quantities
- Fast CAD revisions between iterations
- Complex geometry that's expensive to machine
- Design validation before committing to permanent tooling
Where they fall short:
- Lower wear resistance than metal tooling in most cases
- Sensitivity to heat and certain chemicals
- Visible layer lines unless sealed or finished
- Leakage risk at poorly sealed parting lines
- Manual finishing and demolding labor
Mold life:
Mold life varies enormously depending on print material, casting compound, release agent, geometry, and demolding force. Formlabs' own comparison table is instructive: compression and injection-filled silicone molds last for dozens of casts, while eggshell and sacrificial molds are single-use by design.
A 2026 peer-reviewed study even reported an SLS-printed TPU mold surviving 20 ceramic slip-casting cycles without measurable damage. There's no universal cast-count number here. Test your specific combination before promising a client a mold life figure.
How to Choose the Right Casting Workflow

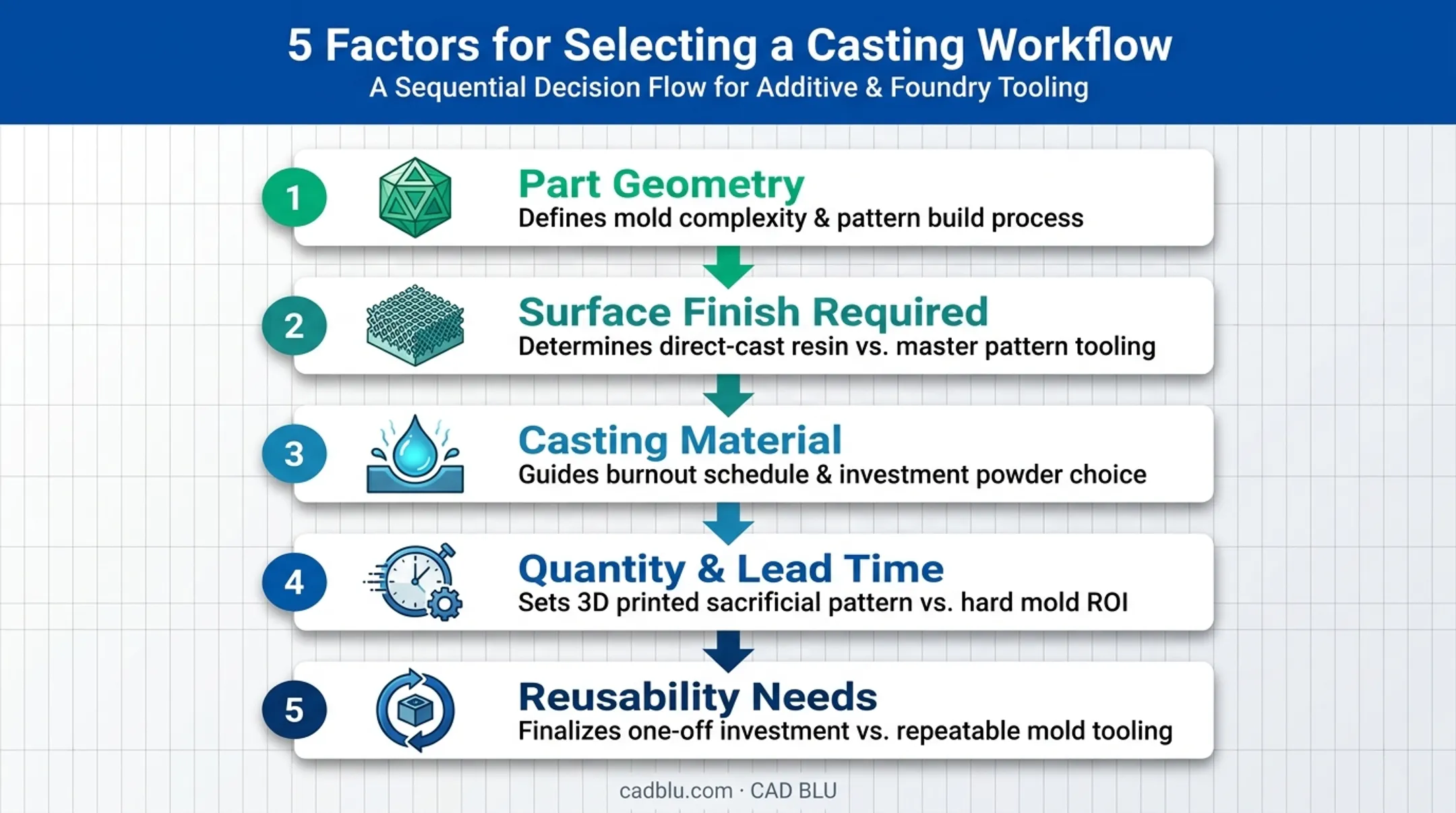

Start with the part, not the printer. Work through these factors in order:
- Part geometry – Undercuts and fine detail push toward silicone or investment routes
- Surface finish required – Resin patterns beat FDM molds on smoothness
- Casting material – Temperature and chemistry rule out incompatible mold materials fast
- Quantity and lead time – A handful of parts favors direct printing; dozens may favor a master pattern
- Reusability needs – Sacrificial patterns are one-shot by definition
Comparing the Three Pathways
- Direct casting into a printed mold suits low-volume elastomer or resin work where the mold material tolerates the casting chemistry
- Printed master pattern for a silicone mold suits repeatable small batches needing a flexible, reusable tool
- Sacrificial printed pattern for investment casting suits complex metal parts where wax-injection tooling would take weeks
Move to machined or metal tooling when production volume, thermal demands, cycle consistency, or regulatory needs outgrow what printed tooling has shown for your material. That crossover point isn't universal. It depends on the mold, casting compound, and part tolerance you're working against.
Manufacturers, foundries, and jewelry businesses often need help matching a pathway to real production constraints. CAD BLU offers turnkey and partial additive manufacturing solutions—printer selection, materials, installation, and workflow support—tied to your casting process.
Frequently Asked Questions
Can you slip cast in a 3D printed mold?
Yes—if the mold is sealed, dimensionally stable, and built to drain and release cleanly. Printed TPU molds have been reused about 20 times for ceramic slip casting, though plaster remains the common baseline. Test before scaling up.
What is the best type of mold for resin casting?
It depends on resin chemistry, detail requirements, and quantity. Silicone molds handle undercuts and reusability well; rigid printed molds suit simpler geometry; printed master patterns bridge the two when you need a flexible mold from a precise original.
What materials can be cast in a 3D printed mold?
Common examples include silicone, urethane, epoxy, wax, plaster, and select low-melting alloys like pewter. Always verify heat and chemical compatibility against the specific mold material's technical data sheet before casting.
Can you pour molten metal into a 3D printed mold?
Ordinary FDM or resin molds aren't rated for molten metal. Low-melting alloys like pewter can work in sacrificial high-temp resin molds around 260°C (500°F). Higher-temperature metals need investment casting, where the pattern is burned out rather than used as a permanent mold.
How long does a 3D printed casting mold last?
Service life depends on print technology, mold material, casting compound, temperature, and demolding force. Some silicone molds handle dozens of casts; sacrificial patterns are single-use by design. Run your own test cycle rather than relying on a general number.
Is a 3D printed mold better than a silicone mold?
It depends on the job. Rigid printed molds offer precision and speed for simpler geometry; silicone handles undercuts, fine detail, and repeated demolding better. Many workflows combine both: a printed master pattern used to make a silicone production mold.
