Introduction
Picking the wrong 3D printing material costs more than a failed print. It costs time, budget, and trust in your prototype pipeline. Many teams struggle with materials that look great on a spec sheet but crack under a snap-fit test or warp during a heat cycle.
Accura Xtreme White 200 is a stereolithography (SLA) material from 3D Systems built for exactly this problem: tough, white, injection-molded-like parts that hold up to functional assembly testing. But "tough" doesn't mean "fits every application."
This guide walks through the verified technical properties, where the material performs well, what your workflow needs to look like, and how to confirm fit before you commit budget and printer time.
Key Takeaways
- Tough white SLA resin for functional prototypes and CNC-replacement parts—not high-heat or flexible uses.
- Tensile strength 45–50 MPa; impact resistance 55–66 J/m (varies by printer class).
- Heat deflection tops out around 47°C, so continuous heat exposure requires a different material.
- Post-processing involves TPM cleaning, UV curing, and careful resin stirring between builds.
- Confirm compatibility, storage, and shelf life with your supplier before ordering.
What Is Accura Xtreme White 200?
Accura Xtreme White 200 is a stereolithography material manufactured by 3D Systems. The company markets it as an "ultra-tough white 3D print plastic" designed to resist breakage in demanding functional assemblies. It's positioned as a replacement for CNC-machined polypropylene and ABS parts, not a general-purpose visual resin.
The material was previously sold under the name VisiJet SL Impact for the ProJet 6000 and 7000 printers. That naming history matters if you're researching older documentation or comparing legacy cartridges.
What the White Finish Actually Means
The white color isn't just cosmetic. According to the manufacturer, it's engineered to replicate the look and feel of an injection-molded part straight off the platform. That's a real advantage for presentation models and customer-facing prototypes.
What the datasheet doesn't cover: specific sanding behavior, paint adhesion rates, or quantified surface roughness values. If your project needs a painted or coated finish, plan a test panel before committing to a full production run.
Documented Applications vs. Assumptions
3D Systems' own documentation lists these confirmed use cases:
- Form, fit, and function prototypes
- Snap-fit and self-tapping screw assemblies
- Tough enclosures and consumer electronics components
- General-purpose prototyping
- Master patterns for RTV/silicone molding
Notably absent from the manufacturer's published applications: dental, medical, jewelry, or metal investment-casting uses. If your project falls into one of those categories, don't assume suitability. Verify with 3D Systems or your materials supplier first.
Where It Sits Among Other Materials
3D Systems' SLA material selection guide places Accura Xtreme White 200 in the "Rigid" category, labeled a "Higher Toughness Xtreme material." That's a relative ranking against other Accura resins, not a numeric guarantee. If your part needs high-temperature stability, Accura 48HTR (rated to 130°C HDT after post-cure) is the documented alternative worth comparing.

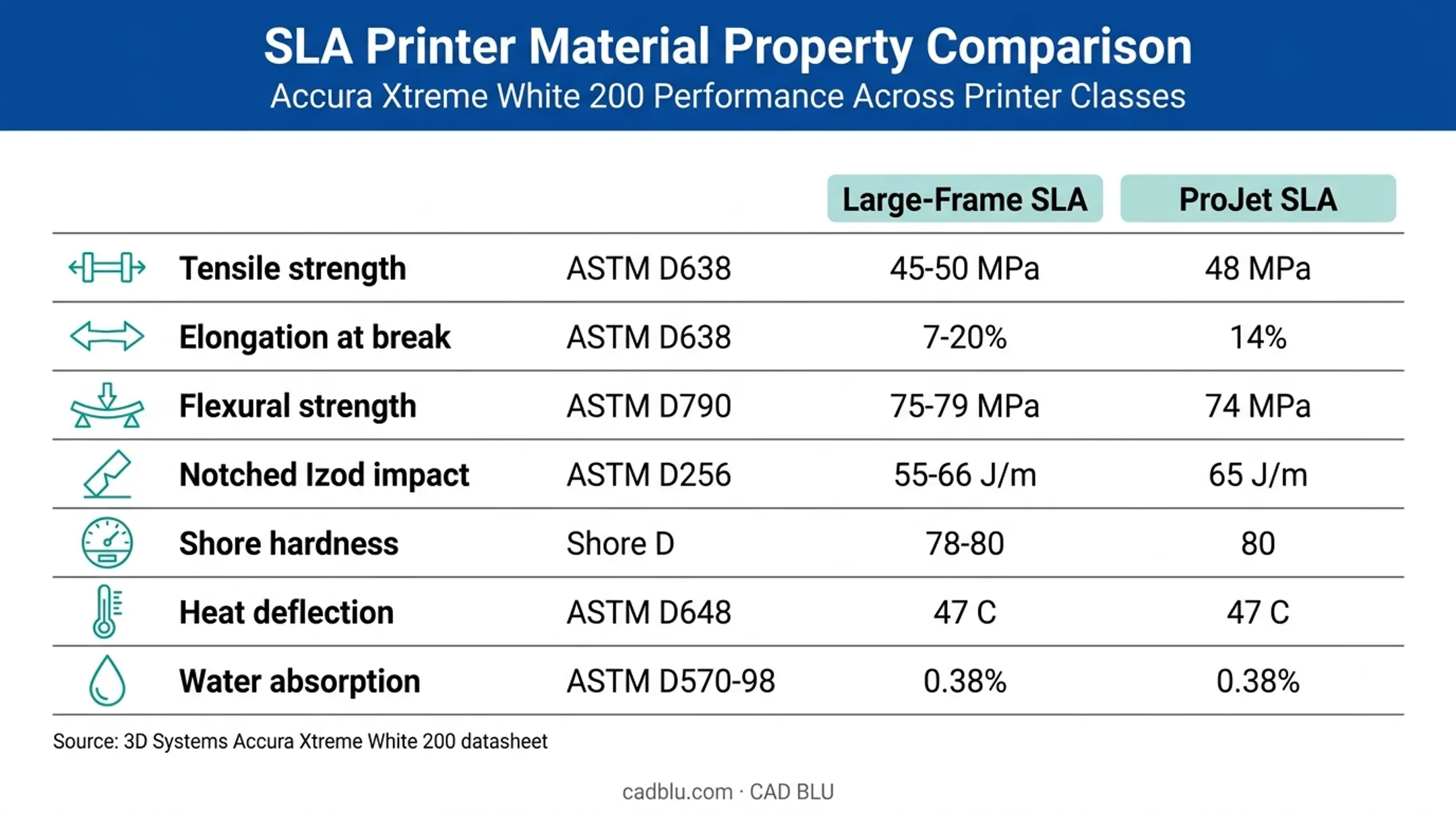

Material Properties and Applications
Property values differ depending on whether parts are built on large-frame SLA printers or ProJet SLA systems—match the column to your equipment.
| Property | Large-Frame SLA | ProJet SLA | Test Method |
|---|---|---|---|
| Tensile strength | 45-50 MPa | 48 MPa | ASTM D638 |
| Elongation at break | 7-20% | 14% | ASTM D638 |
| Flexural strength | 75-79 MPa | 74 MPa | ASTM D790 |
| Notched Izod impact | 55-66 J/m | 65 J/m | ASTM D256 |
| Shore hardness | 78-80 | 80 | Shore D |
| Heat deflection (0.45 MPa) | 47°C | 47°C | ASTM D648 |
| Water absorption | 0.38% | 0.38% | ASTM D570-98 |
Source: 3D Systems Accura Xtreme White 200 datasheet
Translating Specs Into Decisions
- Impact strength (55-66 J/m): Good for parts that get dropped or handled repeatedly during testing, like enclosures or consumer product mockups.
- Elongation (7-20%): Enough flex for snap-fit tabs, but not a substitute for a true elastomeric material if the part needs to bend repeatedly.
- HDT (47°C): Fine for indoor prototypes and short-term use. Not suitable for under-hood automotive parts or anything near a heat source.
Application Fit by Use Case
- Product development and industrial design: Strong fit for form/fit/function models that need to survive handling.
- Engineering prototypes with assembly testing: Snap fits and self-tapping screw assemblies are directly documented use cases.
- Investment casting or master patterns: Suitable for RTV/silicone molding patterns per the datasheet, though not documented for direct metal investment casting.
- Medical, dental, or jewelry-specific work: Not a documented fit. CAD BLU's materials team can recommend biocompatible or castable alternatives for those applications.
3D Systems' datasheet notes that performance may vary by application, operating conditions, and end use. Test a representative part before you scale to production—especially if the component will see heat, repeated stress, or chemical exposure.
How to Evaluate Accura Xtreme White 200 for Your Workflow
Before ordering material, match your part requirements to the published spec sheet and process data.
Start With Part Requirements
Ask these questions first:
- What geometry and minimum feature size does the part need?
- What dimensional tolerance is acceptable?
- Will the part experience load, impact, or repeated movement?
- What's the maximum operating temperature it will see?
- How many units do you need, and on what timeline?
Confirm Printer Compatibility
3D Systems lists ProJet 7000 HD, SLA 750, and SLA 825 Dual as current compatible systems.
Older documentation also references ProJet 6000/7000, ProX 800, iPro 8000, ProX 950, Viper si2, SLA 5000, and SLA 7000. Packaging and cartridge format vary by system, so confirm before ordering.
Orientation and Support Strategy Matter
Support placement affects more than build time. According to 3D Systems' best-practices documentation, default support settings are tuned for reliable builds, and modifying them without guidance can cause build failures. Support spacing of 0.250 inches is standard, tightening to 0.2 inches under low humidity if quilting appears.

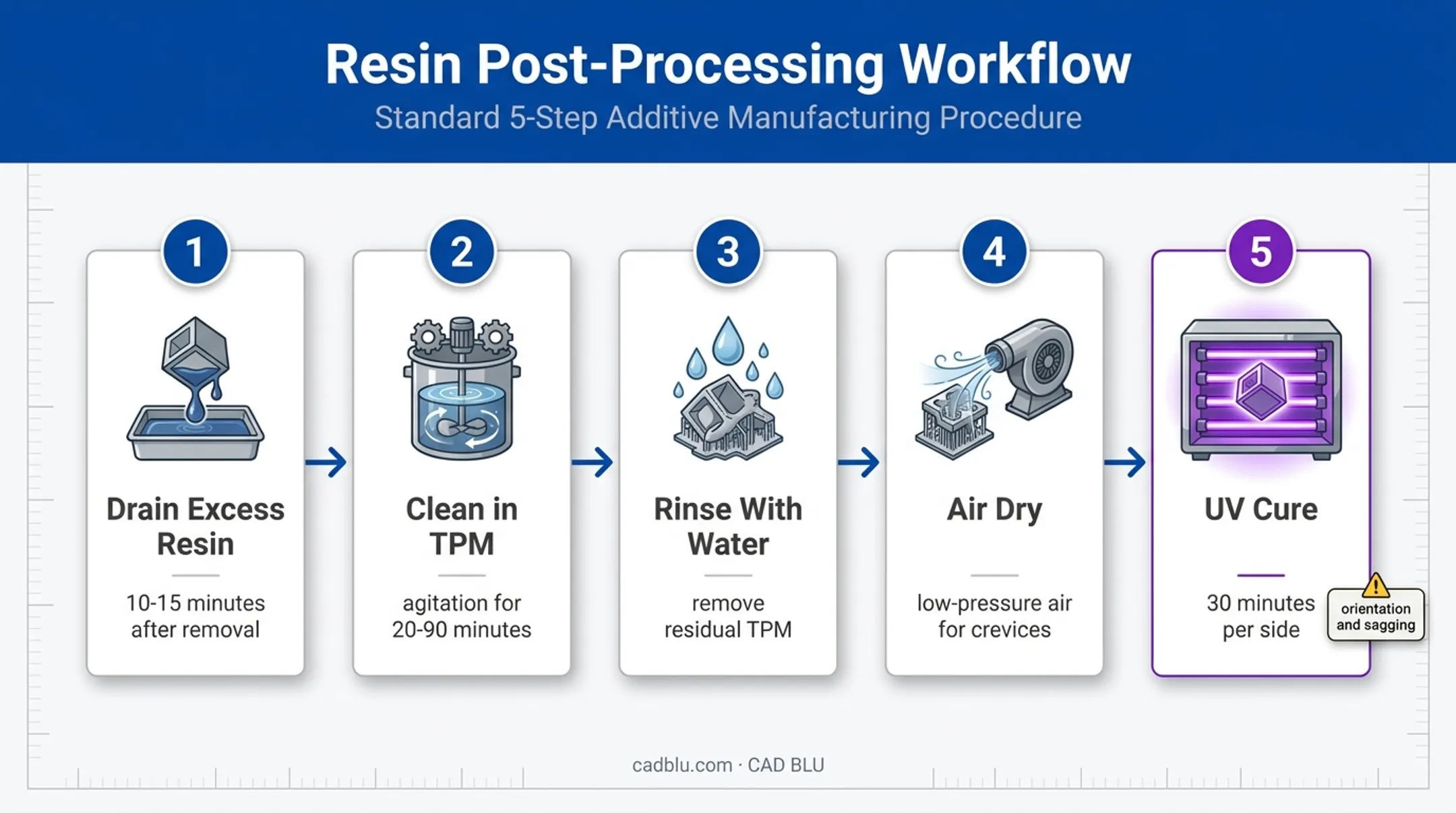

The Post-Processing Sequence
- Drain excess resin for 10-15 minutes after removal from the platform.
- Clean in TPM solvent with agitation for 20-90 minutes.
- Rinse with water to remove residual TPM.
- Air dry, using low-pressure compressed air for tight crevices.
- UV cure for 30 minutes per side, watching orientation to avoid sagging.
Skipping or rushing any of these steps changes mechanical performance and can shift part color if over-cured.
Decision Rule
Choose Accura Xtreme White 200 when the part needs toughness and a clean white finish, plus assembly-level durability inside a moderate temperature range. Look elsewhere for sustained heat above 47°C, repeated flex fatigue, chemical exposure, or patient contact that needs biocompatibility certification.
If the fit is unclear, CAD BLU can help match the resin to your printer, geometry, and end-use requirements before you place an order.
Buying, Handling, and Storage Considerations
Material cost is only part of the buy. Before you order, confirm:
- Current product code and cartridge size (commonly sold as a 2-liter SLA cartridge)
- Lot number and shelf-life status from your supplier
- Lead time against your production schedule
- Whether your specific printer model is qualified for this resin
- Current Technical Data Sheet and Safety Data Sheet revision dates
Safety and Handling
The current Safety Data Sheet classifies this material for skin and eye irritation, skin sensitization, and chronic aquatic toxicity. That means:
- Wear gloves, eye protection, and protective clothing
- Work in a well-ventilated area with local exhaust where possible
- Keep uncured resin away from skin and eyes
- Contain spills with non-combustible absorbent material and dispose per local regulations
Full details are in the current Safety Data Sheet.
Storage
The SDS calls for a tightly sealed container, stored cool, dry, and away from direct sunlight or UV light. No numeric temperature or shelf-life figure is published, so request lot-specific guidance from your supplier.

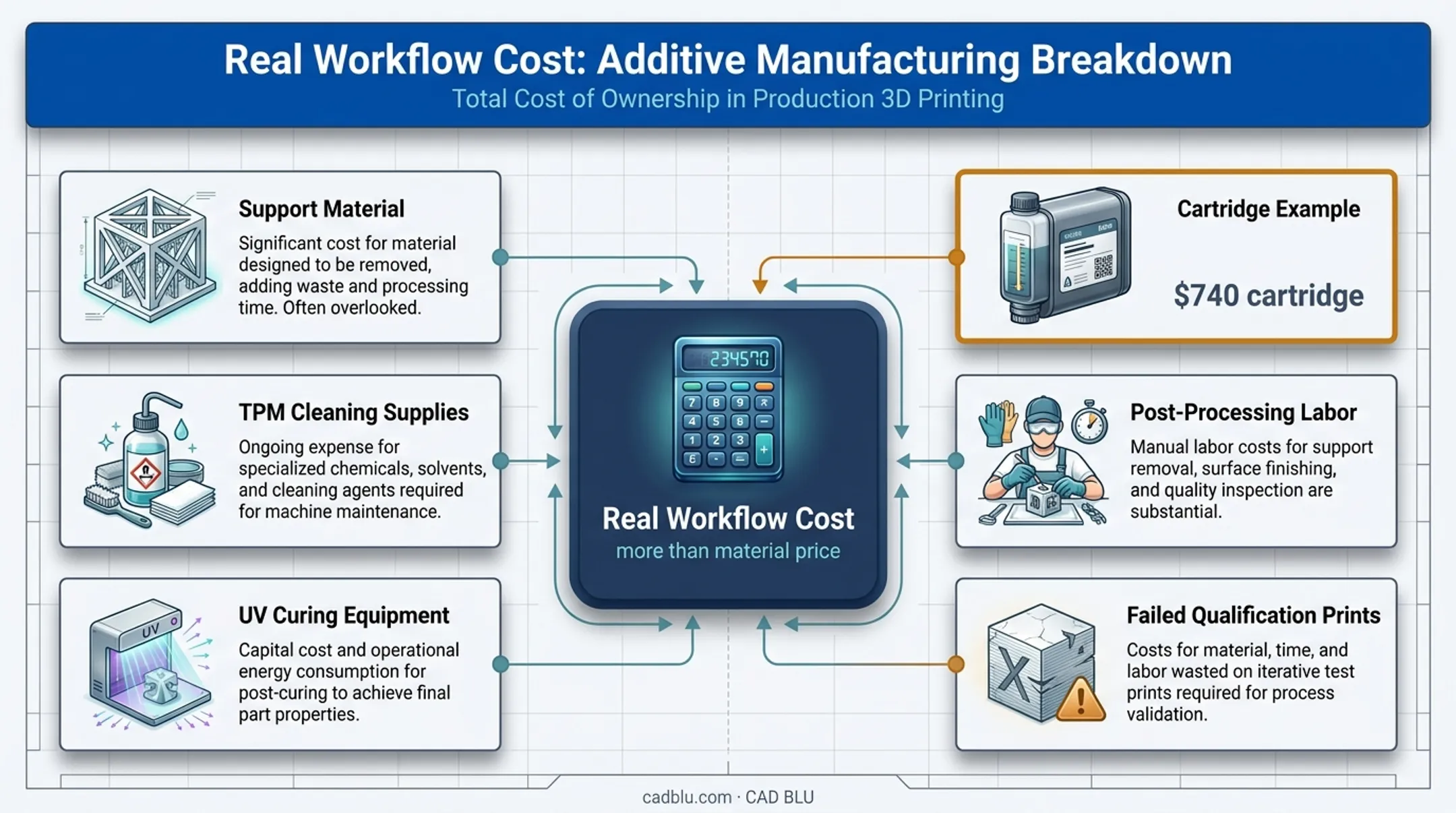

Total Workflow Cost
Material price alone doesn't tell the full story. Build the real cost from:
- Support material
- TPM cleaning supplies
- UV curing equipment
- Labor for post-processing
- Failed prints during qualification
A $740 cartridge that produces inconsistent parts costs more than a slightly pricier resin that works the first time.
Where Accura Xtreme White 200 Fits Best — And Where It May Not
| Requirement | Fit | Notes |
|---|---|---|
| High-detail visual models | Good | White finish mimics injection molding |
| Fit-check prototypes | Good | Documented form/fit/function use case |
| Snap-fit functional testing | Good | Elongation and impact data support this |
| Continuous heat exposure | Poor | HDT caps around 47°C (117°F) |
| Flexible/elastomeric parts | Poor | Not a flexible material class |
| Outdoor/UV exposure | Needs validation | No published UV performance data |
| Patient-contact medical use | Needs validation | Not documented as biocompatible |
A prototype that demonstrates form and fit is a different animal than a part meant for sustained mechanical or environmental service. Accura Xtreme White 200 does the former reliably. The latter needs testing specific to your load case, temperature range, and exposure conditions.
Red flags that warrant a technical review before purchase:
- Continuous or near-continuous heat exposure
- High-impact or repeated fatigue loading
- Prolonged outdoor UV exposure
- Chemical contact beyond incidental handling
- Any patient-contact or regulated application
When project cost, safety, or production stakes are high, request a sample print or benchmark part before ordering in volume.
CAD BLU Support for Material Selection and Adoption
Reading a datasheet is one thing. Matching it to your actual printer, part geometry, and production goals is another.
CAD BLU is a US-based additive manufacturing solutions provider. We supply 3D printers, materials, software, installation, workflow optimization, repair, and technical support. We don't manufacture Accura Xtreme White 200, but we help customers determine whether it's the right fit for their equipment and application.
Our OEM-trained and certified technicians can:
- Review your printer's compatibility with a given material
- Help configure or troubleshoot your SLA workflow
- Plan material adoption around your specific part requirements
If you're weighing Accura Xtreme White 200 against another Accura material, or validating a workflow before you scale, contact CAD BLU for help choosing a compatible material and setting up a validated process. For technical specifications and current documentation, always confirm directly with 3D Systems.
Frequently Asked Questions
What is Accura Xtreme White 200 used for?
Accura Xtreme White 200 is used for form/fit/function prototypes, snap-fit assemblies, tough enclosures, and master patterns for silicone molding. Final suitability depends on your part's required performance, finish, and service conditions.
Is Accura Xtreme White 200 compatible with my 3D printer?
Compatibility must be confirmed through 3D Systems and your printer manufacturer using a current, validated material profile. Listed systems include ProJet 7000 HD, SLA 750, and SLA 825 Dual, but older systems may require different cartridge formats.
What does Accura Xtreme White 200 look like after printing?
It produces a white finish designed to replicate an injection-molded part. The final appearance depends on cleaning, curing, orientation, support placement, and any sanding or coating applied afterward.
Does Accura Xtreme White 200 require post-processing?
Yes. The documented process includes draining, TPM cleaning, rinsing, air drying, and UV curing for 30 minutes per side, followed by inspection and optional finishing.
How should Accura Xtreme White 200 be stored and handled?
Store it sealed, cool, dry, and away from sunlight or UV light, and use gloves, eye protection, and ventilation when handling. Check the current Technical Data Sheet and Safety Data Sheet for full details before ordering.
How can I determine whether Accura Xtreme White 200 is right for my project?
Compare its verified mechanical properties against your part's geometry, load, temperature, environment, and finish requirements. For high-stakes parts, request a sample print or talk to CAD BLU's technical team before committing to a full run.
