Getting this right matters for anyone specifying materials for prototypes, tooling, dental models, or production parts. It requires looking at resin formulation, print geometry, curing quality, and the environment a part will actually face.
This article breaks down what resin durability really means, which factors shift it up or down, and how to evaluate a material before committing to it, without pretending a single universal lifespan number exists.
Key Takeaways
- Durability depends on material, geometry, curing quality, environment, and duty cycle, not resin chemistry alone.
- Standard resins suit visual models and low-stress prototypes; tough, flexible, engineering, and high-temp resins handle functional roles.
- UV exposure, heat, moisture, chemicals, impact, and repeated loading accelerate degradation at different rates.
- Datasheet numbers reflect controlled test conditions, not a guarantee of field performance.
- Regular inspection for yellowing, tackiness, cracking, and dimensional drift catches problems early.
What Resin Durability Represents in a 3D-Printed Part
Resin durability describes how well a cured photopolymer print holds its appearance, dimensions, and mechanical performance over time, under the conditions it's actually used in. That last part matters. A resin isn't durable or fragile in the abstract; it's durable for a specific application.
Durability is easy to confuse with related mechanical terms:
- Strength is how much load a part can bear before it fails.
- Hardness is resistance to surface indentation, not resistance to cracking.
- Toughness is the ability to absorb energy without fracturing.
- Stiffness measures resistance to deformation under load.
- Fatigue resistance measures how a part holds up under repeated stress cycles, not a single load event.
A part can be hard but brittle, or strong in tension but weak against a sudden impact. That's why durability sits above these individual properties. It depends on several factors working together:
- Resin chemistry and formulation
- Printer settings and layer bonding
- Post-processing quality
- Part design
- Operating environment
Intended Use and Required Service Life
A display model or visual prototype mainly needs to look right and hold its shape on a shelf. Functional prototypes, jigs, fixtures, tooling, dental models, jewelry patterns, and end-use parts face a much higher bar.
A print's useful life ends when it no longer meets required appearance, fit, accuracy, or strength—not when it finally cracks. For medical, dental, aerospace, or load-bearing work, set that threshold with application-specific validation and supplier data, not the resin category name alone.
Resin Type and Expected Durability Profile
Different resin classes trade off properties differently. No single formulation maximizes rigidity, impact resistance, elongation, heat resistance, and chemical resistance simultaneously.
| Resin Class | Representative Data | Best Suited For |
|---|---|---|
| Standard/general purpose | Varies by formulation | Visual models, concept prototypes |
| Tough/ABS-like | Formlabs Tough 2000 V2: 40.4 MPa tensile strength, 79% elongation at break | Functional prototypes, snap-fits |
| Flexible/elastomeric | Formlabs Flexible 80A V2: 10 MPa tensile strength, 230% elongation | Gaskets, wearable mockups |
| Engineering/rigid | Formlabs Rigid 10K: 88 MPa tensile strength, 11 GPa modulus | Jigs, fixtures, precision parts |
| High temperature | Formlabs High Temp: HDT up to 238°C at 0.45 MPa | Static high-heat tooling |
| Dental/biocompatible | CAD BLU Dental Model resin: 90 Shore D, 70 MPa tensile strength | Working and vacuum-forming dental models |
Figures are from Formlabs' materials comparison and CAD BLU dental-resin specs. Treat them as representative test results, not guarantees for every job.
Factors That Influence Resin Durability and Its Operating Range
Datasheet numbers come from controlled lab conditions. Real parts rarely see those exact conditions, which is why field performance can diverge from what the technical sheet promises.
Material and Design Constraints
Design choices affect where and how a part fails long before the resin's chemistry becomes the limiting factor. Wall thickness, sharp corners, thin projections, and stress concentrations at branching features are common crack-initiation points.
- Keep walls above the minimum recommended thickness for the printer and resin combination (Formlabs recommends 0.2 mm minimum for the Form 4 platform).
- Round transitions instead of using sharp internal corners.
- Add drainage holes to hollow parts, at least 0.75 mm in diameter, to prevent trapped resin and suction-related detachment.
- Orient parts so critical stresses don't run across a weak layer interface.
Rigid materials tend to preserve dimensions well but fracture under sudden impact. More flexible materials absorb shocks better but can deform permanently under sustained load. Neither is universally "more durable"; it depends on what the part needs to survive.
Manufacturing and Post-Processing Quality
A part can be weakened before it ever enters service. Incorrect exposure settings, contaminated resin, inadequate washing, and incomplete curing all leave a print short of its intended properties.
- Under-curing leaves a part soft, tacky, or dimensionally unstable.
- Over-curing can increase brittleness and shift dimensions out of tolerance.
- Over-curing can increase brittleness and shift dimensions out of tolerance.
- Incomplete washing leaves residual resin that softens surfaces and weakens the final cure.
CAD BLU's internal processing data for materials like Figure 4 TOUGH-BLK 20 shows how tight these windows are. Total IPA exposure is limited to 10 minutes, followed by more than an hour of ambient air drying and 90 minutes of UV cure. Skip a step or shorten a time, and the part's documented properties no longer apply.

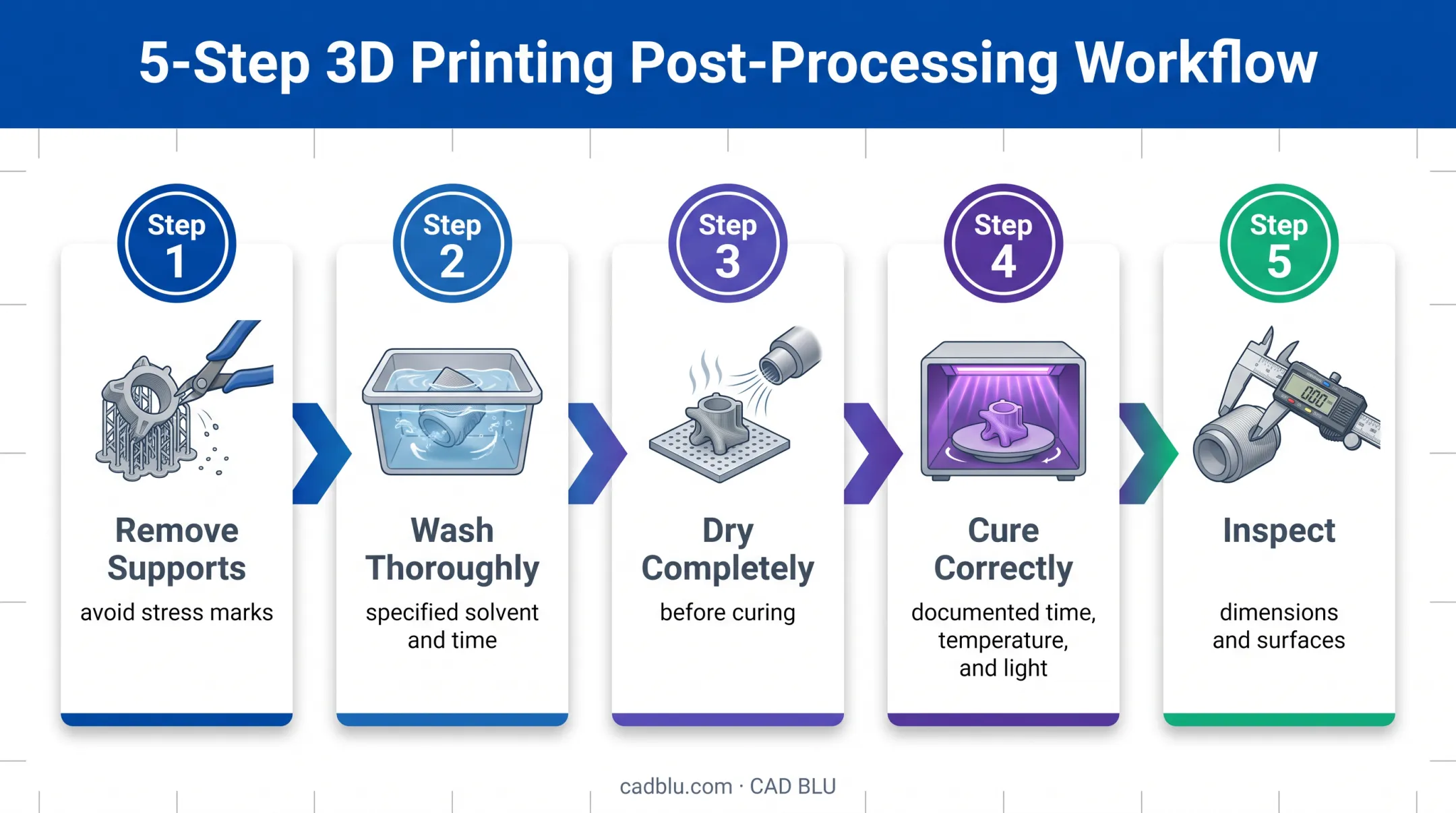

A reliable post-processing sequence looks like this:
- Remove supports carefully to avoid stress marks.
- Wash thoroughly using the resin manufacturer's specified solvent and time.
- Dry completely before curing.
- Cure according to documented time, temperature, and light-source guidance.
- Inspect dimensions and surfaces before the part goes into use.
Environmental and Duty-Cycle Effects
UV exposure is one of the most common drivers of resin failure. Direct sunlight in particular can cause yellowing, embrittlement, and eventually cracking.
A 2025 accelerated-weathering study exposed SLA parts to UV, heat, and 100% humidity for up to 1,008 hours. Tensile, flexural, and compressive strength dropped by roughly 19 to 37%, and elongation behavior shifted from elastic to brittle.
Other environmental stressors include:
- Temperature swings and thermal cycling, which can degrade flexural strength over repeated cycles
- Humidity and water absorption, which can swell or soften a part depending on resin chemistry
- Solvents, oils, and cleaning agents, which vary widely in their effect from resin to resin
Static display use is a very different duty cycle from repeated flexing, vibration, or cyclic loading. If a part will see repeated use, fatigue and environmental-aging data specific to that resin matter far more than a single tensile number.
Nominal Range, Boundaries, and Service-Life Estimates
A useful service-life estimate needs to specify:
- Resin and print process
- Geometry and post-processing method
- Environment and load profile
- The point at which performance is no longer acceptable
Anything less is guesswork.
3D Systems' Figure 4 production materials program is one example of rigorous testing. Mechanical properties were validated across an 8-year indoor testing horizon and color stability across 1.5 years for specific named materials under specific conditions. That's not a blanket claim that any resin print lasts eight years. It is evidence of what one tested material achieved under a defined program.
For any part expected to carry a long service-life claim, accelerated-aging, load, thermal, or chemical testing on the actual geometry beats extrapolating from a generic datasheet.
Key Technical Properties, Measurement, and Validation
Technical properties are tools for matching a resin to real stresses, not a scoreboard for ranking materials as "best" or "strongest."
Mechanical Properties That Predict Practical Durability
Tensile and flexural strength, elongation at break, impact resistance, and hardness all describe different failure modes. Tensile strength alone can't predict drop resistance or how a part handles a sharp notch. A resin with high tensile strength but low elongation can shatter under a sudden impact that a lower-strength, more flexible material would survive.

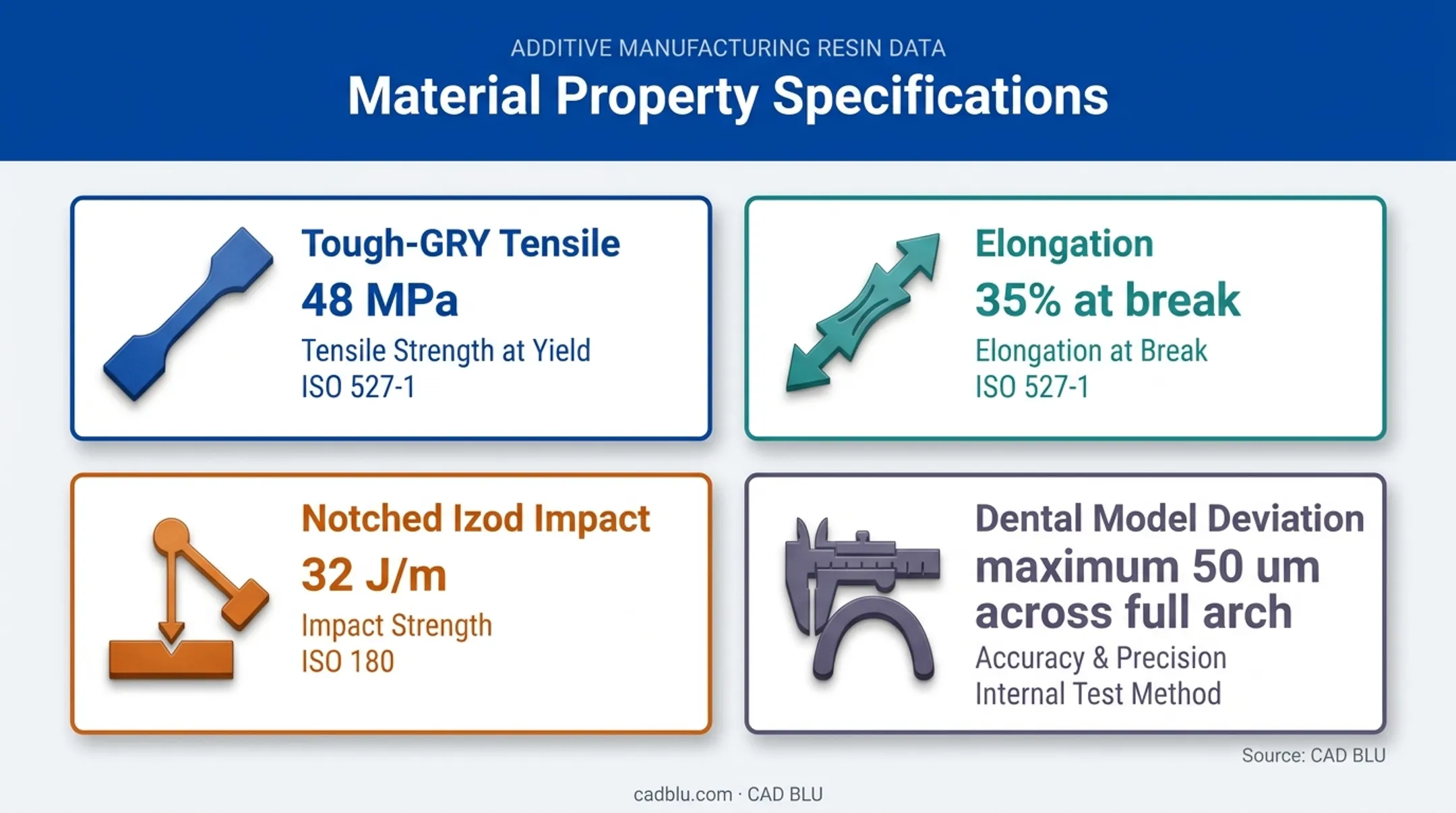

CAD BLU's Figure 4 TOUGH-GRY 15 data shows why comparing multiple properties matters: 48 MPa tensile strength, 35% elongation at break, and 32 J/m notched Izod impact strength together, not any single figure alone, describe how that material behaves under stress.
For assemblies and precision applications, dimensional stability matters just as much. Dental Model resin, for example, holds a maximum deviation of just 50 µm across a full arch, a tolerance that would be irrelevant for a display piece but critical for a dental application.
Thermal, Chemical, Moisture, and UV Properties
Glass transition temperature and heat deflection temperature (HDT) are often confused. Tg measures a thermal transition; HDT measures deformation under a specific flexural load while heating. A resin rated for a brief HDT exposure isn't automatically suited to sustained heat at that temperature.
- Figure 4 MED-AMB 10 lists an HDT of 119°C at 0.455 MPa and thermal resistance above 100°C with strong humidity resistance.
- Dental Model resin reports water absorption below 0.3% after 24 hours, relevant for parts exposed to moisture or cleaning solutions.
- A UV-resistant coating reduces UV-related degradation risk, but it doesn't convert a resin never intended for outdoor use into a permanent outdoor material.
Specification, Measurement, and Validation
Test results depend heavily on specimen geometry, print orientation, layer height, and how the part was washed and cured. Comparing two resins is only meaningful when those conditions match.
- Use technical data sheets, safety documentation, and printer-resin compatibility notes as your starting reference point.
- Print representative test coupons or full-scale prototypes before committing to production.
- Evaluate those coupons under the actual load, temperature, and chemical exposure the part will see.
This is where working with a materials specialist pays off. CAD BLU helps businesses evaluate commercial 3D printers, resin options, software, and workflow requirements when a print needs to meet repeatable, application-specific criteria, without promising a fixed service life that hasn't been validated for that specific use case.
Once a baseline is established, schedule regular inspections for cracking, discoloration, tackiness, warping, delamination, and loss of fit or function.
Implications of Operating Outside the Recommended Range and Common Misinterpretations
Pushing a resin part past its recommended heat, UV, moisture, or load range doesn't cause instant failure. Property changes usually begin quietly, chipping away at the part's safety margin before any visible sign appears.
Watch for these failure modes:
- Brittle fracture or fatigue cracking under repeated stress
- Creep or warping under sustained load or heat
- Swelling, discoloration, or chalking from chemical or UV exposure
- Surface tackiness from incomplete curing
- Delamination between layers
- Gradual loss of dimensional accuracy
Operating beyond a datasheet limit can affect performance, compliance, and warranty coverage. If inspection reveals any of the signs above, replace or requalify the part rather than assuming it will hold.
A few misconceptions are worth correcting directly:
- Nominal strength is not an absolute ceiling. It's a test result under specific conditions, not a hard limit that applies universally.
- Hardness isn't toughness. A hard resin can still shatter on impact.
- A fully cured print isn't automatically UV-resistant. Curing addresses mechanical properties, not necessarily long-term UV stability.
- Lab lifespan doesn't transfer directly to outdoor or high-load use. Accelerated tests approximate real conditions; they don't replicate every variable a part will face.
- Resin is not "as strong as concrete." The materials differ in composition, stiffness, and intended use. Typical concrete compressive strength is often cited near 20 MPa, while a tough resin such as Formlabs Tough 2000 V2 lists about 40 MPa tensile strength—different properties under different loading conditions. Compare only like-for-like test standards.
Conclusion
Resin durability isn't a property that lives inside a bottle of liquid photopolymer. It's created by the interaction between the material, the part's design, how well it was post-processed, and the conditions it operates in afterward.
The most reliable path to a longer service life is straightforward:
- Choose a resin matched to the actual application
- Follow validated print and post-processing settings
- Control the part's exposure to heat, UV, and chemicals
- Confirm performance through representative testing rather than assumption
Before specifying a resin print for anything beyond a short-term prototype, define these factors up front:
- Required lifespan and expected loads
- Operating environment and acceptable degradation
- Inspection schedule and replacement criteria
That upfront work saves far more time than troubleshooting an unexpected failure later.
Frequently Asked Questions
How durable is resin, and what can damage it?
Durability varies by resin type, print quality, part design, environment, and use. UV light, heat, chemicals, moisture, impact, and repeated loading are the most common causes of degradation.

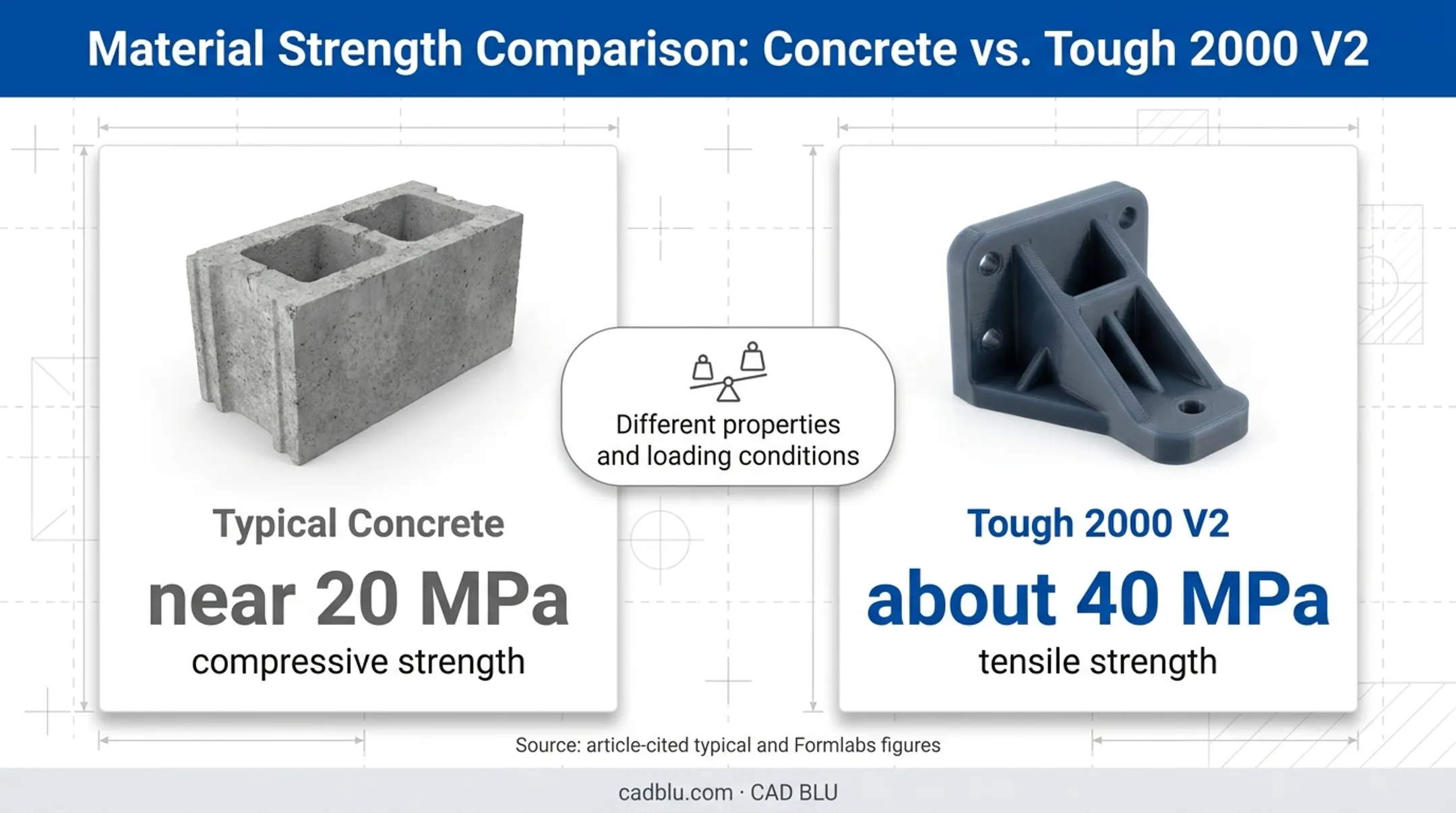

Is resin as strong as concrete?
Resin and concrete have different properties and applications, so a side-by-side comparison isn't straightforward. A fair comparison requires matched test measures, such as tensile, flexural, compressive, or impact strength, under identical conditions.
How long do resin 3D prints last with proper care?
There's no universal lifespan. Estimate service life using the specific resin's datasheet, the application's conditions, post-processing quality, duty cycle, and defined inspection criteria.
Does UV light shorten the life of resin 3D prints?
Yes. Ongoing UV exposure can cause yellowing, embrittlement, and cracking over time. UV-resistant resins, protective coatings, shading, and indoor storage all help reduce this risk.
Does curing affect how long a resin 3D print lasts?
Yes. Under-curing can leave a part soft or tacky, while over-curing can increase brittleness or shift dimensions. Always follow the resin and printer manufacturer's specific wash and cure guidance.
What type of resin is best for durable 3D prints?
It depends on the application's specific needs: impact resistance, flexibility, stiffness, heat resistance, chemical resistance, dimensional stability, or biocompatibility. Validate the chosen material against its intended use before production.
