The need is real. Complex or unusual anatomy is hard to fully grasp from 2D slices alone. Specialists on the same case sometimes interpret imaging differently. High-risk or rare procedures leave little room for surprises once the incision is made.
This article covers the imaging-to-print workflow, where 3D printing is being used in surgery today, what the evidence actually shows, the technical and regulatory considerations that matter, and practical paths for healthcare organizations considering a program of their own.
Key Takeaways
- Four main outputs: patient-specific models, simulations, cutting guides, and select custom devices.
- End-to-end workflow: imaging, segmentation, modeling, file prep, materials, printing, and quality review.
- Complex cases—not routine ones—show the clearest planning benefit from physical models.
- Clinical use needs multidisciplinary oversight and a clear line between planning aids and regulated devices.
How 3D Printing Works in Surgical Planning
Turning a CT or MRI scan into a physical model isn't a single step; it's a chain of decisions, and each link affects accuracy.

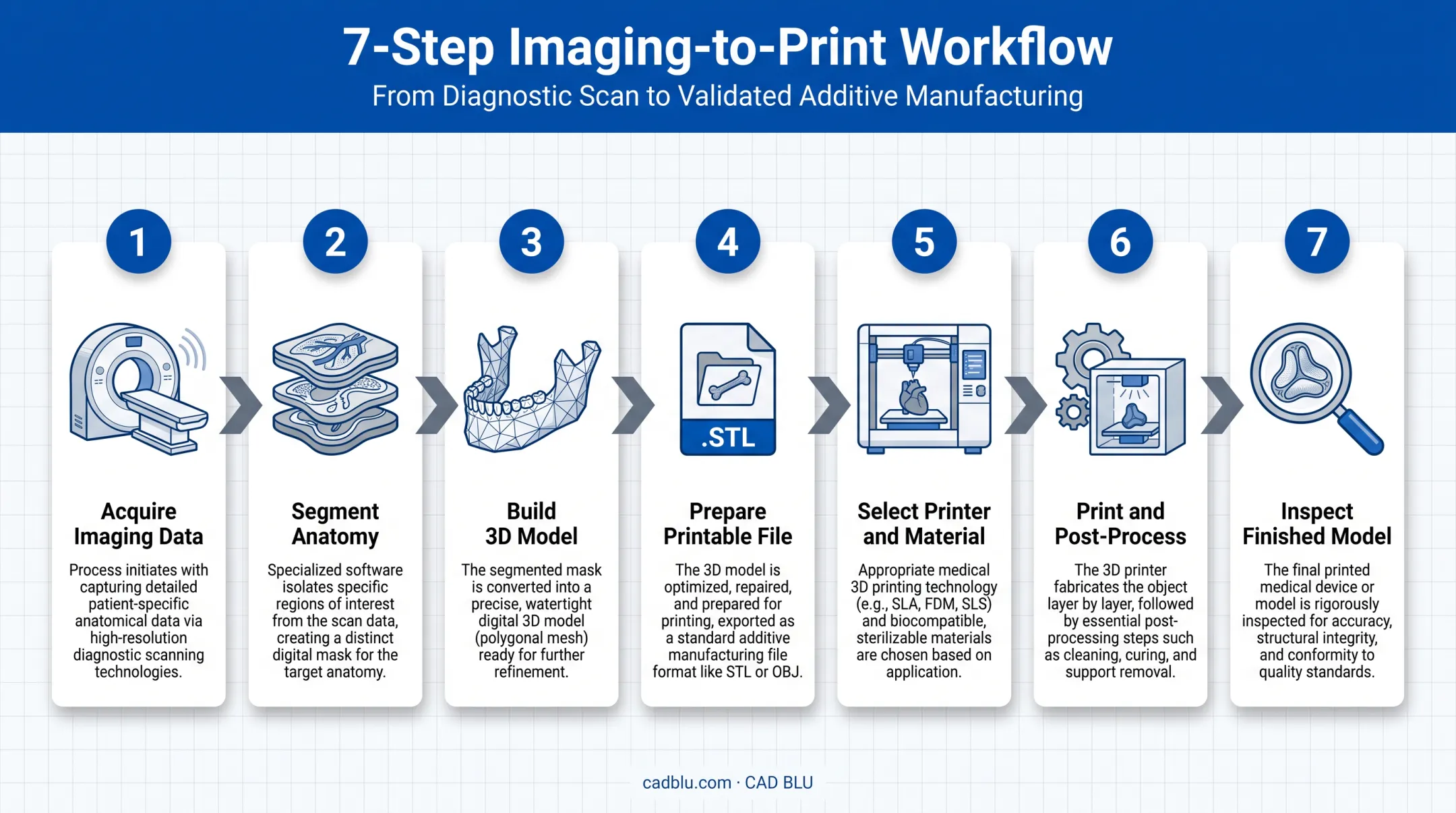

The Imaging-to-Print Sequence
The general process looks like this:
- Acquire imaging data with slice thickness and protocol suited to the target anatomy.
- Segment the anatomy, isolating bone, vessels, organs, or tumors from surrounding tissue.
- Build and refine the 3D model, repairing surface gaps and smoothing artifacts.
- Prepare the printable file (typically STL), checking geometry and wall thickness.
- Select the printer and material based on the model's intended purpose.
- Print and post-process, removing supports and curing where required.
- Inspect the finished model against the source imaging before it reaches the clinical team.
Why Segmentation Accuracy Matters
Segmentation is where most error creeps in. Software has to distinguish bone from soft tissue, vessel walls from surrounding fat, tumor margins from healthy organ, often with subtle contrast differences. A qualified reviewer needs to confirm the digital model actually matches the source images before anyone treats it as reliable.
The stakes are measurable. An eight-patient CT study compared three widely used segmentation platforms against laser-scanned femoral-head specimens and found deviations ranging from roughly 0.3 mm to 0.64 mm depending on the software, against a study-defined maximum acceptable planning error of about 2 mm. Small software choices produce measurably different models.
Digital Model vs. Physical Model
A rotatable 3D image on a screen and a printed model in your hands solve different problems. Digital visualization is fast, cheap to update, and easy to share. A physical model adds something screens can't: you can hold it, mark it up with a surgical pen, pass it around a room, or use it to rehearse an approach with actual instruments.
Matching Output Type to Purpose
Not every case needs the same kind of print. Common categories include:
- Anatomic models: rigid, true-to-scale replicas for visualization and planning
- Flexible or multimaterial models: softer materials that simulate tissue for rehearsal
- Surgical guides: patient-specific templates for cutting, drilling, or positioning
- Prototypes: early-stage designs for custom device development
Match the output to the clinical task first. The wrong model type wastes print time and weakens planning value.
Main Surgical Applications of 3D Printing
Surgical 3D printing shows up across specialties, but the underlying use cases repeat: visualization, rehearsal, guidance, and custom devices.

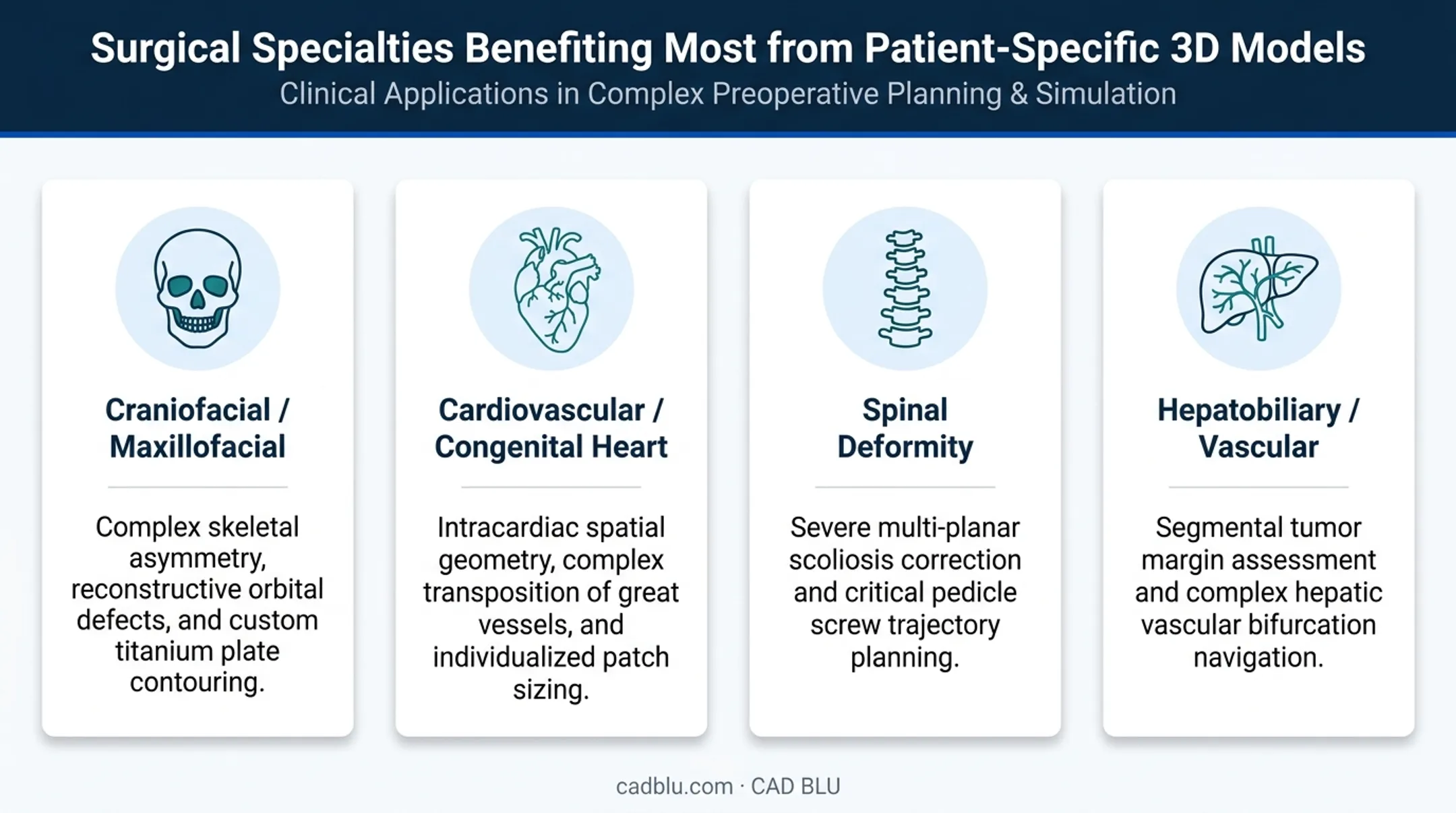

Anatomic Models for Complex Cases
Patient-specific models are most useful when anatomy departs from the textbook. Examples include:
- Craniofacial and maxillofacial cases, where bone geometry is irregular and reconstruction margins matter
- Cardiovascular and congenital heart cases, where chamber and vessel relationships are hard to picture in 2D
- Spinal deformity cases, where curvature and vertebral rotation complicate standard approaches
- Hepatobiliary and vascular cases, where vessel branching around a tumor affects resectability
Rehearsal and Procedure Simulation
Models let teams test access routes and anticipate difficult steps before the operating room.
That matters most for rare procedures a team may only see a handful of times in a career. Rehearsal on the patient's actual geometry builds familiarity that reading a chart can't.
Surgical Guides and Templates
Patient-specific guides support cutting, drilling, osteotomy positioning, and implant placement. Be precise about intended use: a guide used to plan an approach in a case conference is a different product, with different validation needs, than a guide fabricated for the procedure itself. Planning aids and clinical-use instruments are not interchangeable.
Custom Implants and Higher-Complexity Devices
Custom implants and related devices sit in a separate category from reference models:
- Implants, prostheses, splints, and anatomical spacers
- Different materials and tighter manufacturing controls
- Formal regulatory review, unlike a study-only reference model
Communication, Consent, and Education
Physical models also work as communication tools. Multi-hospital case series feedback points to gains in:
- Surgeon-to-surgeon discussion of complex anatomy
- Resident understanding during case review
- Patient conversations about proposed procedures
A single-center colorectal surgery trial found patients given a 3D-printed model reported higher shared decision-making scores than those receiving usual care alone. Models support these conversations; they don't replace formal informed consent.
Benefits and Evidence: What 3D Printing Can Add
Value depends on the case. For complex, high-variability procedures, though, the evidence base is growing.
What the Research Shows

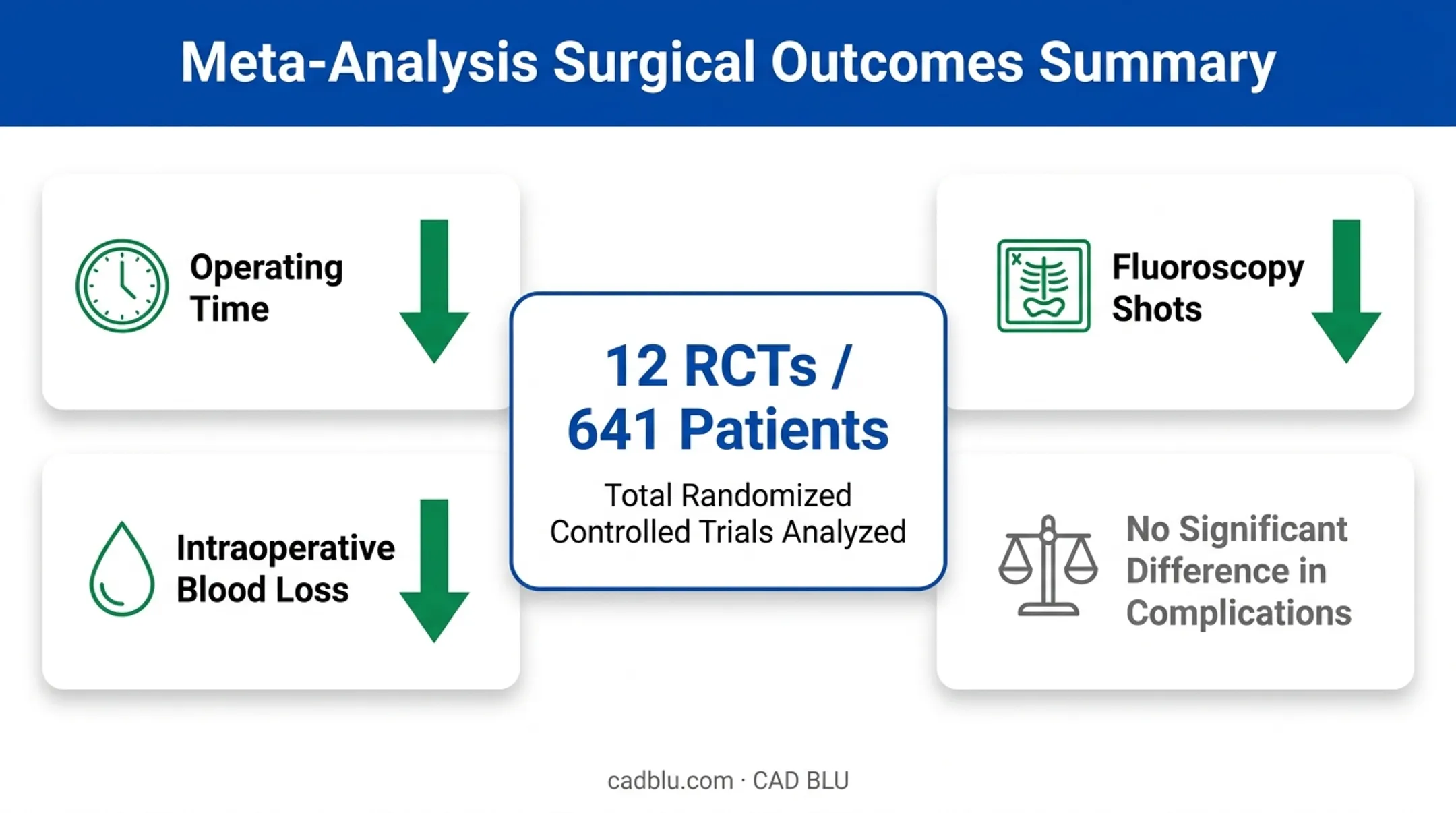

The strongest controlled data comes from orthopedic trauma surgery. A meta-analysis pooling 12 randomized controlled trials and 641 patients found that 3D-printed planning tools were linked to shorter operating time, lower intraoperative blood loss, and fewer fluoroscopy shots. Complication rates did not differ significantly between groups. The same review flagged high heterogeneity across surgeon expertise and fracture type, and called for larger multicenter trials.
Broader reviews across orthopedics, cardiology, neurology, and oncology describe a consistent pattern when models are used:
- Plan changes in roughly one-third of cases
- Operative-time savings that vary widely by specialty
- Findings drawn from mixed case literature, not one controlled study
These figures describe a pattern, not a guarantee.
Physical Models vs. Other Visualization Tools
| Tool | Strength | Limitation |
|---|---|---|
| 2D imaging | Fast, familiar, widely available | Limited spatial understanding for complex geometry |
| Digital 3D visualization | Quick to generate and update | No tactile feedback, harder to share hands-on |
| Physical printed model | Tactile, shareable, rehearsal-ready | Time and cost to produce; fixed at time of printing |
No single tool wins every case. Printing adds the most value when tactile, patient-specific reference genuinely changes how a team prepares.
Value for Patients and Teams
A tangible model can make an abstract diagnosis feel concrete for a patient or family.
It also pulls in a wider circle. Radiologists, surgeons, biomedical engineers, OR staff, and quality personnel typically all touch a successful case—which is why single-department programs often stall.
Technical, Safety, and Regulatory Considerations
Not every model needs the same material, and not every model needs sterilization.
Material Selection by Purpose
Material choice depends entirely on what the model will do:
- Rigidity and dimensional accuracy matter most for bone and structural models
- Flexibility matters for tissue-simulation or vessel models used in rehearsal
- Transparency helps visualize internal structures like tumors or vasculature
- Thermal and chemical resistance matters if a guide will be sterilized
Materials in current use span several categories. Rigid, true-to-CAD resins suit bone models and drill guides. Flexible, polypropylene-like materials support tissue simulation. Biocompatible resins built for surgical guides hold dimensional stability through standard autoclave cycles.
Sterilization Is Not One-Size-Fits-All
Infection-control requirements differ by use case:
- Planning models kept outside the sterile field
- Educational models handled by students
- Intraoperative guides used at the table
- Implants and other patient-contact devices
Laboratory testing on printed guides shows that both sterilization protocol and material choice affect dimensional accuracy. A protocol validated for one material is not automatically valid for another.
Regulatory Oversight and Data Protection
FDA guidance on additively manufactured medical devices covers any device with at least one 3D-printed component. It offers non-binding recommendations on design, materials, and post-processing controls.
The agency has also published separate guidance on patient-matched surgical guides. That document calls for image-quality controls, clinician sign-off on segmentation, dimensional tolerances, and testing after cleaning and sterilization.
A non-contact reference model is not equivalent to an implant or surgical instrument in regulatory terms. Higher-risk uses require their own validation. Imaging data used to build any model needs the same privacy safeguards as the rest of a patient's medical record.
How Healthcare Organizations Can Implement 3D Printing
Getting started doesn't require building a full in-house lab on day one.
Three Ways to Get Started
| Pathway | Best for | Trade-off |
|---|---|---|
| Outsourcing individual models | Low volume, early exploration | Longer turnaround, less control |
| Centralized/shared service | Multi-site systems | Requires coordination across departments |
| In-house point-of-care lab | High, sustained case volume | Capital investment, staffing, maintenance |
Point-of-care programs documented in registry data show real time costs: providers spend roughly 90 minutes per case on clinical review, while segmentation and modeling by non-clinical staff can run over two hours per case. That's a staffing commitment, not a side project.
A Readiness Checklist
Before committing to a pathway, organizations should map out:
- Clinical use cases and expected case volume
- Imaging protocols suited to 3D reconstruction
- Segmentation and CAD capability, in-house or contracted
- Printer and material selection matched to intended use
- Trained personnel and a defined review/approval process
- Documentation, traceability, and cybersecurity for imaging data
- Success metrics tracked from day one
Start Small, Scale Deliberately
The lowest-risk entry point is usually education, case conferences, and preoperative anatomic models, not guides or implant-related workflows. Expand into higher-risk applications only after validation processes are in place.
Capital equipment is a real consideration. Professional-grade printers suited to medical anatomic modeling typically run $55,000 to $70,000, which is why many organizations pair purchase or financing with a partner that also handles installation and workflow setup.

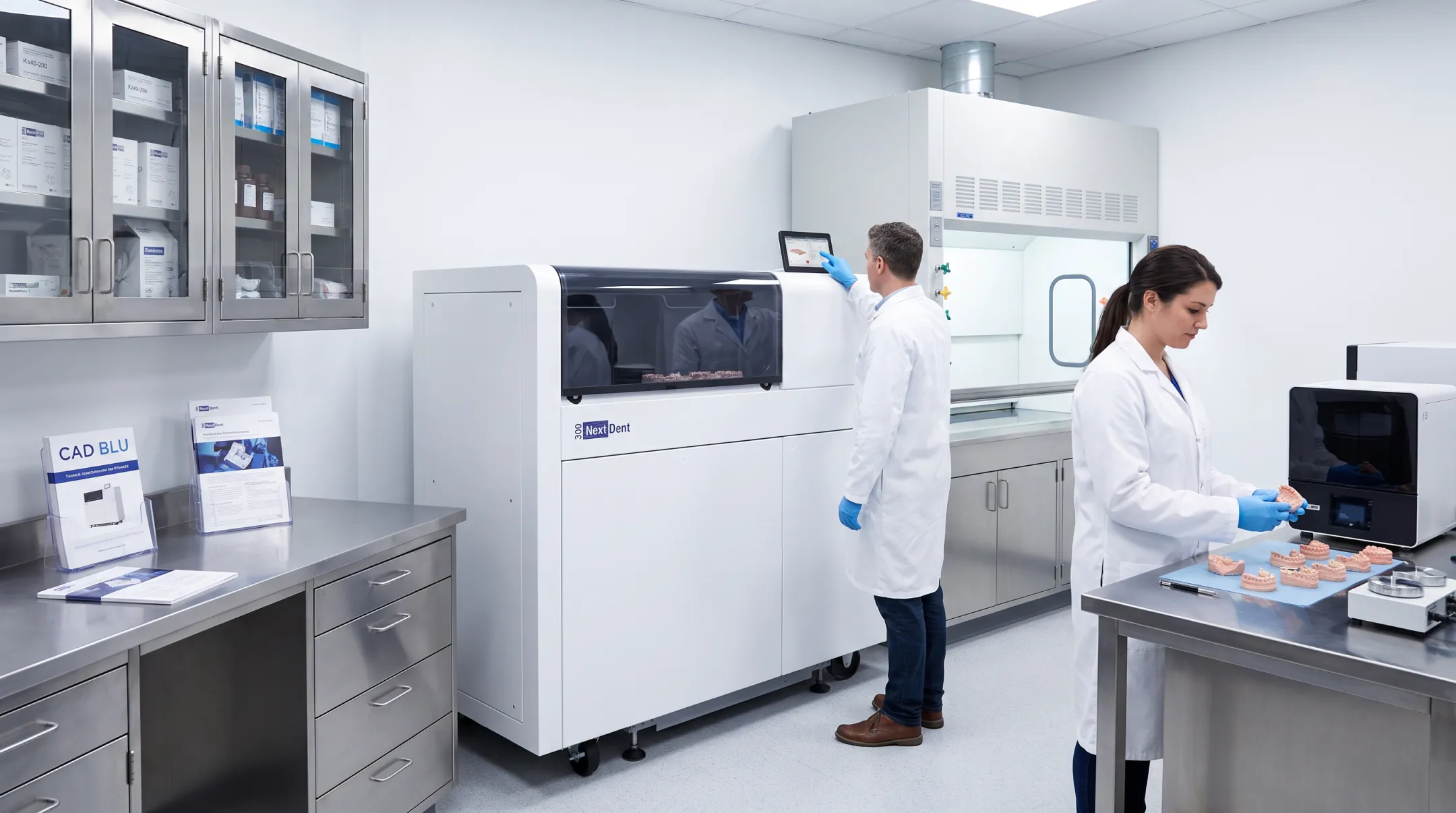

CAD BLU supplies commercial 3D printers, materials, and CAD/CAM software to dental, medical, and industrial organizations, along with installation support, workflow optimization, and OEM-certified repair. Partial or turnkey arrangements like these can lower the barrier for a health system testing the waters before scaling a full program.
None of this substitutes for an organization's own clinical validation and regulatory review. It does address the equipment and technical-support side of getting a program running.
Whatever the path, measure against a baseline from day one:
- Turnaround time
- How often a model changed the surgical plan
- Clinician adoption
- Model accuracy
Limitations and Common Misconceptions
3D printing is not a universal upgrade. Its value depends on whether a physical model actually changes a planning decision.
Common misconception: a printed model is inherently more accurate than the imaging it came from. It isn't. Simplifying a mesh to speed up printing can strip out fine anatomical detail, and processing errors can compound across each step of the workflow.
Practical limitations include:
- Processing time and cost, which scale with model complexity
- Specialist expertise required for segmentation and modeling
- Limited soft-tissue realism in most rigid print materials
- Repeat review requirements whenever anatomy or the surgical plan changes
- Data-transfer and file-compatibility issues between systems
Another misconception: a planning model is not automatically a sterile instrument, a validated surgical guide, or an implant. Each of those is a separate product with its own technical, clinical, and FDA regulatory pathway to clear, regardless of whether it came off the same printer.
Frequently Asked Questions
How is 3D printing used in surgery?
Surgeons use patient-specific printed models to visualize anatomy, plan surgical approaches, rehearse steps, and communicate with teams and patients. In select validated workflows, printing also supports guides, instruments, or custom devices.
What is the process for creating a 3D printed surgical model?
The process runs from medical imaging through segmentation, 3D modeling, file preparation, printing, post-processing, and inspection. Clinical review then confirms the model matches the source images before use.
What types of medical imaging are used for 3D printing in surgical planning?
CT and MRI are the most common sources, chosen based on the anatomy involved. Other validated imaging modalities may also be appropriate depending on the specific use case.
What are the benefits of 3D printing for surgical planning?
Benefits include patient-specific visualization, procedural rehearsal, clearer team communication, and potential improvements in efficiency or accuracy, though outcomes vary by case complexity and specialty.
Can 3D printed models be used inside the operating room?
Reference models for visualization differ from guides, instruments, or implants used intraoperatively. Any device used inside the operating room requires suitable materials, infection-control procedures, and regulatory review.
Is 3D printing in surgical planning safe?
Safety depends on intended use, imaging data accuracy, manufacturing controls, material selection, sterilization, and clinical review. Models and devices must also meet institutional policies and applicable FDA requirements.
