Introduction
Dental practices and laboratories still struggle to keep surgical guides consistent when CBCT data, intraoral scans, and implant plans don't align cleanly. Digital implant planning changes that path: teams design a patient-specific guide on screen and print it in-house or through a lab partner, instead of relying on hand-fabricated templates.
The technology doesn't replace clinical judgment. A printed guide is only as good as the planning behind it, and professional oversight remains non-negotiable at every step.
Consistent results depend on connecting CBCT data, intraoral scans, implant-planning software, validated materials, reliable fabrication, and surgical verification into one workflow that holds up case after case.
This article walks through that full process: the equipment and material decisions, the quality-control checkpoints that catch problems before they reach the patient, and the choice between building an in-house workflow or outsourcing production.
Key Takeaways
- Reliable surgical guides need matched printer, material, design, and sterilization for the clinical use case.
- Guide accuracy comes from the full digital chain—scan quality through final fit checks—not the printer alone.
- Follow current manufacturer instructions and validated protocols rather than generic print settings found online.
- In-house printing adds control and speed; outsourcing moves equipment and quality-system duties off-site.
What Are 3D-Printed Surgical Guides for Dental Implants?
A dental implant surgical guide is a patient-specific appliance that transfers a digitally planned implant position into the operating room. Guidance features—typically metal or polymer sleeves, drill channels, or kit-specific components—control where and how the drill enters bone.
Unlike a diagnostic model or generic dental appliance, a surgical guide has a direct, fixed relationship to:
- Implant position, angulation, and depth
- The planned restorative outcome
- Patient anatomy captured during imaging
- The exact surgical kit and drill sequence being used
Why Practices Use Guided Surgery
A well-made guide transfers the digital plan more consistently than freehand placement, simplifies communication between the dentist, surgeon, and lab, and cuts down on manual fabrication steps. Because everything lives in a digital file, guides can also be reproduced or revised without starting from scratch.
Research backs up the accuracy argument. A 2020 systematic review and meta-analysis of 10 randomized controlled trials found that fully guided implant placement outperformed both half-guided and freehand approaches, with coronal deviation improving by 0.51 mm over half-guided surgery and 1.18 mm over freehand.
What a Guide Can't Fix
A guide is only a transfer tool. It cannot compensate for:
- Inaccurate or incomplete scans
- Flawed implant planning
- Poor guide fit or incorrect sleeve selection
- Printing defects or warping
- Deviations that occur during the actual surgery
The treating clinician still owns diagnosis, treatment planning, and patient selection. They also make the final call on whether a guide is clinically appropriate before it touches a patient.
How the 3D-Printing Workflow Works

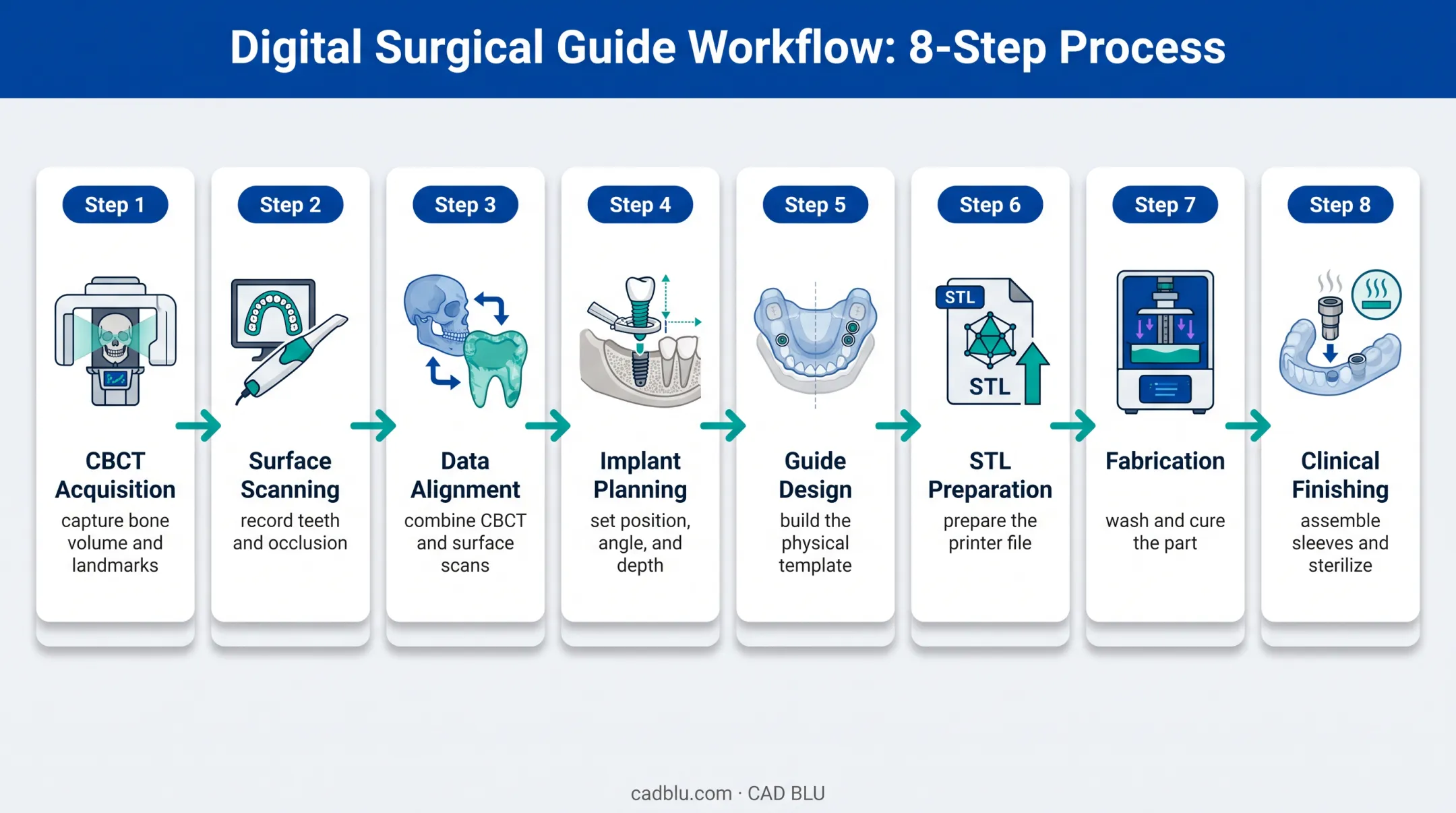

The path from scan to surgery follows a fixed sequence. Here is the full workflow:
- CBCT acquisition captures bone volume and anatomical landmarks.
- Intraoral or model scanning records the dentition, soft-tissue references, and occlusion.
- Data alignment merges the CBCT and surface-scan datasets.
- Implant planning determines position, angle, and depth in software.
- Guide design builds the physical template around that plan.
- STL export and print preparation get the file ready for the printer.
- Fabrication, washing, and curing produce the physical part.
- Finishing, sleeve assembly, and sterilization complete the guide for clinical use.
Getting the Digital Impression Right
The scanning stage sets the ceiling for everything downstream. Capture all of the following when they apply to the case:
- Relevant teeth and soft-tissue references
- Occlusion and opposing arch
- Edentulous areas that will seat the guide
Watch for these common failure points:
- Incomplete scans or stitching errors across long edentulous spans
- Unclear occlusal registration
- Debris on tissue surfaces
- Distortion from patient or scanner movement
A 2021 in-vitro study found scanner accuracy degraded with longer edentulous spans and varied with inter-implant distance. The same scanner can perform differently from case to case.
Combining CBCT and Surface Scan Data
Registration—aligning CBCT and surface-scan data—directly affects drill accuracy. A 2017 study found a mean deviation of 0.54 mm with default segmentation, dropping to 0.40 mm with manual segmentation. That registration error transfers straight into the surgical field.
A small alignment mistake early on can become a clinically meaningful deviation at the drill site. Use qualified clinical software and a professional review rather than an automated pass-through.
Guide Design Decisions
Design choices affect stability and access:
- Support type — tooth-supported (bilateral or unilateral), mucosa-supported, bone-supported, or combined
- Seating checks — inspection windows that confirm the guide is fully seated
- Sleeve fit — drill sleeves matched to the surgical kit
- Wall thickness and relief — enough strength without tissue interference
- Surgical access — clear paths for irrigation and visibility
Research published in a 2023 systematic review found that bilateral tooth-supported guides consistently outperformed mucosa-supported designs in reported in-vivo accuracy, with overall deviation generally staying below 2 mm and often under 1 mm.
Print Preparation and Post-Processing
Before printing:
- Inspect the STL for errors
- Confirm orientation on the build plate
- Add supports only in non-critical areas—keep drill channels and seating surfaces clear
- Run the validated profile for your specific printer-resin pair, not borrowed settings
After printing:
- Remove the part carefully to avoid distortion
- Wash and dry per manufacturer instructions
- Post-cure with the validated time and light cycle
- Remove supports without touching critical guide surfaces
- Install sleeves if required
- Clean and sterilize per the approved protocol
Materials, Equipment, and Post-Processing Requirements
Surgical guide production depends on a matched materials and equipment chain—not a generic printer setup. The resin isn't interchangeable. It has to be specifically validated for surgical-guide use, with documented biocompatibility, clear indications, and defined handling requirements.
NextDent SG, for example, is a Class I biocompatible photopolymer built specifically for surgical guides. Its precision allows sleeve insertion directly after printing, and standard autoclave cycles don't affect its dimensional stability, according to the manufacturer's documentation. A 1 kg unit runs around $280. Resin choice only works if the rest of the workflow matches it.
Equipment You'll Need
A complete guide workflow typically requires:
- Intraoral or desktop scanner
- CBCT access (in-house or referral)
- Implant-planning and guide-design software
- A compatible 3D printer
- Manufacturer-approved resin
- Washing, drying, and curing equipment
- Finishing tools and sleeve components
- Sterilization equipment
Choosing a Printer the Right Way

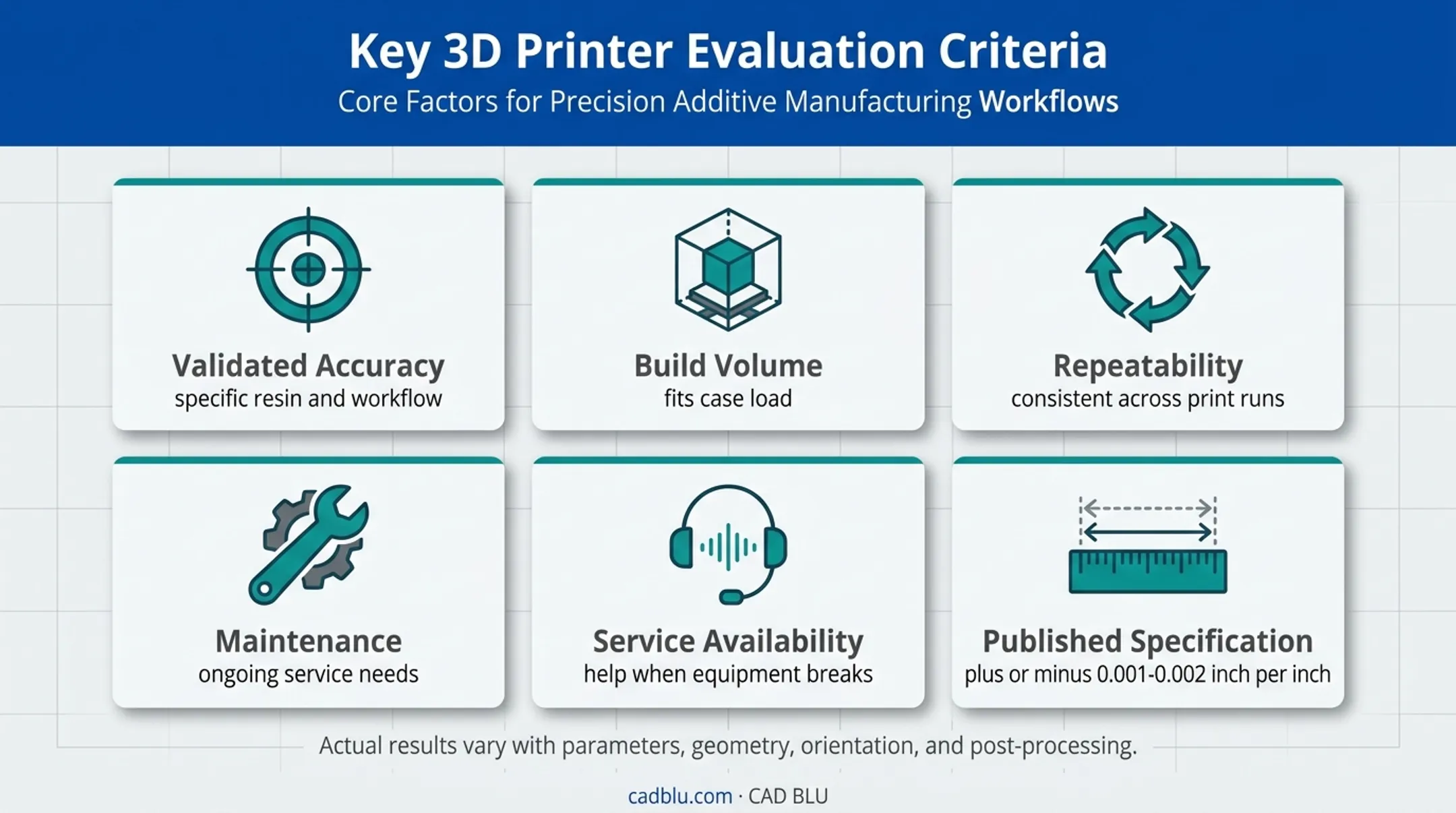

Advertised resolution numbers get too much attention. What actually matters is validated accuracy for the specific resin, build volume for your case load, repeatability across print runs, maintenance needs, and service availability if something breaks.
Some printers, like the ProJet MJP 3600 Dental, publish typical accuracy figures around ±0.001-0.002 inch per inch, but the manufacturer is clear that actual results shift with build parameters, part geometry, orientation, and post-processing. Published specs are a starting point, not a guarantee.
Resin Handling and Safety
Uncured resin can be a sensitizer even when the cured material is biocompatible. That means:
- Personal protective equipment during handling
- Adequate ventilation in the print and post-processing area
- Defined spill-management procedures
- Proper storage and disposal per the safety data sheet
Don't Mix and Match Validated Workflows
OEM validation is combination-specific. A printer, resin, wash station, and curing unit that are each validated individually aren't automatically validated together. Manufacturer documentation for products like SprintRay's surgical guide resin ties specific layer thickness, wash time, and cure cycles to that exact hardware pairing. Swap one component and you may need to revalidate the whole chain. Keep these paired:
- Printer and approved surgical-guide resin
- Specified layer thickness and wash cycle
- Matched cure unit and cure time
- Finishing and sterilization steps called out by the manufacturer
CAD BLU helps dental labs and practices evaluate commercial 3D printers, materials, software, and scanning options, then build turnkey or partial workflows around equipment they already own.
Quality Assurance, Safety, and U.S. Compliance Considerations
Printed surgical guides only stay safe when design, fabrication, and sterilization are checked the same way every case. Build QA around a short checklist, a physical try-in, full traceability, and current U.S. device rules.
A working QA checklist should cover:
- Patient and case identification
- File version control
- Scan completeness and CBCT-to-surface-scan registration accuracy
- Implant and sleeve compatibility
- Guide seating and design integrity
- Print completeness and post-cure status
- Surface defects and final fit
Physical Try-In Still Matters
Before surgery, a physical try-in confirms the guide seats fully and passively, doesn't rock, provides clear access, and interfaces correctly with the planned instrumentation. Skipping this step removes the last checkpoint before the drill touches bone.
Keep Traceability Records
Documentation should track:
- Patient or case identifier and design version
- Software and printer used
- Material lot number and operator
- Print date and post-processing cycle
- Inspection results and sterilization record
- Any deviations or remakes
This isn't paperwork for its own sake. It's what lets a practice trace a problem back to its source.
Regulatory Context
The FDA has cleared specific named devices, such as the Simplant Digital Guide, as Class I endosseous dental implant accessories under 21 CFR 872.3980. That classification applies to the specific cleared device, not automatically to every patient-specific guide on the market. Practices should verify current requirements for their specific materials and devices rather than assume blanket coverage.
The CDC classifies devices that penetrate soft tissue or bone as critical items requiring heat sterilization. Cleaning always precedes sterilization, and reprocessing must follow manufacturer instructions. Temperature, time, chemical exposure, and cycle limits come from the material and device manufacturer—not from generic online guidance.
Common Failure Modes
| Failure Mode | Likely Cause |
|---|---|
| Poor guide fit | Registration error or incomplete scan |
| Warped part | Incorrect post-cure or storage |
| Blocked drill channel | Support placement or resin residue |
| Incomplete curing | Wrong cycle for the resin used |
| Contaminated part | Improper cleaning before sterilization |
In-House Printing or Outsourcing: Which Approach Fits?
The better fit depends on case volume, staffing, and how much quality-system responsibility a practice wants to carry.

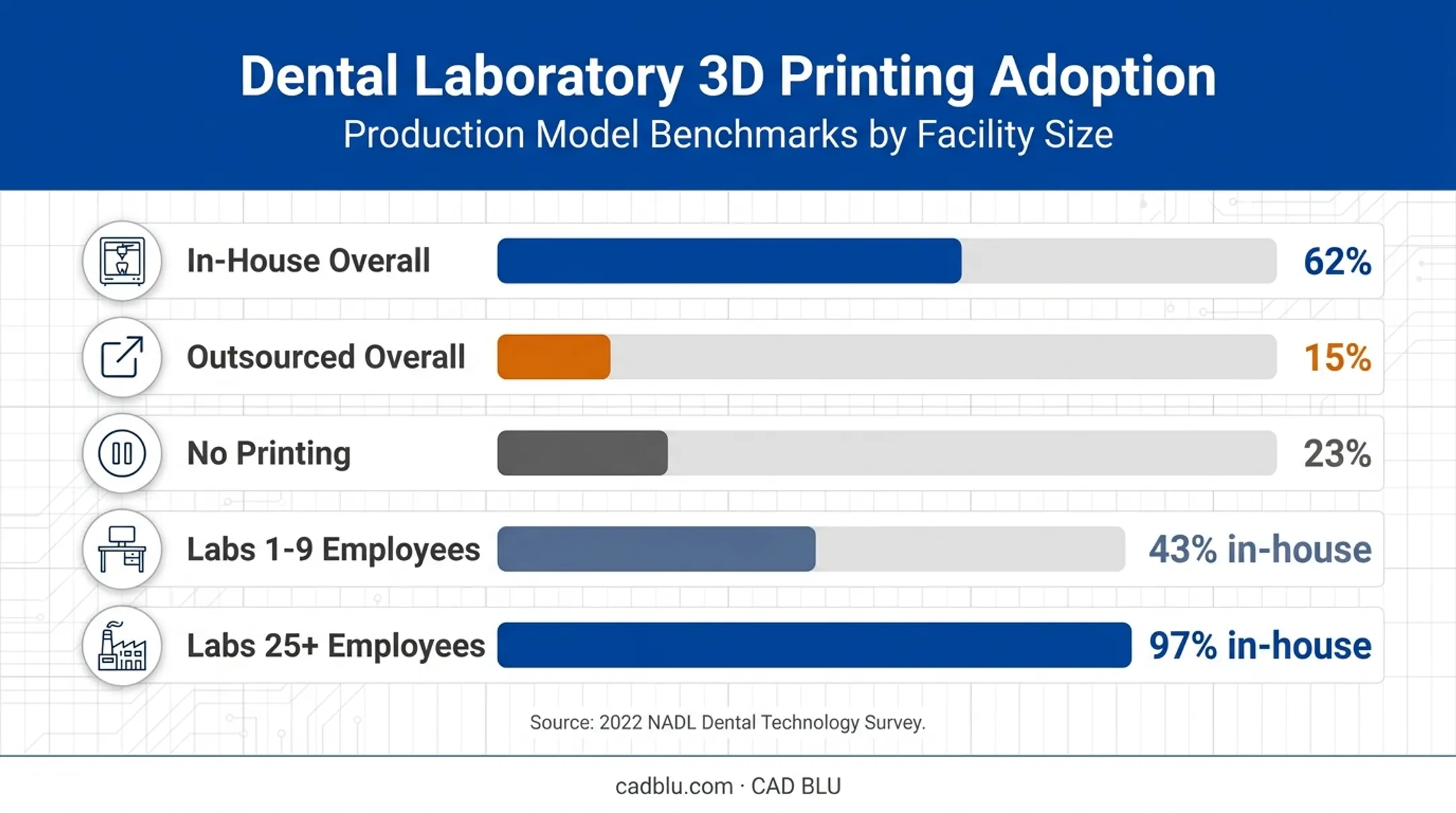

According to the 2022 NADL Dental Technology Survey, 62% of responding dental laboratories used an in-house 3D printer, while 15% outsourced printing and 23% used none at all.
In-house adoption climbed sharply with lab size, from 43% among labs with 1-9 employees to 97% among labs with 25 or more.
When Outsourcing Makes Sense
- Case volume is low or inconsistent
- Design expertise isn't available in-house
- Validated post-processing equipment isn't in place
- Documentation responsibility needs to sit with a qualified provider
When In-House Production Makes Sense
- Case volume is steady enough to justify equipment costs
- Staff are trained and available for design and post-processing
- Space and safety controls for resin handling already exist
- Equipment maintenance and workflow documentation can be sustained in-house
A Staged Path to Adoption
Practices that choose in-house production can limit risk by standing up the workflow in stages:
- Define which clinical indications the guide workflow will cover
- Map the full process from scan to sterilization
- Select validated technologies as a matched set
- Train operators on the specific workflow
- Run test cases before treating patients
- Establish inspection criteria and document results
- Review performance before expanding use
How CAD BLU Can Support Implementation

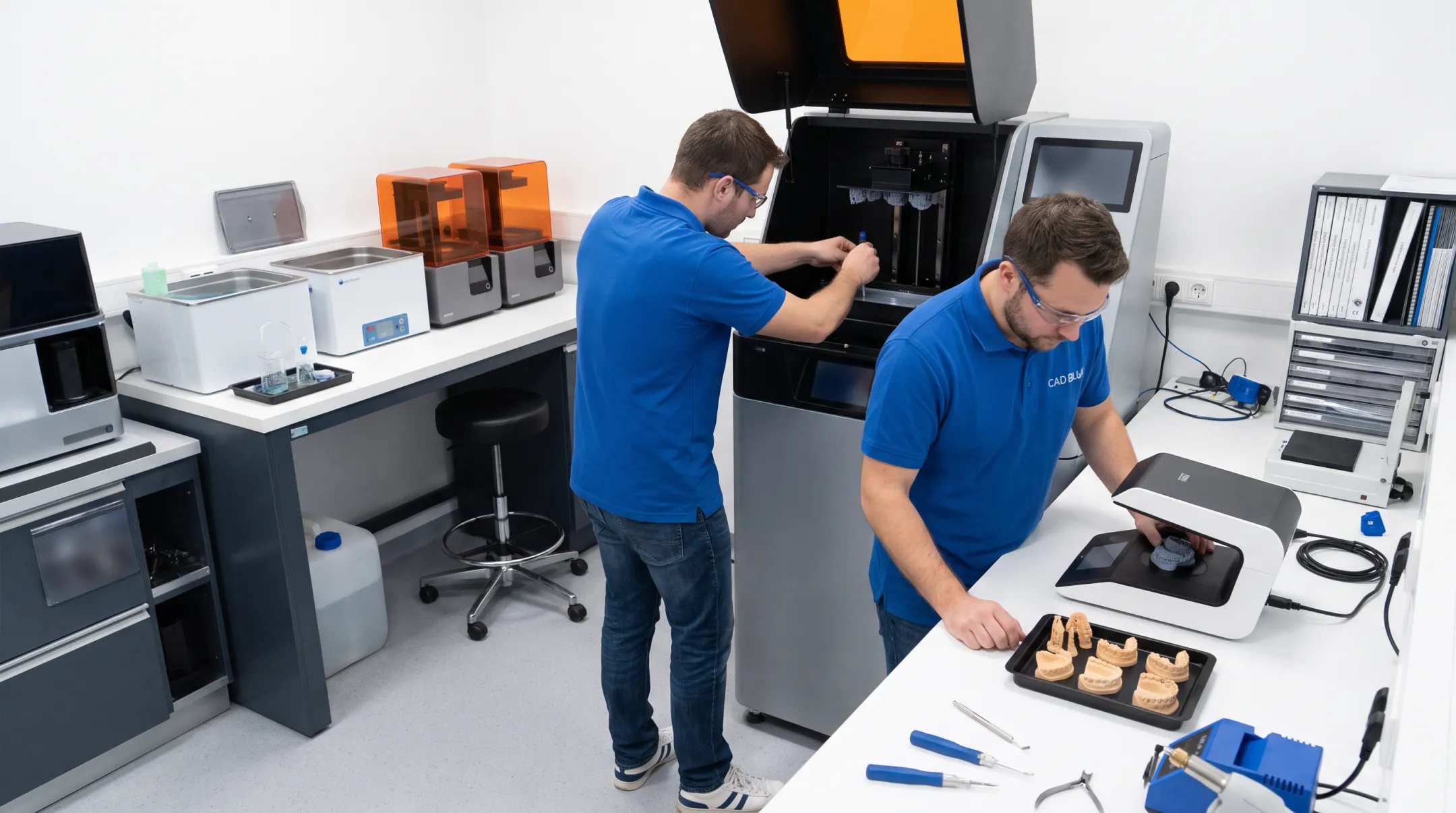

CAD BLU works with dental labs and practices across the United States that are adopting digital manufacturing for surgical guides. Support spans the workflow stack:
- 3D printers, materials, and validated resins
- Software and scanning solutions
- Installation, workflow optimization, and repair
- Ongoing technical support
For a dental practice or lab weighing this decision, a consultation can clarify whether a full turnkey setup or a few specific components (a printer, a validated resin, a curing unit) fits better. That conversation should cover:
- Clinical software fit
- Material compatibility
- Post-processing needs
- Training and service availability
CAD BLU's technicians are OEM-trained and certified, which matters for installation reliability and ongoing maintenance. That support handles the equipment and workflow side. It doesn't replace clinical training, regulatory review, or the treating clinician's responsibility for the final treatment decision.
If your lab or practice is mapping out a surgical guide workflow—evaluating a first printer or troubleshooting an existing setup—reach out to CAD BLU. You can talk through case volume, equipment needs, and implementation goals.
Frequently Asked Questions
Can surgical guides be 3D printed?
Yes, dental implant surgical guides can be 3D printed using an appropriate, indication-specific material and a validated printer workflow. Professional design, inspection, sterilization, and clinical verification remain required steps.
What material is used to 3D print dental implant surgical guides?
The material should be a biocompatible resin specifically indicated for surgical-guide use, such as NextDent SG or similar Class I materials. Always check the manufacturer's documentation for your intended application.
What are the main steps for 3D printing a dental surgical guide?
The process runs from CBCT and intraoral scanning through digital planning, guide design, print preparation, and fabrication. It finishes with washing, curing, finishing, sleeve assembly, sterilization, and a final fit check.
Are 3D-printed surgical guides accurate?
Accuracy depends on the full workflow, imaging quality, data registration, design, printer and material validation, post-processing, and clinical execution, not the printer alone. Published studies show deviations under 1-2 mm in most well-controlled workflows.
Is it better to 3D print surgical guides in-house or outsource them?
In-house production offers more control and faster turnaround, while outsourcing reduces equipment and maintenance burden. Base the decision on case volume, staff expertise, and how much quality-system responsibility your practice wants to manage.
How are 3D-printed dental surgical guides sterilized?
Follow the exact validated sterilization and cleaning instructions provided by the material and device manufacturer. Heat tolerance, chemical exposure limits, and cycle parameters vary by product and must be confirmed before clinical use.
