Additive manufacturing is the more precise, industrial version of that same idea. Engineers, toolmakers, and production managers use it to describe processes that build parts by adding material rather than removing it, and the term covers far more than the machine itself. This article breaks down how the process works, the seven official categories of additive manufacturing, where it delivers real value, and where it still falls short of conventional methods.
Which process makes sense for a given part depends on material, geometry, quantity, required strength, finish, and end use, not on whichever machine happens to be sitting in the shop.
Key Takeaways
- "3D printing" is the everyday name for additive manufacturing; the industrial term also covers design, materials, setup, and finishing.
- The workflow runs from a CAD model or 3D scan through printing to a finished, post-processed part.
- Seven ISO/ASTM categories exist, each depositing, curing, fusing, or joining material differently.
- AM excels at complex geometries, customization, and low-volume runs, but it doesn't replace every conventional method.
What Are 3D Printing and Additive Manufacturing?
Additive manufacturing (AM) is the production of a three-dimensional object by adding material in successive layers based on digital design data. That's the working definition behind ISO/ASTM 52900, the international standard that governs terminology for the industry. NIST puts it more simply: additive manufacturing joins materials from a 3D model, usually layer by layer, rather than machining them away from solid stock.
"3D printing" and "additive manufacturing" describe the same underlying process, but they get used in different rooms. Hobbyists and most consumers say "3D printing." Engineers and quality teams tend to say "additive manufacturing," partly because it signals a bigger scope than just the printer.
That scope includes:
- Designing or scanning the part
- Selecting a compatible material
- Preparing the build file and machine settings
- Operating the printer through a full build
- Post-processing: cleaning, curing, machining, or finishing
- Inspecting the finished part against spec
Additive vs. Subtractive, in Plain Terms
Subtractive manufacturing starts with a block, bar, or sheet of material and removes what isn't needed, through milling, turning, drilling, or cutting. Additive manufacturing starts with nothing and builds the part up, one thin layer at a time.
Because material only goes where the design calls for it, additive processes can produce internal channels, lattice structures, and organic shapes that would be difficult, or sometimes impossible, to cut from solid stock. A part needing a hollow lattice core for weight savings is often a far better candidate for AM than for a five-axis mill.
Aerospace brackets with internal cooling channels are a common example: impossible to machine as one piece, straightforward to print.
From Prototypes to Production Parts
Additive manufacturing didn't start as a production method. Chuck Hull built the first stereolithography prototype in 1983, filed his patent in 1984, and co-founded 3D Systems in 1986. The SLA-1, introduced in 1987, became the first commercial rapid-prototyping system, according to ASME's engineering history archive.
Four decades later, that same core idea, curing resin or fusing material layer by layer, now produces functional prototypes, casting patterns, jigs, replacement parts, and certified end-use components across aerospace, medical, and industrial applications.
Metal powder-bed fusion parts now fly on production aircraft, and FDA-cleared 3D-printed implants and surgical guides are standard practice in orthopedic and dental clinics today.
How Does 3D Printing Work?
Every additive build, regardless of technology, follows the same broad arc: digital file in, physical part out. The details vary by process, but the stages don't.
From CAD Model to Build File
The process starts with a 3D model, either a CAD file built from scratch or a scan of an existing object. Before anything gets printed, that geometry needs checking for errors, such as gaps in the mesh or wall thicknesses too thin for the chosen material.
Once it's clean, the model exports to a printable format, most commonly STL or the newer 3MF format, which can carry materials, textures, and print-job instructions in a single package.
Slicing and Build Preparation
Build-preparation software (often called slicing software) converts that file into instructions the printer can execute:
- Slices the model into hundreds or thousands of thin layers
- Generates toolpaths, laser paths, or exposure patterns for each layer
- Sets infill density and pattern
- Chooses part orientation on the build platform
- Adds support structures where overhangs need them
CAD BLU's 3D Sprint software, for example, handles native CAD import, mesh repair, automatic part placement, support generation, and slicing in one interface, and estimates print time and material use before the job starts.
Building the Part, Layer by Layer
Depending on the process, the printer builds each layer using one of several methods:
- Extruding melted plastic through a nozzle
- Curing liquid resin with a laser or projector
- Fusing powder with a laser or electron beam
- Jetting droplets of material or binder
- Bonding sheets together
- Feeding wire or powder into a laser-generated melt pool
Each layer bonds to the one below it. Orientation on the build plate affects strength, surface quality, support needs, warping risk, and total build time.
Post-Processing: Rarely Optional
A part coming off the build plate is almost never finished. Depending on the process and material, it may need:
- Support removal or excess powder cleanup
- Washing and secondary UV curing (common with resin)
- Sintering or heat treatment (common with metal and some polymer powders)
- Machining, sanding, or polishing for tolerance or finish
- Inspection against the original CAD model

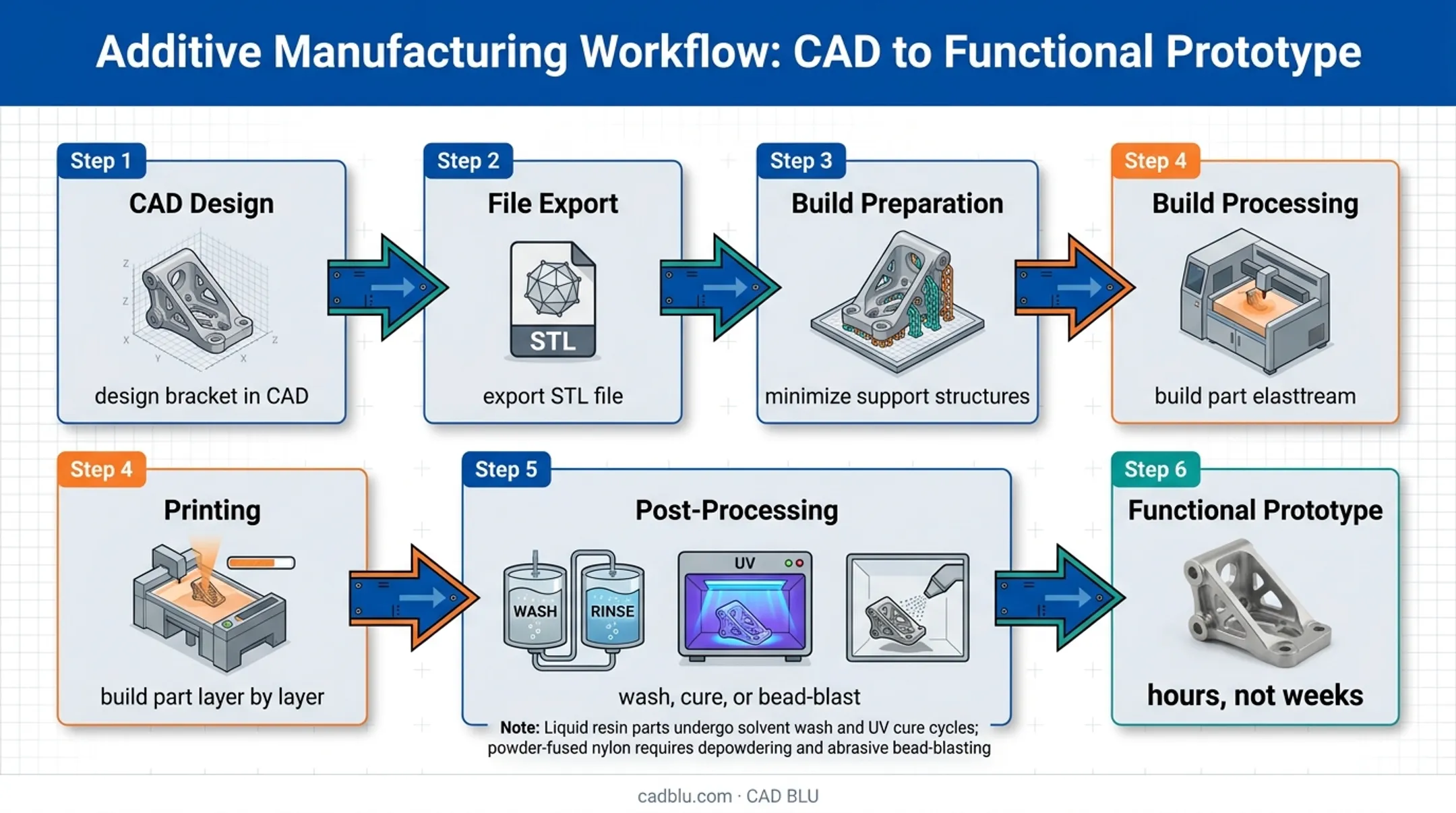

Take a simple bracket as an example. An engineer designs it in CAD, exports an STL file, orients it in build-prep software to minimize supports, and sends it to a printer.
It might come out as a resin part needing a wash-and-cure cycle, or a powder-fused nylon part needing bead-blasting. Either way, that bracket goes from digital file to functional prototype in hours, not weeks.
What Are the 7 Types of Additive Manufacturing?
ISO/ASTM 52900 groups every additive process into seven categories, based on how material gets deposited, cured, fused, or joined. Individual manufacturers use their own trade names, but everything falls under one of these seven umbrellas.
Here’s how the seven categories compare:
| Category | How It Works | Common Examples | Strengths | Key Considerations |
|---|---|---|---|---|
| Vat Photopolymerization | Light selectively cures liquid photopolymer resin in a vat | SLA, DLP | Fine detail, smooth surfaces | Resin handling, secondary curing required |
| Powder Bed Fusion | Thermal energy fuses or melts powder layer by layer | SLS, DMLS, SLM, EBM | Complex geometries, minimal printed supports | Powder handling, heat treatment |
| Binder Jetting | A liquid binder selectively joins powder particles | Metal, sand, and ceramic binder jetting | Larger batches, material variety | Metal and ceramic parts need furnace sintering |
| Sheet Lamination | Sheets or foils are bonded or welded, then trimmed | LOM, UAM | Works with paper, polymer, or metal sheet | Trimming waste, bonding limits |
| Material Jetting | Droplets of material are deposited and solidified layer by layer | MJP, PolyJet | High detail, color, multi-material | Support removal, material durability limits |
| Material Extrusion | Filament, pellets, or paste pushed through a nozzle | FDM, FFF | Accessible, wide material choice | Visible layer lines, sacrificial supports |
| Directed Energy Deposition | Wire or powder fed into a laser, electron beam, or arc melt pool | LENS, DMD | Large-part repair and buildup | Requires shielding, machining often follows |
CAD BLU’s printer lineup spans several of these categories. SLA and MultiJet systems cover vat photopolymerization and material jetting; SLS platforms run materials like DuraForm TPU for flexible, rubber-like parts or ProX AF+ nylon for stiff, high-temperature applications.
Matching the category to the part usually comes before brand or model enters the conversation.
What Are the Benefits and Applications of Additive Manufacturing?
Faster Design Iteration
Because there's no tooling to build first, additive manufacturing shortens the gap between a finished design and a physical part. A design change that would mean cutting a new mold under conventional manufacturing can mean re-slicing the file and running another build overnight. That speed matters most early in development, when a part might go through five or six revisions before anyone locks it down.
Design Freedom
Layer-by-layer construction opens up options that molds and machining can't easily match:
- Internal channels and lattice structures for weight reduction
- Organic, freeform geometries
- Personalized or patient-specific parts
- Consolidating multiple components into a single printed piece

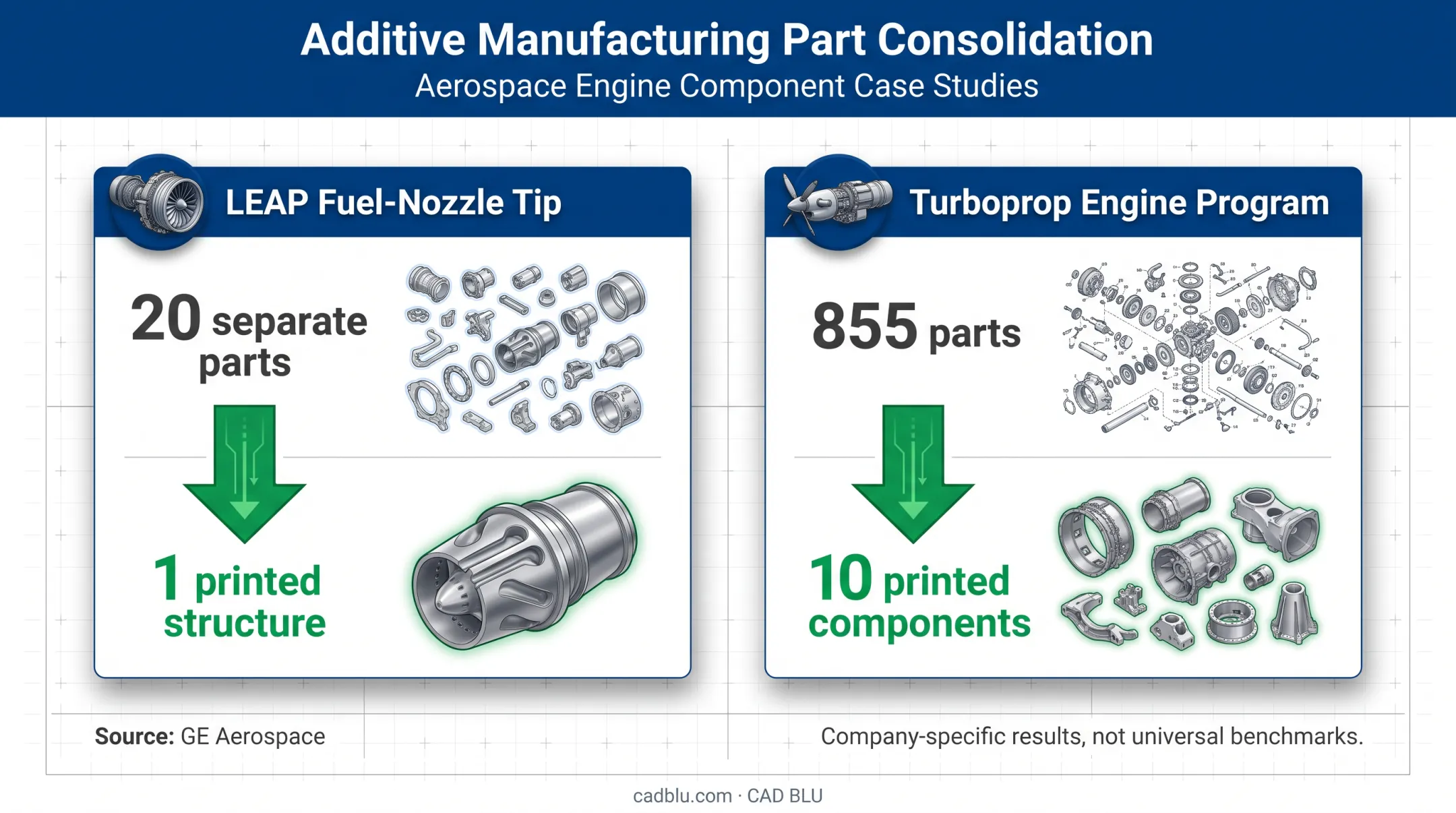

GE Aerospace reports that its LEAP fuel-nozzle tip consolidated 20 separate parts into one printed structure, and a turboprop engine program combined 855 parts into just 10 printed components. These are company-specific results, not universal benchmarks, but they show how far part consolidation can go.
Where It Actually Gets Used
Common applications include:
- Casting patterns for jewelry and investment casting
- Dental models, surgical guides, and bite guards
- Jigs, fixtures, and rapid tooling
- Medical devices and patient-specific anatomical models
- Aerospace and automotive prototypes
Prototyping and certified end-use production aren't the same thing. A prototype proves fit, form, or function early on. A regulated medical or aerospace part must pass material qualification, process controls, and documented traceability before it reaches a patient or an aircraft.
The Economics Aren't Universal
Additive manufacturing doesn't automatically save money. The real comparison stacks the same cost drivers on both sides:
- Tooling and setup time
- Production volume
- Material usage and labor
- Post-processing and quality requirements
Weigh those against casting, molding, or machining for the same job. A one-off casting pattern or a five-unit prototype run often favors AM. A 50,000-unit order usually favors injection molding.
CAD BLU helps teams run that comparison in practice, with commercial printers, materials, software, and installation support for turnkey or partial workflows as they move from prototyping into production.
Additive vs. Subtractive Manufacturing
Additive manufacturing builds a part up from nothing. Subtractive manufacturing starts with a solid block, bar, or sheet and removes everything that isn't the finished part. Both routes can reach the same final geometry; they just get there differently.
| Factor | Additive Manufacturing | Subtractive Manufacturing |
|---|---|---|
| Design freedom | High: internal channels, lattices, organic shapes | Limited by tool access and cutting geometry |
| Material waste | Generally low; unused powder often recyclable | Higher; excess stock becomes chips or scrap |
| Tooling | None required | Fixtures, cutting tools, sometimes custom jigs |
| Production volume | Best for low to moderate volumes | Often more efficient at high volumes |
| Speed | Fast for complex one-offs | Fast for simple, repeatable geometries |
| Accuracy and finish | Varies by process, often needs post-processing | Typically tighter tolerances, smoother as-machined finish |
| Equipment | Printer plus post-processing gear | CNC mills, lathes, related tooling |
When Each Method Wins
Additive manufacturing usually wins when you need:
- Complex or organic geometries, including internal channels
- Customized or patient-specific parts
- Fast design iteration and prototypes
- Lightweight lattice structures
- Low- to moderate-volume production
Subtractive manufacturing often makes more sense for:
- High-volume production runs
- Very tight tolerances
- Specific surface-finish requirements
- Large solid parts
- Materials and shapes that machine easily and cheaply

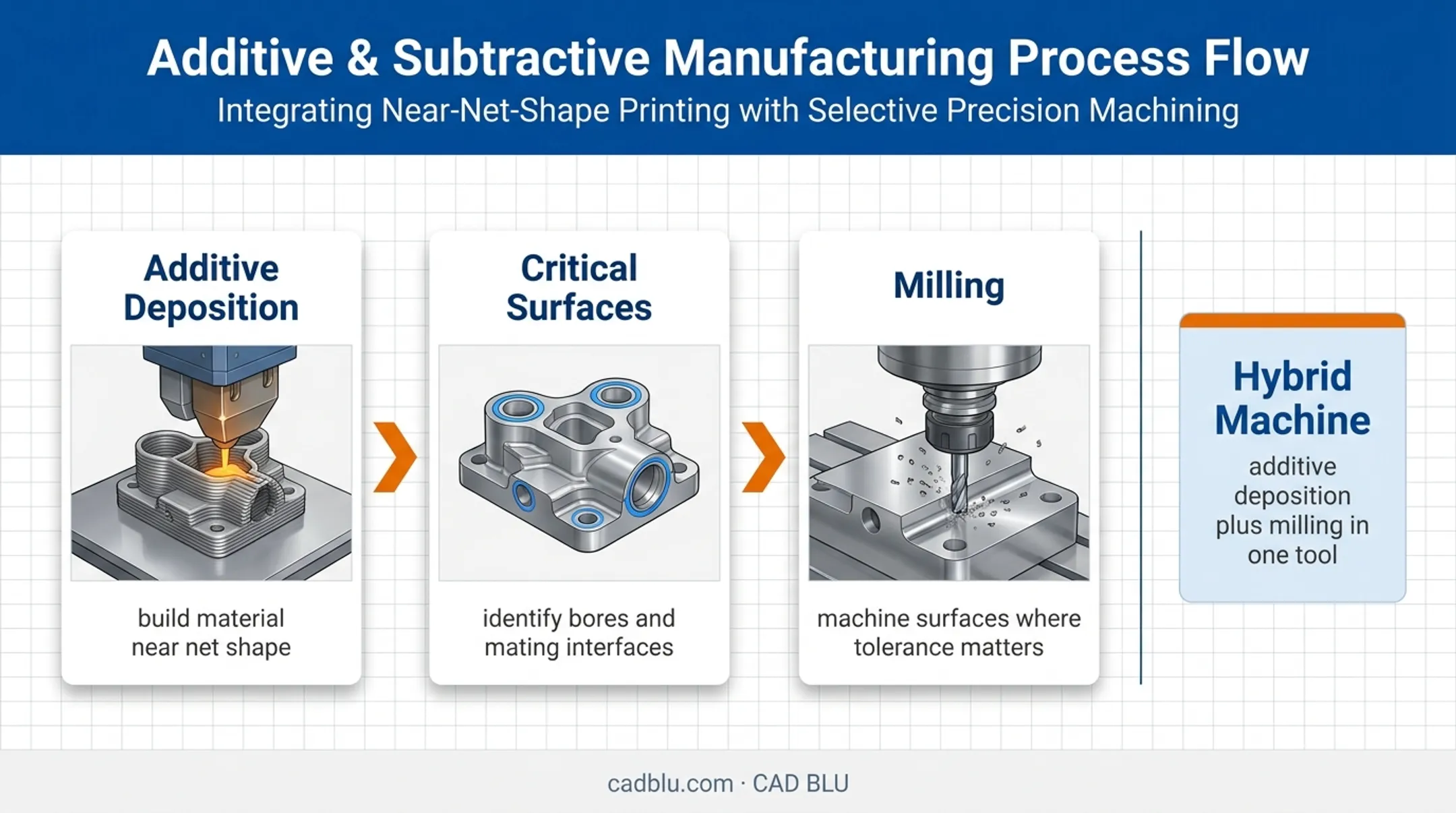

The two methods often work together. A part can be printed near net shape, then machined on critical surfaces, bores, or mating interfaces where tolerance matters most.
Hybrid machines that combine additive deposition with milling in one tool are increasingly common in industrial shops, which shows how complementary these approaches are in practice.
Limitations and Considerations
Additive manufacturing isn't a universal fix, and treating it like one causes problems down the line.
Process performance varies widely. Print speed, build size, achievable accuracy, surface finish, and repeatability depend heavily on the specific process and machine. An SLA system built for fine detail and a powder-bed metal printer built for aerospace brackets aren't interchangeable, even though both fall under "additive manufacturing."
Defects are real risks, not edge cases. Depending on the process, printed parts can suffer from:
- Warping and residual stress during cooling
- Porosity or incomplete fusion between layers
- Anisotropy, meaning different strength depending on build direction
- Support-removal marks or surface defects
A prototype isn't automatically production-ready. A part that fits on a bench still may not be safe for food contact, medical use, or aerospace service. Those uses need documented material compatibility, controlled processes, cleanliness standards, and traceability—not just a successful print.
Total cost goes beyond the printer's price tag. Industrial systems alone vary widely; CAD BLU's catalog lists systems from roughly $55,700 to $360,000, depending on technology and build volume. Real cost of ownership also includes:
- Materials and software licenses
- Maintenance and technician training
- Ancillary equipment
- Quality assurance
An experienced provider lowers that risk. CAD BLU's OEM-trained and certified technicians support installation, calibration, repair, and workflow planning—help that matters once a machine has been in service for a year and needs tuning or a replacement part.
Frequently Asked Questions
What is meant by additive manufacturing?
Additive manufacturing is the process of building a three-dimensional object by adding material layer by layer from digital design data. "3D printing" is the more familiar everyday term for the same core process.
What are the 7 types of additive manufacturing?
The seven ISO/ASTM categories are vat photopolymerization, powder bed fusion, binder jetting, sheet lamination, material jetting, material extrusion, and directed energy deposition. Each differs in how it deposits, cures, fuses, or joins material.
Can you drink out of 3D printed cups?
It depends on the material, printer, and any additives used, plus surface condition and cleaning. Don't assume a printed cup is food-safe unless it has documented food-contact suitability for that specific material and process.
Is it true that food is being 3D printed?
Yes, specialized systems can deposit edible ingredients like pastes, purées, and doughs into designed shapes. That's a different process from printing durable plastic or metal parts, with its own hygiene and safety requirements.
How does 3D printing work?
The process starts with a CAD model or 3D scan, which gets processed by slicing software into build instructions. The printer then builds the part layer by layer, followed by post-processing like curing, cleaning, or machining.
What is the difference between additive and subtractive manufacturing?
Additive manufacturing builds parts by adding material; subtractive manufacturing removes material from a larger block or sheet. Many production workflows actually combine both methods within a single part's journey.
