The Glossary of Prosthodontic Terms defines it simply: a waxing of intended restorative contours on dental casts, built for evaluation and planning rather than as a final product. This article covers what a wax-up actually shows, why it matters for treatment planning, how the process works from records to approval, the conventional versus digital workflow debate, and what belongs in a complete laboratory prescription.
Key Takeaways
- A diagnostic wax-up models a proposed treatment outcome on a cast or digital file before irreversible procedures start.
- It aligns the dentist, lab technician, patient, and any specialists around one shared reference point.
- Wax-ups feed into mock-ups, provisionals, and preparation guides — but they never replace clinical judgment.
- Complete records and a clear prescription determine whether the final design matches the intended outcome.
What Is a Dental Diagnostic Wax-Up?
A diagnostic wax-up is a set of proposed restorative contours waxed (or digitally modeled) onto a cast that represents the patient's mouth. It previews the planned result before any irreversible treatment begins.
What the model typically shows:
- Tooth position, alignment, and inclination
- Width-to-length proportions and incisal edge placement
- Tooth morphology and arch form
- Occlusal relationships between opposing arches
This differs from a final crown, veneer, bridge, or denture. A wax-up is a planning and communication tool. Nobody cements a wax-up into a patient's mouth.
Wax-Up, Digital Wax-Up, or Mock-Up: What's the Difference?
These terms get used interchangeably, but they're distinct steps:
- Conventional wax-up: physical wax contours built on a mounted stone cast.
- Digital wax-up: the same design concept, created in CAD software on a scanned digital model.
- Intraoral mock-up: the proposed design transferred into the patient's actual mouth, usually with a silicone index and bis-acryl material, so the patient can see and feel it directly.
A 2022 case report describes the mock-up as reversible: since it's temporary, either the patient or clinician can pause or cancel treatment before anything irreversible happens (Villalobos-Tinoco et al., 2022).
Which Cases Benefit Most?
Diagnostic wax-ups add the most value in cases with multiple moving parts:
- Veneer cases involving several anterior teeth
- Full crown or bridge planning
- Full-mouth rehabilitation
- Worn or fractured dentition
- Implant restorations affecting arch form
- Complex cosmetic cases involving smile design changes
One caveat: a wax-up stays a proposal until clinical reality confirms it. Periodontal health, remaining tooth structure, occlusal forces, phonetics, hygiene access, and material requirements all still have to be checked against the patient's findings before the design becomes a treatment plan.
Why Diagnostic Wax-Ups Matter in Treatment Planning
A wax-up is a testing ground for whether an esthetic goal is actually compatible with how the mouth functions—not just cosmetic reassurance.
Catching Problems Before They're Permanent
Mounted casts and an accurate bite registration let a clinician evaluate morphology and treatment options long before a bur touches enamel, according to treatment guidelines from the FOR/ITI diagnostic protocol. A wax-up can surface issues like:
- Insufficient material thickness for the planned restoration
- An anterior tooth position that looks fine but creates a functional conflict
- Inadequate restorative space
- An occlusal scheme that doesn't work with the opposing arch
Spotting these problems on a cast is far less costly than discovering them mid-preparation.
A Shared Reference Point for Everyone Involved

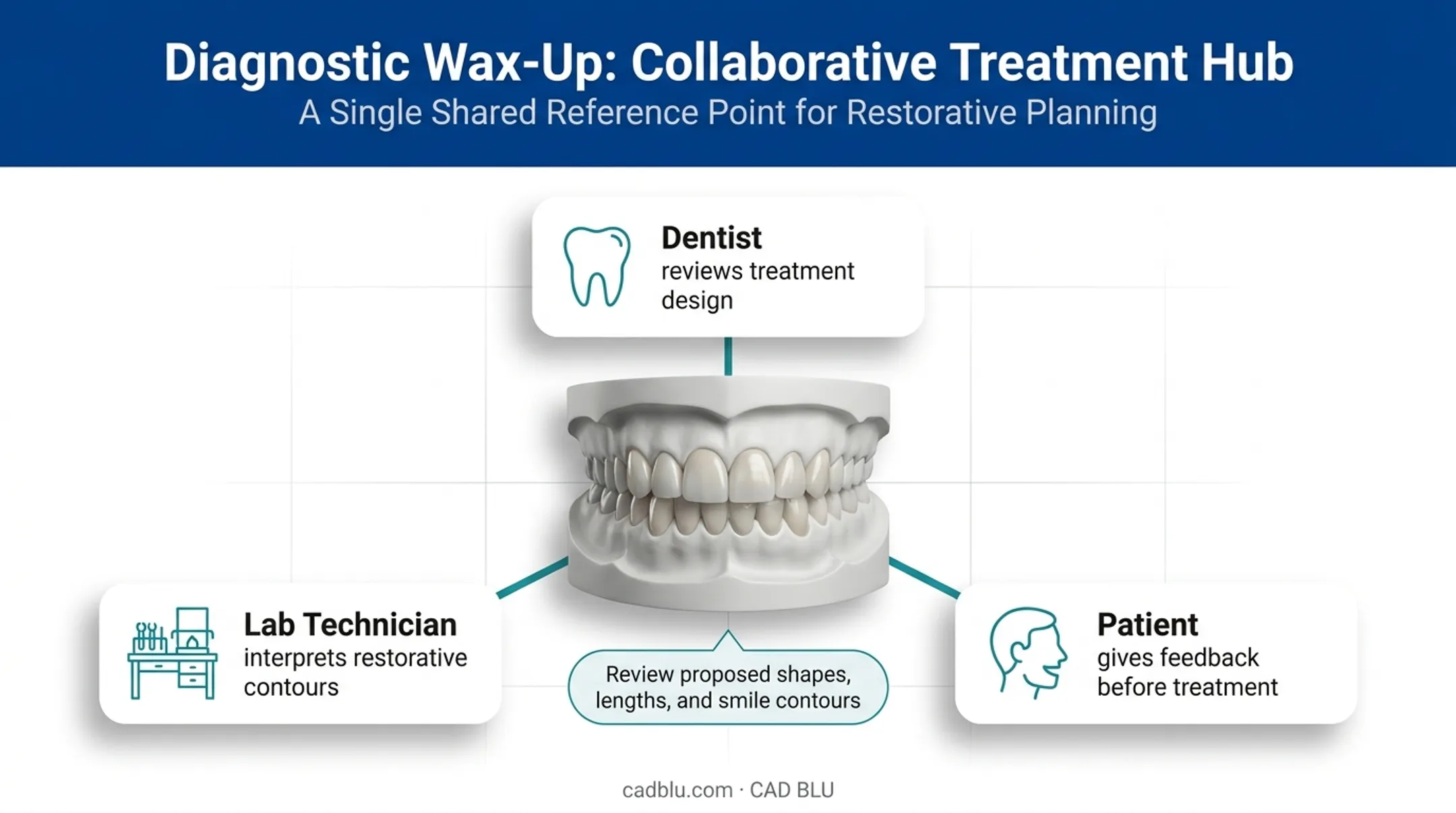

A wax-up gives the dentist, lab technician, and patient the same three-dimensional object to react to. Nobody is interpreting a verbal description differently. A 2006 paper on dental communication specifically credits the diagnostic wax-up with improving coordination between patient, dentist, and technician (Kahng, 2006).
Patients get to review proposed tooth shapes, lengths, and smile contours — and give feedback — before committing to anything permanent. That feedback loop matters more in cosmetic cases, where "I pictured it differently" is a conversation you want to have on a model, not on prepared teeth.
From Wax-Up to Chairside Tools
Once approved, the wax-up isn't just for looking at. It becomes the source for:
- Intraoral mock-ups
- Provisional restorations
- Silicone indexes
- Preparation and reduction guides
Published evidence does not quantify a universal drop in remakes or chair time. What it does support is that early design review lowers the chance of avoidable adjustments and mismatched expectations.
How a Diagnostic Wax-Up Is Created and Used

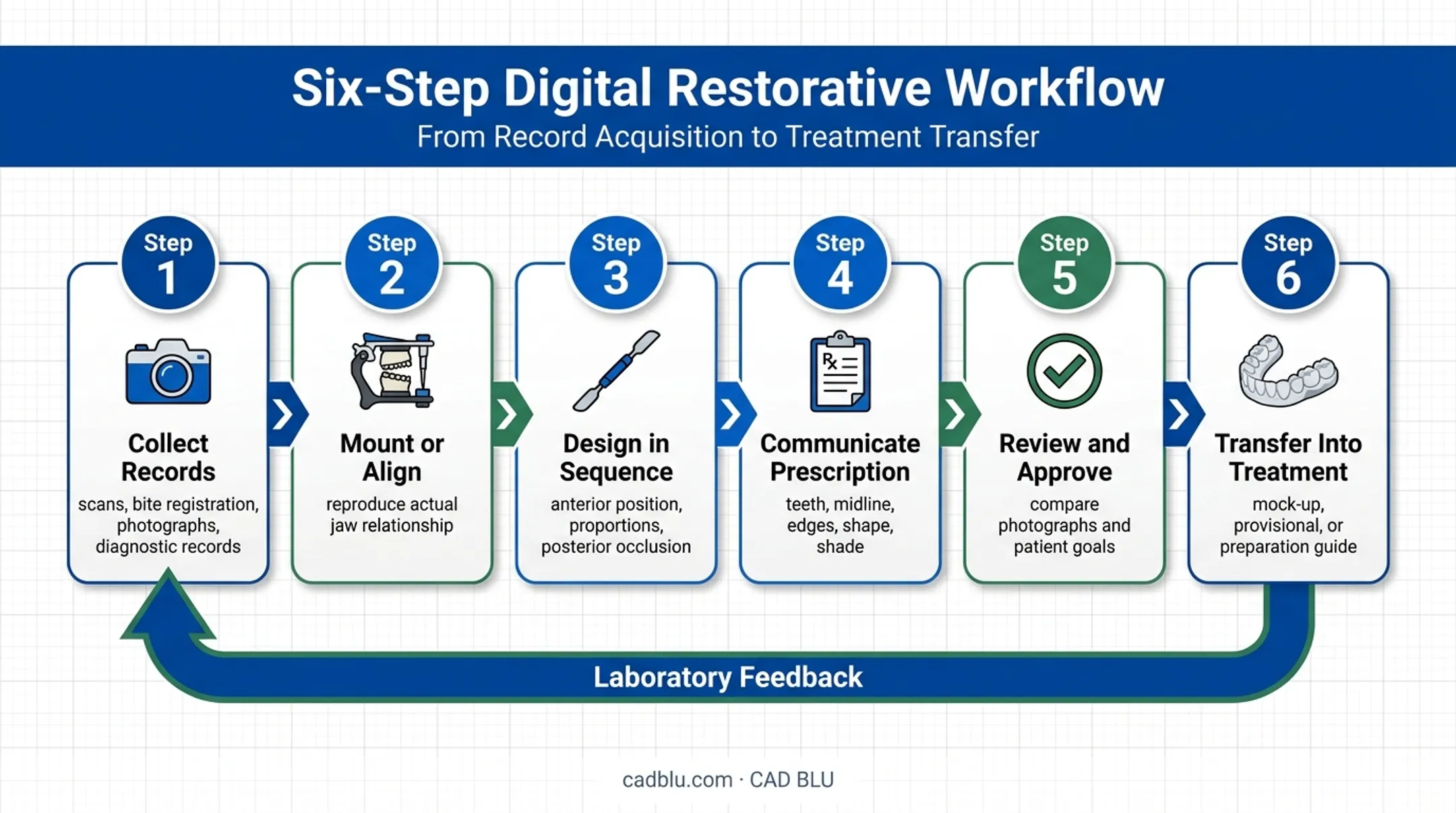

Whether you build the wax-up by hand or in software, the same six-step sequence turns clinical records into an approved design you can transfer into treatment.
Step 1: Collect Complete Records
Every wax-up starts with accurate inputs:
- Full-arch impression or intraoral scan
- Bite registration capturing the patient's actual occlusion
- Preoperative photographs
- Additional diagnostic records (radiographs, CBCT) when the case calls for them
Step 2: Mount or Align the Models
Casts get mounted on an articulator, or digital arches get aligned in software, to reproduce the patient's actual jaw relationship. The FOR/ITI protocol recommends making two study casts — one preserved as an untouched reference, one used for the wax-up itself — so the original condition is never lost.
Step 3: Design in Sequence
A common esthetic sequence, outlined by Spear Education, works from front to back:
- Establish anterior tooth position, labial inclination, and incisal edge placement first.
- Develop tooth proportions and morphology.
- Integrate posterior contours and the planned occlusal scheme.
Building anterior teeth first makes sense — it's the visible zone patients care about most, and it sets the framework everything else has to fit into.
Step 4: Communicate the Prescription
The dentist and lab need to agree on specifics before design starts:
- Teeth involved and desired midline
- Incisal edge position and occlusal goals
- Tooth shape and shade preferences
- Any areas needing special attention
Vague instructions produce vague wax-ups.
Step 5: Review and Approve
Inspect the finished design against clinical photographs and the patient's stated goals. Request revisions if something's off. Get patient approval before moving forward — this is the last checkpoint before irreversible steps.
Step 6: Transfer Into Treatment
The approved design becomes a mock-up, provisional restoration, or preparation guide. Anything discovered during the provisional stage — a bite that feels off, a tooth that looks too long — needs to be documented and sent back to the lab before the definitive restoration is fabricated.
Conventional, Digital, and 3D-Printed Wax-Up Workflows
All three workflows produce the same conceptual output: proposed contours for evaluation. They simply get there differently.
| Workflow | Process | Trade-offs |
|---|---|---|
| Conventional | Impressions → stone casts → articulator mounting → hand waxing | Tactile, familiar, but revisions often mean re-waxing or remounting |
| Digital CAD | Intraoral scan → digital alignment → software design | Easy to edit and store; requires scanner/software investment and quality control |
| 3D-printed | Digital design → printed physical model or template | Bridges digital planning with a hands-on model or mock-up |

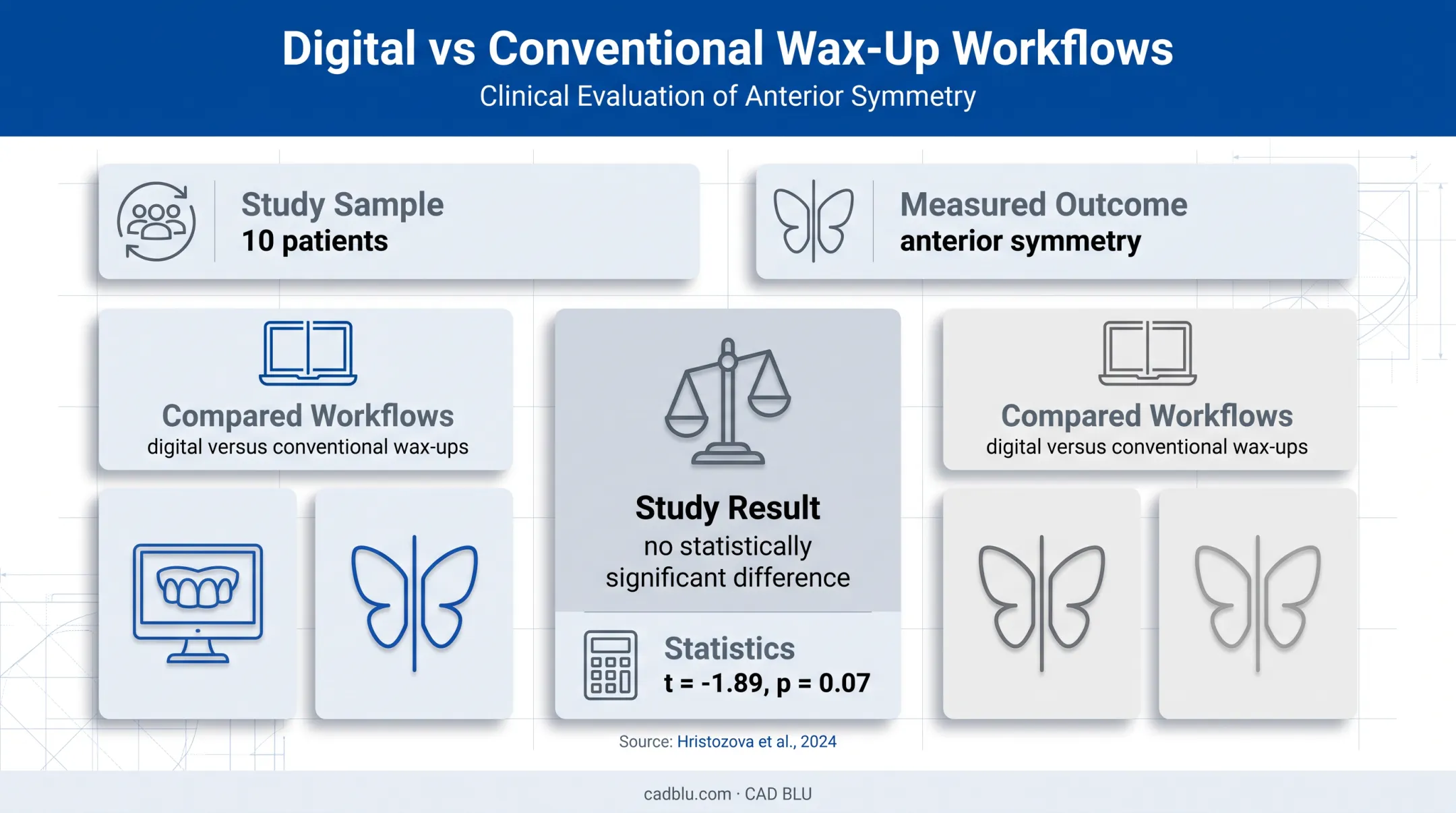

A 2024 comparative study of ten patients tested digital versus conventional wax-ups for anterior symmetry and found no statistically significant difference (t = -1.89, p = 0.07) (Hristozova et al., 2024). That's a useful data point for symmetry specifically. It doesn't mean digital and conventional are interchangeable for every occlusal or functional outcome.
Where Digital Wax-Ups Actually Land
A digital wax-up doesn't have to become a physical object. Depending on the treatment plan, it might:
- Stay as a software file reviewed on screen
- Get printed as a physical model
- Be used to manufacture a preparation guide or template
CAD BLU offers VisiJet M3 Dentcast, a castable wax-up material compatible with the ProJet MJP 3600 Dental printer. It is built for this last category: producing smooth-surface crowns, copings, and related restorations with repeatable accuracy. Materials like this exist because "digital" doesn't mean "purely virtual." The design often needs to become something a technician can cast or a dentist can try in.
Accuracy Isn't Automatic
Accuracy claims deserve scrutiny. A 2020 systematic review found that stone models consistently showed lower mean trueness error than 3D-printed models in direct comparisons, even while supporting 3D printing for many dental-model applications (Etemad-Shahidi et al., 2020). The takeaway: match the fabrication method to what the model actually needs to do, not to whatever feels newest.
Practices evaluating digital production should assess:
- Scanner accuracy and software compatibility
- Whether materials are biocompatible or castable, as required
- Printer build volume and layer-thickness capability
- Post-processing requirements and calibration needs
- Technician training on the specific workflow
This is the kind of infrastructure question CAD BLU works through with dental labs and clinics directly. The team evaluates commercial 3D printers, scanning systems, software, and materials as part of a broader digital manufacturing setup.
Equipment alone doesn't validate a clinical design; the dental lab and treating dentist still own that judgment. Readers building a digital workflow should confirm material indications, printer compatibility, and regulatory requirements with qualified dental and technology professionals before committing.
How to Prepare a Complete Wax-Up Prescription
A wax-up is only as good as the instructions behind it. Vague prescriptions produce designs that miss the mark, and that costs everyone time.
Records to Send
- Complete scans or impressions of both arches
- Bite registration
- Facial and intraoral photographs
- Documentation of existing restorations
- Radiographs or CBCT data, when clinically indicated
What Written Instructions Should Specify
Written instructions carry the real weight of the case. Spell out:
- Tooth position, midline, and incisal edge placement
- Tooth length, width, and inclination
- Desired morphology and occlusal scheme
- Vertical dimension and restorative material
- Any planned changes to smile or arch form
Patient and Clinical Factors Worth Including
Don't leave these to assumption:
- Concerns about tooth display or lip support
- Phonetic sensitivities
- Hygiene access requirements
- Bruxism or parafunctional habits
- Periodontal condition and remaining tooth structure
- Available restorative space
A collaborative review protocol helps catch mismatches before fabrication. Have the clinician actively check the design rather than trusting unspoken lab assumptions.
Requirements around laboratory work authorization vary by state. Georgia, for instance, requires a written prescription from a licensed dentist for lab work (Georgia Composite Medical Board rules). Check your state's specific requirements rather than assuming a national standard.
Digital prescriptions add speed only when file formats, revision paths, and sign-off steps are agreed up front. Confirm those details with your lab so the written instructions and the digital workflow stay aligned.
Frequently Asked Questions
What is a diagnostic wax-up in dentistry?
It's a physical or digital representation of proposed restorative contours, used to evaluate esthetics, function, and treatment planning before any definitive treatment begins.
Why is a diagnostic wax-up important?
It helps identify design and occlusal issues early, aligns dentist and patient expectations, and provides the blueprint for mock-ups, provisionals, and other treatment aids.
What information is needed to create a diagnostic wax-up?
You'll need impressions or scans, bite records, photographs, relevant diagnostic records like CBCT when indicated, and a clear laboratory prescription outlining treatment goals.
What is the difference between a diagnostic wax-up and an intraoral mock-up?
The wax-up is the planned design built on a cast or digital model. The mock-up transfers a version of that design directly into the patient's mouth for a hands-on evaluation.
Can a diagnostic wax-up be created digitally?
Yes. Digital wax-ups are designed in CAD software and can stay as a digital file, be printed as a physical model, or be used to manufacture a guide or template, depending on the case.
