3D Printing Dental Models

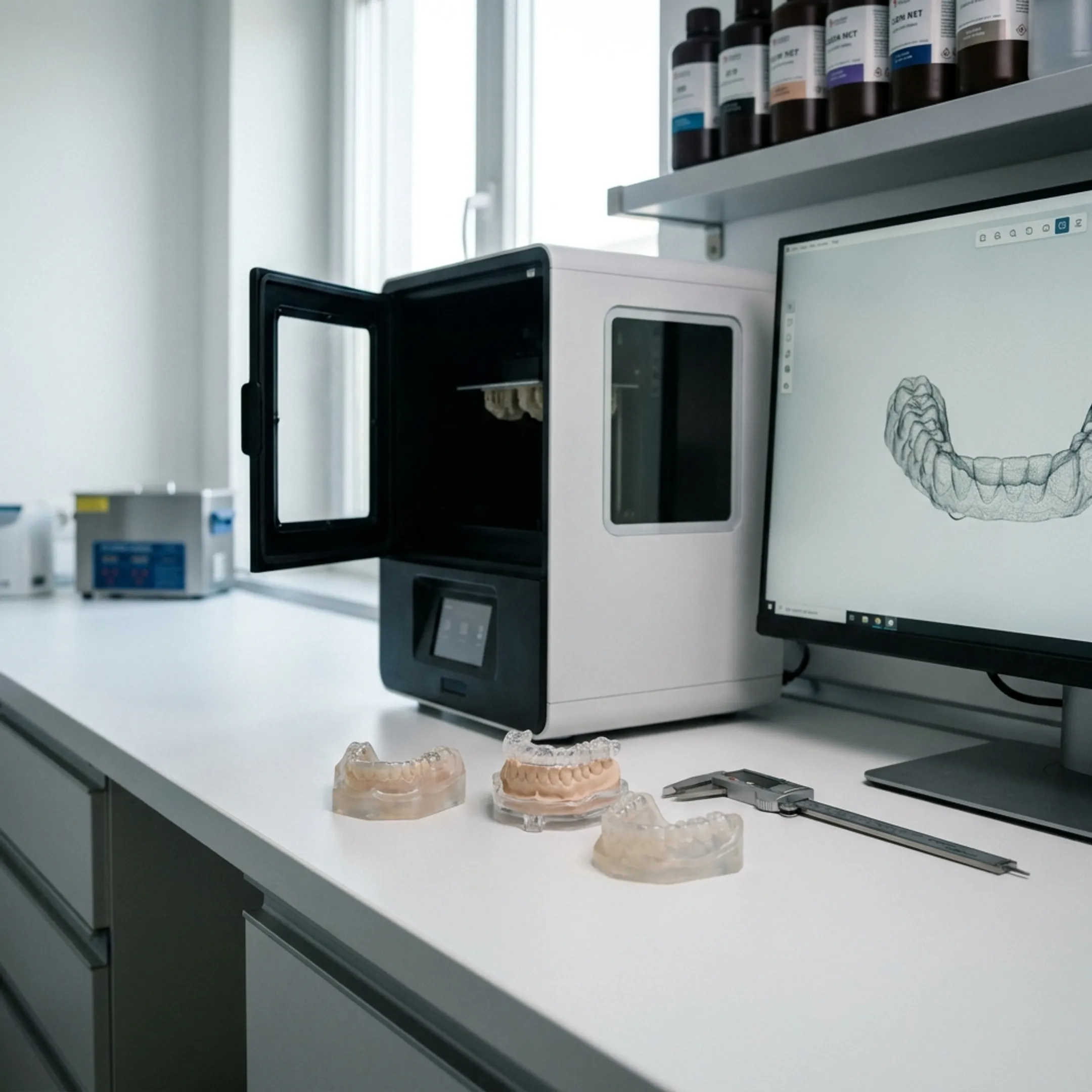

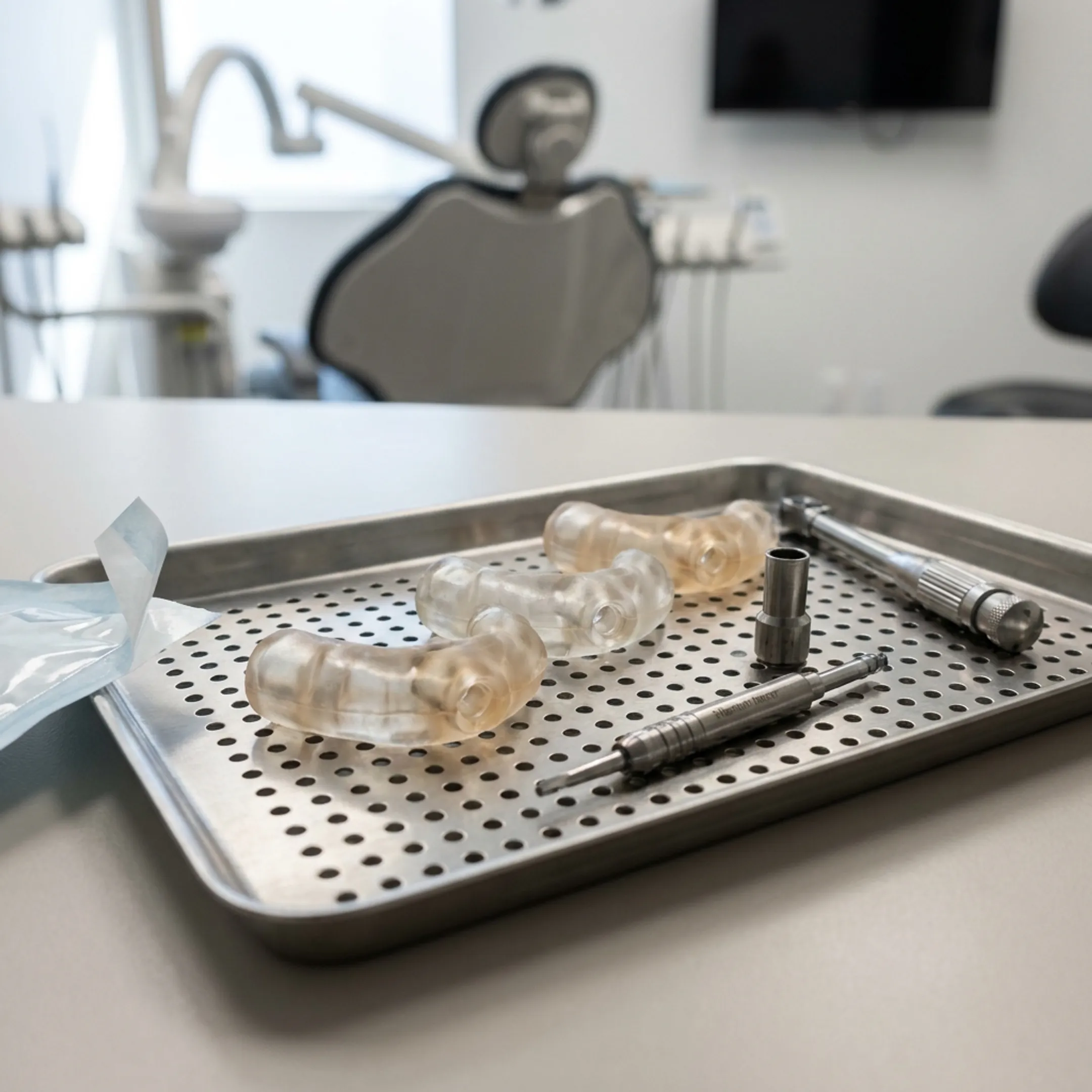

The platform supports a broad range of dental applications. These include orthodontic models, crown and bridge models, long-term temporaries, pressable wax restorations, surgical guides, splints, night guards, try-in dentures, long-term dentures, and sacrificial castings for dental appliances.

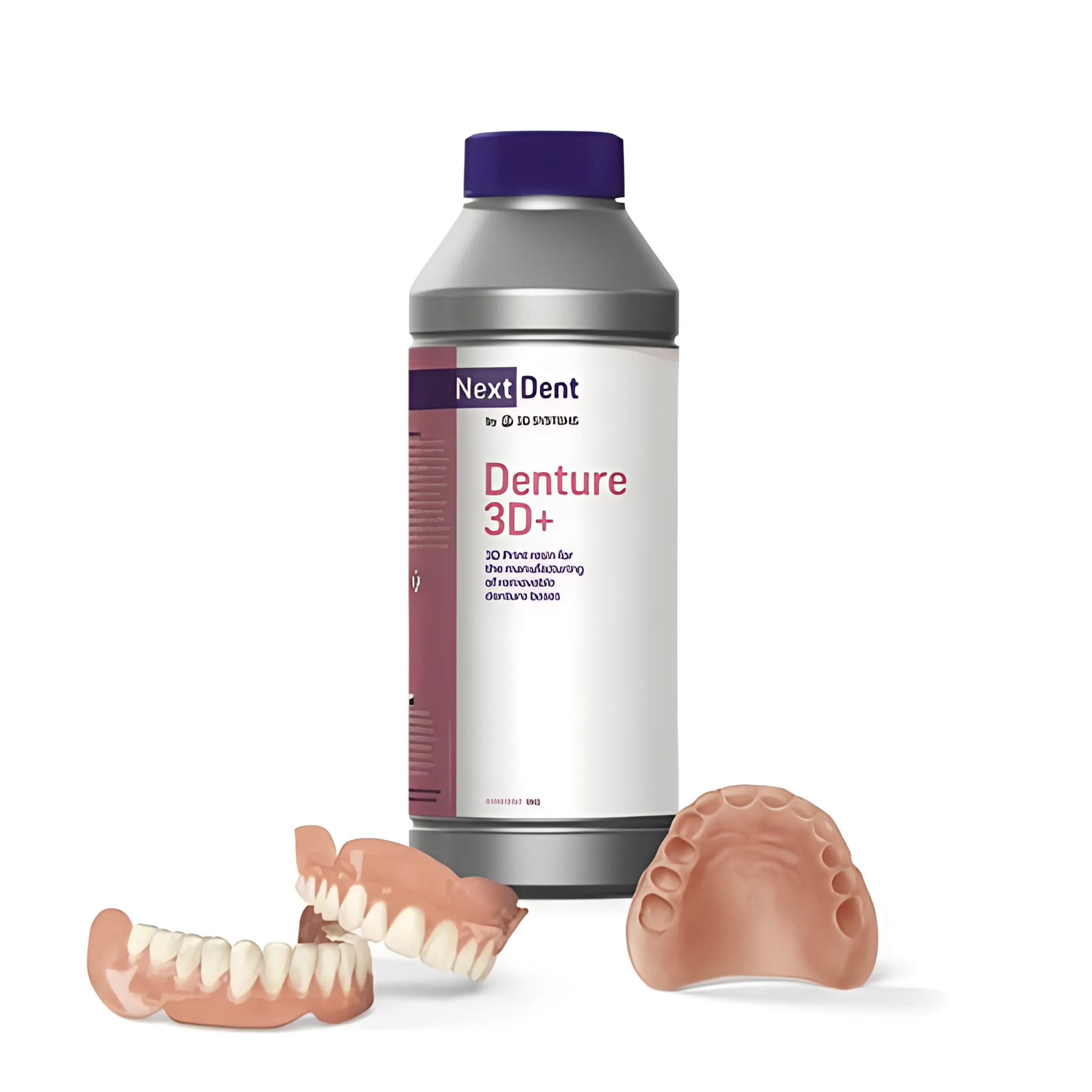

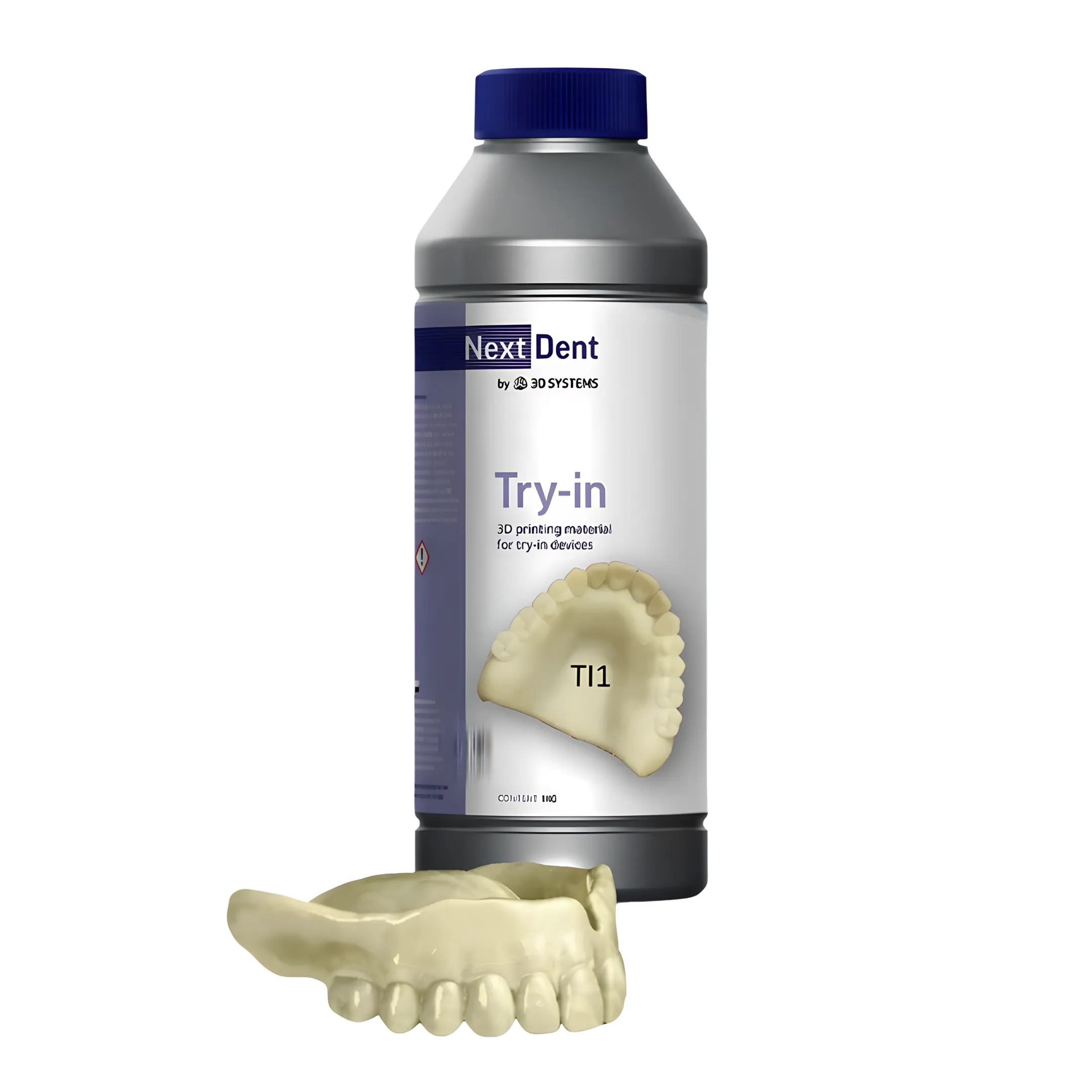

The system is compatible with 30 unique NextDent biocompatible dental materials as well as Daylight Magna resins. These materials carry a Material Quality Guarantee, are CE certified under Medical Device Directive 93/42/EEC, and are FDA listed for medical and dental use.

The NextDent 5100 Dental utilizes high-speed Figure 4 Non-Contact Membrane technology. It achieves print speeds of 13.3 mm per hour and rapid layer curing speeds of 3 to 8 seconds per layer at 100 microns, depending on the specific resin selected.

The system provides an XY pixel size of 137 microns with an average accuracy of 50 microns. It supports selectable layer thicknesses of 25, 50, 100, and 200 microns, allowing practitioners to balance fine surface detail with production turnaround requirements.

Yes, dental 3D printing solutions are engineered for complete compatibility with industry-standard intra-oral scanning hardware and dental CAD software. The printer features a touchscreen interface usable with gloves, along with USB, Ethernet, and WiFi connectivity options for digital dental workflows.

Equipment can be acquired through direct purchase or lease, with business financing assistance provided via Direct Capital. Ongoing customer care includes technical support, custom project consultation, and equipment servicing handled by OEM-trained and certified technicians.
