3D Printed Ring Designs and Models

Jewelry designers and manufacturers typically obtain 3D ring models through specialized CAD software packages, bespoke design development, or digital model repositories. CAD BLU provides CAD solutions and equipment that allow businesses to transition their digital concepts directly into production. Digital ring files can be imported into additive printing software to prepare support structures and print full production platforms.

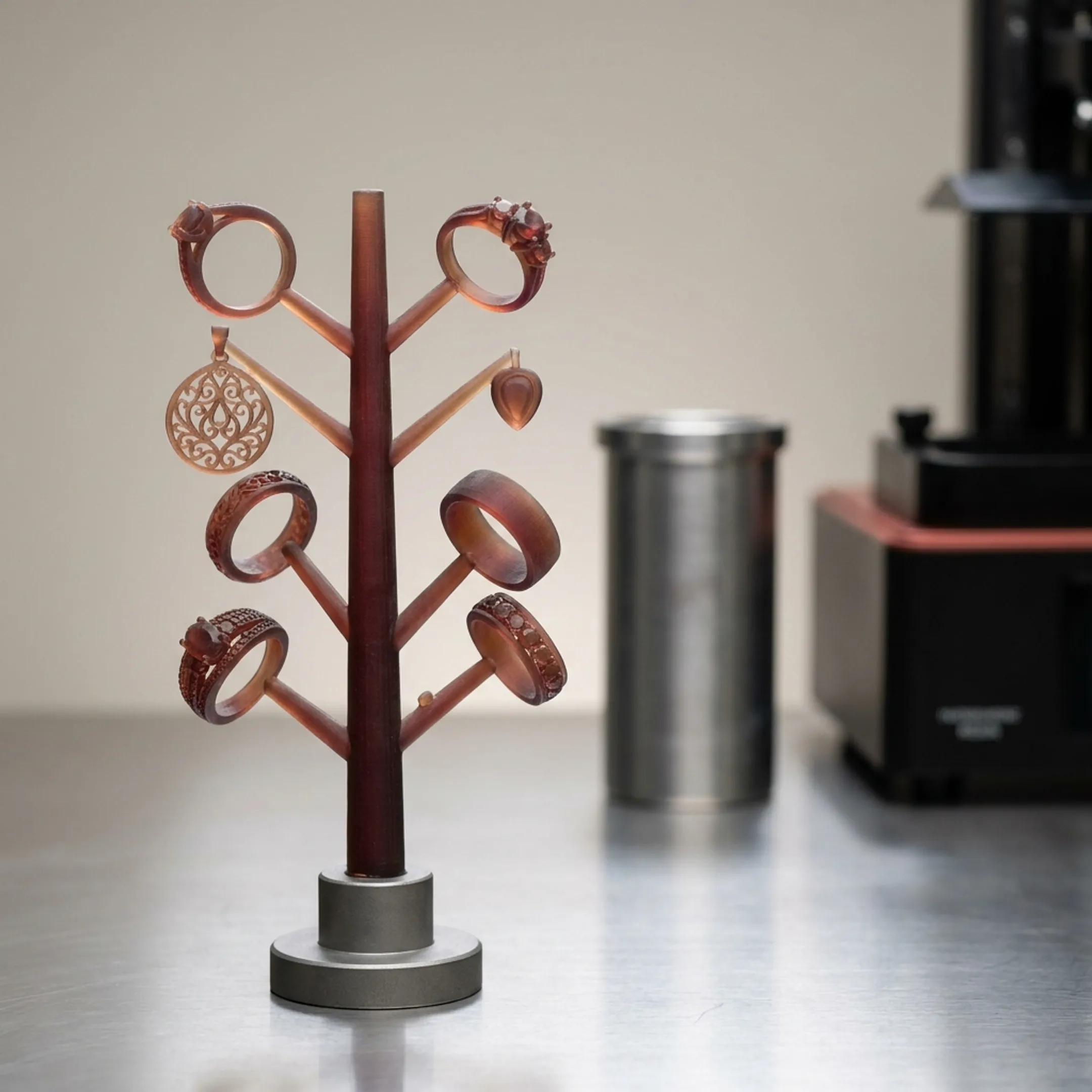

Yes, 3D printing is widely utilized in crafting engagement rings. The process typically begins by printing a high-resolution resin or casting pattern featuring ultra-fine supports. That printed model is then used in traditional investment casting to produce the final ring in precious metals, or used as a detailed prototype to confirm sizing, stone seatings, and aesthetic details prior to casting.

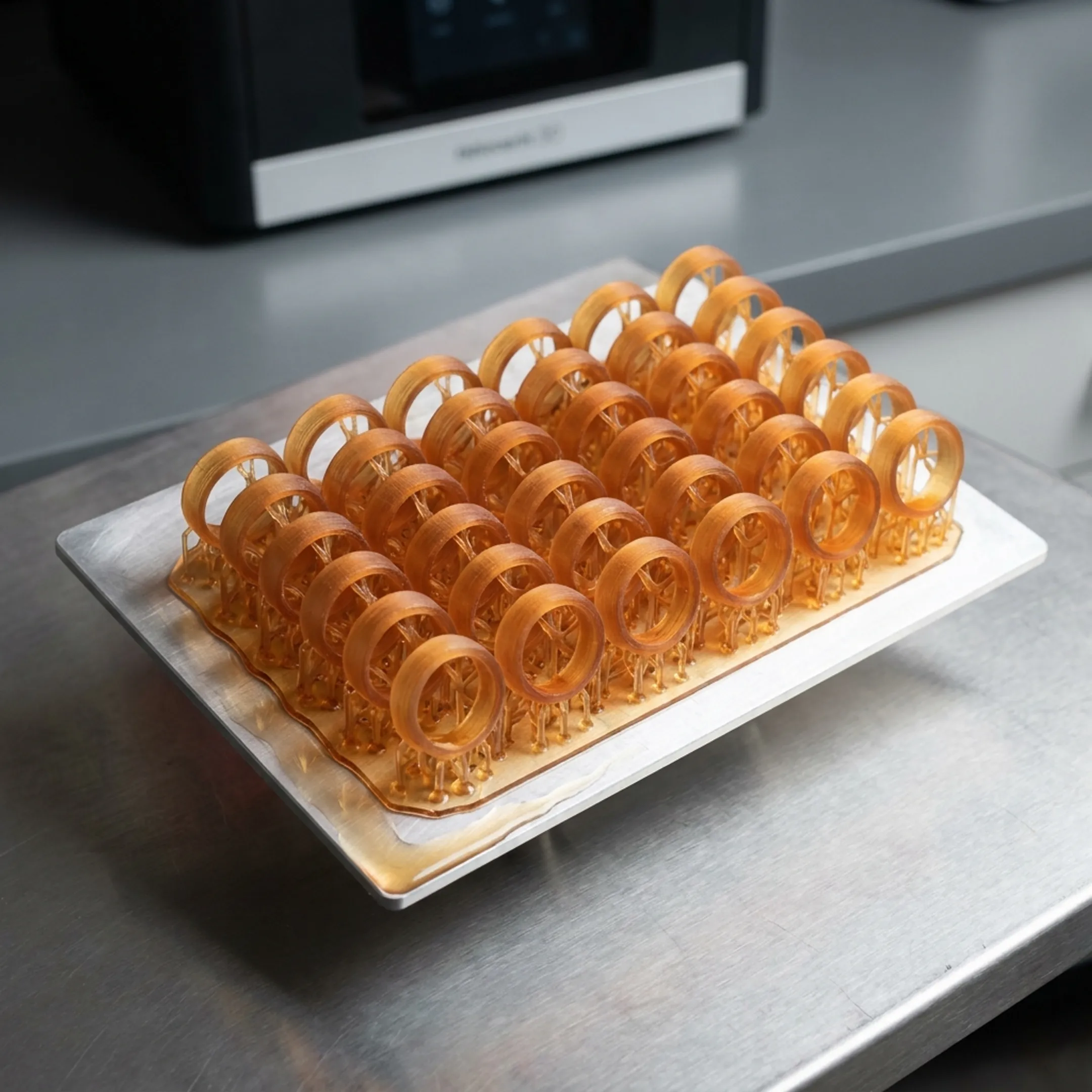

Print speeds depend on the system and configuration. For example, the Figure 4 Jewelry system operates at a print speed of 16 mm/hr at a 30 µm layer resolution. It can produce a full platform of rings up to four times faster than comparable systems, significantly reducing cycle times for short-run production and customized jewelry orders.

Support design directly impacts production efficiency. Systems utilizing MicroPoint ultra-fine tip support structures allow for easier support removal and leave smoother surface finishes on intricate ring bands and settings. By minimizing contact points, these fine supports reduce downstream manual bench labor, production time, and the extensive polishing usually required at support intersection points.

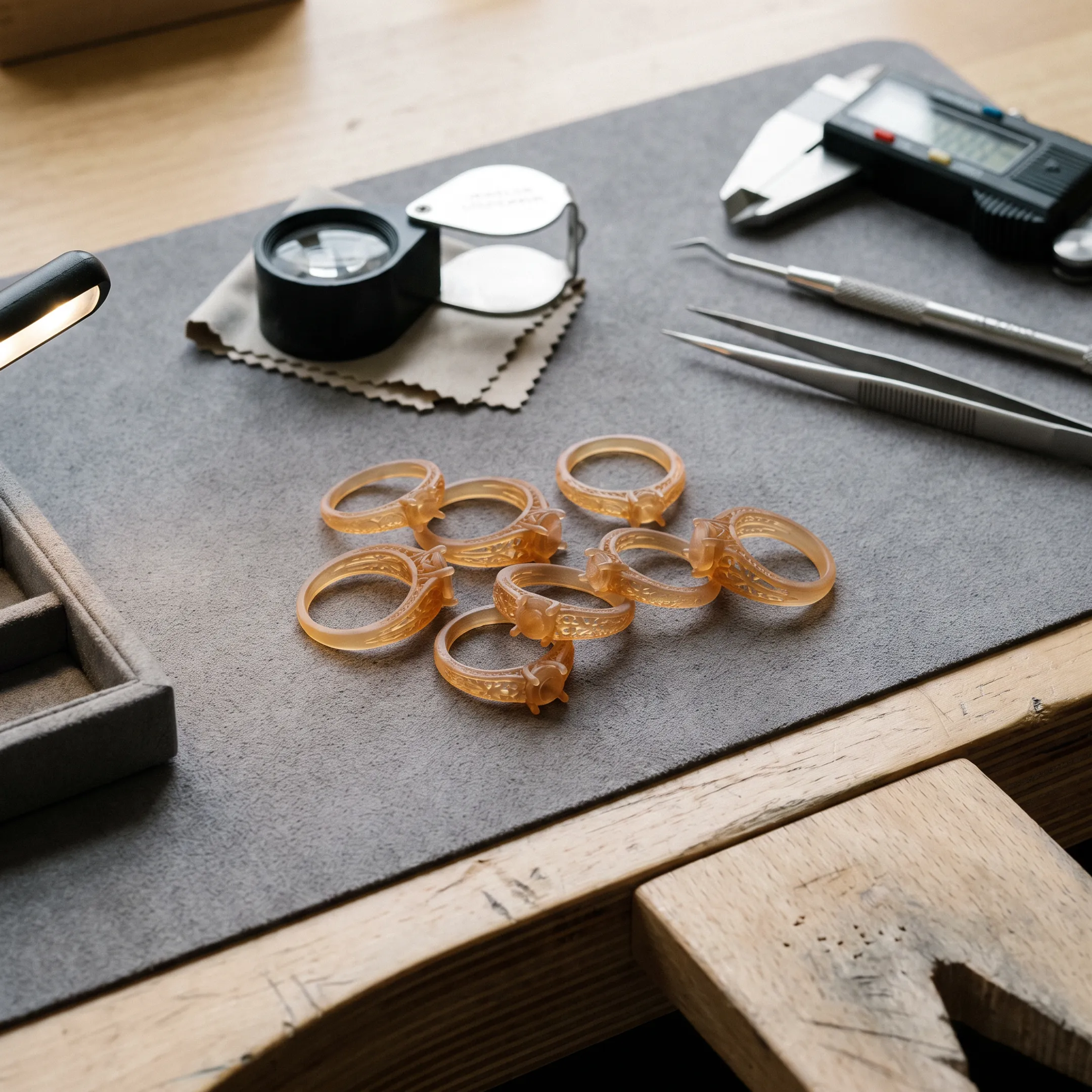

Additive jewelry printers support several primary use cases across the manufacturing workflow. These include customized jewelry production, short-run manufacturing, detailed prototypes for client fit checks, and masters for casting and molding. High-accuracy printing ensures that intricate design details, prong settings, and micro-pavé features translate cleanly into final cast pieces.

Professional jewelry additive systems utilize projection-based imaging technology, such as Figure 4 Technology. This process projects light to cure photopolymer resin layers precisely at 30 µm thicknesses. This ensures high-definition details, sharp edges, and smooth surface finishes across an entire platform of ring models simultaneously without sacrificing vertical build speed.
