Introduction
The best 3D printing resin is the one that matches your part's job, not the flashiest marketing claims.
A miniature figure, a snap-fit enclosure, a wax casting pattern, and a flexible gasket all demand different chemistry. Choose wrong, and you're looking at brittle failures, warped geometry, or a part that simply won't hold up to handling.
Getting resin selection right improves print reliability, surface finish, and functional performance. It also affects total operating cost, from failed prints to post-processing time.
That holds whether you print miniatures in a small shop or run production casting patterns for a dental lab.
This guide compares five resin options across the most common U.S. use cases:
- Tough prototyping
- Detailed ABS-like parts
- General functional prototyping
- Jewelry casting
- Beginner-friendly standard resin
Then we'll walk through a practical checklist for evaluating technical data sheets, safety documentation, and printer compatibility before you buy.
Key Takeaways
- Match resin properties to the job: mechanical, visual, thermal, or casting needs—no one formula fits all
- Pick by use case: standard, tough/ABS-like, flexible, castable, biocompatible, or high-temp
- Confirm exposure settings, TDS/SDS, and the full wash-and-cure workflow before you print
- Budget failed prints, ventilation, consumables, and calibration—not only bottle price
- Food-contact, dental, and medical use need product-specific compliance docs, not generic "non-toxic" claims
Overview of 3D Printing Resins in the U.S. Market
3D printing resin is a light-curable photopolymer used in SLA, DLP, and MSLA/LCD printers. A laser (SLA), projector (DLP), or masked light array (MSLA/LCD) triggers a chemical reaction that solidifies liquid monomers and oligomers layer by layer, typically under 405 nm UV light.
Resins fall into several practical categories:
- Standard resin — visual prototypes, display models, general-purpose printing
- ABS-like or tough resin — parts exposed to handling, impact, snap-fits, functional prototyping
- Flexible or elastic resin — seals, grips, gaskets, bendable components
- Castable resin — jewelry patterns and investment-casting workflows
- Dental and medical resins — biocompatible models, surgical guides, and patient-specific devices
- Engineering, high-temperature, and clear resins — for requirements that standard materials can't meet

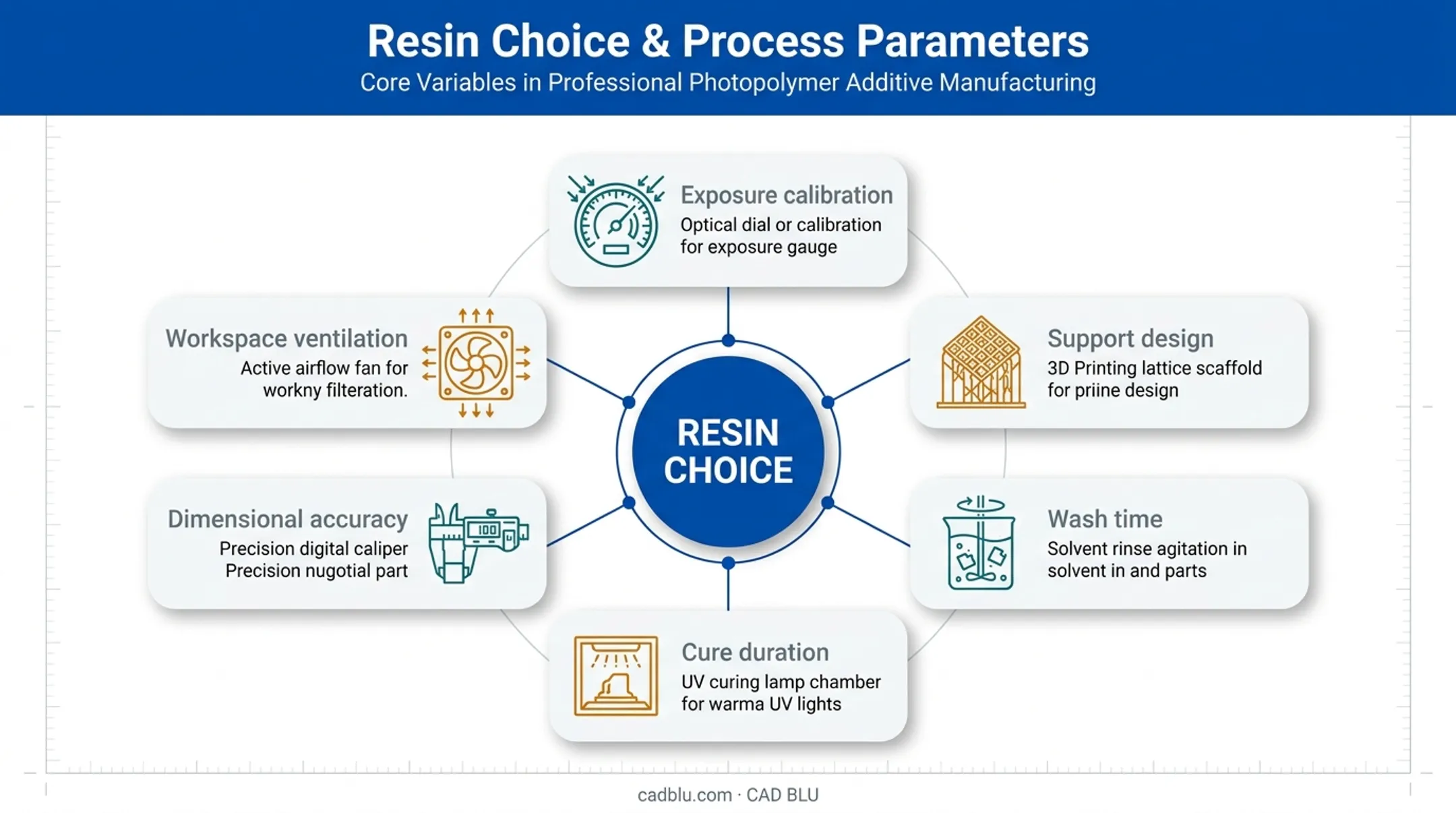

Why Resin Choice Shapes the Whole Workflow
Picking a resin isn't a one-time decision. It affects exposure calibration, support design, wash time, cure duration, dimensional accuracy, and how much ventilation your workspace needs.
Switch resins without recalibrating exposure settings, and you'll see failed layers or warped parts fast. That's why the products below are chosen as representative options for distinct use cases—not ranked purely by brand popularity or advertised resolution.
Best 3D Printing Resins for Different Applications
Selection here weighs documented performance, application fit, print consistency, printer compatibility, post-processing demands, U.S. availability, and long-term value, not just the number printed on the bottle.
Formlabs Durable Resin — Best for Tough Prototypes and Repeated Handling
Formlabs Durable Resin V2 targets parts that get handled repeatedly: manufacturing jigs, snap-fits, ball joints, low-friction assemblies, and flexures. It's the most pliable and impact-resistant material in Formlabs' functional resin lineup, though the company notes it isn't suited for very fine detail or elevated-temperature loading.
| Feature | Detail |
|---|---|
| Best for | Snap-fits, jigs, ball joints, low-friction assemblies |
| Compatible printers | Form 3, 3+, 3B, 3B+, 3L, 3BL, Form 4, 4B, 4L, 4BL |
| Post-processing | IPA wash, post-cure 60 min at 60°C |
| U.S. price | Starts at $149 |
According to Formlabs' own technical documentation, post-cured Durable Resin delivers 28 MPa tensile strength, 55% elongation at break, and 114 J/m notched Izod impact resistance, with a heat deflection temperature of 41°C at 0.45 MPa. Minimum layer thickness is 50 microns.
One thing to flag: Formlabs has announced Durable Resin V2.1 will stop direct sale after August 31, 2026, pointing customers toward Tough 1000 instead. If you're standardizing a production workflow around this material, plan for that transition now.
Trade-off: the professional Formlabs ecosystem carries a higher acquisition cost than open-source LCD resins, but it buys tighter tolerance control and dedicated technical support—worth it for teams running repeated production batches, less so for occasional hobby printing.
Siraya Tech Fast — Best ABS-Like Resin for Detail and Durability
Siraya Tech markets Fast as a fast-curing, non-brittle general resin rather than a full engineering/tough formulation. It's positioned for miniatures, prototypes, and parts that get picked up and handled without shattering.
| Feature | Detail |
|---|---|
| Best for | Miniatures, detailed prototypes, frequently handled parts |
| Compatible printers | LCD/MSLA and DLP (FEP or nFEP film) |
| Colors/sizes | Grey, Navy Grey, White, Smoky Black, Metal Grey, Creamy, Green; 1kg/2kg/5kg |
| Post-processing | Standard IPA wash, UV cure |
Technical data sheet numbers: viscosity 110 cP at 25°C, Shore D hardness 75, elongation at break 18%, Young's modulus 1,700 MPa, and notched Izod impact of 25 J/m. That's a stiffer, harder profile than standard resin with better impact tolerance.
One quirk worth knowing before you dial in settings: Navy Grey needs roughly 20% more exposure and Mecha White around 25% more than Siraya's baseline profile. Shelf life is rated at two years, but use opened bottles within six months for consistent results.
Where a tougher resin wins instead: if your part sees constant flexing or high-impact drops, an engineering or Durable-class resin will outperform Fast's 25 J/m impact rating.
Anycubic ABS-Like Resin Pro 2 — Best for General Functional Prototyping
Anycubic's ABS-Like Resin Pro 2 is built for housings, brackets, and prototypes that need more impact resistance than standard resin but don't require Formlabs-level documentation or ecosystem lock-in.
| Feature | Detail |
|---|---|
| Best for | Housings, brackets, functional prototypes, miniatures |
| Compatible printers | 405 nm LCD/DLP |
| Colors | Gray, White, Black, HD Gray, Clear, Beige, Smoky Black, Purple, Blue, translucent variants |
| U.S. price | $34.21 (sale price, Gray, 1kg) |
Manufacturer-reported mechanicals: hardness 82-84 HD, tensile strength 35-45 MPa, elongation 35-40%, Young's modulus 1,600-1,800 MPa, and Izod impact of 212 J/m. Anycubic describes the formulation as low-odor and low-viscosity.
Process window: normal exposure 1.5-3 seconds, bottom exposure 20-40 seconds, viscosity 300-400 mPa·s at 25°C, and shrinkage of 4.3-5.6%. Results will still shift depending on your printer's light source, part orientation, and cure time. These numbers are a starting point, not a guarantee.
Best fit: makers and small shops needing functional parts on a budget. Trade-off: engineering-grade resins still beat it on heat resistance and long-term fatigue life for production-critical applications.
Siraya Tech Cast — Best for Jewelry and Investment Casting
Castable resin isn't about detail alone. Clean burnout, low ash residue, and coordination with your casting process matter just as much as how sharp the print looks.
| Feature | Detail |
|---|---|
| Best for | Jewelry, dental patterns, small precision castings |
| Compatible printers | MSLA/LCD/DLP, 385-405 nm |
| Wash/cure | Ethanol/IPA wash 4-5 min (max), UV cure ~10 min (15 min for large parts) |
| Recommended investment | Ransom & Randolph Plasticast |

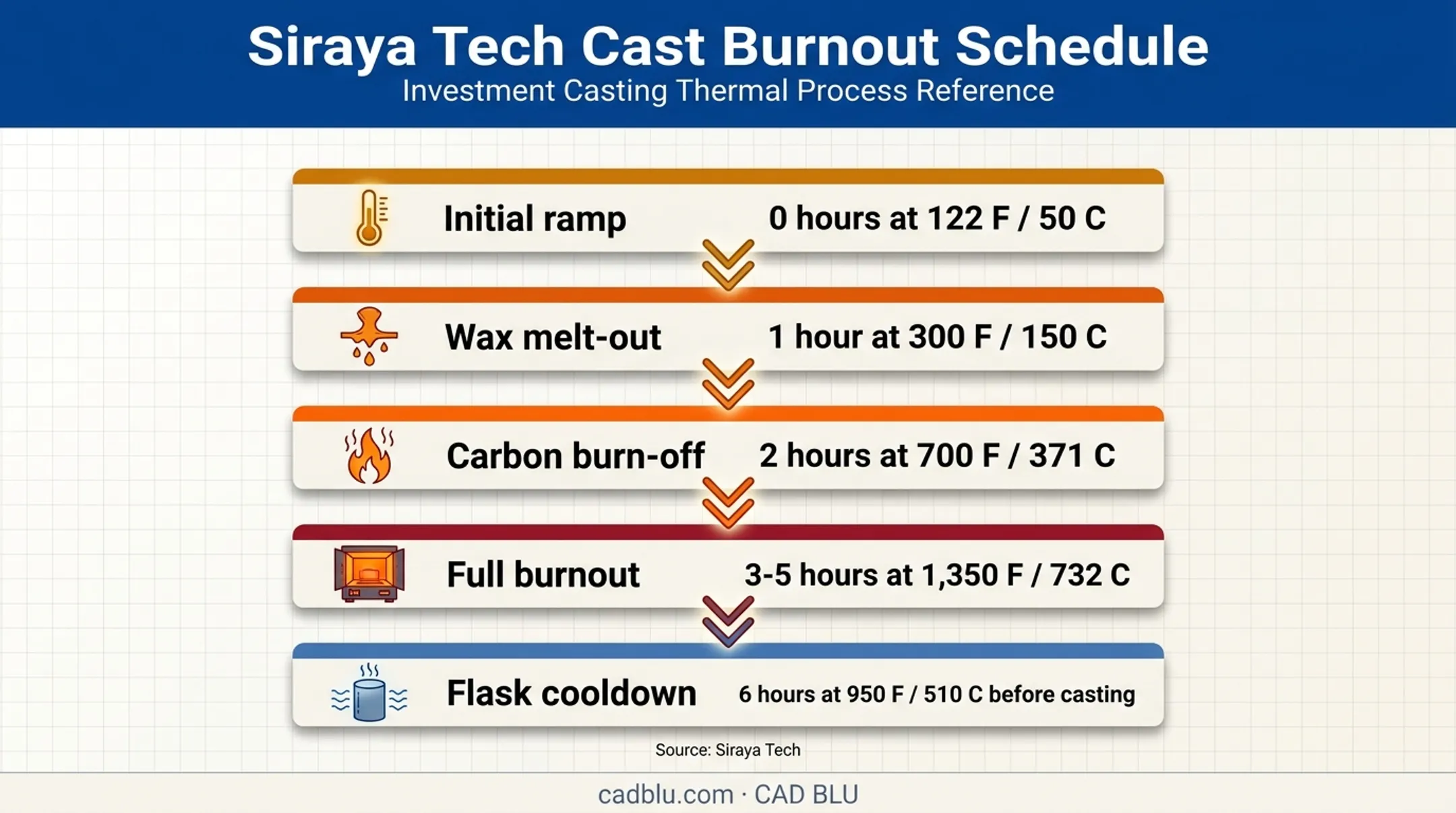

Siraya Tech's wax-content formulation is designed to burn out cleanly. The manufacturer's recommended burnout schedule runs:
- 0 hours at 122°F/50°C: initial ramp
- 1 hour at 300°F/150°C: wax melt-out
- 2 hours at 700°F/371°C: carbon burn-off
- 3-5 hours at 1,350°F/732°C: full burnout
- 6 hours at 950°F/510°C: flask cooldown before casting
Cast Purple and True/Royal Blue formulations show 6% volume shrinkage. No published ash-residue percentage is available, though the manufacturer claims minimal residue and controlled expansion.
Risk to flag: skipping steps in the burnout profile, using the wrong investment material, or ignoring wall-thickness guidance are the most common causes of casting defects. For high-volume or mission-critical castings, a validated production material or professional casting service is often the safer call.
Anycubic Standard Resin V2 — Best Budget and Beginner Option
Standard resin is the sensible entry point for learning calibration, washing, and curing without a big investment. Anycubic's Standard Resin V2 is a solid representative of this category.
| Feature | Detail |
|---|---|
| Best for | Display models, visual prototypes, learning calibration |
| Compatible printers | 405 nm UV LCD/DLP |
| Colors | Gray, Beige, HD Gray, White, Clear, Black, Purple, translucent Green |
| U.S. price | $28.31 (sale price, Gray, 1kg) |
Reported properties: viscosity 250-350 mPa·s at 25°C, hardness 80-83 HD, tensile strength 35-45 MPa, elongation 25-30%, and Izod impact of 192 J/m. Exposure settings run 2.5-3 seconds normal and 20-40 seconds bottom.
Standard resin is genuinely good for what it's designed for: crisp detail on figures and models at a low bottle price. It's not built for thin, snap-fit, or repeatedly handled parts. Elongation in the 25-30% range means it can crack under stress that a tough resin would absorb.
Value math: factor in failed prints, IPA, and storage supplies alongside the bottle cost. Once you're printing functional parts regularly, upgrading to an ABS-like or engineering resin often saves money in fewer failures.
How We Chose the Best Resins
We compared manufacturer technical data sheets, SDS documentation, printer compatibility, and current U.S. availability rather than relying on marketing copy alone. Three performance areas mattered most:
- Detail and surface finish: critical for fine-detail models, jewelry patterns, and presentation parts
- Toughness, elongation, and impact resistance: needed for functional or frequently handled parts
- Heat resistance, castability, or biocompatibility: required when the application demands specialized performance
We also weighed day-to-day ownership factors:
- Viscosity and exposure-window tolerance
- Support removal, wash-and-cure time, and odor
- Storage life and required equipment
A resin with great detail but a narrow exposure window can still produce inconsistent results across different printers and light sources.
Common Buying Mistakes to Avoid
- Choosing by "4K/8K" resolution or color alone instead of mechanical properties
- Assuming "water-washable" means non-hazardous; it doesn't
- Mixing resins from different brands without validated exposure settings
- Ignoring your printer's specific light source and wavelength compatibility
- Using general-purpose resin for medical, dental, food-contact, or production-critical parts

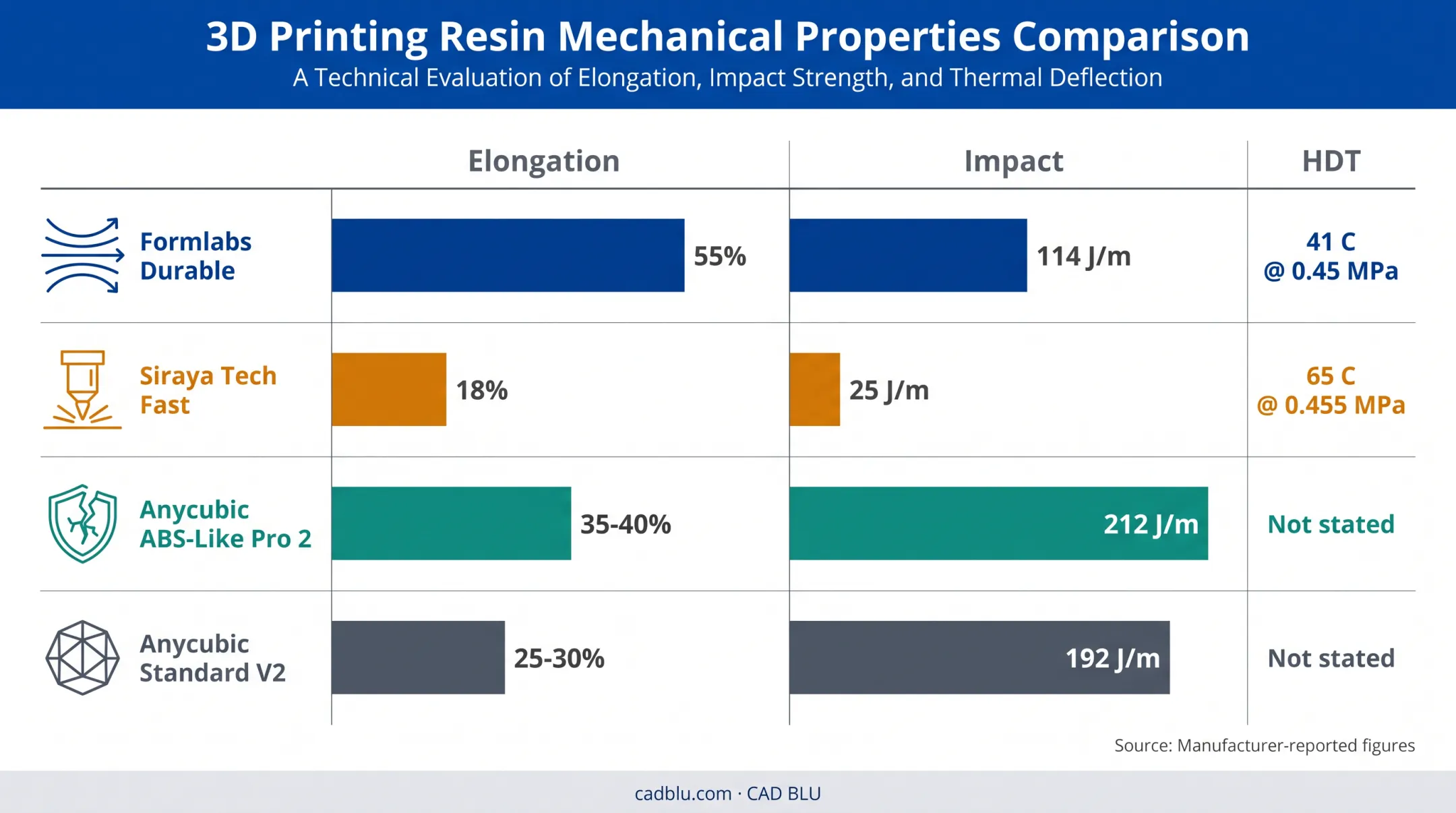

The table below shows how a few widely available resins compare on the mechanical metrics we prioritized. Use it as a reference snapshot, not a final ranking.
| Material | Elongation / Impact | HDT | Notes |
|---|---|---|---|
| Formlabs Durable | 55% / 114 J/m | 41°C @ 0.45 MPa | Best for repeated handling |
| Siraya Tech Fast | 18% / 25 J/m | 65°C @ 0.455 MPa | Detail-focused, color-specific exposure |
| Anycubic ABS-Like Pro 2 | 35-40% / 212 J/m | Not stated | Best general functional prototyping |
| Anycubic Standard V2 | 25-30% / 192 J/m | Not stated | Best budget/beginner option |
Note: These figures are manufacturer-reported under different test conditions, not a controlled cross-laboratory ranking. Cure state, orientation, and specimen geometry all affect real-world results.
Conclusion
The best 3D printing resin matches your part requirements, printer, post-processing setup, and tolerance for failed prints—not the highest number on the spec sheet. Use this path when you choose:
- Start with a well-documented general-purpose or ABS-like resin while you lock in calibration and workflow
- Move to castable, flexible, high-temp, dental, or engineering resins only when the application justifies the cost and process controls
- Treat specialty materials as production tools, not default upgrades For jewelry casting, dental production, medical models, or industrial prototyping, material selection gets technical quickly. If you need help matching printers, resins, software, and workflow to production goals, CAD BLU's additive manufacturing team helps U.S. labs and manufacturers validate compatible resin workflows before standardizing at scale.
Frequently Asked Questions
How do I choose the right resin for 3D printing?
Match the resin's mechanical properties, detail level, flexibility, and heat resistance to your part's actual job. Then confirm printer compatibility and check that your post-processing setup can handle the required wash-and-cure steps.
Which resin is best for beginners?
A well-documented standard resin, like Anycubic Standard Resin V2, is a solid starting point for learning calibration and post-processing. Budget for gloves, ventilation, an IPA wash station, and a UV curing setup before you print.
What is the most durable resin for 3D printing?
"Durable" can mean impact resistance, tensile strength, flexibility, or fatigue life; the right pick depends on your application. Tough or engineering resins like Formlabs Durable or Anycubic ABS-Like Pro 2 offer verified data for handling and impact use cases.
Is it better to use UV resin or epoxy resin?
UV printing resin cures in seconds under light with no mixing required; epoxy cures over hours through a resin-hardener reaction. Don't substitute epoxy in a resin printer unless the manufacturer explicitly supports it.
What's stronger, resin or PLA?
It depends on the resin formulation and which type of strength you're measuring. Standard resin is often more brittle than PLA, but tough or engineering resins can match or exceed PLA in impact resistance and elongation. Always check verified technical data sheets rather than assuming.
Are 3D printed parts safe for food contact, and which food-grade resins or epoxies should I use?
Ordinary resin and epoxy shouldn't be treated as food-safe by default. FDA food-contact authorization requires documented testing under the specific conditions of use, including material, temperature, and contact duration, not just a "non-toxic" label.
