Many people assume all resin is fragile, or that a "tough" resin label means bulletproof. Neither is accurate. A single resin can shift several MPa in tensile strength depending on cure time alone, and a high heat rating says nothing about how well a part survives a drop test.
This guide breaks down what resin strength actually measures, what changes it, how resin stacks up against PLA and other filament materials, and how to select and validate the right resin before moving from prototype to a functional part.
Key Takeaways
- No single "resin strength" number exists: tensile, flexural, impact, stiffness, and heat resistance vary by resin family.
- Standard resins are rigid but brittle; tough, engineering, flexible, composite, and high-temp resins target different failure modes.
- Resin often beats filament on stiffness and precision, but can lose on repeated impact or sustained heat.
- Datasheet numbers only compare fairly when test standards and cure conditions match.
What Resin 3D Printing Strength Represents
Resin strength isn't a single rating. It's a set of separate properties, each describing how a cured part resists a specific type of stress:
- Tensile strength – resistance to pulling or stretching forces
- Flexural strength – resistance to bending before cracking
- Compression strength – resistance to crushing loads
- Impact resistance – ability to absorb a sudden shock without fracturing
- Stiffness (modulus) – how much a part deflects under load
- Elongation – how far a material stretches before breaking
- Toughness – total energy absorbed before failure
- Heat deflection temperature (HDT) – the temperature at which a part starts to soften under a given stress A rigid resin might be perfect for a precision fixture or enclosure that never moves. Drop that same part, flex it repeatedly, or hit it with a shock load, and it can shatter — because rigidity and impact resistance aren't the same property. Resin classes span a wide range of mechanical behavior:
- Standard resins – dimensionally accurate but brittle
- Tough / ABS-like resins – trade some stiffness for elongation
- Rigid / engineering resins – often glass- or ceramic-filled; flexural modulus can exceed 10,000 MPa
- Flexible resins – bend and rebound under load
- High-temperature resins – resist heat but not impact
- Castable, dental, and biocompatible resins – formulated for burnout, intraoral use, or biocompatibility, not structural loading
Range and Boundary Conditions

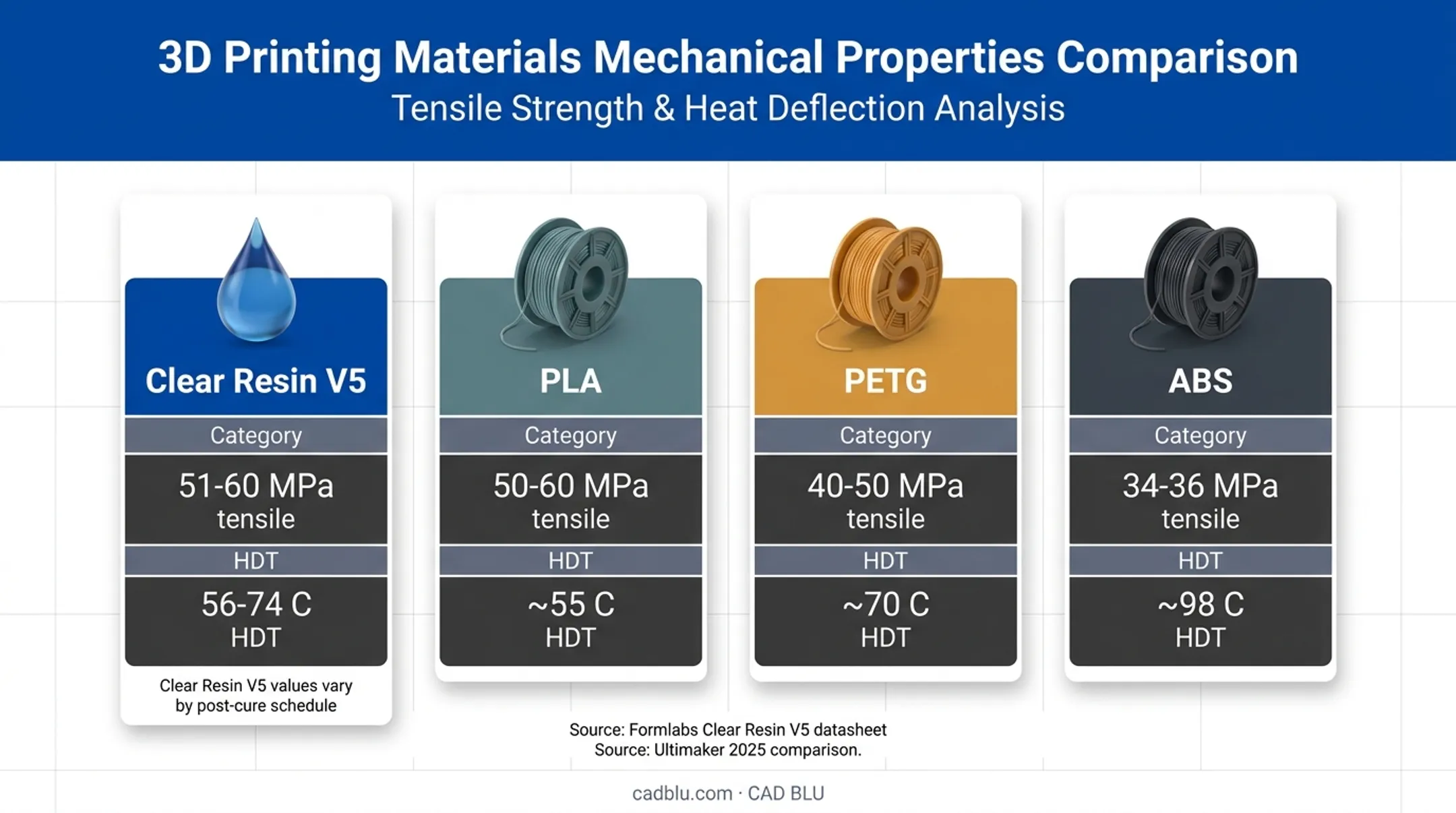

Published mechanical properties reflect a specific test: a defined cure cycle, a specific specimen shape, and controlled lab conditions. They aren't a guarantee for every geometry or every environment. Cure time alone can swing results dramatically. Formlabs' Clear Resin V5 datasheet shows tensile strength moving from 51 MPa to 60 MPa, and heat deflection temperature moving from 56°C to 74°C, purely based on which post-cure schedule was used. Same resin, same printer, different numbers. For context against filament materials, a 2025 Ultimaker strength comparison puts general tensile and HDT ranges roughly here:
- PLA – 50–60 MPa tensile, ~55°C HDT
- PETG – 40–50 MPa tensile, ~70°C HDT
- ABS – 34–36 MPa tensile, ~98°C HDT These are broad, non-datasheet figures rather than a single controlled test. Treat them as context, not a precise ranking against any specific resin.
Key Technical Trade-Offs
Stiffness and toughness usually pull in opposite directions. A rigid, glass-filled resin resists deflection well but can chip or crack under a sudden knock. A flexible or tough resin bends and absorbs energy but carries less static load and deforms more under sustained weight. Heat resistance is a separate axis. A resin engineered for a 150°C HDT isn't automatically tough, ductile, or fatigue-resistant. High-temperature grades are often low-elongation formulas—strong against heat, but among the more brittle options in a lineup.
Factors That Influence Resin Print Strength
A datasheet number describes the material. It doesn't describe your printed part. Real-world strength depends on how that material was printed, finished, and used.
Material Selection
Resin chemistry sets the ceiling on what's possible:
- Tough resin for snap-fits, living hinges, and parts absorbing impact
- Rigid resin for low-deflection jigs and fixtures
- Flexible resin for seals, gaskets, and grips
- Composite-filled resin for stiffness-critical structural parts
- Specialty resin for heat exposure, medical, dental, or investment-casting needs
An engineering resin like Ultracur3D EPD 3500, for example, reports 60 MPa tensile strength and 110 MPa flexural strength, while a flexible-leaning grade like FabPro Flexible trades that tensile number for 93% elongation instead. Neither is "better" (they're built for different jobs).

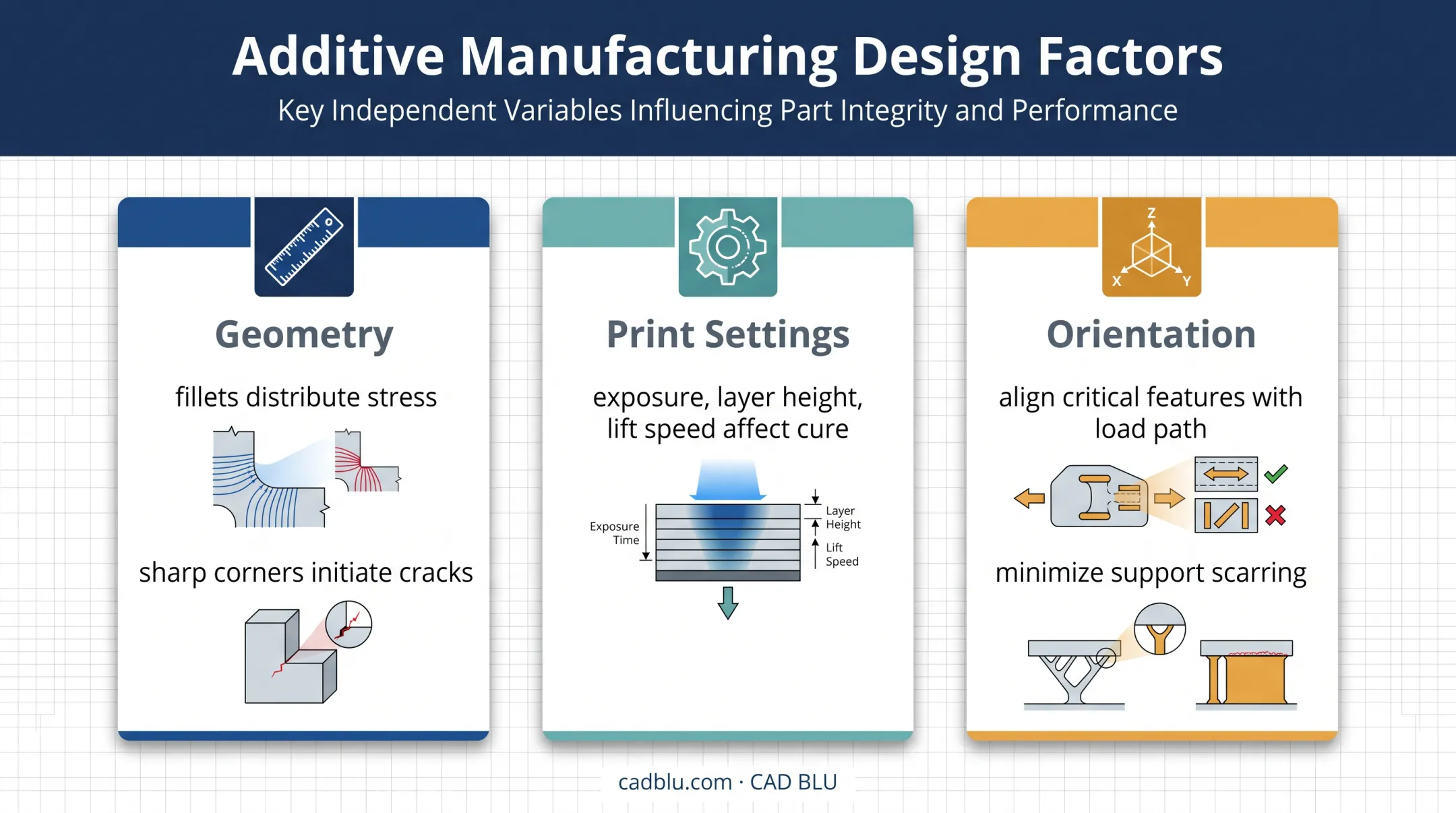

Geometry, Print Settings, and Orientation
The same resin can behave completely differently depending on part design. Wall thickness, ribs, fillets, chamfers, and hole placement all distribute or concentrate stress. Sharp internal corners, abrupt thickness changes, and trapped uncured resin inside hollow sections all create crack-initiation points.
A thick bracket with generous fillets in a mid-range engineering resin will often outlast a thin, sharp-cornered part printed in a premium tough resin. Geometry can matter more than material choice.
Exposure time, layer height, and lift speed affect cure quality and peel stress during printing. SLA, DLP, and LCD/MSLA processes use different light-delivery methods, but none of them should be treated as inherently stronger: resin compatibility and exposure calibration matter more than the process label itself.
Orientation should minimize support scarring on load-bearing faces while aligning critical features with the expected load path, not just optimizing for print time.
Washing, Curing, and Environmental Factors
Incomplete washing leaves uncured resin trapped in the surface, which weakens the final part. Under-curing leaves polymer chains incompletely linked; over-curing can increase brittleness.
Manufacturer wash and post-cure instructions exist for a reason. KTM's Daylight High Tensile resin, for instance, specifies UV curing in water followed by 80°C heat for at least an hour to reach its stated tensile properties. Skipping steps changes the outcome.
Support removal and sanding should also avoid gouges near load-bearing edges, since a scratch is a stress riser waiting to fail.
UV exposure, heat, moisture, and repeated loading all change resin properties over time. Some production-grade materials carry aging data extending to years of outdoor and indoor exposure, but that data is always material-specific.
Check the technical data sheet for service-temperature and environmental guidance before committing to an outdoor, medical, or production application. Never assume general-purpose resin behavior applies.
How Resin Strength Is Specified, Measured, and Validated
Strength data lives in three places: the material spec sheet, a controlled lab test, and your own engineering judgment about the application.
Specification and Documentation
A resin technical data sheet typically lists tensile strength, flexural strength, modulus, elongation, notched impact, and HDT. It should also note the test standard, specimen orientation, and post-cure conditions.
Treat "typical values" differently from guaranteed minimums. Never rank two resins from different manufacturers unless the test method and cure schedule match.
Document these details for anything moving toward production:
- Resin and batch number
- Printer and orientation used
- Exposure settings and wash method
- Cure cycle (time, temperature)
- Intended load case and environment
Test Methods
Most photopolymer datasheets reference general plastics standards rather than resin-specific ones:
| Property | Common standard |
|---|---|
| Tensile strength, modulus, elongation | ASTM D638 / ISO 527 |
| Flexural strength, modulus | ASTM D790 / ISO 178 |
| Notched impact | ASTM D256 / ISO 179 |
| Heat deflection temperature | ASTM D648 / ISO 75 |
These tests use standardized coupons, not your actual part. A thin wall, an internal cavity, or a support scar can all make a real part behave differently than the test specimen. For anything beyond a prototype, plan on load-to-failure testing, cyclic testing, or environmental exposure testing on a representative sample before sign-off.
Application Selection and Validation

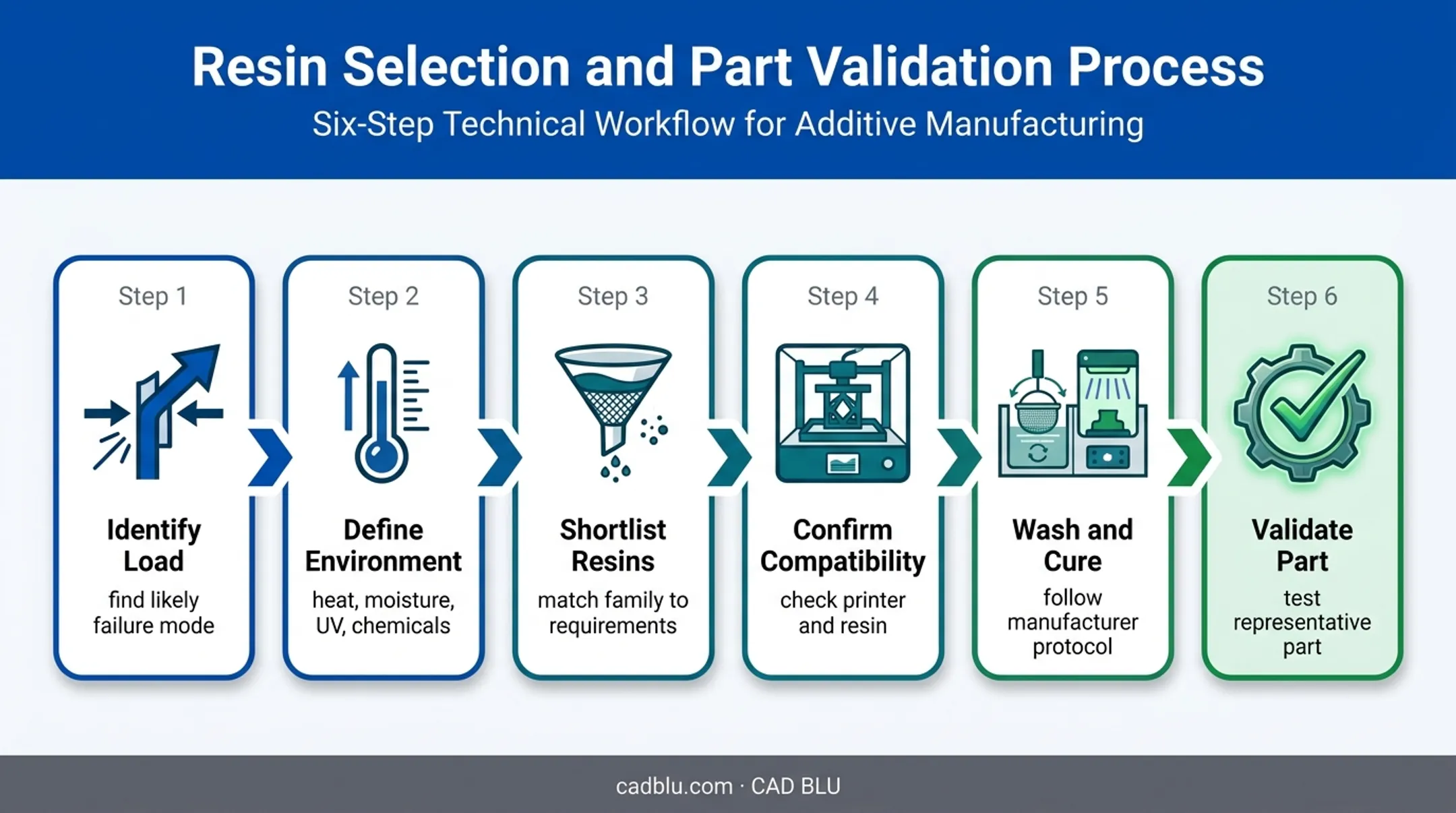

A practical selection sequence looks like this:
- Identify the load and likely failure mode
- Define the service environment (heat, moisture, UV, chemicals)
- Shortlist resin families that fit both
- Confirm printer and resin compatibility
- Follow the manufacturer's wash and cure protocol
- Validate a representative part before scaling up
When a resin must meet a specific production or prototyping requirement, outside expertise can help match properties to the job. CAD BLU supports businesses with commercial 3D printers, materials, installation, and additive workflows—including resin selection for jewelry casting, dental, medical, and industrial use.
Manufacturer data sheets and application-specific testing should still have the final word before a part goes into service.
What Happens Outside the Recommended Strength Range
Push a resin part past its tested limits and the failure modes are predictable: cracking, brittle fracture, permanent deformation, dimensional drift, fatigue failure, or accelerated aging from heat and UV.
Tensile strength alone doesn't tell the whole durability story. A resin can post an impressive tensile number and still fail quickly under repeated flexing, impact, or heat cycling — because those are separate tests measuring separate behaviors.
Common misinterpretations:
- Assuming all resin is fragile (some engineering and composite resins rival injection-molded plastics)
- Treating "tough" or "engineering" labels as proof a resin fits every load case
- Comparing uncured or differently cured values as if they're equivalent
- Applying general lab coupon results directly to safety-critical parts without validation
No general-purpose resin should replace a certified metal or engineered component without proper design review, testing, and regulatory evaluation where applicable.
Conclusion
Resin prints can be plenty strong when you match material and process to the job. That covers prototypes, fixtures, housings, tooling, dental and medical workflows, casting patterns, and selected end-use parts.
Strength isn't a passive trait of "resin" as a category. It depends on:
- Material choice
- Part geometry
- Print settings
- Post-processing
- The environment the part will live in
Before moving a resin part from prototype to production, match the resin to the real load case and confirm the numbers with current technical data sheets, not assumptions.
Frequently Asked Questions
How strong is 3D printer resin?
Strength varies significantly by resin family and by which property you're measuring. Check tensile, flexural, impact, stiffness, and heat-resistance data separately rather than looking for one generic strength number.
Is resin 3D printing stronger than PLA?
It depends on the resin, the PLA grade, the load type, and post-processing. Resin often wins on stiffness and precision; PLA and tough resins can be more comparable on impact resistance.
Are resin 3D prints strong enough for functional parts?
Yes, for many uses, especially with tough or engineering resins matched to the load. Always validate the part under its actual operating conditions before relying on it functionally.
What is the strongest resin for 3D printing?
There's no single "strongest" resin. It depends on whether you need tensile strength, stiffness, impact resistance, flexibility, or heat resistance. Compare current manufacturer datasheets for the property that matters to your application.
Do resin prints break easily?
Standard photopolymer resins can be brittle, but breakage also depends on wall thickness, fillets, orientation, and how well the part was washed and cured. Tough and engineering resins reduce this risk considerably.
How can you make resin 3D prints stronger?
Choose the right resin family, add fillets, and avoid thin sharp sections. Calibrate exposure settings, follow the recommended wash and cure cycle, and test a representative part before full production.
