Introduction
Bio epoxy laminating resins are two-part epoxy systems made with renewable or bio-derived feedstocks. They are built to wet out reinforcement fibers during composite manufacturing.
Unlike casting resins poured into a solid shape, you mix them, apply them to fabric or fiber, and cure them into a load-bearing laminate.
Here's the catch: "bio-based" gets used loosely. A resin with 20% plant-derived carbon can carry the same green marketing language as one with 50%. Renewable feedstock content doesn't automatically mean the cured resin is biodegradable, non-toxic, or rated for the structural loads your application demands.
This guide covers composition, resin chemistry, performance data, applications, selection criteria, processing, safety, and cost, so you can evaluate a bio epoxy laminating resin on facts instead of labels.
Key Takeaways
- Bio-based content, biodegradability, compostability, and low-VOC formulations are separate claims, not synonyms.
- A resin's technical data sheet and safety data sheet carry more weight than sustainability marketing.
- Suitability hinges on fiber type, wet-out, viscosity, pot life, cure schedule, and Tg—not bio-based % alone.
- Bio epoxy lowers petroleum feedstock use, but impact still spans sourcing, additives, manufacturing, use, and disposal.
What Are Bio Epoxy Laminating Resins?
What "Bio Epoxy" Means
A bio epoxy laminating resin is a two-part (occasionally multi-part) epoxy system where some ingredients, such as plant oils, agricultural byproducts, lignin, or glycerol, replace a portion of the petroleum-derived content. "Bio-based" almost always describes the origin of specific ingredients, not the entire formulation.
Verification matters. Sicomin, for example, states its GreenPoxy 56 resin derives 51% of its molecular structure from plant sources, verified through independent lab testing under ASTM D6866. That's a specific, testable claim, not a vague eco-friendly label. Always ask for the stated percentage and the verification method behind it.
Laminating resin also differs from casting, coating, adhesive, infusion, and 3D-printing resins. Laminating systems need controlled viscosity for fiber wet-out, workable gel time for hand lay-up or vacuum bagging, and strong adhesion to the fiber surface. A casting resin poured into a mold doesn't need any of that.

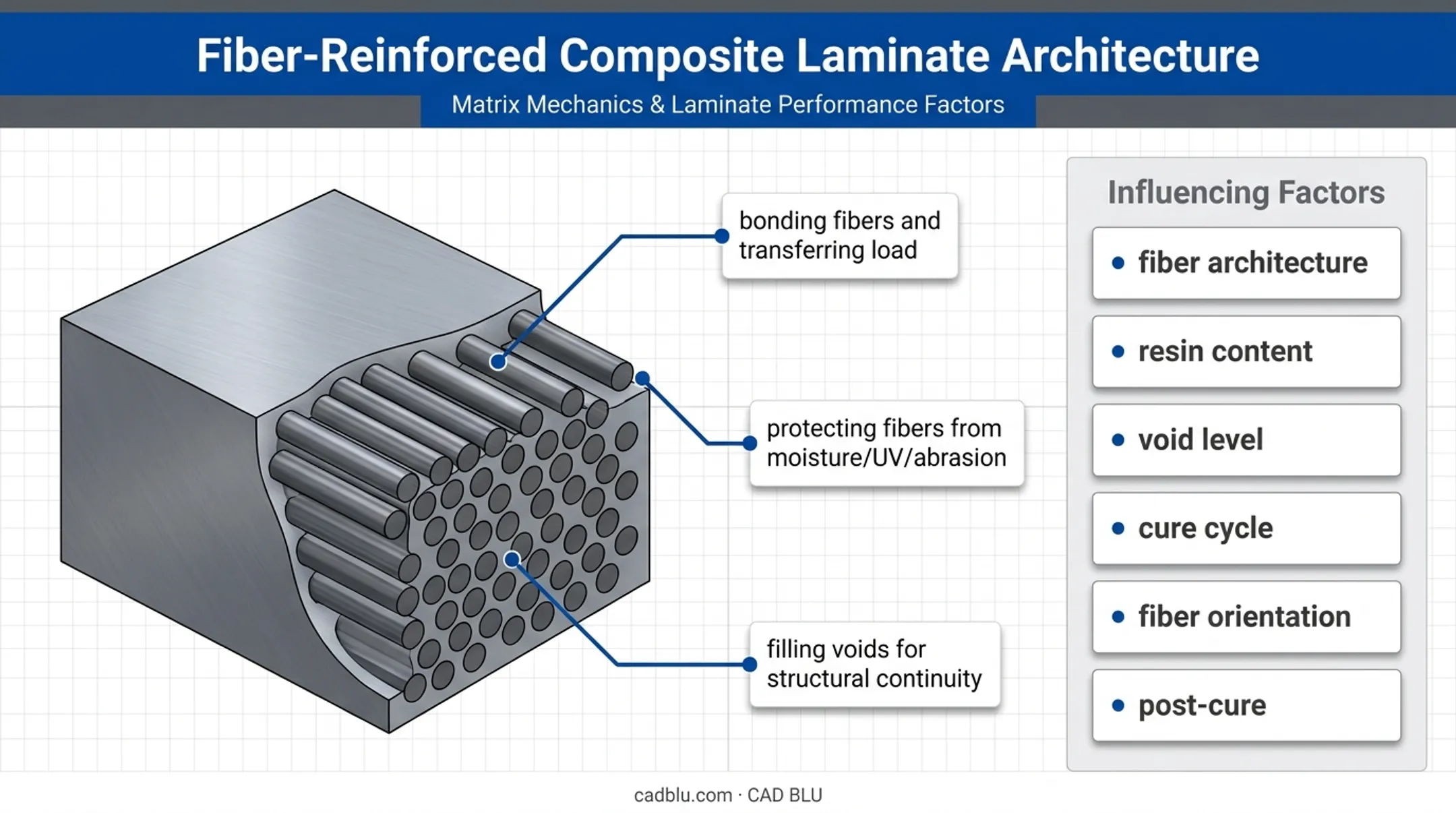

How the Resin Works in a Composite
Once mixed, the resin flows into the spaces between reinforcement fibers, saturating each strand before curing into a rigid, cross-linked polymer matrix. That matrix:
- Bonds fibers together and transfers load between them
- Protects fibers from moisture, UV, and abrasion
- Fills voids to maintain structural continuity
The fibers, not the resin, provide most of a laminate's stiffness and strength. A composite's final properties depend on the entire system: fiber architecture, resin content, void level, cure cycle, fiber orientation, and post-cure. Two laminates built with identical resin can perform very differently based on layup quality alone.
How Bio-Based Epoxy Is Made
Feedstocks and Formulation
Manufacturers chemically convert renewable oils, sugars, lignin, or agricultural waste into epoxy precursors, reactive diluents, or curing components. The resin backbone typically carries the bio-derived content; hardeners often stay conventional unless stated otherwise.
Be skeptical of "100% bio-based" or "fully plant-based" claims. GreenPoxy 56 resin is described as up to 56% plant-origin by molecular structure, but once mixed with hardener, the finished system tests at roughly 45% bio-based carbon. The ratio shifts depending on what you mix it with.
Entropy's CLR laminating epoxy carries USDA BioPreferred certification with a labeled 29% biobased content—lower than GreenPoxy, but independently certified for the whole product as sold. Always ask whether a published percentage applies to the resin alone, the mixed system, or a certified whole-product label.
Chemistry and Cure Behavior
Bio-based feedstocks don't eliminate any standard epoxy processing steps. You still need:
- An accurately measured hardener ratio, by weight or volume, per the current TDS
- Controlled mixing that avoids air entrainment
- A defined cure schedule, often followed by a recommended post-cure
- Proper storage conditions to preserve shelf life
Compare mix ratio, working time, cure temperature, and post-cure requirements against a conventional benchmark:
| Spec | Entropy CLR | WEST SYSTEM 105/205 |
|---|---|---|
| Mix ratio | 100:43 by weight | ~5:1 by volume |
| Pot life | 18–43 min (by hardener) | 9–12 min |
| Full cure | 7 days at 25°C | Ambient cure |
| Post-cure | Per TDS | None stated |
Neither system is inherently better; each is formulated for different jobs.
Even when process steps look familiar, bio-derived modifiers can still shift viscosity, flexibility, shrinkage, moisture sensitivity, cure speed, and long-term aging. Don't assume a bio resin behaves like the conventional product you're used to. Get product-specific data before committing to a process.
Performance, Applications, and Limitations
Performance Characteristics to Compare

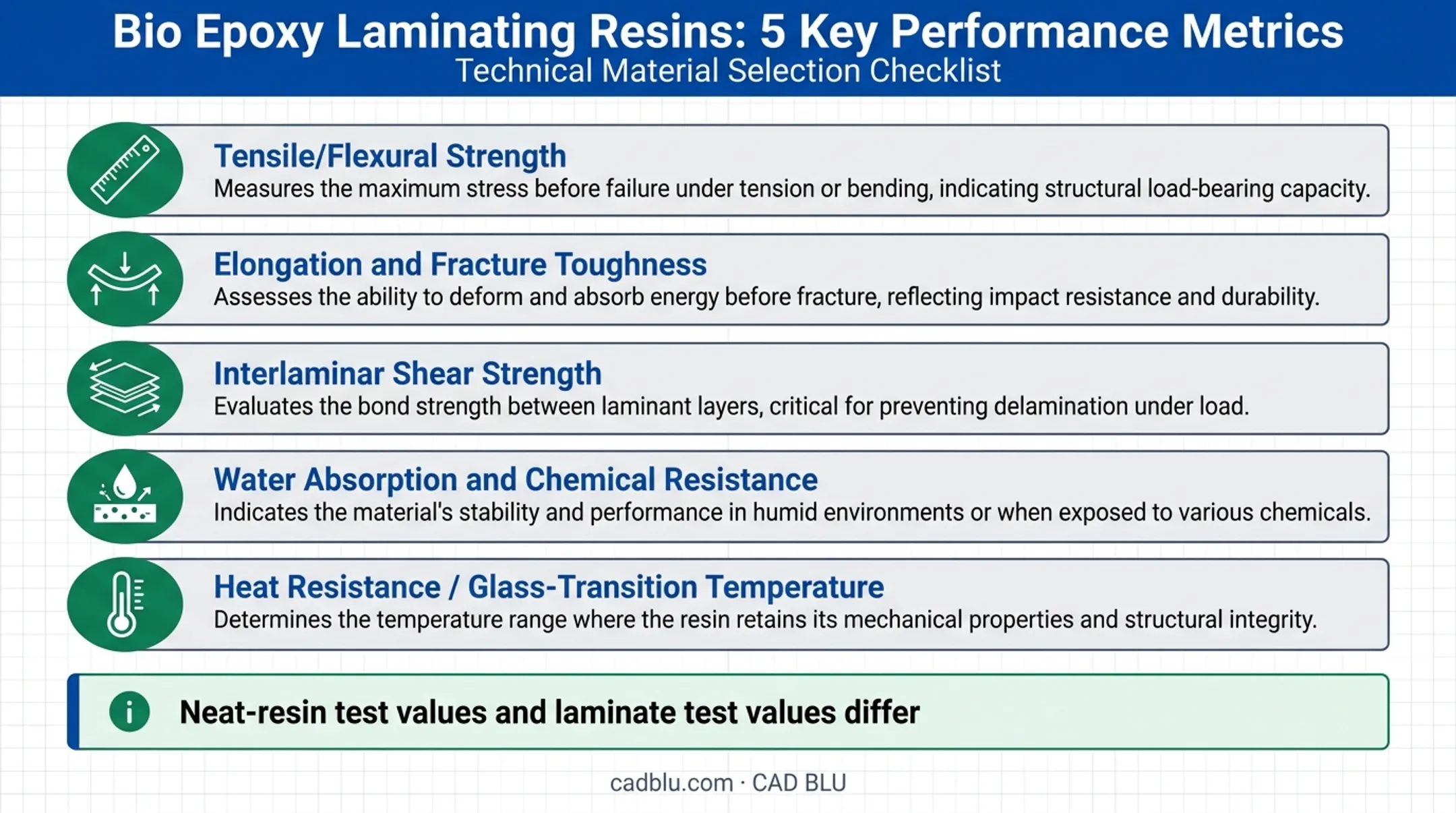

Before selecting a resin, compare candidates across:
- Tensile and flexural strength, plus modulus
- Elongation and fracture toughness
- Interlaminar shear strength (ILSS)
- Water absorption and chemical resistance
- Heat resistance and glass-transition temperature (Tg) Pull those values from manufacturer TDS sheets or independent testing, and note the test standard, specimen type, and cure condition. Sicomin reports GreenPoxy 56 neat resin at 71 N/mm² tensile strength and an 83°C Tg, tested per ISO 527-2 and DSC methods—cast neat resin, not a fiber laminate. A 2020 study infusing Ixtle, Henequen, and jute fabrics with a GreenPoxy system found jute laminates delivered the strongest tensile results, with flexural strength exceeding tensile strength across fiber types. Neat-resin numbers and laminate numbers are not interchangeable. Processability belongs on the same comparison list. Viscosity and wet-out matter in hand lay-up, vacuum bagging, and infusion: resin that's too thick leaves dry spots and voids; resin that's too thin pools into resin-rich zones that add weight without strength.
Suitable Applications
Common uses include:
- Natural-fiber composites and consumer products
- Sporting goods, surfboards, and skis
- Furniture and architectural panels
- Prototypes and educational projects
- Select marine and industrial components where data supports the environment Aerospace, automotive safety parts, medical devices, and pressure vessels fall outside standard bio epoxy use cases. They need application-specific qualification, traceability, and compliance review that most bio epoxy TDS sheets don't cover. GreenPoxy InfuGreen 810, for example, carries DNV-GL maritime approval with specified hardeners—but that approval does not transfer to GreenPoxy 56 or other formulations in the same line.
Sustainability and Health Limitations
Bio-based content and biodegradability are not the same thing. Once cross-linked into a thermoset network, most cured bio epoxy laminates behave like conventional thermoset plastic: stable, inert, and not designed to break down. Uncured resin and hardener are a separate concern. Entropy's CLR safety data sheet lists:
- Skin irritation (H315)
- Allergic skin sensitization (H317)
- Serious eye irritation (H319)
- Long-term aquatic toxicity (H411) Similar flags appear on other laminating systems, including StrengthMax's bisphenol-based epoxies. Skip any "non-toxic" claim that isn't backed by the SDS. On the environmental side, Entropy's life-cycle inventory data reports its bio-based epoxy backbone producing 15–20% fewer environmental impacts than an average petrochemical epoxy backbone. That figure is backbone-only, drawn from mixed primary and secondary industry data—not a full-laminate or cradle-to-grave study. Verify scope and system boundaries before relying on any lifecycle claim.
How to Choose the Right Bio Epoxy Laminating Resin
Define the Manufacturing Process First
Your process dictates resin requirements before anything else:
| Process | Key resin requirement |
|---|---|
| Hand/wet lay-up | Moderate viscosity, workable gel time |
| Vacuum bagging | Controlled flow, consistent cure under pressure |
| Resin infusion | Low viscosity, extended working time |
| Compression molding | Fast cure, defined flow under heat and pressure |
| Match the resin to your reinforcement next. Flax, hemp, and basalt absorb moisture differently than glass or carbon, which changes wet-out behavior and may require surface treatment for a strong fiber-resin bond. |
Performance and Service Requirements
Build a checklist covering the part's real service conditions:
- Load type (static, cyclic, impact)
- Operating temperature range
- Moisture and chemical exposure
- UV exposure and expected service life
- Flexibility, surface finish, and fire performance requirements Request laminate-level test data using your intended fiber and cure cycle, not just neat-resin numbers. Solid laminate data for your application usually matters more than a higher bio-based percentage with no relevant testing.
Documentation, Certifications, and Sustainability Claims

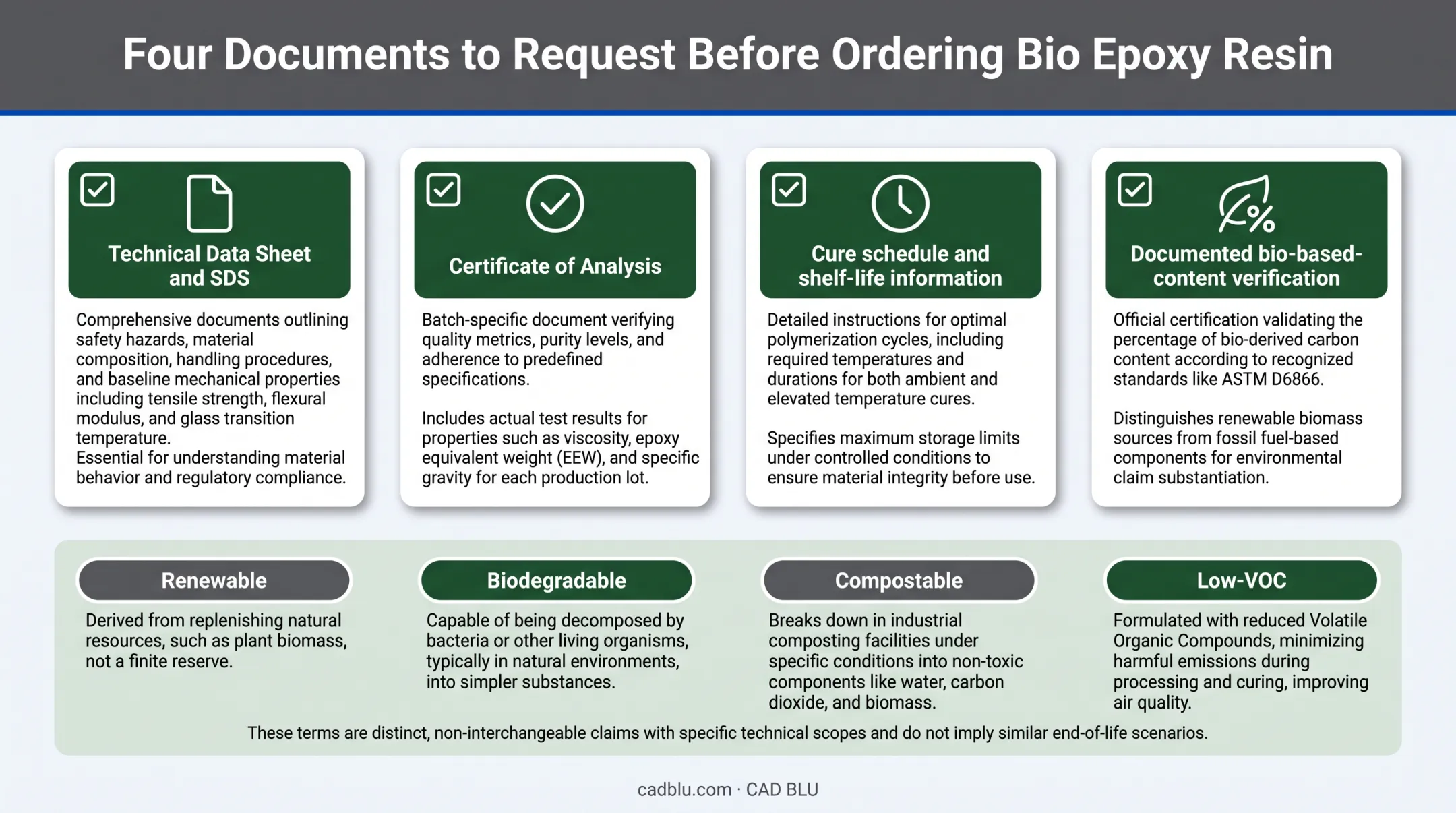

Before ordering, request:
- Technical data sheet and SDS
- Certificate of analysis, where applicable
- Cure schedule and shelf-life information
- Documented bio-based-content claim and verification method Terms like renewable, bio-derived, partially bio-based, carbon-reduced, recyclable, biodegradable, compostable, and low-VOC aren't interchangeable. Confirm whether a claim applies to the resin alone, the cured laminate, or the whole packaged product, and check for relevant U.S. certifications, such as USDA BioPreferred, for your intended use.
Cost and Supply Considerations
Resin pricing depends on formulation, package size, hardener ratio, shipping, and production volume. Entropy lists its CLR laminating resin starting around $106, and retail kits across suppliers often range from roughly $80 to $590 by kit size and hardener speed—figures that only compare fairly with known mix ratios and quantities. Look past price per kilogram. Total cost of ownership also includes:
- Labor and process changes
- Rejected parts and rework
- Ventilation upgrades and PPE
- Tooling and post-curing time Before you commit to volume, confirm supplier continuity, minimum order quantities, shelf life, and lot-to-lot consistency.
Where CAD BLU Fits Into Material Selection
Bio epoxy selection often ties into tooling and workflow choices, especially when mandrels or patterns are made with additive manufacturing. CAD BLU's materials portfolio includes options such as ACCURA® AMX DURABLE NATURAL, an SLA resin used for composite mandrel tooling and structural parts in motorsports, aerospace, and consumer goods. It is not a laminating resin, but it supports the tooling side of composite production. Teams comparing resins against the rest of the workflow can use CAD BLU to evaluate:
- Tooling materials compatible with composite lay-up
- Printer technology and material property fit
- Application support for aerospace, automotive, and industrial parts Contact CAD BLU to align laminating resin choices with tooling, equipment, and digital manufacturing requirements for your application.
Laminating Workflow, Safety, and Quality Control
Preparation and Processing
A reliable laminating workflow follows the same sequence regardless of resin chemistry:
- Confirm the exact mix ratio from the current TDS
- Condition materials to the specified temperature range
- Measure accurately using a calibrated scale
- Mix thoroughly without whipping in excess air
- Wet out the reinforcement fully, avoiding dry spots
- Consolidate the laminate and maintain the specified cure environment
Clean tools, calibrated temperature measurement, appropriate mold release, and documented batch or lot numbers all reduce part-to-part variability.
Safety and Waste Handling
Uncured resin and hardener carry real hazards. Follow the SDS for your specific product, but expect to need:
- Chemical-resistant gloves and protective clothing
- Eye and face protection
- Adequate ventilation, with a NIOSH-approved respirator if ventilation alone can't control exposure
- A documented spill response plan
Handle cured and uncured material as separate waste streams:
- Uncured resin, hardener, and contaminated consumables: follow the SDS and local, state, and federal hazardous-waste rules
- Cured epoxy: becomes an inert solid in about one to two weeks, but is not home-compostable—dispose per product instructions and applicable regulations
Quality Checks
Track these data points for every batch or part:
- Ambient temperature and humidity during layup
- Mix ratio and resin/hardener batch numbers
- Gel time, cure time, and finished laminate thickness
- Fiber-to-resin ratio and vacuum or consolidation level
- Visible defects

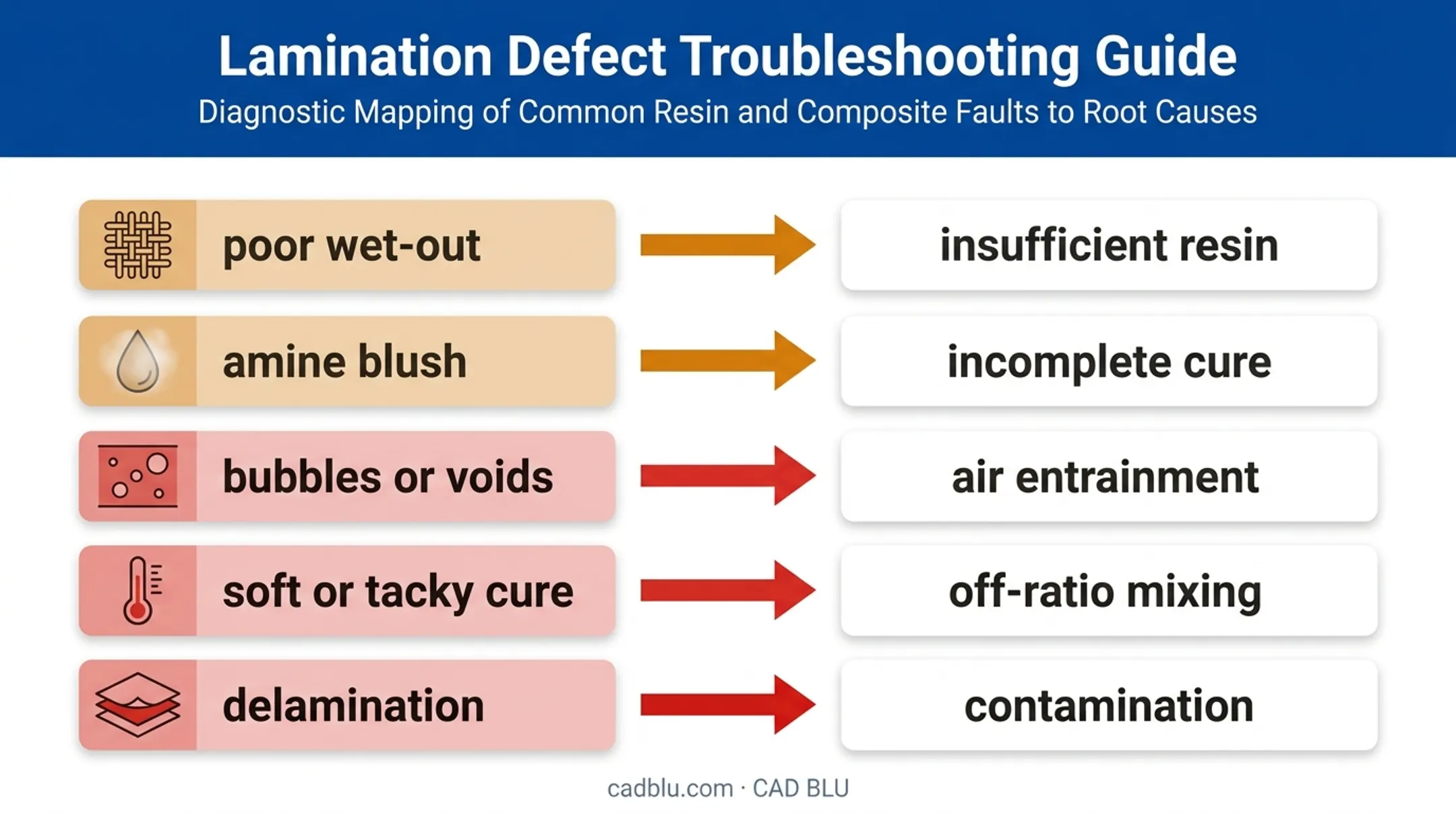

Common problems and likely causes:
| Defect | Likely cause |
|---|---|
| Poor wet-out | Insufficient resin or dry fabric |
| Amine blush | Incomplete cure; wash and sand before recoating |
| Bubbles or voids | Air entrainment during mixing |
| Soft or tacky cure | Off-ratio mixing or low ambient temperature |
| Delamination | Contamination or inadequate consolidation |
For defects beyond minor cosmetics, confirm corrective limits in the manufacturer's processing guide before you resume production.
Frequently Asked Questions
How much does bio resin cost?
Price varies by resin chemistry, bio-based content, package size, supplier, and hardener requirements. Compare total process cost, not just price per unit, and check current pricing from multiple U.S. suppliers before ordering.
How is bio-based resin made?
Manufacturers chemically convert renewable oils, lignin, agricultural byproducts, or sugars into epoxy precursors or formulation components. Exact methods and bio-based percentages vary significantly between products.
Is bio resin safe to handle?
Uncured resin and hardener can irritate skin, eyes, and the respiratory system. Some components also cause sensitization. Cured resin is generally inert, but always follow the product SDS and wear appropriate PPE when handling uncured material.
What are the main types of bio resin?
Bio-based epoxy, polyester, polyurethane, vinyl ester, and bio-derived thermoplastics all exist. Only some—especially bio epoxy—are formulated specifically for fiber-reinforced laminating.
Is bio-based epoxy biodegradable?
Most cured bio-based epoxy laminating resins are thermosets and shouldn't be assumed biodegradable or compostable. Check for verified end-of-life documentation rather than relying on the bio-based label alone.
Can bio epoxy laminating resin replace traditional epoxy?
In many applications, yes, provided viscosity, cure behavior, mechanical properties, thermal resistance, and compliance requirements are validated for your specific laminate and service conditions.
