Complete Investment Casting Materials Guide

Investment casting uses expendable patterns made from specialized waxes or clean-burning 3D printed resins. These patterns are coated with refractory ceramic slurry to build a shell. Once dried, the pattern is melted or burned out, leaving a hollow cavity that accommodates molten alloys such as stainless steel, bronze, aluminum, titanium, gold, and platinum.

Primary raw materials in investment casting encompass pattern consumables including hydrocarbon waxes or photopolymer castable resins, refractory ceramic flours such as zircon and fused silica, chemical colloidal binders, and the final pouring metal. The specific choice of alloy and ceramic mold binder determines dimensional stability, surface smoothness, and metallurgical thermal resistance.

Cost effectiveness depends heavily on production volume and geometry. Die casting involves substantial tooling and mold fabrication investments, making it cost-effective primarily for extremely high-volume runs. Investment casting, especially when utilizing additive printed patterns, significantly reduces initial tooling expenses, making it economical for low-to-medium runs, complex geometries, and frequent design iterations.

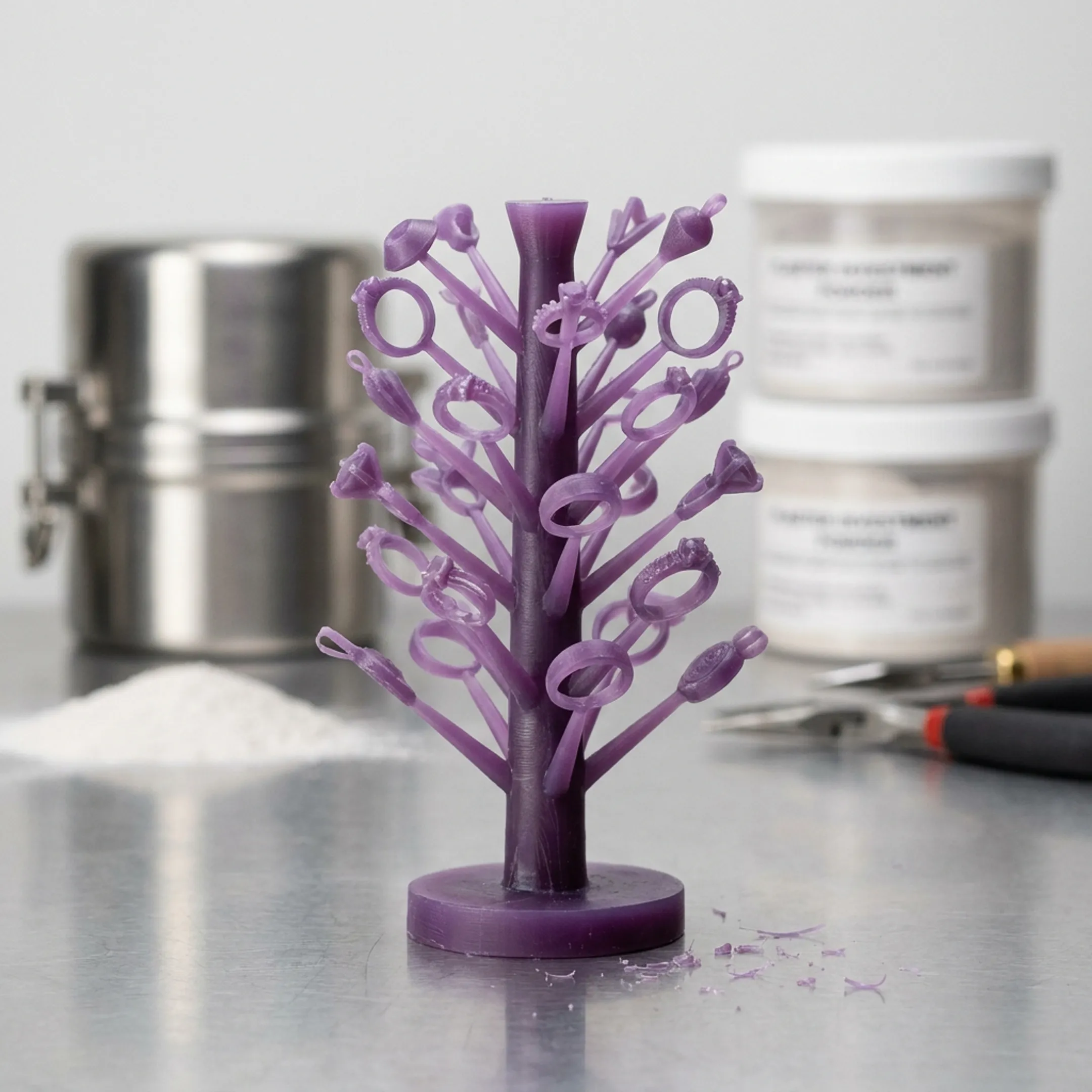

Photopolymer castable resins allow for intricate internal geometries, sharp texturing, and rapid iterations directly from digital CAD models without machining physical aluminum wax dies. When processed with suitable burnout profiles, engineered resins deliver exceptional detail retention and minimal thermal expansion, effectively matching or exceeding traditional foundry pattern precision.

Burnout defects typically stem from improper thermal ramp cycles or residual ash content within pattern formulations. As temperatures rise, rapid internal gas expansion can crack ceramic investments before pattern evacuation finishes. Utilizing tested low-ash castable polymers and following strict thermal schedules prevents shell breakage and surface inclusions.

Yes. CAD BLU provides technical consultation and application support to evaluate resin compatibility with your existing foundry investments, burnout ovens, and metal pouring processes. Our team helps dial in print settings, support geometries, and curing schedules to guarantee reliable, repeatable casting results across diverse industrial and jewelry applications.

Foundries require a high-resolution commercial additive printer compatible with castable wax or resin consumables, appropriate post-processing washing units, and UV curing systems. CAD BLU offers turnkey systems combining hardware, consumables, and workflow software to help organizations seamlessly incorporate digital patterns into existing shell building and pouring lines.

Selection depends on part size, surface finish criteria, and existing foundry burnout capabilities. Wax-based materials melt out cleanly at lower temperatures, mirroring standard commercial foundry procedures. Polymer resins offer superior structural rigidity for thin walls and fragile filigree but require specific ramp-up oxidation cycles to eliminate all residual carbon.
