Bench jewelers and casting shops run into the same handful of headaches: incomplete fills, porosity, rough surfaces, cracks, discoloration, flashing, embedded investment particles, and the rework that follows. These defects rarely show up alone, and the finished casting doesn't always reveal where things went wrong.
This guide connects the symptoms you see on a devested casting to the process stages most likely to cause them, pattern prep, sprue design, investment, burnout, alloy handling, and equipment condition. It also covers when to stop experimenting and call in a technician.
Key Takeaways
- Incomplete fills, porosity, cracks, cold shuts, rough surfaces, flashing, and discoloration make up most reported casting defects
- Most root causes trace back to pattern prep, sprue design, investment mixing, or burnout, not the pour itself
- Change one process variable at a time and check results against your investment, alloy, and equipment manufacturer's specs
- Repeated defects or unsafe furnace and vacuum behavior call for professional help, not more trial and error
What Is Jewelry Casting?
Jewelry casting is a form of investment casting: you encase a wax or castable-resin model in a plaster-like investment, remove it during burnout, and replace it with molten metal. That basic logic holds whether you start with a hand-carved wax or a 3D-printed resin pattern.
The workflow typically runs through seven stages:
- Create or print the model
- Clean and finish the pattern, removing supports and residue
- Attach sprues and build the tree
- Invest the tree in a flask
- Burn out the pattern, leaving a clean cavity
- Melt and introduce the alloy
- Remove investment and finish the casting
A defect can enter at any one of these stages, so the finished piece rarely tells the whole story on its own. A rough surface might trace back to investment mixing three steps earlier, not the pour.
Burnout ramps, hold temperatures, water ratios, and casting force are specific to your alloy, pattern material, investment brand, and machine setup. A schedule that works for one castable resin and one furnace won't automatically transfer to another combination, so check current supplier documentation before adjusting a process that's already working.
Common Problems With Jewelry Casting
The fastest way to diagnose a defect is to study what you can see: shape, location, and distribution. Is it on the surface or beneath it? On every piece or only certain geometries? Appearance only, or structural strength too?
Incomplete Castings and Cold Shuts
Symptoms include missing prongs or extremities, blunt rounded edges where metal should taper, thin sections that never filled, or a seam-like groove where two metal fronts met but didn't fuse.
The Investment Casting Institute defines a cold shut as the incomplete joining of two metal fronts, typically a shallow, rounded discontinuity in thin sections or areas farthest from the gate.
Likely causes:
- Metal or flask temperature too low
- Premature solidification before the mold filled
- Restricted, undersized, or poorly positioned sprues
- Inadequate casting force
- A model geometry too thin for the process
Fixes:
- Confirm alloy- and machine-specific temperatures against current supplier data
- Inspect sprue and gate layout
- Verify metal volume and casting force
- Change one variable before retesting
Porosity, Shrinkage Cavities, and Bubbles
Symptoms include pinholes, clustered cavities, voids that surface during polishing or stone-setting, or larger cavities near thick sections.

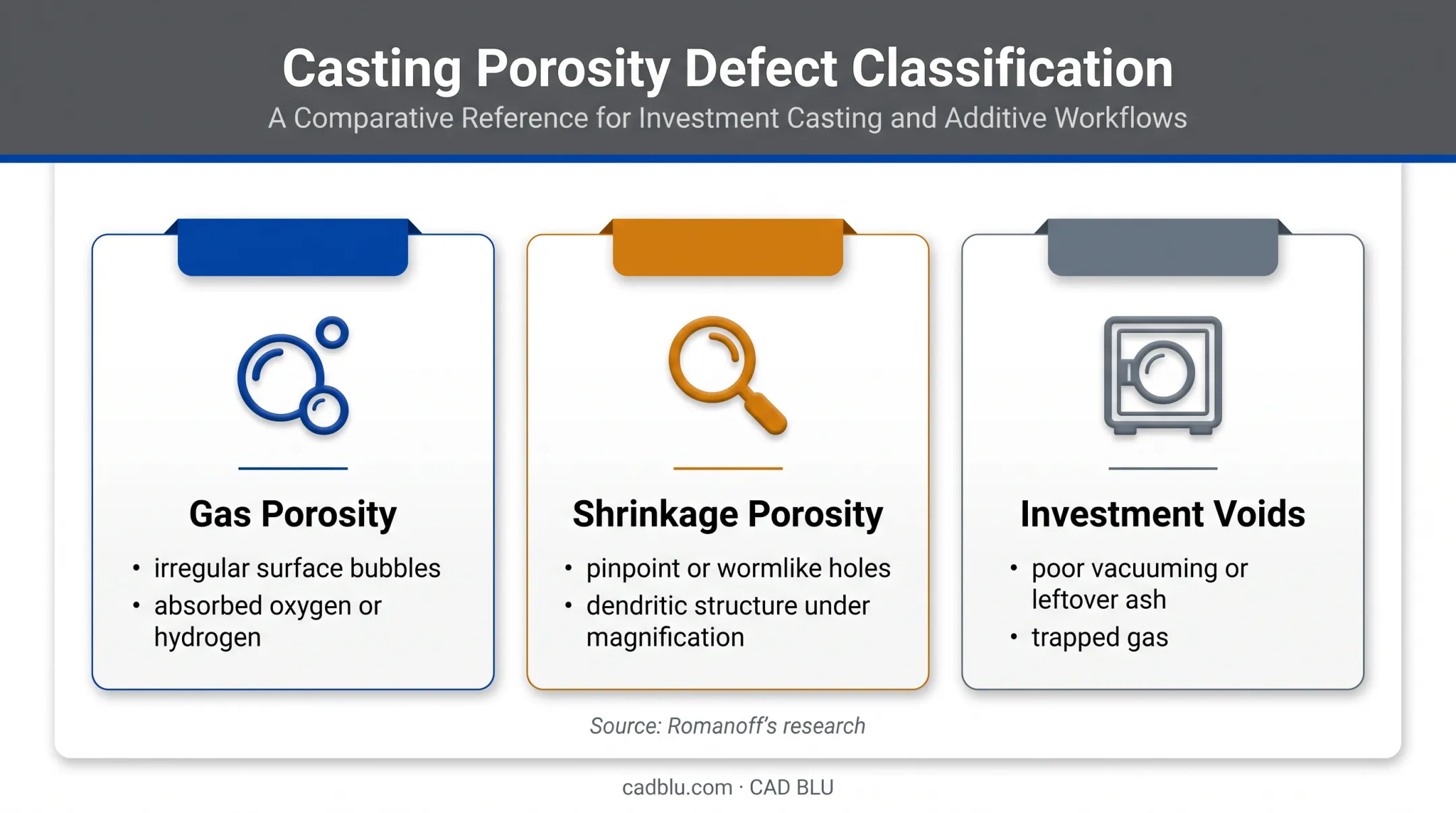

Not all porosity shares a cause. Romanoff's research distinguishes gas porosity from shrinkage porosity: gas porosity typically appears as irregular surface bubbles tied to absorbed oxygen or hydrogen, while shrinkage porosity shows up as pinpoint or wormlike holes with a dendritic structure under magnification. A third category, investment-related voids, often traces back to poor vacuuming or leftover ash trapping gas.
Likely causes:
- Contaminated or recycled alloy
- Trapped air in the investment
- Incomplete burnout leaving ash behind
- Poor feeder design that starves thick sections
Fixes:
- Check metal cleanliness first
- Review investment mixing and vacuuming next
- Confirm burnout completed fully
- Use porosity location relative to thick sections to pinpoint the cause
Rough Surfaces, Orange-Peel Texture, and Water Films
Symptoms include widespread grain or wrinkle texture, raised ridges, watermarks, or surfaces that stay rough after normal finishing.
An overly aggressive burnout can boil the pattern and erode investment from the mold cavity—called spalling. Slow-setting investment creates a different path to the same rough finish: water and solids separate and leave watermarks behind.
Likely causes:
- Incorrect water-to-investment ratio during mixing
- Pattern contamination or surface tack before investing
- Rapid or uneven furnace heating
- Investment breakdown from overheating
Fixes:
- Follow the investment manufacturer's mixing and vacuum sequence exactly
- Keep patterns clean before investing
- Confirm furnace uniformity with an independent thermometer
- For 3D-printed resin patterns, fully UV post-cure until tack-free before investing
Flashing, Fins, Cracks, and Investment Inclusions
Symptoms include thin metal sheets along seams, unwanted spikes, mold particles embedded in the metal, or fractures in the casting or the mold shell itself.
Likely causes:
- Cracked or weak investment from a rushed burnout
- Ramping furnace temperature too fast
- Flask movement before the investment fully set
- Thermal shock during quenching
Fixes:
- Inspect investment quality and flask handling first
- Use a slower, staged burnout (many gypsum schedules include a mid-range hold) to cut steam pressure and thermal shock
- Improve tree joints
- Wait to quench until the red glow has fully left the button
Discoloration, Black Casting, and Hard Spots
Symptoms include dark patches, uneven color, stains pickling won't remove, brittle spots, or areas that polish differently than the rest of the piece.
Progold's research on gold-casting defects links incomplete wax burnout and excessive casting temperature to dark spots, tracing them to wax and carbon residue left on the investment surface. In sterling silver, molten metal can absorb oxygen from an open flame, and copper in the alloy can oxidize into grey or cloudy inclusions.
Likely causes:
- Overheating the melt
- Unsuitable torch atmosphere or fuel mix
- Incomplete burnout
- Contaminated or unknown recycled alloy
Fixes:
- Verify alloy identity and cleanliness before blaming the process
- Review melt atmosphere and heat control
- Confirm burnout actually finished
- Check with your alloy supplier before remelting questionable metal

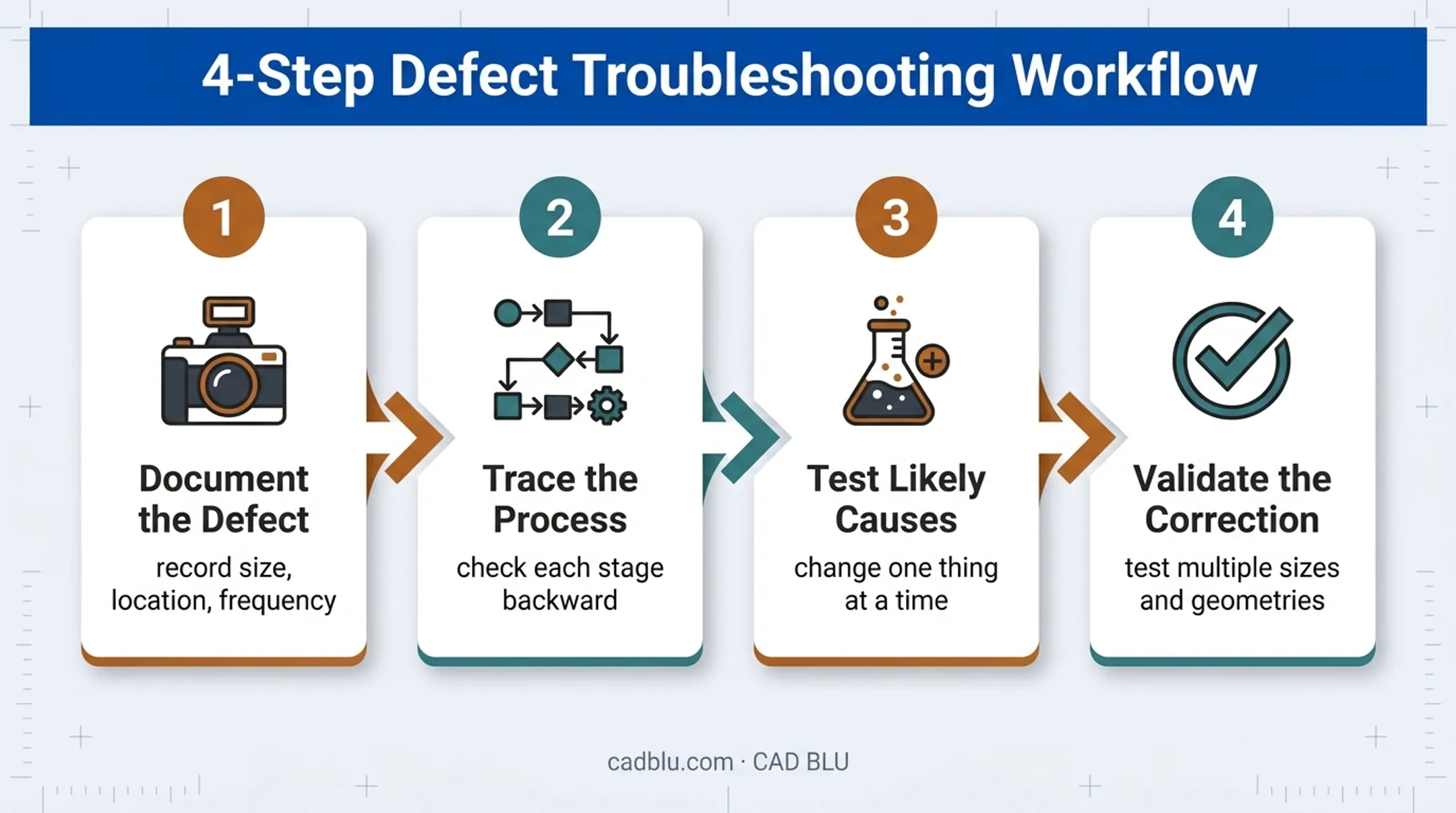

How to Troubleshoot Jewelry Casting Problems
Swapping a sprue, nudging a temperature dial, or blaming the alloy without confirming the defect pattern often just stacks a second problem on top of the first. A controlled, four-step process gets you to the root cause faster.
Step 1: Document the Defect
- Photograph the casting before heavy finishing
- Record size, location, frequency, and orientation of the defect
- Note whether it appears on every piece or only certain models
- Compare failed pieces against a successful casting from the same run
- Preserve records: pattern batch, resin or wax lot, investment batch, water prep, burnout cycle, alloy source, machine settings, operator notes
This record becomes your baseline. Without it, you're troubleshooting from memory, and memory skips the detail that usually matters most.
Step 2: Trace the Defect to a Process Stage
Work backward through the workflow. Check each stage in order:
- Model and pattern: distortion, uncured resin residue, or surface contamination
- Sprue and gating: diameter, length, and gate placement—does the thickest, most remote section get adequate feed?
- Investment: mixing ratios, vacuuming, setting time, and burnout ramp rates versus actual furnace calibration
- Metal and machine: alloy identity, melt handling, atmosphere, casting force, and quenching
Step 3: Test Likely Causes in a Controlled Sequence
Once you know which stage is implicated, classify the suspected cause: model, sprue and feeding, investment, burnout, temperature, alloy, machine, or operator technique. Rule out the boring stuff first: contaminated materials, blocked vents, damaged seals, unstable power, before touching your process parameters.
Change one thing at a time. Adjusting metal temperature, flask temperature, burnout cycle, and alloy in the same run tells you nothing about which change actually fixed anything.
If defects started right after switching to a new 3D printing or castable-resin workflow, check printer calibration, material compatibility, cleaning, and post-curing time before touching your burnout schedule.
CAD BLU helps jewelry casting customers run this kind of workflow diagnosis—pinning down whether a defect traces to print settings, resin handling, or the burnout process itself.
Step 4: Apply the Correction and Validate It
Rework whichever stage the evidence points to, following the manufacturer's guidance for that material or equipment. Inspect the next casting visually, and where structural integrity matters, use magnification, dimensional checks, or non-destructive inspection.
Run the fix across a few representative model sizes and geometries. One good casting doesn't confirm the root cause; a thin band and a chunky pendant can react very differently to the same correction.
Stop and escalate if you see a furnace, vacuum, electrical, or molten-metal safety issue, or if the same defect keeps returning after controlled checks. That's not a sign to try harder—it's a sign the problem sits outside the variables you can adjust at the bench.
Preventive Measures to Avoid Future Issues
Prevention comes down to consistency, traceable records, verified materials, and equipment upkeep, not cranking up the furnace every time a casting comes out short.
Pattern, Tree, and Investment Controls
- Use clean, fully processed wax or resin patterns; inspect dimensions and surface finish before investing
- Confirm full post-curing on 3D-printed patterns and check for surface tack before investing
- Build sprue and feeder systems that promote smooth flow without sharp transitions
- Measure investment components accurately, use specified water quality and temperature, and let the flask fully set before moving it
Burnout, Alloy, and Casting Controls
- Follow the burnout sequence specified by your investment, pattern material, and alloy supplier
- Verify furnace performance with an independent thermometer rather than trusting the display alone
- Separate and identify alloys to minimize contamination
- Standardize melt prep and quenching with written checklists
Equipment, Environment, and Maintenance Controls
- Keep the casting area clean and ventilated
- Inspect furnaces, vacuum systems, seals, and crucibles on a planned schedule, not only when something breaks
- Calibrate temperature and pressure equipment whenever results drift without an obvious process change

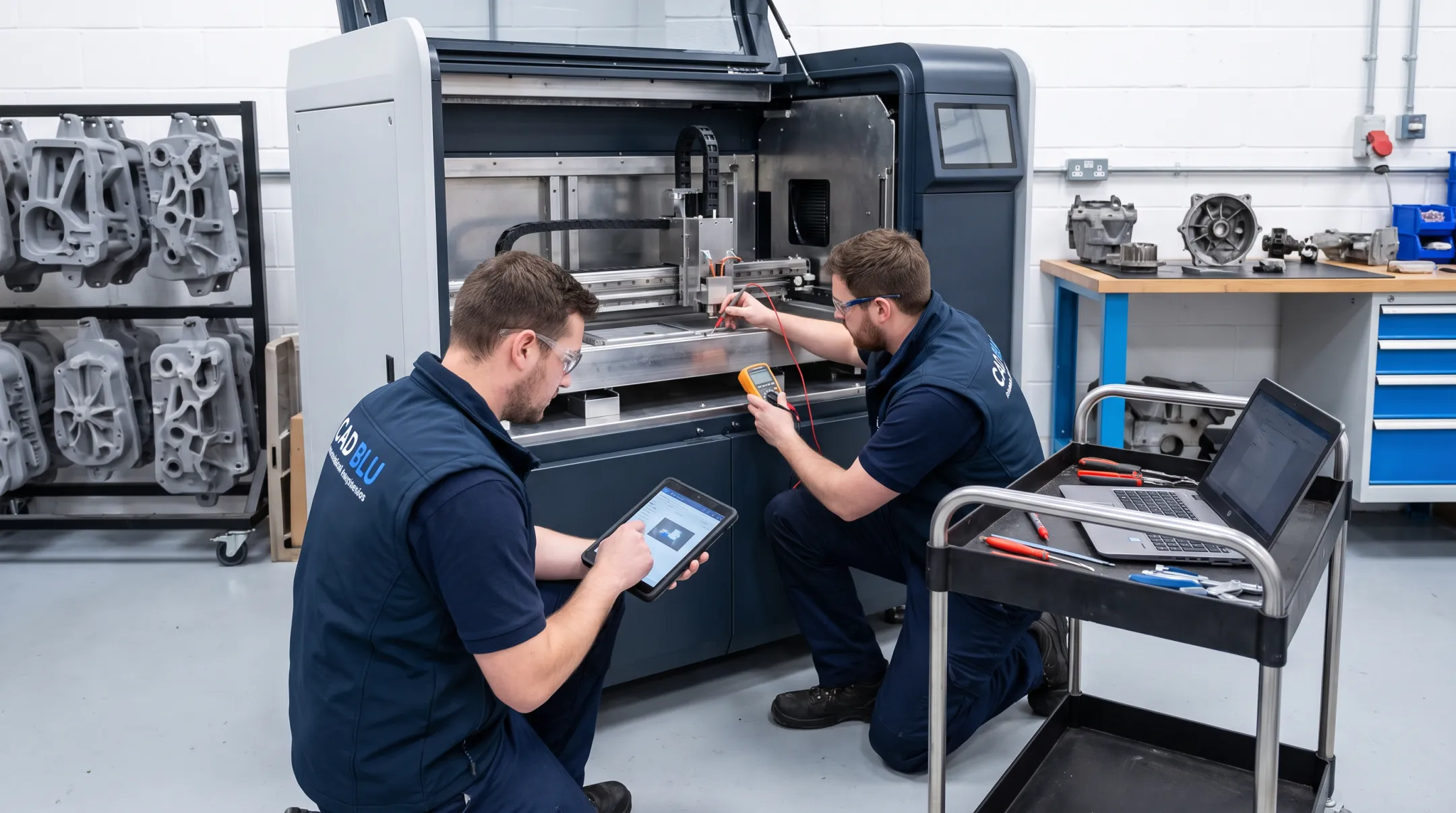

When a machine fault or calibration issue resists documented process checks, bring in OEM-trained support. CAD BLU's technicians are OEM-certified and offer onsite service, remote diagnostics, and spare-parts support for 3D printing equipment used in casting-pattern production. Not every casting defect means the machine needs work.
Conclusion
Most jewelry casting defects come from an interaction, not a single cause. Pattern design, sprue and feeding, investment, burnout, alloy, temperature, equipment, and operator technique all touch the same piece of metal before it reaches a polishing wheel.
You get further changing one variable at a time than making three adjustments in frustration:
- Find the actual defect pattern
- Isolate one root cause
- Validate the fix across multiple pieces
If a problem keeps repeating, or something about your furnace or molten metal handling feels unsafe, escalate early. A qualified technician often catches in an hour what a week of trial-and-error won't, and it costs far less in wasted metal, investment, and downtime.
Frequently Asked Questions
What are common jewelry making mistakes?
Rushed investment mixing, poor sprue design, incomplete burnout, uncontrolled melt temperatures, and contaminated alloy account for most repeat defects. Skipping documentation and inspection hides the pattern that would otherwise reveal the cause.
What causes porosity in jewelry casting?
Porosity falls into three buckets: gas porosity from absorbed oxygen or hydrogen, shrinkage porosity from uneven cooling, and investment-related voids from poor vacuuming or leftover ash. Alloy cleanliness and burnout completion both factor in.
Why are my jewelry castings incomplete?
Low or uneven metal and flask temperature, insufficient metal volume, restricted sprues, weak casting force, and very thin model sections are the usual suspects. Check temperature and sprue design first.
What causes rough surfaces in lost-wax jewelry casting?
Incorrect investment mixing ratios, trapped air, pattern contamination, and an overly aggressive burnout rate are the most common causes. Investment breakdown from excessive heat can also leave a grainy texture.
How can I prevent cracks and flashing in jewelry castings?
Use a gradual, staged burnout, mix and set investment correctly, build stable tree joints, and handle flasks carefully before they've fully set. Proper cooling and a quick check for mold cracks catch most remaining cases.
When should I call a professional for a jewelry casting problem?
Call in support for repeated defects that survive controlled checks, suspected equipment or calibration faults, unsafe furnace conditions, or alloy problems you can't explain. Trial and error has a point of diminishing returns.
