Introduction
A smooth-looking resin print can still be a bad print. High-quality resin 3D printing means the part reproduces fine detail, hits its dimensional targets, performs the way it needs to, and comes out the same way every time you print it.
Many labs and shops struggle with disappointing results for predictable reasons:
- Wrong exposure settings
- Mismatched resin
- Poor orientation or weak supports
- Temperature swings
- Rushed washing or curing
- Expecting more resolution than the process can deliver
This article breaks down the real variables behind resin print quality, shows how to calibrate them, and explains how to match your workflow to the actual job, whether that's a jewelry pattern, a dental model, or a functional prototype.
Key Takeaways
- Quality depends on resolution, layer height, exposure, resin chemistry, model prep, and post-processing working together.
- Thinner layers add detail and print time, but they can't fix bad calibration or weak XY resolution.
- Reliable results start with calibrated printer-resin pairing and end with controlled washing, curing, and inspection.
- Settings should match the part's job: casting, dental, prototype, and production parts each need different tradeoffs.
What Determines Resin 3D Printing Quality?
Resin print quality depends on six overlapping factors:
- Surface finish – visible layer lines, texture, gloss
- Fine-feature resolution – how small a detail actually reproduces
- Dimensional accuracy – how close the part measures to the CAD model
- Mechanical performance – strength, flexibility, heat resistance
- Part cleanliness – residue, tackiness, uncured resin
- Repeatability – whether print #50 matches print #1
A part can look flawless and still be dimensionally off by a fraction of a millimeter, or look rough while meeting every tolerance that matters. These qualities don't always move together.
XY Resolution vs. Layer Height
These two specs get confused constantly, but they control different things. XY resolution governs detail in the horizontal plane, set by pixel size on LCD/MSLA and DLP systems, or laser spot size on SLA. Layer height controls vertical stepping, meaning how visible the transitions between layers are.
According to Formlabs, a minimum feature size can never be smaller than the laser spot or pixel that creates it, and resolution alone doesn't guarantee accuracy. Resin chemistry, light refraction, and contamination all affect the final result independent of nominal resolution.
How Printer Technology Shapes Results
- LCD/MSLA: masks a UV panel with an LCD screen, offering accessible fine-pixel detail if the screen, optics, and calibration are dialed in
- DLP: projects an entire layer at once through a digital projector, giving fast, repeatable cures suited to dental labs and jewelry production
- SLA (laser-based): traces each layer point-by-point, producing very smooth surfaces on larger or highly finished parts, though often slower for medium-to-large batches
Nominal resolution is a starting point, not a guarantee. Optical uniformity, screen condition, resin compatibility, and process stability all shape what actually comes off the plate.
Resin Formulation Matters as Much as the Machine
Resin categories carry very different properties, and manufacturer documentation should always confirm application and safety claims before use:
- Standard/general-purpose resins prioritize detail and surface finish
- Tough/durable resins target impact resistance and elongation
- Flexible resins handle repeated bending and compression
- Castable/wax resins burn out clean for investment casting
- Dental resins meet biocompatibility and clinical accuracy needs
- High-temperature resins hold shape under heat
- Biocompatible resins meet regulatory requirements for skin or intraoral contact
CAD BLU's materials lineup illustrates this range. Precision Concept resin is built for high-definition jewelry parts with a smooth surface and high tensile strength, while Precision Cast is formulated specifically for direct investment casting, burning out with virtually no ash or residue. Neither would substitute well for the other.
Formlabs also notes that improper storage, resin aging, and UV exposure during handling can make otherwise durable parts unexpectedly brittle, which is a material issue, not a printer issue.

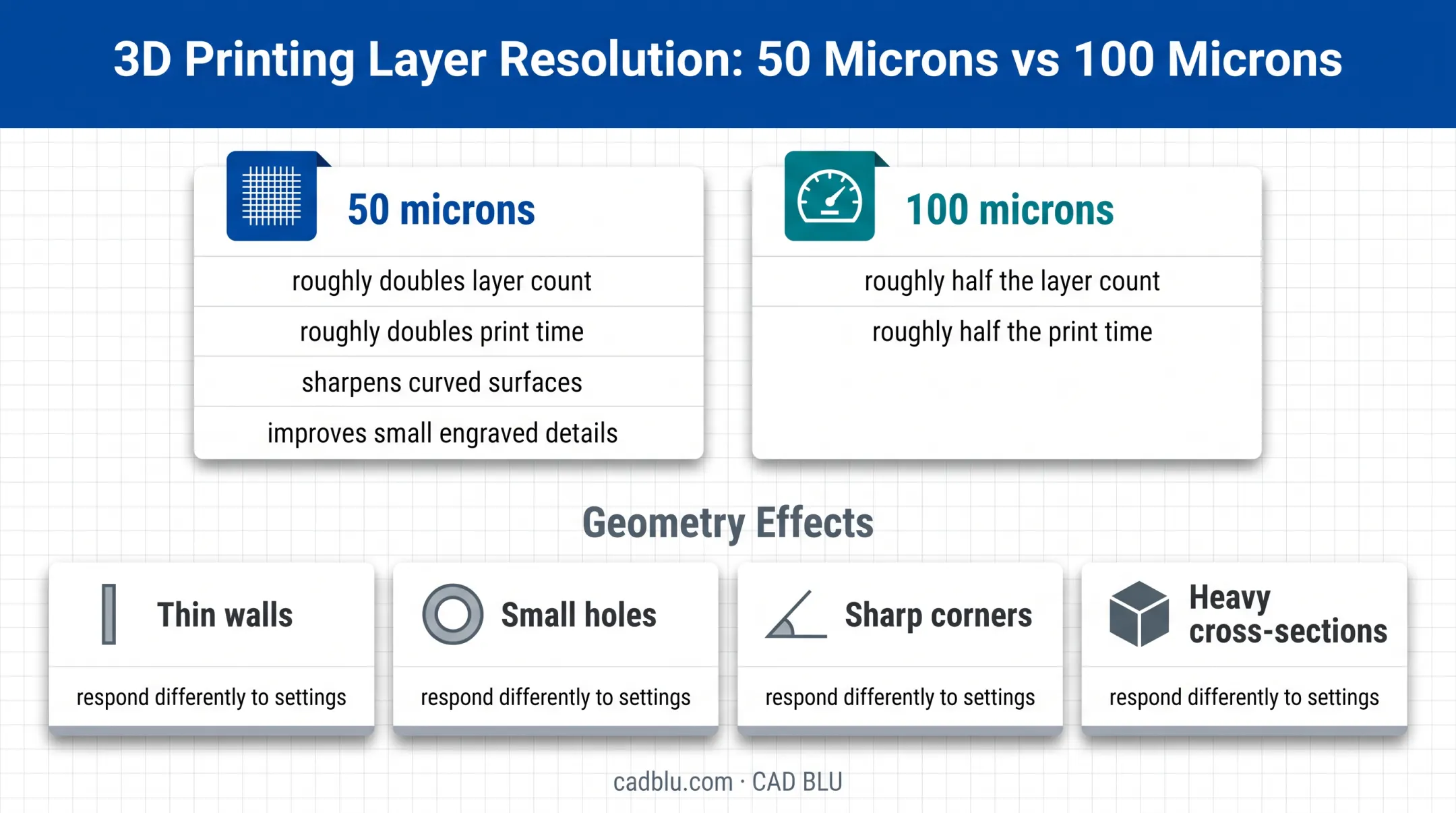

Layer Height, Detail, and Time
Thinner layers generally sharpen curved surfaces and small engraved details, but they multiply the number of layers the printer has to cure. A 50-micron layer height, for example, roughly doubles layer count (and print time) compared to 100 microns for the same part.
Geometry compounds this. Thin walls, small holes, sharp corners, and heavy cross-sections all respond differently to the same settings, so a profile that works for a flat plaque may fail on a lattice structure.
Resin 3D Printing Settings That Affect Quality
There's no universal "best" resin profile. Every setting below needs calibration against your specific printer, light source, resin, and part geometry.
Exposure Time: The Primary Dial
Normal exposure time is the setting that most directly controls layer bonding and detail.
Underexposure shows up as:
- Weak layer bonding or delamination
- Failed or detached supports
- Incomplete fine features
- Poor dimensional stability
Overexposure shows up as:
- Closed or shrunken holes
- Softened, rounded edges
- Positive features printing oversized
- Loss of fine detail
Anycubic recommends starting with the resin manufacturer's profile, then running an exposure test instead of relying on a default profile. Its own range-finder test prints eight exposure times side by side; sharp edges and clean borders mark the correct value.
Bottom Exposure and Burn-In Layers
Bottom layers handle build-plate adhesion. Too little bottom exposure risks parts detaching mid-print. Too much makes removal difficult, can distort the base, and may leave that end more brittle.
Matching Layer Height to the Job
Layer height is the next quality lever after exposure:
- Thicker layers (100-200 microns): large parts, draft prototypes, or jobs where speed beats cosmetics
- Thinner layers (25-50 microns): jewelry, miniatures, dental models, and casting patterns with fine curves
CAD BLU's Figure 4 platform supports 25, 50, 100, and 200-micron layers, with cure times of 3-8 seconds per layer at 100 microns depending on the resin loaded. Always verify recommended ranges against your specific printer and resin, since these figures shift by material.
Anti-Aliasing and Image Blur
Anti-aliasing feathers grayscale values at pixel edges to reduce the stair-stepped look on LCD prints. Used carefully, it smooths edges. Pushed too far, small features soften and dimensional fidelity drops.
Motion and Peeling Settings
Lift height, lift speed, retract speed, and rest time all affect peel forces on the resin film. Faster lift and retract speeds save time but can:
- Increase peel forces on large cross-sections
- Cause resin blooming or settling issues
- Raise failure risk with viscous resins
Slower settings improve stability at the cost of print time.
Recalibrate when you change resin, printer, layer height, light source, or ambient conditions. Save the validated result as a repeatable profile.

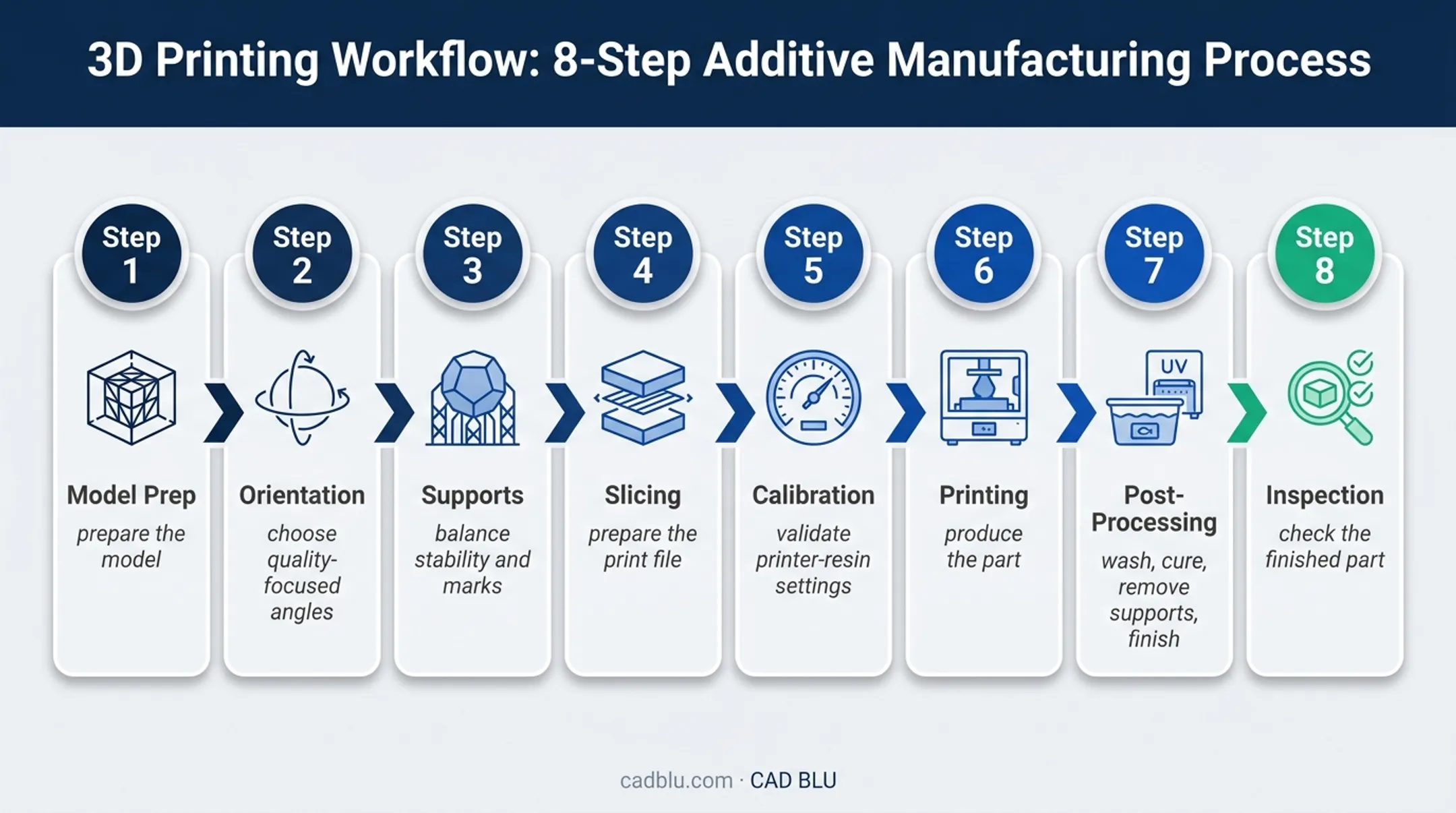

A Quality-Focused Resin Printing Workflow
Getting a good part depends on a sequence of steps, not a single setting: model prep, orientation, supports, slicing, calibration, printing, washing, curing, support removal, finishing, inspection.
Orientation Is a Quality Decision
Orientation isn't just about fitting the part on the plate. Formlabs recommends tilting large flat surfaces 10-20 degrees and avoiding unsupported overhangs to reduce cracking at branch intersections.
The right orientation shifts depending on priority:
- Surface appearance favors angles that hide support scars on non-critical faces
- Dimensional accuracy improves when large flat cross-sections angle away from the build plate
- Strength depends on aligning load paths with, not across, layer lines
Supports, Hollowing, and Vent Holes
Support density and contact-point size should balance print stability against post-processing marks. Delicate details need lighter supports; heavy or flexible parts need sturdier ones.
For larger hollowed parts, Formlabs' Form 4 Design Guide sets minimums of 0.2 mm wall thickness, 0.5 mm hole diameter, and 0.75 mm drain-hole diameter. Undersized drain holes can trap resin or air, causing a cupping blowout during printing.
Washing and Curing Aren't Optional Extras
- Insufficient washing leaves a tacky surface that interferes with curing
- Excessive or harsh cleaning can damage delicate features
- Under-curing leaves parts weak and dimensionally unstable
- Over-curing can make parts brittle or discolored
Follow the resin manufacturer's cure time and temperature exactly. CAD BLU's Precision Concept, for instance, calls for a minimum of 1 hour under UV at 80°C, or 30 minutes if cured underwater — two different paths that both work, but only if followed precisely.
Quality-Control Checklist
Before calling a part finished, check for:
- Visible layer lines or surface roughness in critical zones
- Dimensional accuracy against the CAD model with calipers
- Support scars in cosmetically important areas
- Warping, cracking, or elephant-foot at the base
- Residual tackiness indicating incomplete cure
- Trapped uncured resin inside hollow sections
Businesses scaling resin printing beyond a hobbyist setup often hit a wall here: trial-and-error calibration eats time that a validated workflow shouldn't cost. CAD BLU works with dental labs, jewelry manufacturers, and industrial customers to select the right printer-resin combination, set up software, and provide OEM-trained technical support so the calibration work doesn't start from zero.
Troubleshooting and Quality Control
Match the symptom to the likely cause before changing anything.
| Symptom | Likely Causes |
|---|---|
| Layer separation/delamination | Underexposure, resin temperature, contaminated tank, lift forces, weak supports |
| Missing or softened detail | Overexposure, excessive anti-aliasing, low XY resolution, wrong orientation |
| Warping, cracking, elephant-foot | Insufficient supports, under/over-curing, internal stress, bad bottom exposure |
| Rough, cloudy, or tacky surface | Poor washing, contaminated IPA, resin residue, over-handling |
Formlabs' delamination guide points to orientation, print pauses, an aging tank, or a loose build platform as common root causes worth checking in that order.

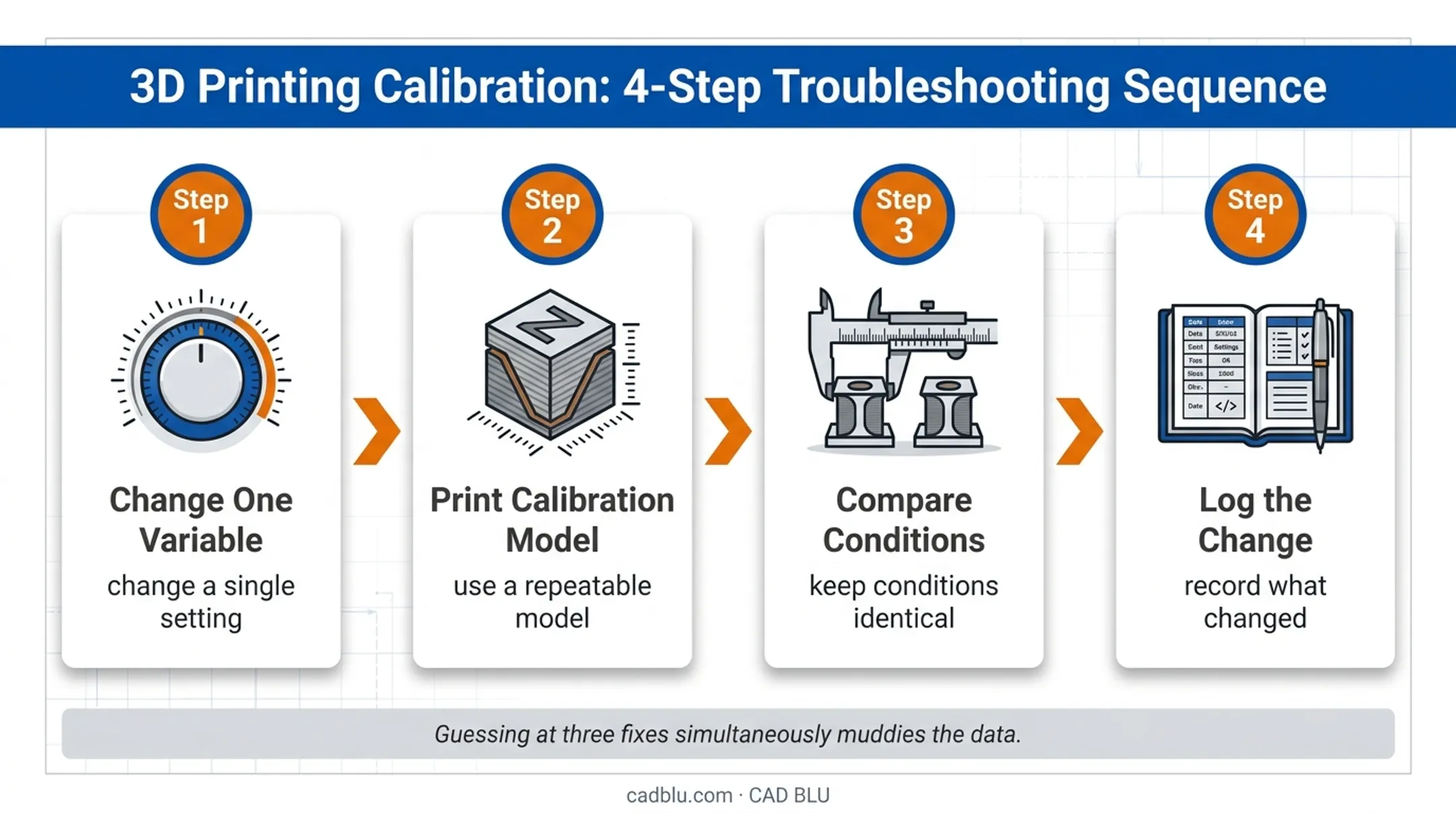

Troubleshoot one variable at a time. Change a single setting, print a repeatable calibration model, compare under identical conditions, and log what you changed. Guessing at three fixes simultaneously just muddies the data.
Match your inspection method to the application:
- Prototypes – calipers or dimensional scanning
- Presentation models – visual and tactile inspection
- Assemblies – physical fit checks
- Regulated or production parts – documented process validation
If defects persist after isolating the variable, or if biocompatibility or production compliance is involved, contact the printer or resin manufacturer rather than continuing to guess.
Choosing Resin and Printer Technology for the Required Quality
Resin print quality depends as much on the light engine and resin chemistry as on layer height. Match the printer type to the finish, tolerance, and throughput you need before you lock in a workflow.
| Technology | Strength | Best Fit |
|---|---|---|
| SLA (laser) | Smooth surfaces, fine detail, larger build volumes | Highly finished models, large-format parts |
| DLP | Fast, repeatable layer cures | Dental labs, jewelry, low-volume production |
| LCD/MSLA | Fine pixel detail at lower system cost | General prototyping, detailed small parts, budget-conscious shops |
SLA, DLP, and LCD/MSLA can all deliver production-grade surfaces when exposure, resin, and post-cure are controlled. The better question is often whether resin is the right process at all.
When Resin Beats FDM
Resin is the better fit for small, high-detail geometry: jewelry patterns, dental models, casting patterns, and smooth visual prototypes. FDM layer lines on those parts usually mean heavy sanding and lost edge definition.
Isotropic-looking surfaces, sharp text, and sub-millimeter features are where vat photopolymerization earns its keep.
When FDM Makes More Sense
Choose FDM for larger parts, simple functional prototypes, lower material cost, or less chemical handling—no IPA baths or UV curing. It also wins when you need a true thermoplastic’s impact or heat behavior rather than a cured thermoset resin.
A Quick Selection Checklist
Before you commit to a technology, score the job against:
- Feature detail and dimensional tolerances
- Part size versus available build volume
- Durability, heat, and chemical exposure
- Production volume and shot-to-shot repeatability
- Post-processing capacity (wash, cure, support removal)
- Compliance needs (dental, medical, biocompatible resins)
- Full workflow cost, not printer price alone
Map those answers to resin type and printer class together—surface finish targets fall apart when the chemistry and the light engine are chosen in isolation.
Frequently Asked Questions
How durable is a resin print?
Durability depends on the resin formulation, exposure accuracy, post-curing, and part geometry. Standard resins are more brittle, while tough, flexible, and engineering-grade resins are formulated for impact resistance or repeated bending.
Which is better, PLA or resin?
Resin wins on fine detail and smooth surfaces; PLA is cheaper, easier to handle, and better suited to larger parts. Choose based on your finish requirements versus size and budget.
What is the best resolution for a resin 3D printer?
There's no single best resolution; it depends on the model and application. XY resolution and layer height are separate specs, and calibration matters more than chasing the smallest advertised pixel size.
What is SLA, SLS, and FDM?
SLA cures liquid resin with light, SLS fuses polymer powder with a laser, and FDM/FFF extrudes melted thermoplastic filament layer by layer. Each suits different strength, detail, and cost priorities.
Why are my resin 3D prints losing detail?
Common causes include overexposure, excessive anti-aliasing, insufficient XY resolution, poor calibration, wrong orientation, or resin contamination. Isolate one variable at a time to find the culprit.
How can I improve the consistency of resin 3D prints?
Use a validated printer-resin profile, keep resin temperature stable, and calibrate exposure regularly. Follow washing and curing instructions precisely, and document your process so results stay repeatable.
