Introduction
UV resin lets you print details you simply can't get from filament, from crisp jewelry patterns to dental models accurate to a fraction of a millimeter. A controlled light source converts liquid photopolymer into solid plastic, layer by layer, until the part is done.
But picking a bottle off a shelf isn't the hard part. The real challenges are matching resin chemistry to your printer, getting every layer fully cured, and handling uncured material without exposing your team to unnecessary risk.
This guide covers resin chemistry, SLA/DLP/MSLA compatibility, selection criteria, printing and post-processing steps, safety and disposal, and the troubleshooting checks that keep production resin printing consistent.
Key Takeaways
- UV resin is a light-sensitive photopolymer that cures layer by layer only in compatible resin printers
- The best resin depends on detail, toughness, flexibility, heat resistance, and required certifications
- Washing and post-curing determine final part properties, not just cosmetic cleanup
- Uncured resin needs gloves, eye protection, ventilation, proper storage, and SDS-compliant disposal
What Is UV Resin for 3D Printing and How Does It Work?
UV resin is a liquid photopolymer loaded with light-reactive components that solidify when hit with a specific ultraviolet or near-UV wavelength. Expose it to the wrong light source, or the wrong intensity, and it either won't cure or cures incorrectly.

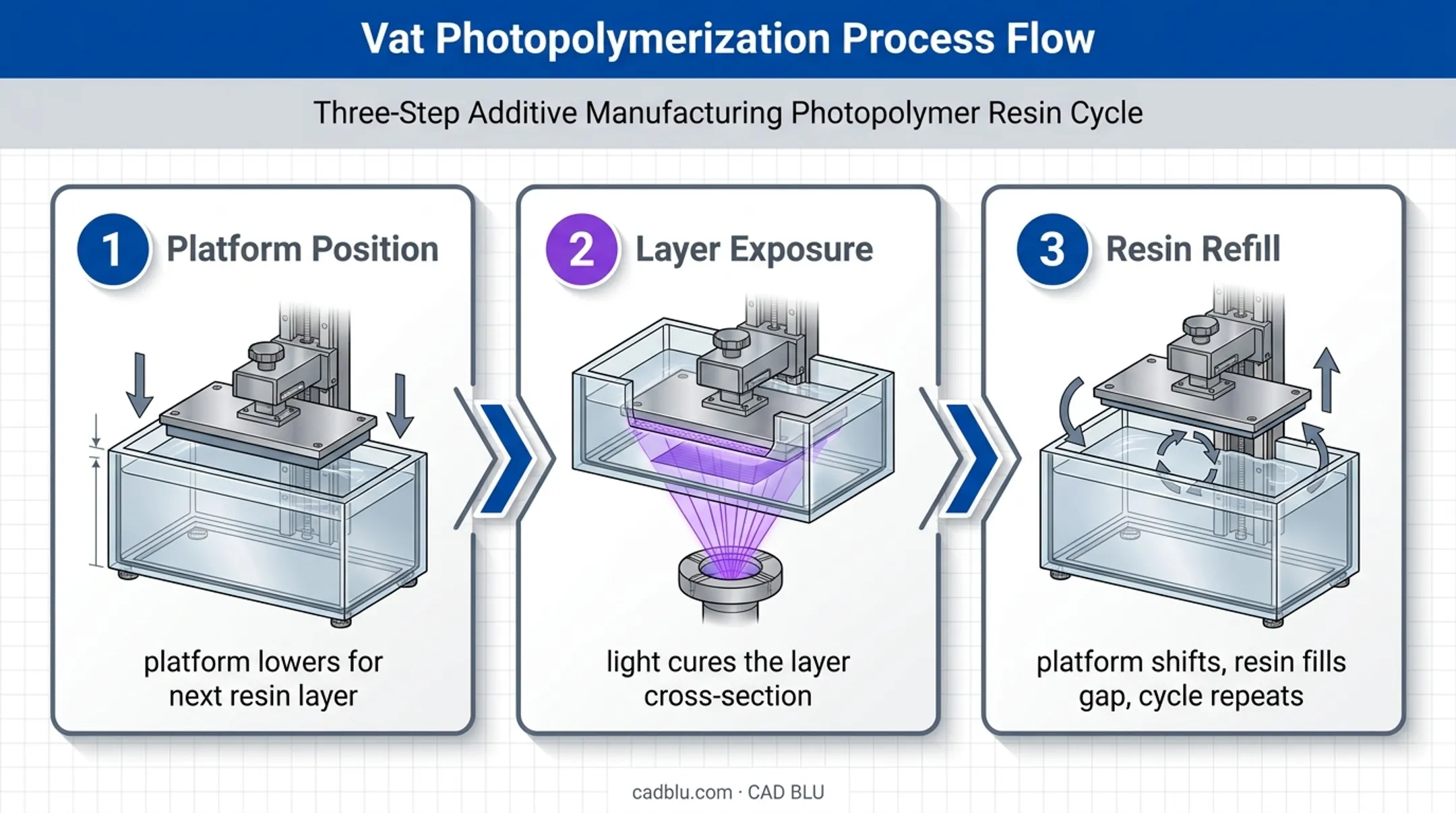

The Layer-by-Layer Process
Vat photopolymerization (resin 3D printing) builds parts one thin layer at a time:
- The build platform lowers to the exact height for the next layer of liquid resin
- The light source cures only the cross-section for that layer
- The platform shifts up, fresh resin fills the gap, and the cycle repeats until the model is complete
SLA, DLP, and MSLA: What Actually Differs
These three technologies all cure resin with light, but the delivery method changes everything about speed and resolution.
| Technology | How it exposes each layer | Main resolution factor |
|---|---|---|
| SLA | UV laser traces the cross-section point by point | Laser spot size and galvanometer precision |
| DLP | Digital projector flashes the entire layer at once | Projector pixel size |
| MSLA | LED array shines through an LCD mask | LCD pixel size and light uniformity |
Laser-based SLA generally cures layers more slowly than DLP or MSLA, which expose a full cross-section in one flash. That said, print accuracy isn't determined by technology alone: hardware, resin formulation, exposure settings, and post-processing all factor in.
Matching the resin to the machine matters just as much as the exposure method. Wavelength compatibility varies by machine. Formlabs printers run at 405 nm, while some dental-focused LCD systems use 385 nm screens. Always confirm the resin's wavelength, photoinitiator, and viscosity match your specific printer profile before running a job.
Compatibility Goes Beyond Wavelength
A resin that cures perfectly on one printer can fail entirely on another. Check:
- Light source type and intensity
- Vat film condition and build plate surface
- Layer thickness and exposure settings
- Whether a manufacturer profile exists for that resin-printer pair
UV 3D printing resin is not the same as UV-curable coating resin or two-part epoxy. Coating resins aren't formulated for layer-by-layer curing, and epoxy cures through a chemical reaction between two components rather than light exposure. Using the wrong category can waste a print or damage your vat. When you are unsure about a resin-printer pair, materials and application selection support (such as guidance from CAD BLU) can help you confirm fit before you run a job.
How to Choose the Right UV Resin for Your 3D Printing Application
Start with the part's purpose, not the resin's marketing copy. A visual prototype, a functional snap-fit component, a jewelry casting pattern, and a dental model all demand different chemistry.
High-Detail vs. Engineering Resin
Standard model resins deliver sharp surface finish and fine detail but tend to be brittle under stress. Tough or engineering resins sacrifice some surface quality for impact resistance and flexibility. There's no universal winner. It's a trade-off based on what the part actually needs to survive.
Specialized Resin Categories
- ABS-like resins for functional prototypes needing durability
- Flexible/elastomeric resins for gaskets, grips, or wearable models
- High-temperature resins for tooling or heat-exposed applications
- Castable resins formulated for clean burnout in investment casting
- Water-washable resins that skip the IPA step
- Biocompatible resins certified for skin or mucosal contact under specific standards like ISO 10993
Always verify a manufacturer's technical claims against the actual product data sheet. "Biocompatible" and "castable" both apply only to named formulations processed exactly as directed.
Geometry changes the decision further. Thin walls, snap-fits, moving parts, and hollow cavities all stress a resin differently than a solid block. Support-heavy designs need good green strength before curing; parts exposed to heat or repeated impact need higher HDT or elongation than a display model ever will.
A quick comparison helps narrow the field:
| Category | Typical strength profile | Common use |
|---|---|---|
| Tough/ABS-like | High tensile strength, moderate elongation | Functional prototypes |
| Flexible | Low tensile strength, high elongation | Gaskets, wearables |
| High-temperature | High HDT, low elongation | Tooling, heat exposure |
| Castable | Formulated for ash-free burnout | Jewelry, investment casting |
Decision Checklist
Before ordering, confirm:
- ✅ Printer and profile compatibility
- ✅ Required surface finish
- ✅ Mechanical demands (impact, flex, heat)
- ✅ Post-processing capacity (wash station, cure chamber)
- ✅ Budget per liter/kg
- ✅ Odor and ventilation constraints in your workspace
- ✅ Whether the part has regulated or medical use requirements
With over 160 resin products spanning biocompatible, elastomeric, high-temperature, and castable formulations, comparing options across printer families can get complicated fast. CAD BLU works with businesses to evaluate compatible printers, materials, and software so the resin you choose actually fits your production workflow, not just your printer's spec sheet.
UV Resin 3D Printing and Post-Processing Workflow
Getting a clean print starts before you hit "print" and doesn't end when the platform stops moving.
Preparing the Digital Model
- Orient concave surfaces toward the build platform
- Angle flat surfaces rather than printing them parallel to the plate, which reduces peel force
- Add drainage holes at the lowest point of any hollow section
- Review wall thickness and check for pockets where resin could get trapped
Pre-Print Checks
Before you start:
- Confirm the resin is within its stated shelf life
- Mix it per the manufacturer's instructions
- Inspect the vat for debris or film damage
- Load the correct printer profile
Skipping these checks is one of the most common causes of avoidable failures.
Calibrate, Don't Copy
Exposure time, layer height, lift speed, and support density all interact. Generic settings from a forum post rarely match your exact resin batch and printer condition. Run a calibration print (most manufacturers publish a test file) and evaluate fine features before committing to a full production run.
During the Print
Watch first-layer adhesion closely. Unusual noise, visible separation from the plate, or a cloudy vat surface are early warning signs. Pause and investigate rather than letting a failing print run to completion and waste resin.

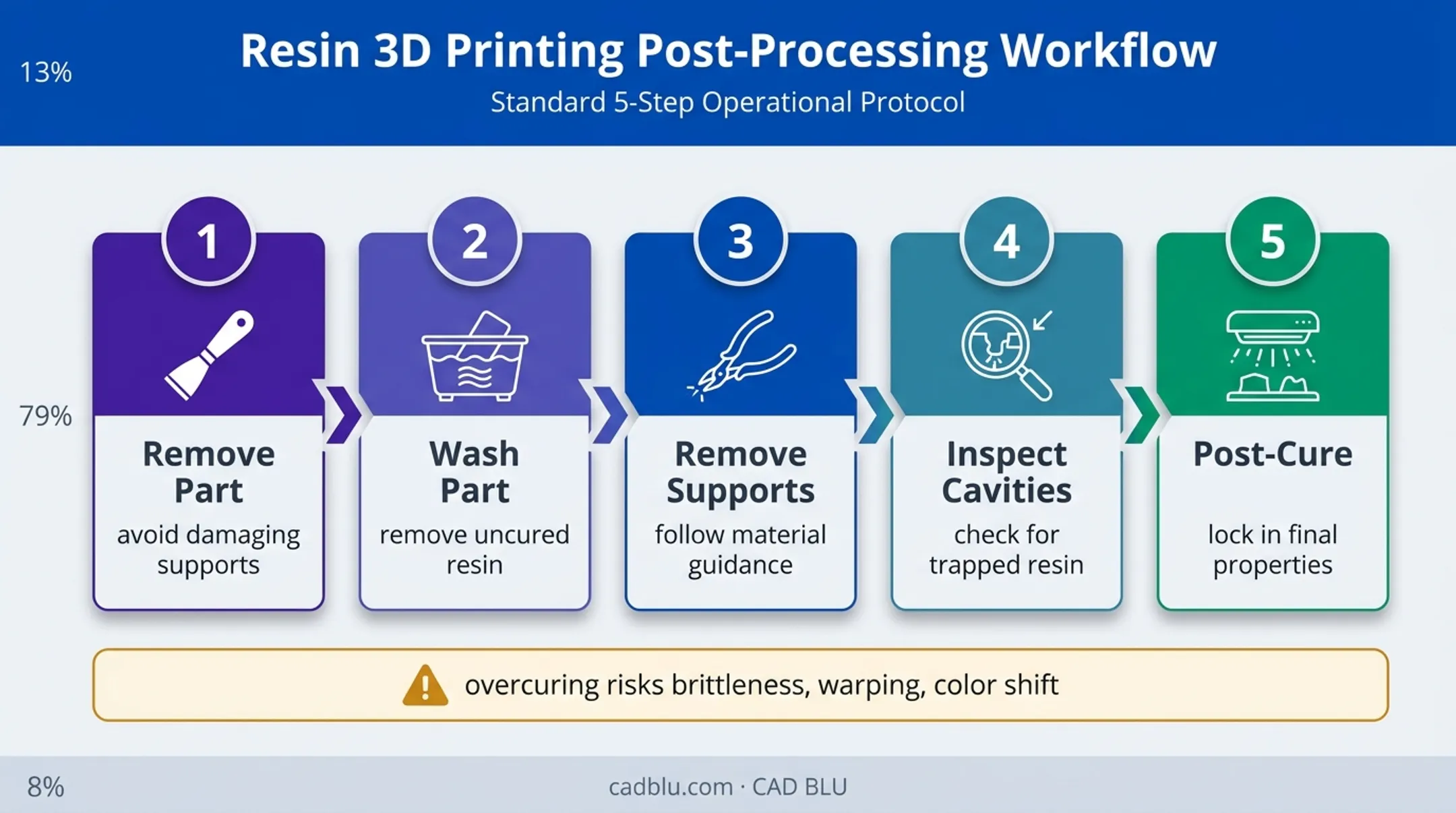

Post-Processing, in Order
- Remove the part carefully using appropriate tools to avoid damaging supports
- Wash off uncured resin with the approved solvent or water-wash method for that resin
- Remove supports at the stage recommended for that material; some resins need supports left on through curing
- Inspect hard-to-reach cavities for trapped uncured resin before curing
Post-Curing Is Not Optional
Post-curing adds controlled light exposure that locks in a part's final mechanical properties. Skip it, and parts stay tacky or under-strength. Overdo it, and you risk brittleness, warping, or color shift. Follow the resin's specific time and temperature guidance rather than a blanket rule.
Record resin batch, printer model, exposure profile, wash method, and cure settings for every run. That log is what makes results repeatable in a professional setting.
For teams moving past occasional prototyping, CAD BLU supports installation, workflow optimization, and OEM-trained technician help so those settings stay consistent run after run.
Safety, Storage, and Disposal Considerations
Liquid and partially cured resin should be treated as a chemical exposure risk. Fully cured material behaves differently, but the safe path is always checking the specific product's Safety Data Sheet (SDS) rather than assuming.
Basic Controls
- Gloves: Chemical-resistant nitrile or neoprene, selected per the SDS, not latex
- Eye protection: Safety glasses or goggles during handling and support removal
- Ventilation: Well-ventilated workspace; some SDS documents call for local exhaust
- Surfaces: Cover work areas to prevent contamination
- Isolation: Keep resin away from food areas, children, and pets
OSHA's PPE standard requires a workplace hazard assessment to determine what protection is actually needed for your specific chemicals and process.
UV curing lamps: Curing stations pose real eye and skin hazards. Use them exactly as the equipment manufacturer instructs, and never bypass a safety interlock.
Handling and Disposal
Avoid skin contact: uncured resin can cause irritation and, with repeated exposure, sensitization. Never pour contaminated gloves, wash liquid, or failed prints down a drain or into ordinary trash without checking local rules first.

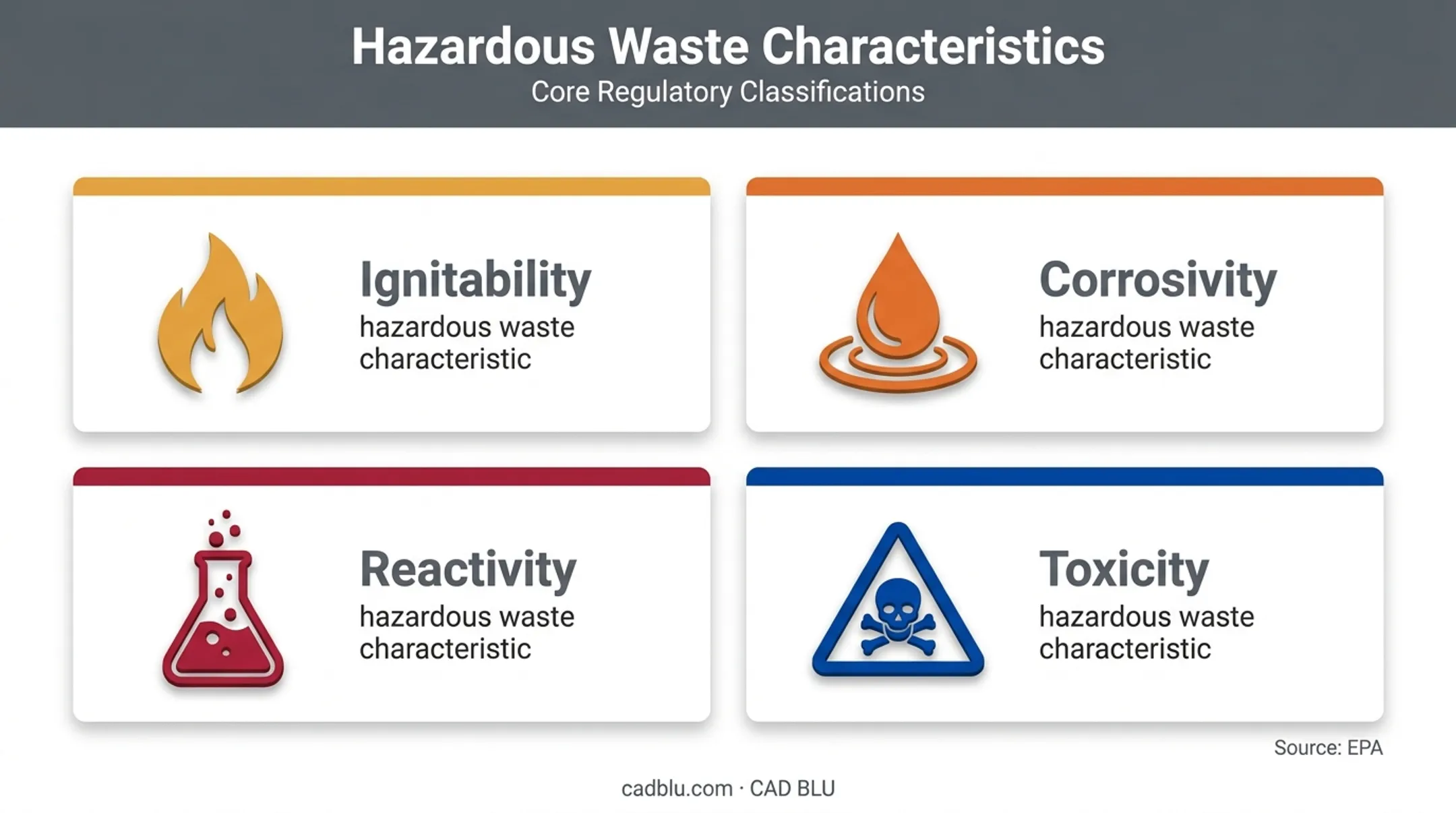

The EPA identifies four characteristics that classify hazardous waste: ignitability, corrosivity, reactivity, and toxicity. Don't assume cured resin is automatically exempt. Verify against your state and local waste authority.
Storage
Store resin in sealed, original containers, upright, away from direct sunlight and ignition sources. Most manufacturers recommend a cool, stable temperature range (commonly cited around 50–77°F) and clear labeling for every container.
Common UV Resin Printing Problems and Quality-Control Checks
Most resin failures trace back to one of a handful of root causes. Here's how to diagnose them quickly.
| Symptom | Likely cause | Fix |
|---|---|---|
| Failed supports or detached prints | Under-exposure, poor plate leveling, weak support density | Recalibrate exposure, re-level the plate, increase support density |
| Layer separation | Contaminated vat film, long print pauses, debris on optics | Filter resin, clean optics, inspect vat film |
| Sticky or tacky surface | Insufficient washing, wrong cure time, contaminated wash solvent | Refresh solvent, follow resin-specific cure settings |
| Brittle or cracked parts | Overcuring, wrong resin for the application | Adjust cure time, reconsider resin category |
| Warping | Under-support, prolonged soaking, uneven cooling | Support stress points adequately, dry fully before cure |
Hollow Prints Need Real Drainage
Hollow parts trap uncured liquid resin if drainage holes are missing or too small. That trapped resin cures unevenly and can crack or deform the part later.
Flush narrow internal channels with a syringe during washing if gravity alone won't clear them.
A Working QC Routine
- Inspect surfaces for defects or incomplete features
- Verify dimensions against the CAD model
- Test fit on assemblies and snap-fits
- Run application-specific mechanical tests when required
Change one variable at a time. If you adjust exposure, support density, and post-cure time simultaneously, you won't know which change actually fixed — or caused — the problem. Document each test print's settings and results before moving to the next adjustment.
Frequently Asked Questions
Which UV resin is best for 3D printing?
There's no single best resin; it depends on your printer, light source, and the part's requirements. Model resins deliver detail, tough resins handle stress, and castable or biocompatible resins serve specific applications like jewelry or dental work.
Is SLA or DLP better for resin 3D printing?
SLA uses a laser to trace each layer point by point, while DLP projects the entire layer at once, generally making it faster. Overall print quality still depends on the complete printer-and-resin system, not the technology alone.
Is UV resin better than epoxy resin?
UV resin is designed for light-cured 3D printing, while epoxy is a two-part, chemically cured material typically used for coating, bonding, or larger pours. Neither is universally better; they serve different purposes.
Can UV resin be used in 3D printing?
Yes, compatible UV photopolymer resin is the primary material for SLA, DLP, and MSLA printers. Generic UV craft resin should not be assumed to work in a 3D printer without verifying compatibility first.
Can you cure 3D print resin with UV light?
Yes. Printed parts are typically post-cured using a compatible UV curing station or another manufacturer-approved light source. Exposure time and temperature should follow that specific resin's instructions.
Why shouldn't you touch UV resin?
Uncured resin can irritate skin and, with repeated exposure, cause sensitization. Avoid direct contact, wear suitable chemical-resistant gloves, wash per the SDS if exposed, and seek medical guidance if symptoms persist.
