This is where water-soluble support filaments offer a breakthrough. Designed for dual-extrusion 3D printing, materials like PVA and BVOH are printed alongside your primary model material and simply dissolve away in water. This guide provides a practical look at how to choose, print, and process these materials effectively. We’ll cover material compatibility, printer setup, storage, and troubleshooting to help you decide when soluble supports are worth the investment in time and material for a perfect finish.
Key Takeaways
- Water-soluble support filaments are printed with a model material and removed by soaking the finished part in water, eliminating manual post-processing.
- PVA is a common choice for PLA prints, while BVOH can offer broader compatibility and faster dissolution, depending on the specific product.
- Success requires a dual-extrusion or multi-material printer, careful slicer settings, precise nozzle alignment, and properly dried filament.
- Soluble supports are most valuable for parts with complex geometries, internal cavities, delicate details, or critical surfaces where manual removal would cause damage.
What Are Water-Soluble Support Filaments?
Water-soluble support filaments are specialized materials used in FDM/FFF 3D printing that dissolve when placed in a liquid, typically tap water. Unlike standard breakaway supports that you must manually cut, snap, or sand off, these materials allow for hands-free removal. This distinction is critical for achieving clean surfaces and producing geometries that would otherwise be impossible.
In any FDM print, supports act as temporary scaffolding. They provide a foundation for features that can’t be built on thin air, such as:
- Steep overhangs
- Long bridges
- Curved undersides
- Enclosed or internal channels
The basic workflow involves a dual-material printer. One extruder prints the final part using a standard filament (like PLA), while the second extruder prints the support structure using a soluble filament. In many cases, you can configure your slicer to use the soluble material only for the crucial interface layers—the very top of the support that touches the bottom of your model—to save on cost.
Water-soluble materials like PVA (polyvinyl alcohol) and BVOH (butenediol vinyl alcohol copolymer) differ from solvent-soluble options like HIPS (high-impact polystyrene). HIPS is often paired with ABS but dissolves in limonene, a chemical solvent that needs specific safety precautions and disposal methods. Water-soluble filaments offer a simpler, safer alternative.
"Water-soluble" does not mean universal compatibility. Always verify the filament manufacturer’s compatibility chart. Success depends on matching print temperatures for your model and support materials, understanding dissolution conditions, and following proper disposal guidance.
They deliver cleaner removal and greater design freedom, with clear trade-offs:
- Higher material cost
- Longer print times from tool changes
- Extreme moisture sensitivity
Which Water-Soluble Filament Should You Use?
Choosing the right soluble support depends on your primary model material, printer capabilities, and application needs. PVA and BVOH are the most common choices, but advanced options exist for engineering-grade polymers.
PVA (Polyvinyl Alcohol)
PVA is the most established water-soluble support material and is frequently paired with PLA. Overlapping print-temperature ranges make them a reliable combination on many dual-extrusion printers.
PVA dissolves completely in plain tap water, which simplifies post-processing on detailed models and parts with enclosed features where mechanical removal is impractical.
BVOH (Butenediol Vinyl Alcohol Copolymer)
BVOH is a newer water-soluble support that improves on PVA in several ways. BVOH often dissolves faster than PVA and pairs with a wider material set, including PETG, TPU, and ABS—though results still vary by brand.
The tradeoffs are stricter moisture control and a higher price point than standard PVA.
PVA vs. BVOH: A Quick Comparison
| Feature | PVA (Polyvinyl Alcohol) | BVOH (Butenediol Vinyl Alcohol Copolymer) |
|---|---|---|
| Common Pairings | PLA, PETG, TPU, Nylon (brand-dependent) | PLA, PETG, ABS, PA, TPU (broader, brand-dependent) |
| Moisture Sensitivity | High; requires dry storage | Very high; requires strict moisture control |
| Printability | Can be prone to stringing and clogging | Often prints more cleanly with less stringing |
| Dissolution Speed | Moderate; can take several hours | Generally faster than PVA (brand-dependent) |
| Cost | Baseline cost for soluble supports | Typically more expensive than PVA |
| Ideal Use Cases | Complex PLA models, non-critical geometries | Demanding geometries, multi-material prints |

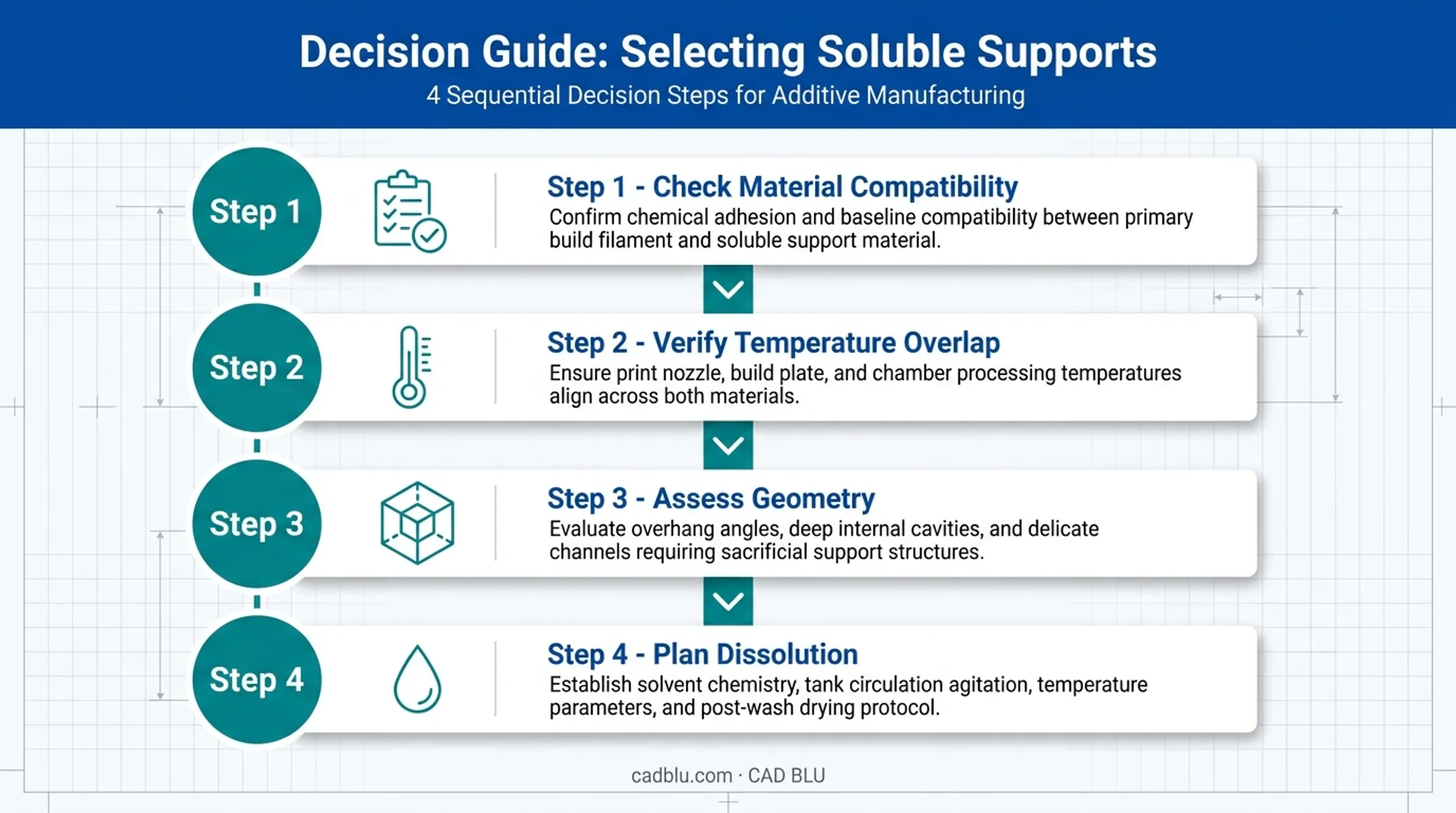

Selecting the Right Support
To make the right choice, work through this checklist:
- Check material compatibility: Use the manufacturer’s chart for both your model material and the support filament.
- Verify temperature overlap: Confirm your printer can hold the required nozzle and bed temperatures for both materials at once.
- Assess geometry: Open, simple supports may be faster with breakaway material; internal channels or delicate features need soluble supports.
- Plan dissolution: Confirm you have space for a water bath and can use warm water when you need faster cleanup.
For those working with high-temperature engineering materials like Nylon, PC, or PEI, standard PVA and BVOH will not work. Specialized supports like AquaSys 120 are designed to withstand higher chamber temperatures and print alongside these technical polymers.
If you are locking in a commercial printer and material strategy, the right pairing up front prevents failed prints and wasted filament. The team at CAD BLU can help you match printers, soluble supports, and software into a validated workflow for your applications.
How to 3D Print and Remove Water-Soluble Supports
A successful print with soluble supports depends on careful preparation, precise slicer settings, and a controlled post-processing workflow.
Pre-Print Checklist
Before you start, confirm a few key items:
- Dual extrusion: Use a reliable dual-extrusion or tool-changing system—two materials in one nozzle usually clog.
- Material compatibility: Confirm model and support filaments are compatible and that you have the correct print profile.
- Nozzle alignment: Calibrate X, Y, and Z nozzle offsets precisely; slight misalignment causes poor adhesion or gaps.
- Dry filament: Load filament that has been dried and stored correctly—PVA and BVOH fail when they absorb moisture.
Slicer Preparation
In your slicer software (like Ultimaker Cura or PrusaSlicer), you'll need to configure settings to manage the two materials.
- Assign Materials: Assign your model material to one extruder and the soluble filament to the other.
- Select Support Type: Set the soluble filament to be used for support structures. To save material, you can often set it to print only the "support interface"—the layers that directly touch your model.
- Use a purge strategy: Enable a prime tower, wipe tower, or ooze shield so the new nozzle can purge ooze and stabilize pressure after each tool change, which limits cross-contamination and blobs.
The Importance of Dry Filament
Even with solid slicer settings, wet filament can still ruin the job. PVA and BVOH are highly hygroscopic and pull moisture from the air. Printing wet filament causes nozzle popping as water turns to steam, plus brittle parts, weak layer adhesion, stringing, and clogs.
Always dry your filament per the manufacturer's instructions—do not rely on universal settings. For example, Polymaker recommends drying its PolyDissolve S1 PVA at 80°C for 12 hours. Store soluble filaments in an airtight container with desiccant.

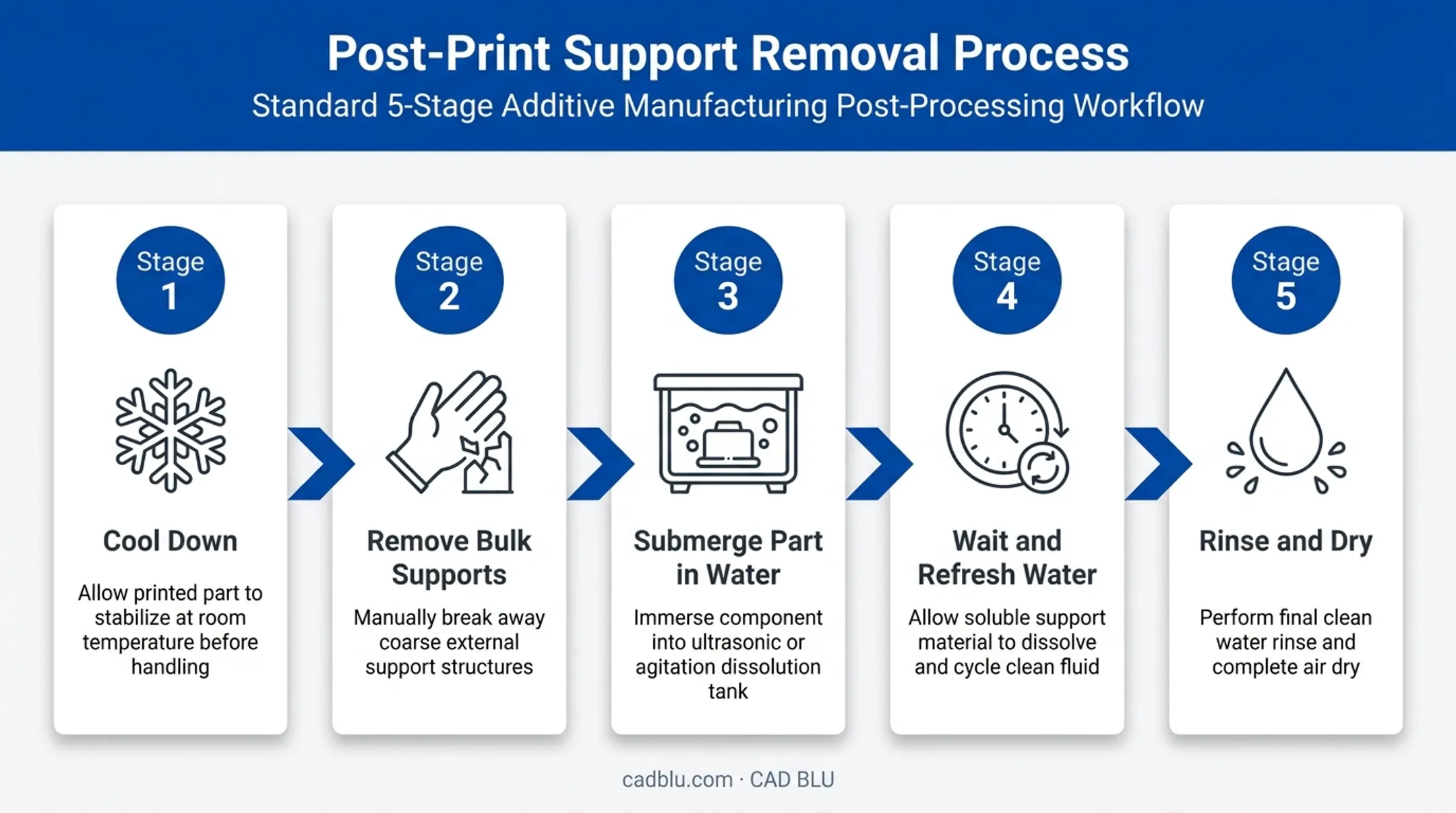

Post-Print Dissolution Workflow
Once the print is finished, follow these steps for clean removal:
- Cool Down: Let the part cool completely on the build plate.
- Remove Bulk Supports: If there are large, easily accessible sections of the support structure, you can gently break them away by hand to speed up dissolution. Be careful not to damage the part.
- Submerge the Part: Place the part in a container of clean, room-temperature tap water. For faster results, use warm water and agitation (like a magnetic stirrer), but only if your model material can tolerate the heat without warping.
- Wait and Refresh: Dissolution time depends on the volume of support material, water temperature, and circulation. It can range from a few hours to overnight. Refreshing the water periodically helps as it becomes saturated.
- Rinse and Dry: Once the support is gone, rinse the part with clean water to remove any residue and let it dry completely.
Advantages, Limitations, and Best Applications
Soluble supports take more setup and process control than breakaway supports, but they enable geometries and finishes breakaway methods cannot deliver cleanly.
Key Advantages

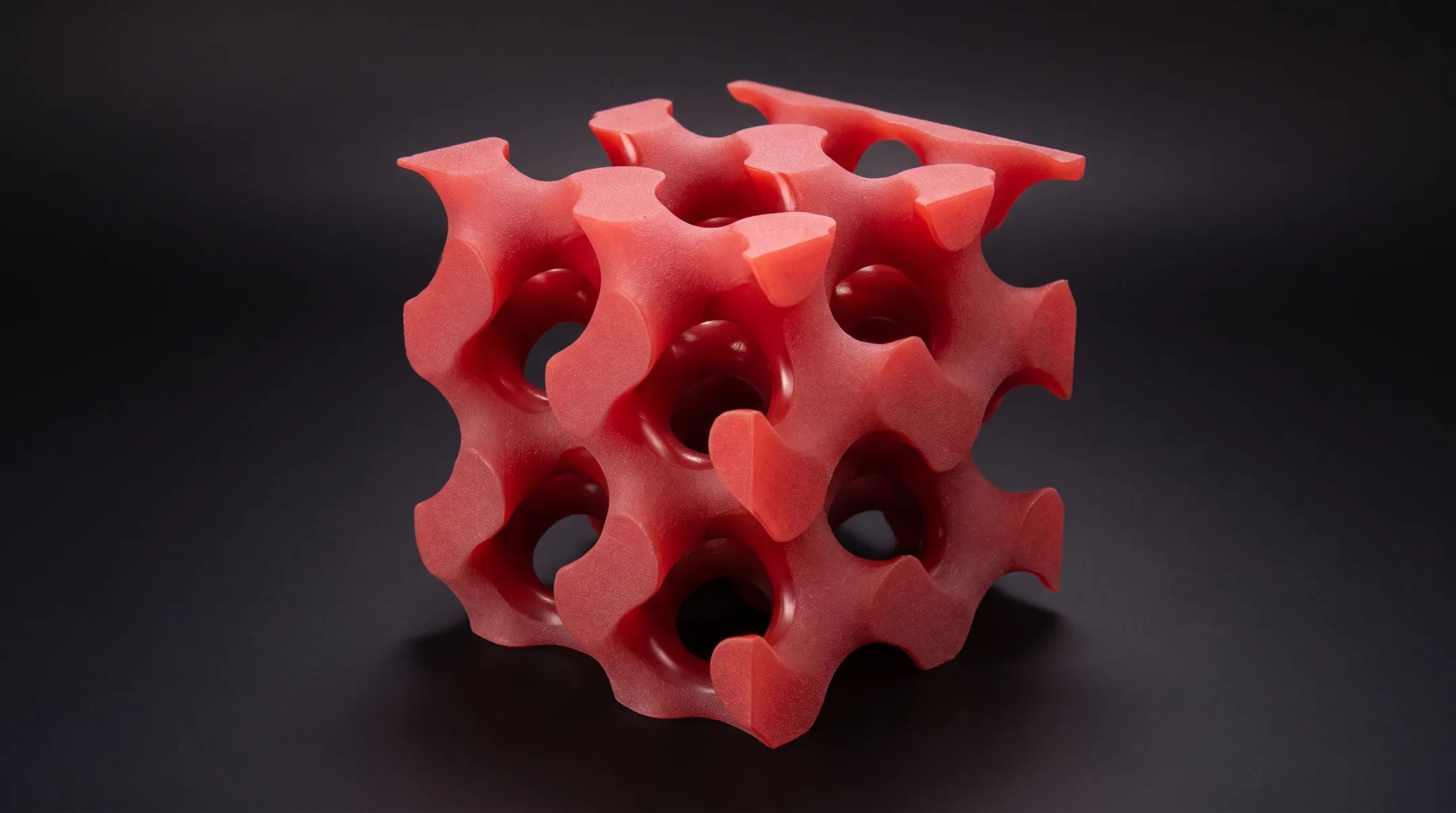

- Print complex internal geometries, interlocking parts, and fully assembled mechanisms—including mold inserts with conformal cooling channels—without planning manual support access
- Leave smooth, clean support-facing surfaces with no tool scars, which matters for aesthetic prototypes and end-use parts
- Protect delicate or thin-walled models that often break during manual support removal
Strong Use Cases
Soluble supports are the best choice for:
- Models with deep, inaccessible internal channels or cavities.
- Intricate designs like jewelry patterns or architectural models.
- Functional assemblies with moving or interlocking components.
- Medical or dental models with complex organic shapes.
- Any part where the support-facing surface is visually or functionally important.
Limitations to Consider
The benefits come with trade-offs:
- Soluble filaments cost more than standard materials like PLA or PETG
- Tool changes and prime towers add time to each dual-extrusion job
- Filament needs strict drying and sealed storage to avoid print failures
- A well-calibrated dual-extrusion printer is required
- Dissolving supports is hands-off but can add hours or a full day before parts are ready
Decision rule: use soluble supports when geometric complexity, removal access, or surface quality matters more than print time and material cost. For simple parts with easy support access, breakaway material is usually the better call.
| Choose soluble supports when... | Choose breakaway supports when... |
|---|---|
| Internal channels or cavities are hard to reach | Supports sit on open, tool-accessible faces |
| Support-facing finish is cosmetic or functional | Minor surface marks are acceptable |
| Parts are delicate, thin-walled, or interlocking | Geometry is simple and sturdy enough to clean by hand |
| Extra filament cost and dissolve time are acceptable | Speed and consumable cost are the priority |

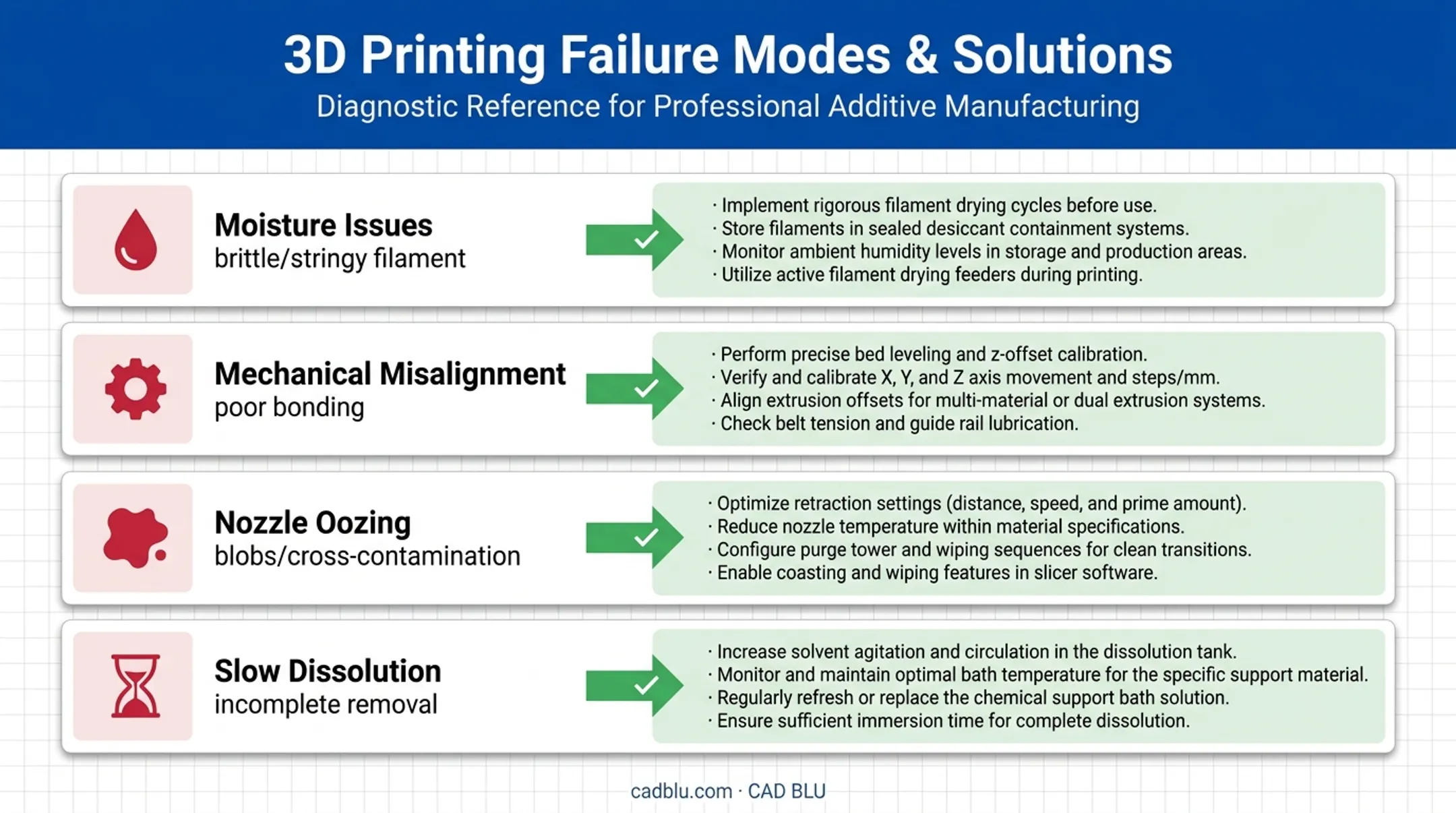

Troubleshooting and Optimization Tips
Water-soluble supports usually fail in a few repeatable ways: moisture uptake, mechanical misalignment, nozzle oozing, and slow dissolution. Use the fixes below to isolate the cause and recover the print.
Brittle Filament, Popping, or Stringing
This is almost always a moisture issue. If your soluble filament is bubbling at the nozzle, is excessively stringy, or feels brittle, it has absorbed too much water.
- Dry the spool immediately at the manufacturer’s recommended temperature and duration
- Store the filament in a sealed container with fresh desiccant packs
Poor Bonding or Misaligned Layers
If the support structure separates from the model or layers are misaligned, the issue is likely mechanical or related to slicer settings.
- Re-calibrate dual-nozzle offset on X, Y, and Z
- Inspect the gantry for misalignment
- Confirm first-layer adhesion and enough model-to-support perimeter overlap in the slicer
Blobs and Cross-Contamination
If you see specks of the support material in your model (or vice-versa), it’s due to oozing during tool changes.
- Enlarge the prime/wipe tower so the nozzle fully purges before each new layer
- Tune retraction settings to limit stringing during tool changes
- Lower the idle nozzle temperature to reduce oozing
Incomplete or Slow Dissolution
If the support isn't dissolving properly, check your post-processing environment.
- Confirm the correct medium (tap water for PVA/BVOH)
- Raise water temperature within the model material’s limits
- Add agitation with a stirrer or ultrasonic cleaner
- Allow extra soak time when supports sit in narrow passages
Print Optimization Checklist
- Keep soluble spools dry between jobs—moisture drives most brittle, stringy, and popping failures
- Size the wipe tower for full purges on dual-extrusion tool changes
- Match support density to geometry: lighter on open areas, denser under delicate overhangs
- Plan dissolution access so water can reach trapped support regions
Safety and Maintenance
- Follow the filament and printer manufacturer’s handling instructions
- Handle hot water carefully during dissolution
- Check local regulations or product guidance before draining dissolved material
- Fully dry finished parts before testing mechanical properties
Frequently Asked Questions
What are water-soluble 3D printing supports?
They are support structures printed from materials like PVA or BVOH that dissolve in water. This allows for easy, damage-free removal from parts with complex geometries, internal cavities, or delicate features.
Is PVA a good support for PLA?
Yes. PVA is a standard support material for PLA. The two share compatible print temperatures, and a well-calibrated dual-extrusion printer can produce excellent results.
Can water-soluble supports be used with any 3D printer?
No, they require a 3D printer with dual-extrusion or multi-material capabilities. You also need a slicer that can manage tool changes and a printer that is precisely calibrated to ensure proper alignment between the two materials.
How long does it take for PVA supports to dissolve?
The time varies significantly, from a few hours to overnight. It depends on the total volume of support material, the part's geometry, water temperature, and whether the water is agitated. Always check the filament manufacturer's guidance.
How do you store water-soluble 3D printing filament?
Store it in a sealed, airtight container or a dedicated dry box with active desiccant. These materials are highly hygroscopic and will absorb moisture from the air, which ruins print quality.
Are water-soluble supports better than regular supports?
For inaccessible supports, intricate details, or critical surface finish, soluble supports are superior. For simple geometries, conventional breakaway supports are often faster and more cost-effective.
